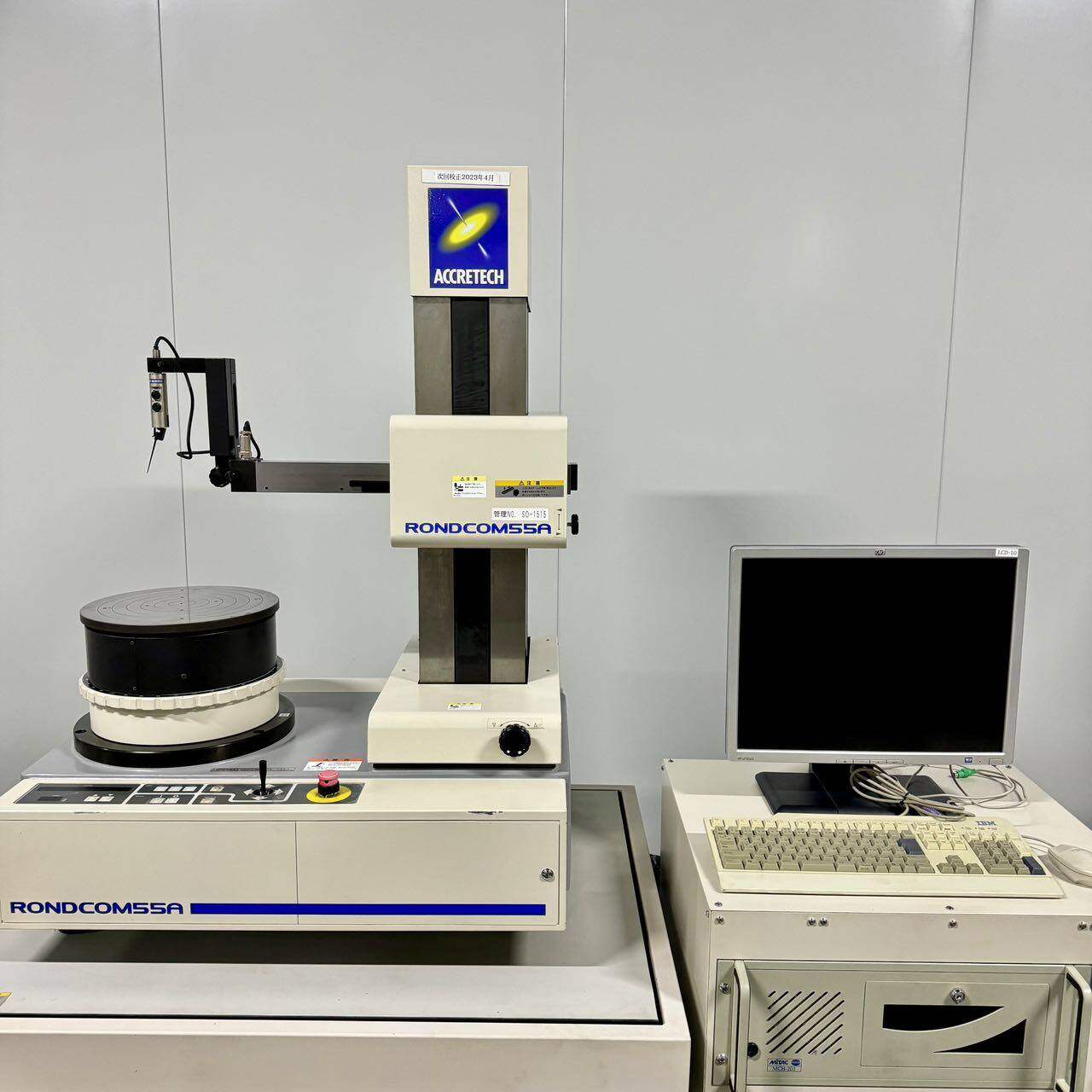

Tokyo Seimitsu Roundness and Cylindricity Measuring Instrument
No.: 00478
Tokyo Seimitsu Roundness Measuring Instrument
RONDCOM 55A
Maximum Measuring Diameter: 350mm
Left and Right Travel Range (R-axis): 191mm
Vertical Travel Range (Z-axis): 350mm
Maximum Loading Diameter: 600mm
Maximum Measuring Height: Outer diameter 350mm (675mm for roundness and concentricity measurement), Inner diameter 350mm
Rotational Accuracy Maximum Deviation of Least Squares Circle: (0.01+3H/1000)μm
Vertical (Z-axis) Straightness Accuracy: 0.15μm/100mm, 0.3μm/350mm
Radial Direction (R-axis): 1μm/100mm
Vertical (Z-axis) Parallelism Accuracy: 1.5μm/350mm
Rotational Speed (W-axis) Measurement: 2-10/min
Calibration Speed: 6, 10, 20/min
Vertical Speed (Z-axis) Measuring Speed: 0.6-6.0mm/s
Traversing Speed: 0.6-30.0mm/s
Radial Speed (R-axis) Measuring Speed: 0.6-6.0mm/s
Traversing Speed: 0.6-15mm/s
Positioning Accuracy: Z-axis ±5μm, R-axis ±5μm
Table Loading Outer Diameter: 290mm
Centering Adjustment Range: ±5mm (Automatic)
Tilt Adjustment Range: ±10° (Automatic)
Load Capacity: 60kg (Available for measurement and centering adjustment)
Sensor Measuring Force: 30~100mN
Machine Dimensions: 2000(W)*950(D)*1950(H)mm
Machine Weight: 500KG
Product parameters shall be subject to the actual machine.
