Tokyo Seimitsu Roundness and Cylindricity Measuring Instrument
No.: 00499

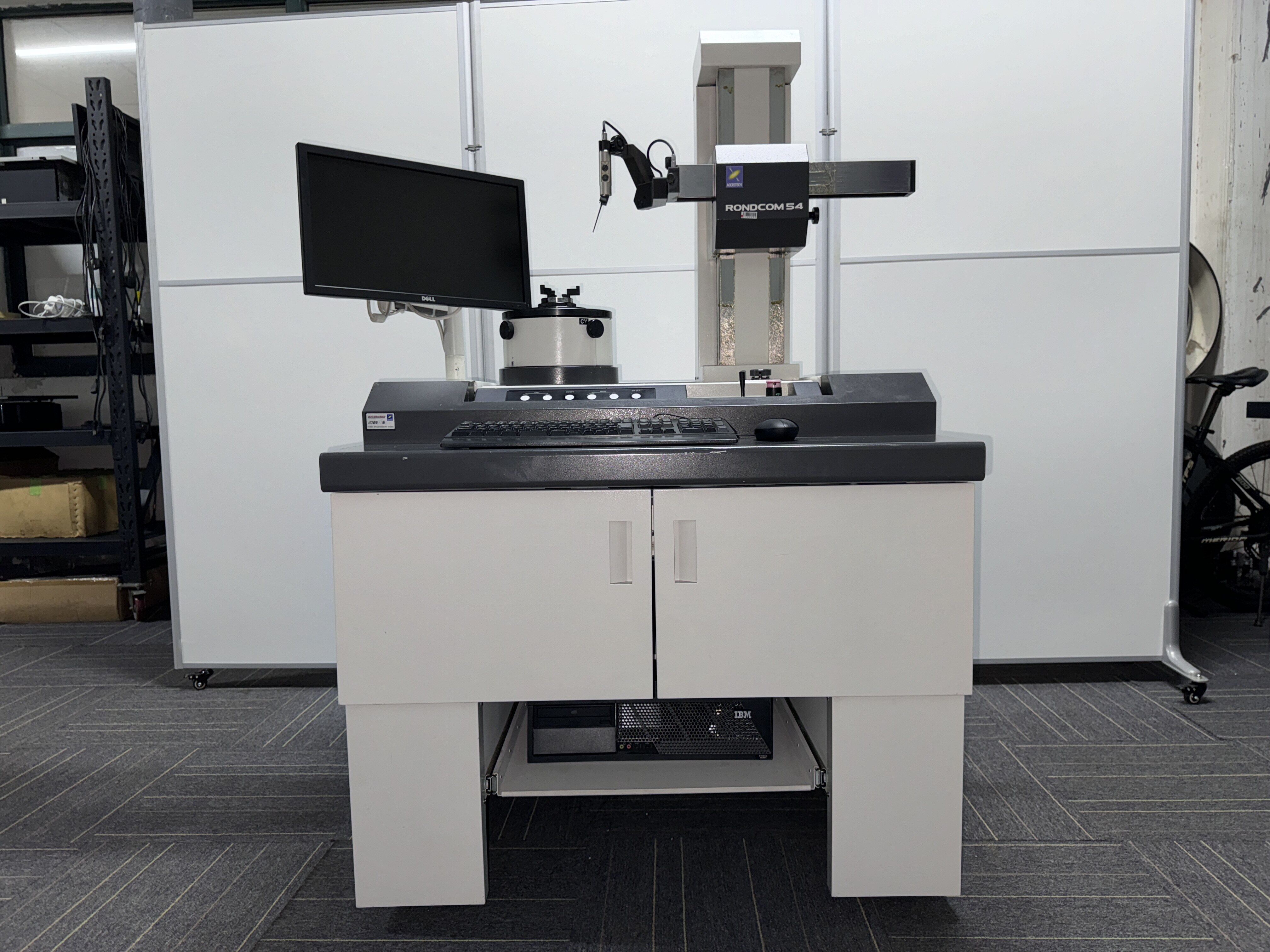

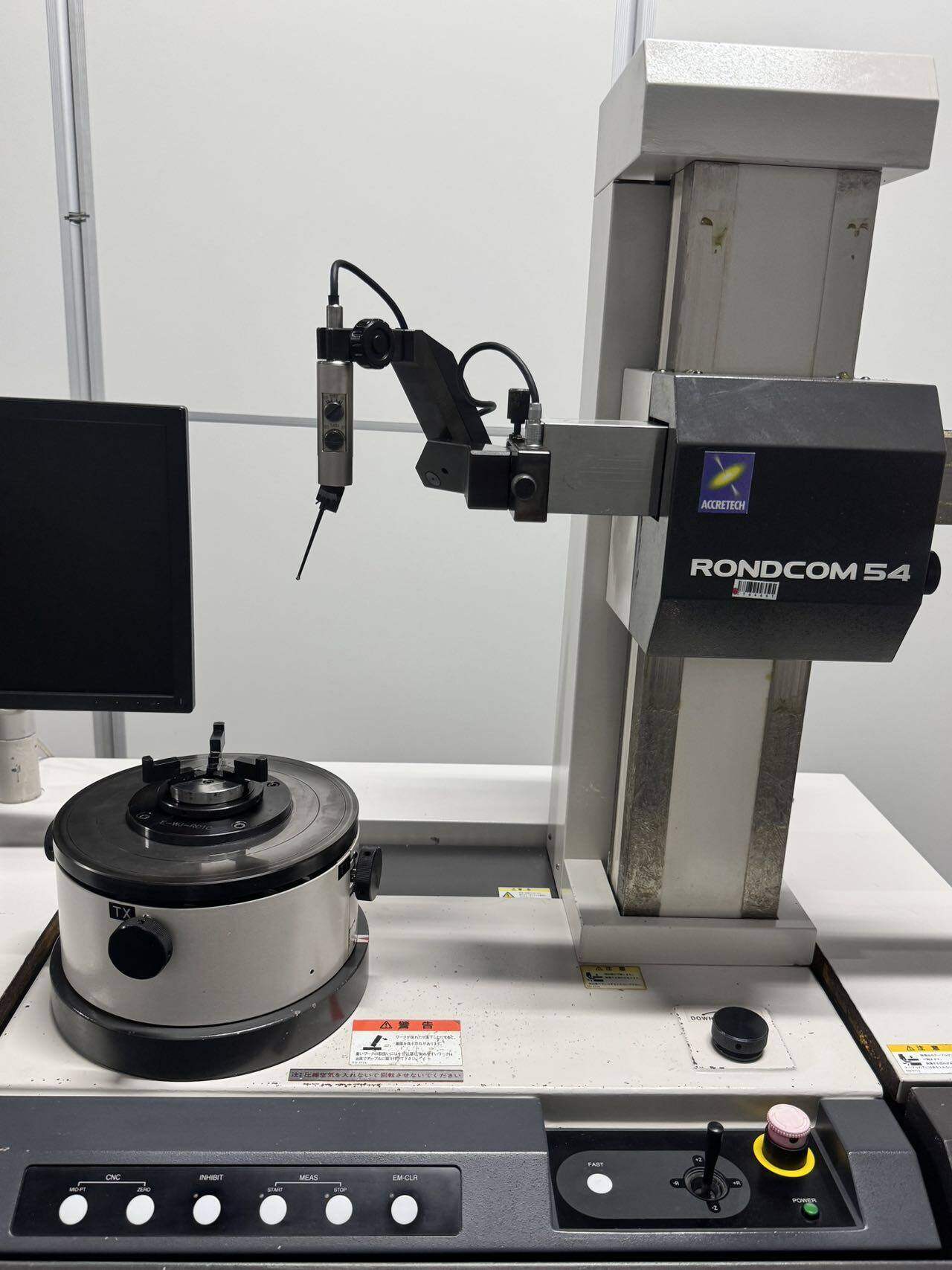

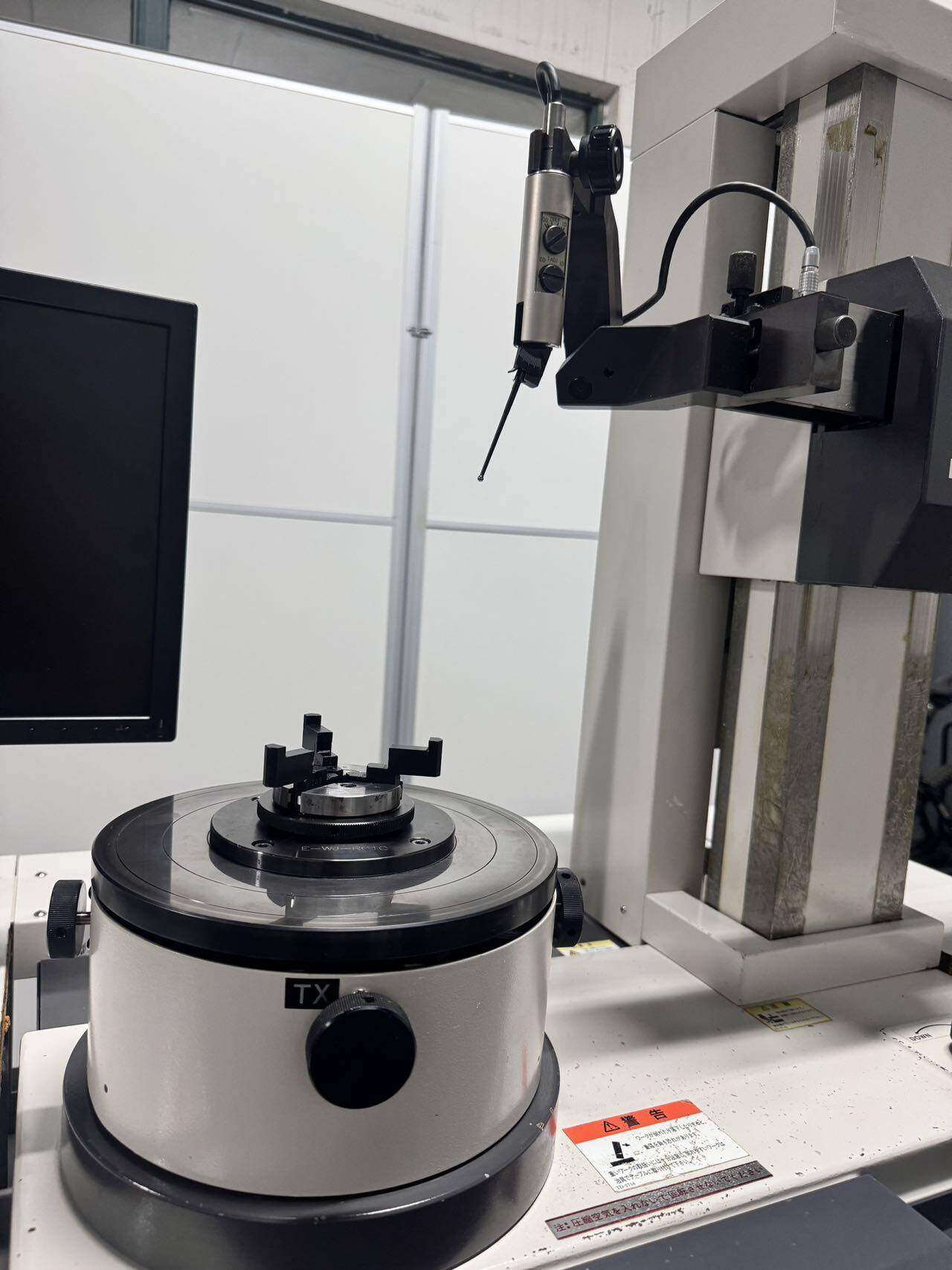

Tokyo Seimitsu Roundness Measuring Instrument
RONDCOM 54DX
Maximum Measuring Diameter: Φ300mm
Left-Right Travel Range (R-axis): 170mm
Vertical Travel Range (Z-axis): 300mm (High Column: 500mm)
Maximum Loading Diameter: Φ580mm
Maximum Measured Outer Diameter Height: 300mm (High Column: 500mm)
Rotational Accuracy: 0.02+4H/10000μm
(H: Height from table surface to measuring point)
Axial Accuracy: 0.02+4H/10000μm
(H: Distance from rotation center to measuring point)
Z-axis (Vertical) Straightness: 0.12μm/100mm, 0.20μm/290mm (High Column: 0.28μm/490mm)
R-axis (Radius) Straightness: 0.8μm/150mm
Z-axis (Vertical) Parallelism: 0.8μm/290mm (High Column: 1.18μm/490mm)
R-axis (Radius) Parallelism: 1.0μm/150mm
R-axis (Radius) Indication Accuracy: (2+L/170)μm L: Measuring Length
Rotational Speed (Spindle) During Measurement: 2-10 rpm
During Automatic Centering and Tilt Adjustment: 2, 4, 6, 10, 20 rpm
Z-axis Measuring Speed (Moving Speed): 0.5-6mm/s (Max 50mm/s)
R-axis Measuring Speed (Moving Speed): 0.5-6mm/s (Max 25mm/s)
Automatic Stop Accuracy Z-axis/R-axis: ±5μm

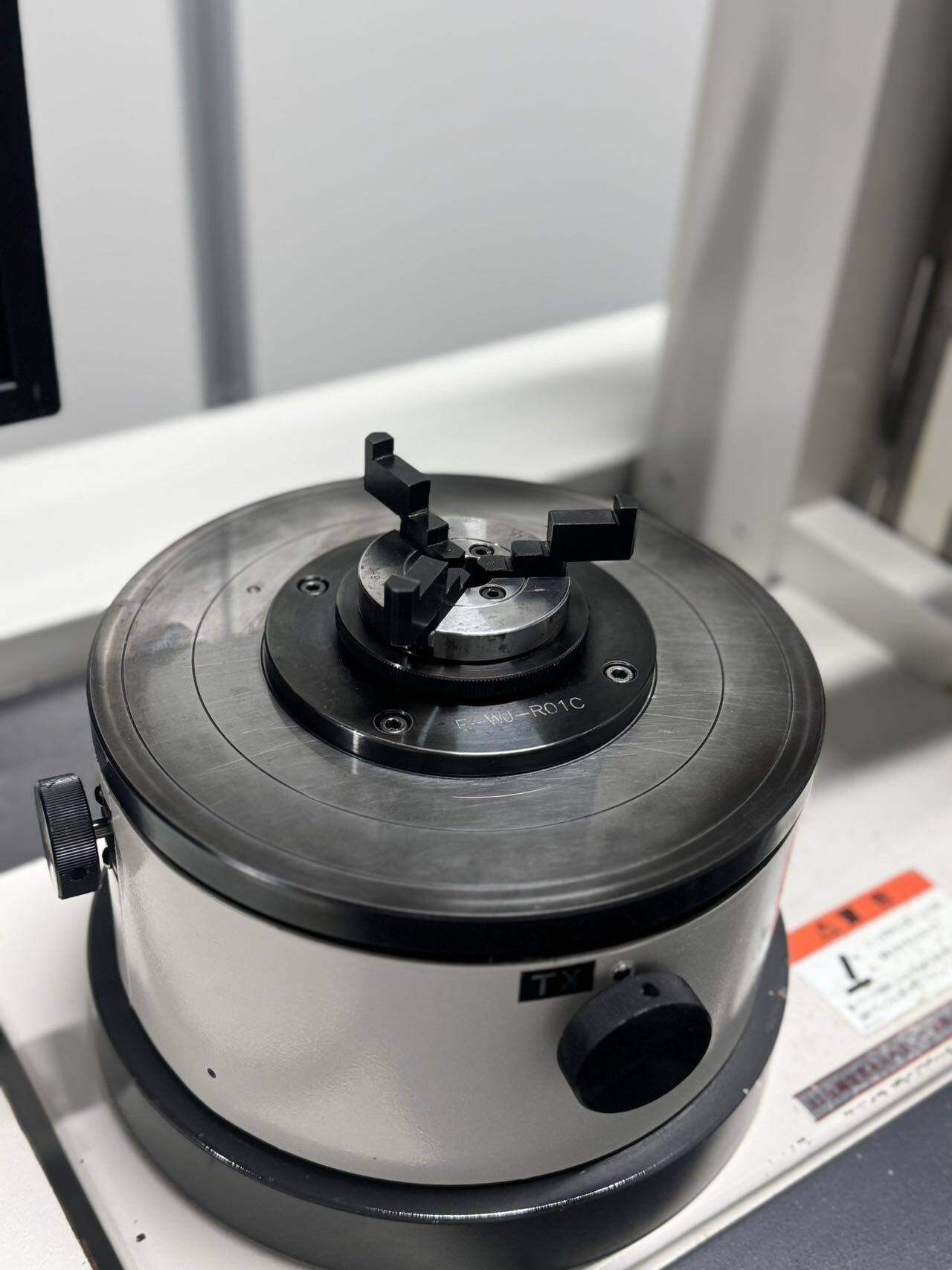

Rotary Table Outer Diameter: Φ220mm
Adjustment Range / Center Tilt: ±2mm/±1°
Load Capacity: 30kg
Sensor Measuring Force: 30-100mN (Adjustable)

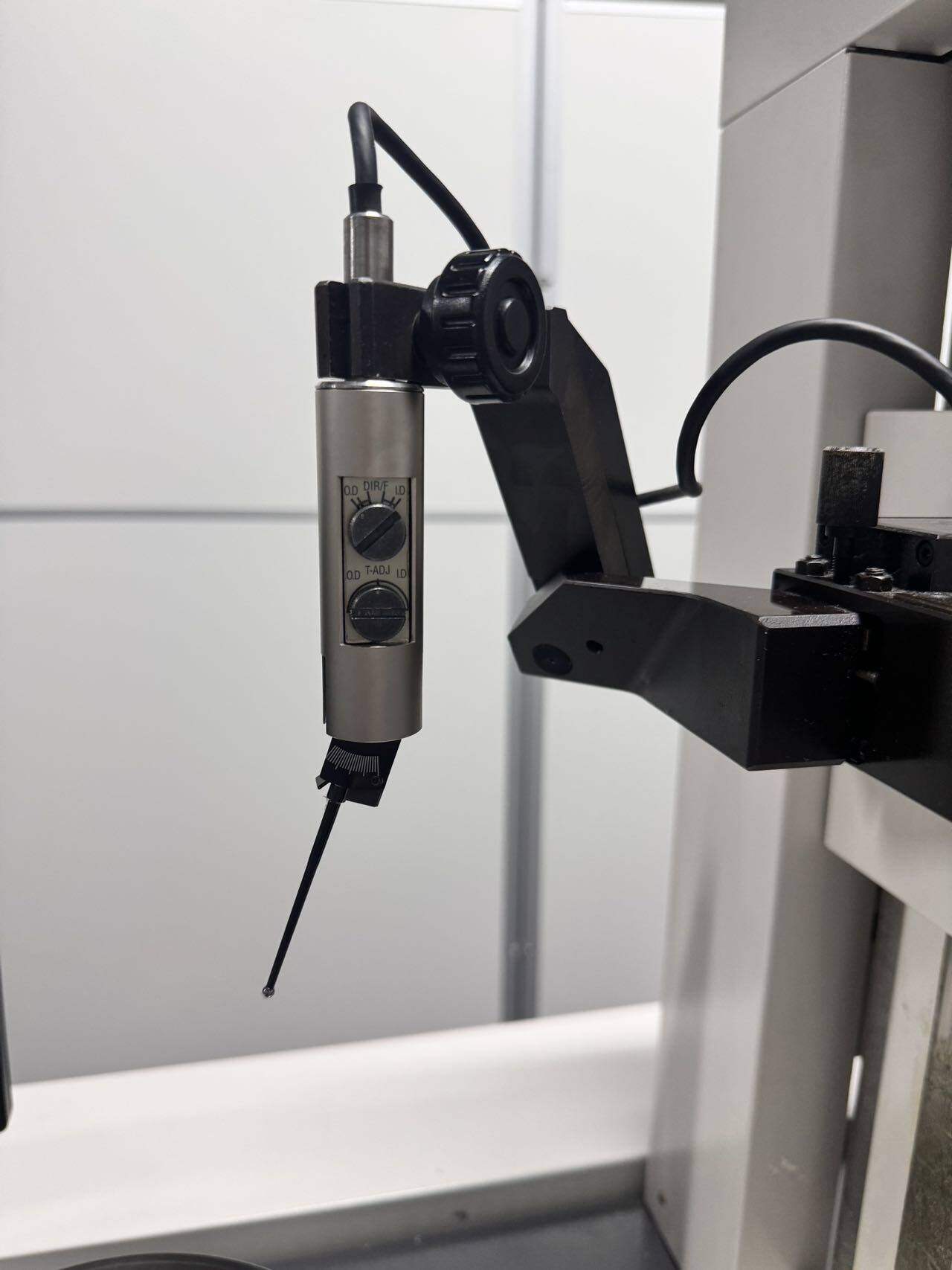

Stylus Shape & Material: Φ1.6 Steel Ball, Length 53mm
Overall Dimensions: 1500(W)*925(D)*1600(H)mm
Machine Weight: 500KG
Product parameters shall be subject to the actual machine.
