Pengukur kekerasan Tokyo Jepun
No.: 00530
Resolusi menegak: 0.005 μm (5 nm)
Rangkaian pengukuran paksi X: 200mm
Ketepatan linear: (0.05 + 1.5L / 1000) μm
- Category：ACCRETECH
- Share：
- Inquiry
- Details

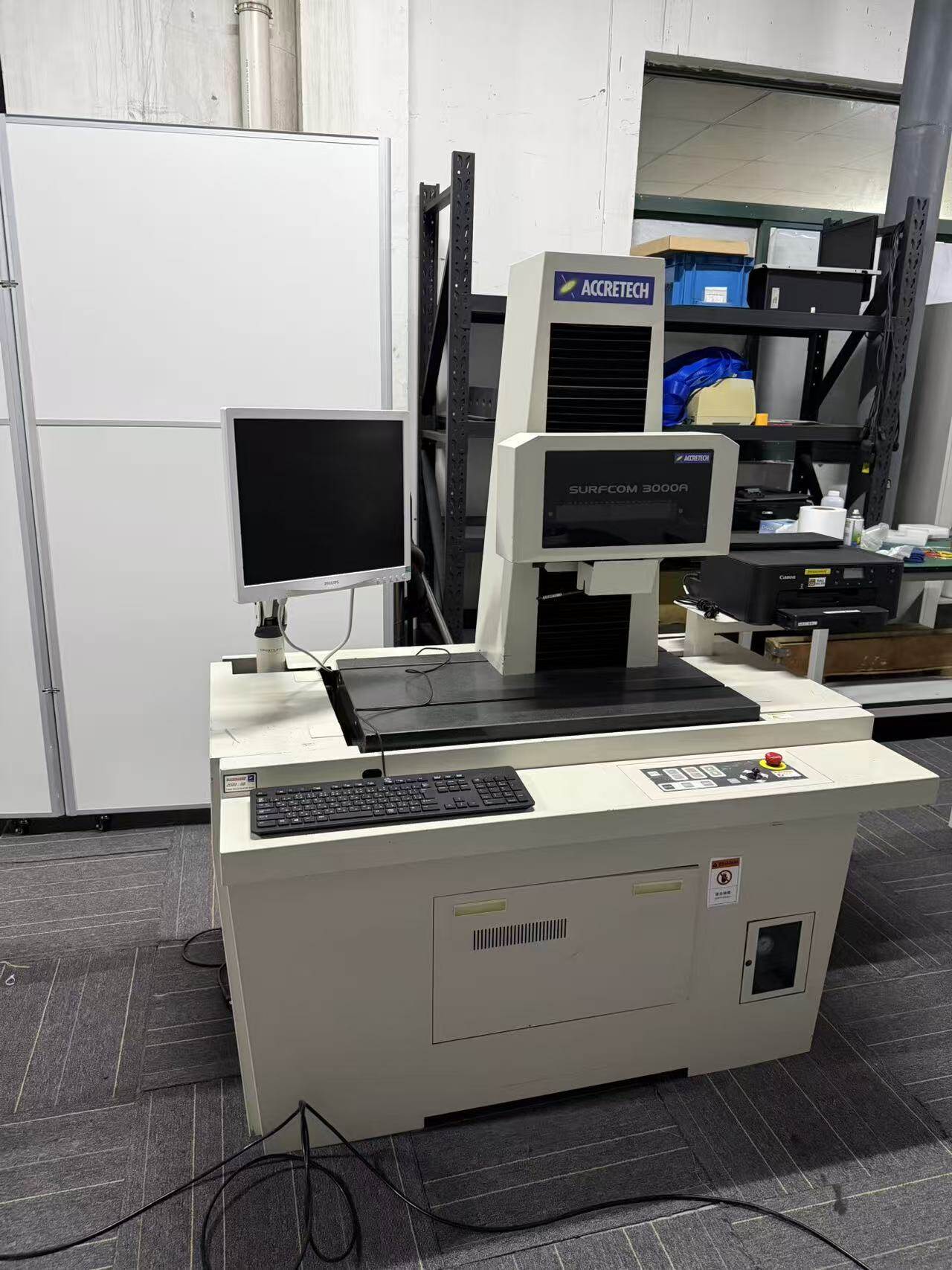

SURFCOM 3000A
Pengukuran kasaran permukaan + analisis bentuk kontur
Resolusi menegak: 0.005 μm (5 nm)
Nisbah Julat Dinamik: 2,400,000:1
Paksi Z (menegak): standard dengan 12 mm (lengan pengukuran 50mm)
Pilihan 24 mm (dengan lengan pengukuran 100mm)
Rangkaian pengukuran paksi X: 200mm
Berat meja kerja: 10kg
Ketepatan linear: (0.05 + 1.5L / 1000) μm
Menegak ke atas dan ke bawah bergerak Z, X paksi: 3.1mm / s, 0.02mm / s
Pengukuran kecenderungan: sudut kecenderungan maksimum 45 °
Berat mekanikal: 350kg
Saiz mekanikal: 2100 * 900 * 1650mm
