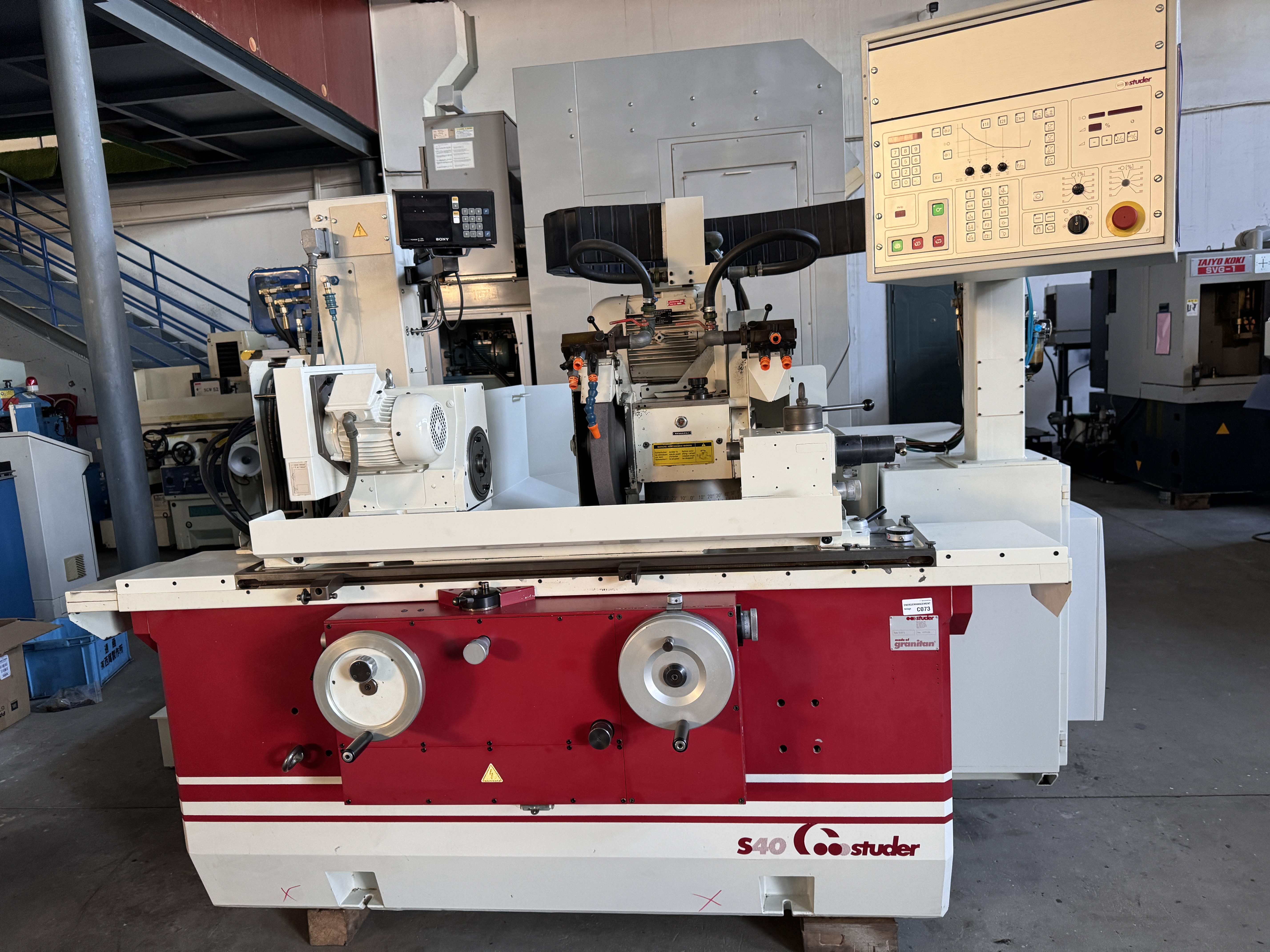

Swiss Studer Internal and External Cylindrical Grinding Machine
No.: 00493
Studer Internal and External Cylindrical Grinding Machine
S40-2
Compound Grinding Design with 3 Grinding Heads
Equipped with B-axis and Micro-feed Function
Center Height: 125mm
Center Distance: 650mm
Grinding Diameter: 250mm
Grinding Length: 650mm
Grinding Wheel Size: 400*80*127mm
Grinding Wheel Speed: 1670 / 2210rpm
Internal Grinding Wheel Speed: 45000rpm
Worktable Inclination: 8.5°
Workhead: Morse Taper 5
Wheel Head Indexing Range: 0 - 180°
Tailstock: Morse Taper 3
Voltage: Three-phase 380V
Weight: 4000KG
Machine Dimensions: 2735*1740*1700mm
Product parameters shall be subject to the actual machine.
