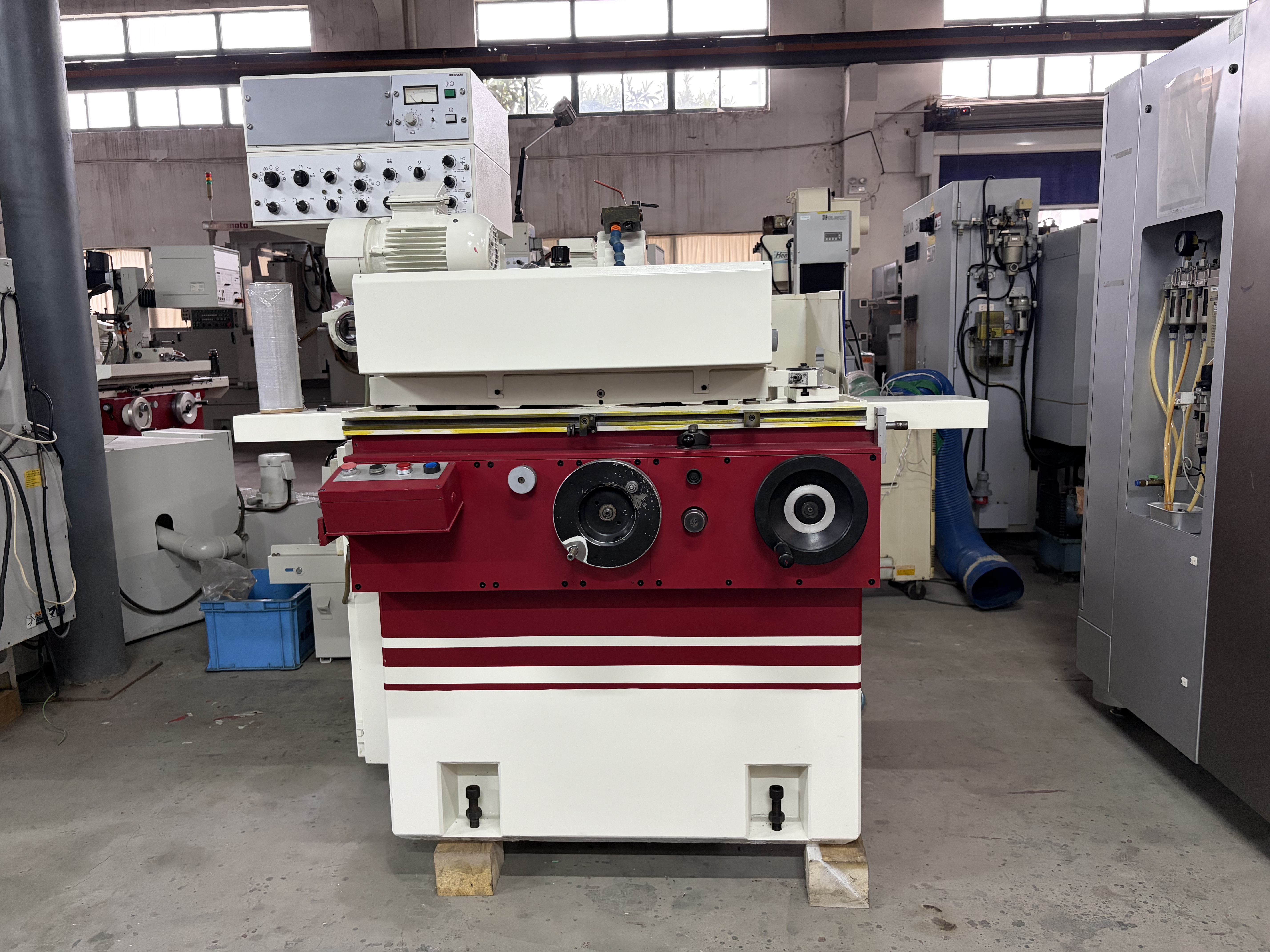

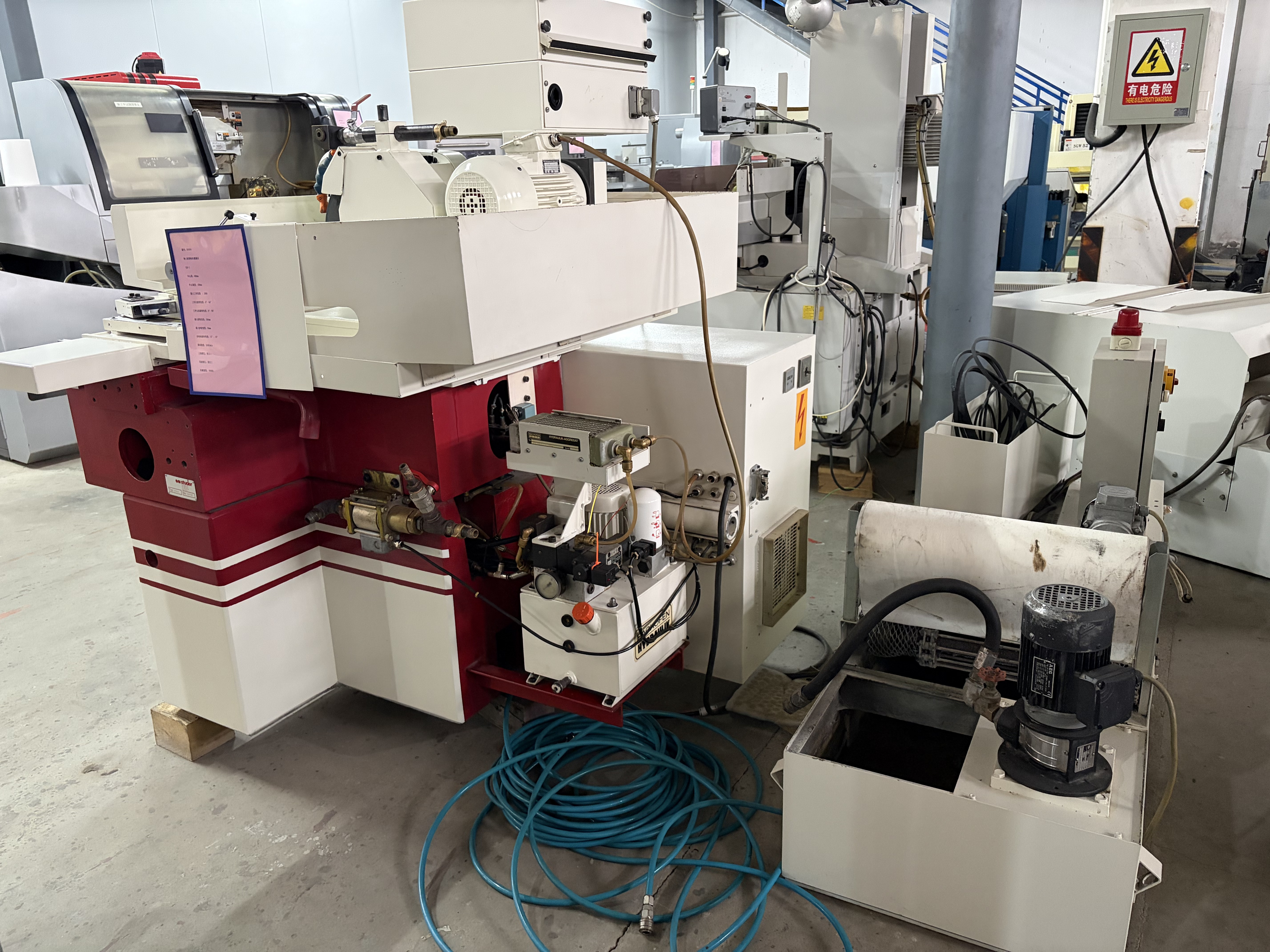

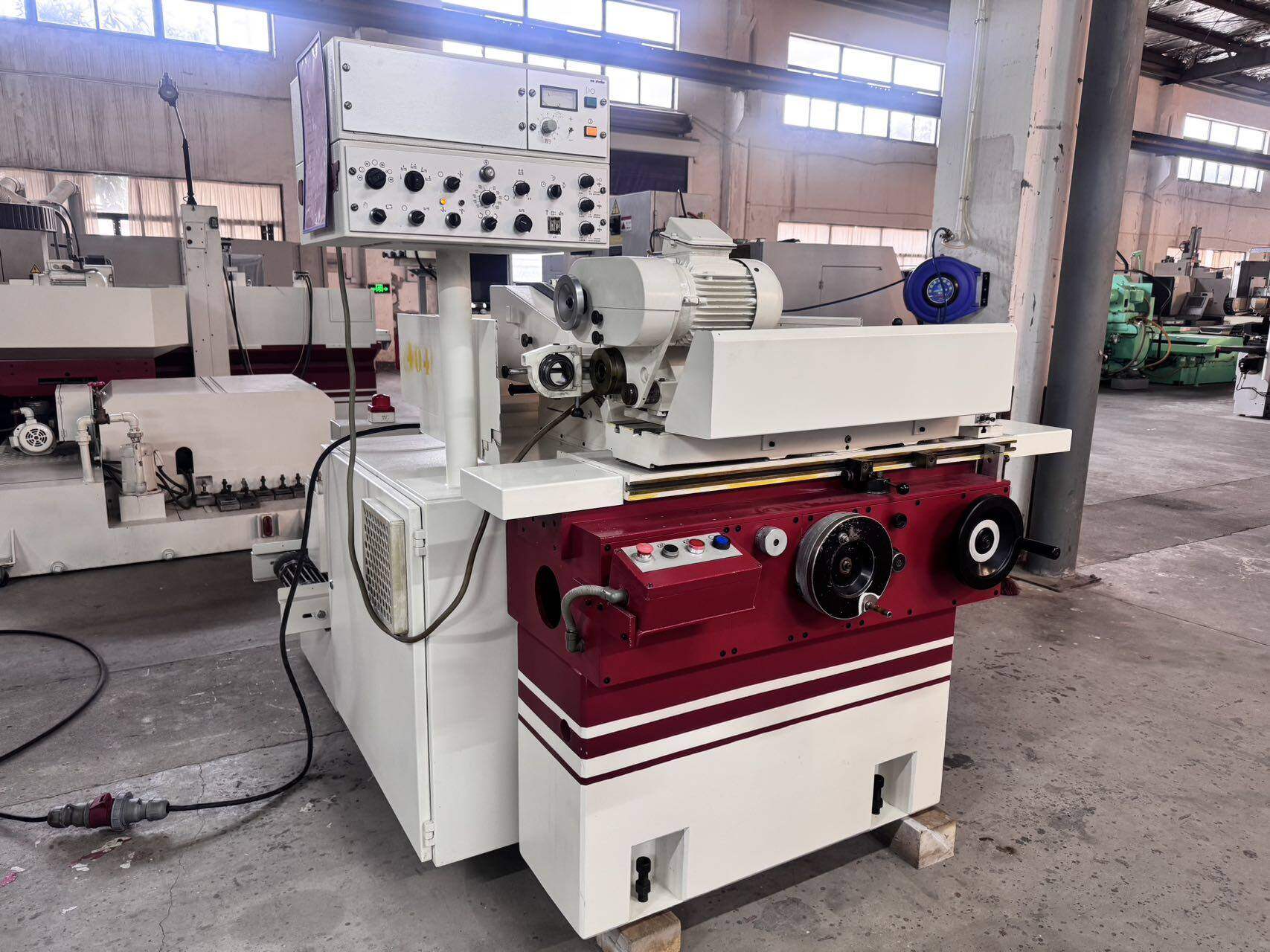

Swiss Studer Cylindrical Grinder
No.: 00494
Studer Cylindrical Grinding Machine
Model: S20-2
Center Distance: 400mm
Center Height: 100mm
Maximum Workpiece Weight: 20KG
Table Rotation Angle: 0°-30°
Workhead Rotation Angle: 0°-90°
Maximum Grinding Wheel Diameter: 350mm
Maximum Grinding Wheel Width: 50mm
Grinding Wheel Spindle Rotation Angle: 15° and 30°
Maximum Speed: 1640/min
Spindle Taper Bore: Morse 4
Tailstock Taper Bore: Morse 2
Machine Weight: 1600KG
Machine Dimensions: 1500*1400*1400mm
Product parameters shall be subject to the actual machine.
- Category：STUDER
- Share：
- Inquiry
- Details
No.: 00494
Studer Cylindrical Grinding Machine
Model: S20-2
Center Distance: 400mm
Center Height: 100mm
Maximum Workpiece Weight: 20KG
Table Rotation Angle: 0°-30°
Workhead Rotation Angle: 0°-90°
Maximum Grinding Wheel Diameter: 350mm
Maximum Grinding Wheel Width: 50mm
Grinding Wheel Spindle Rotation Angle: 15° and 30°
Maximum Speed: 1640/min
Spindle Taper Bore: Morse 4
Tailstock Taper Bore: Morse 2
Machine Weight: 1600KG
Machine Dimensions: 1500*1400*1400mm
Product parameters shall be subject to the actual machine.
