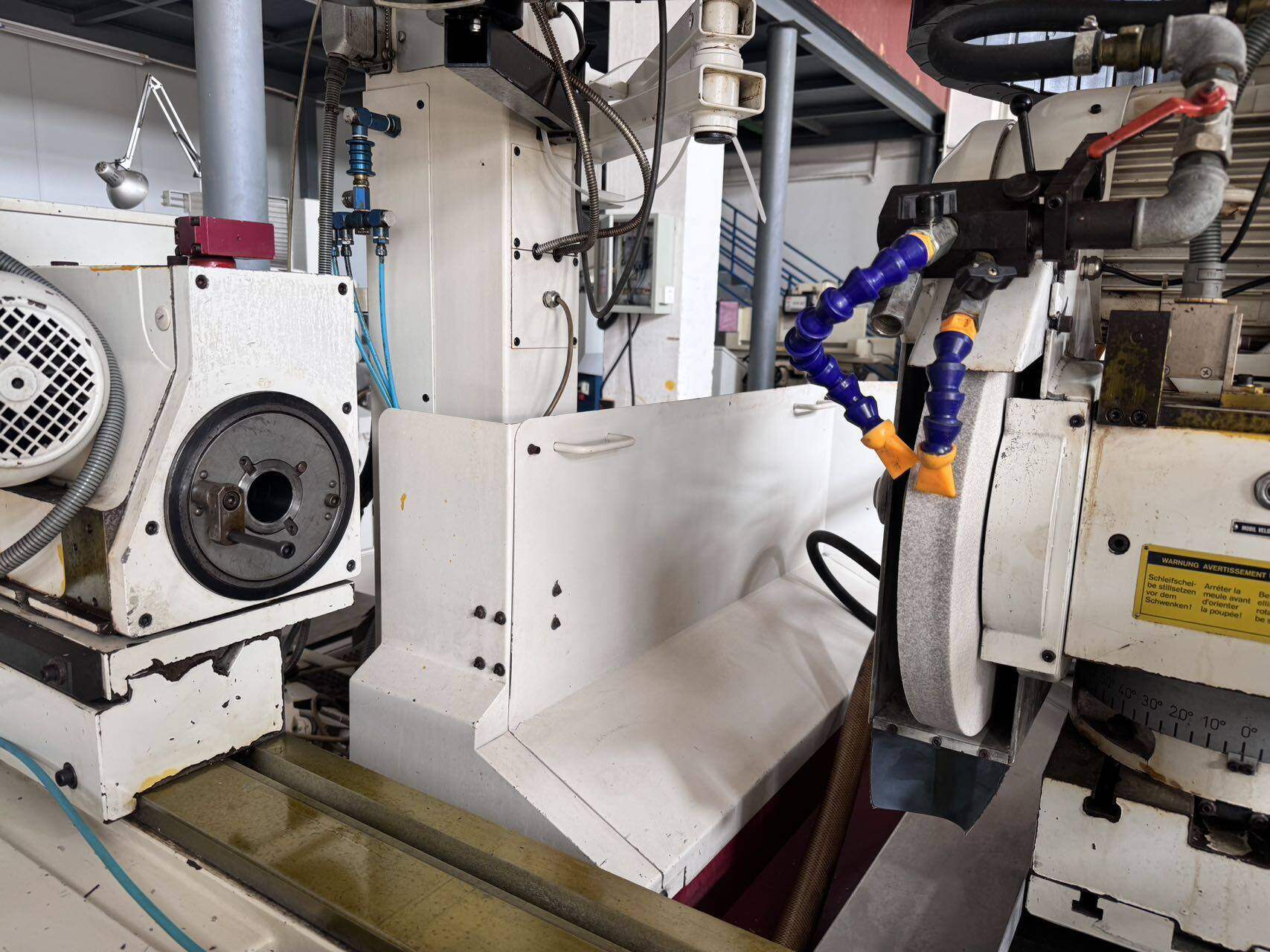

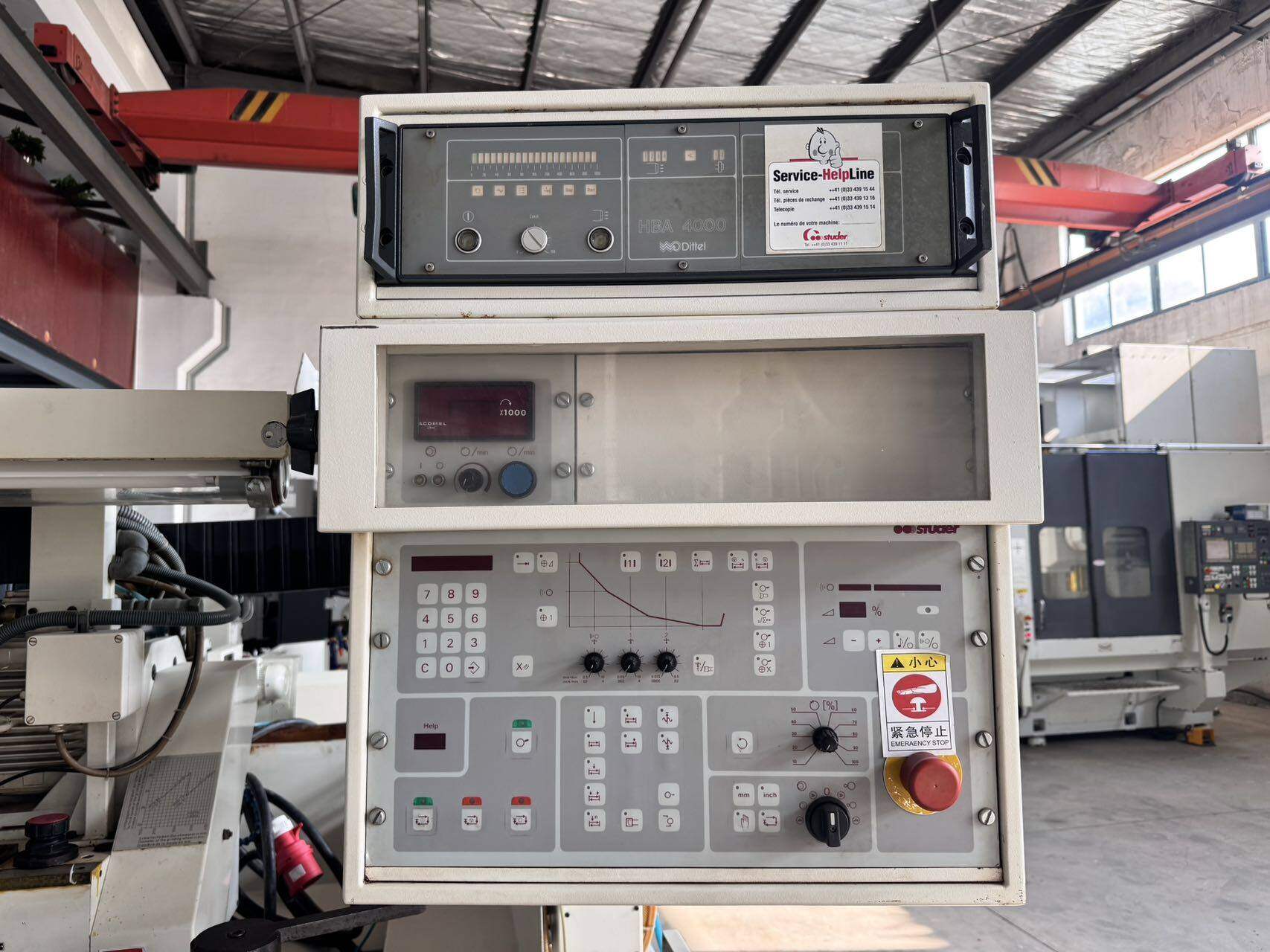

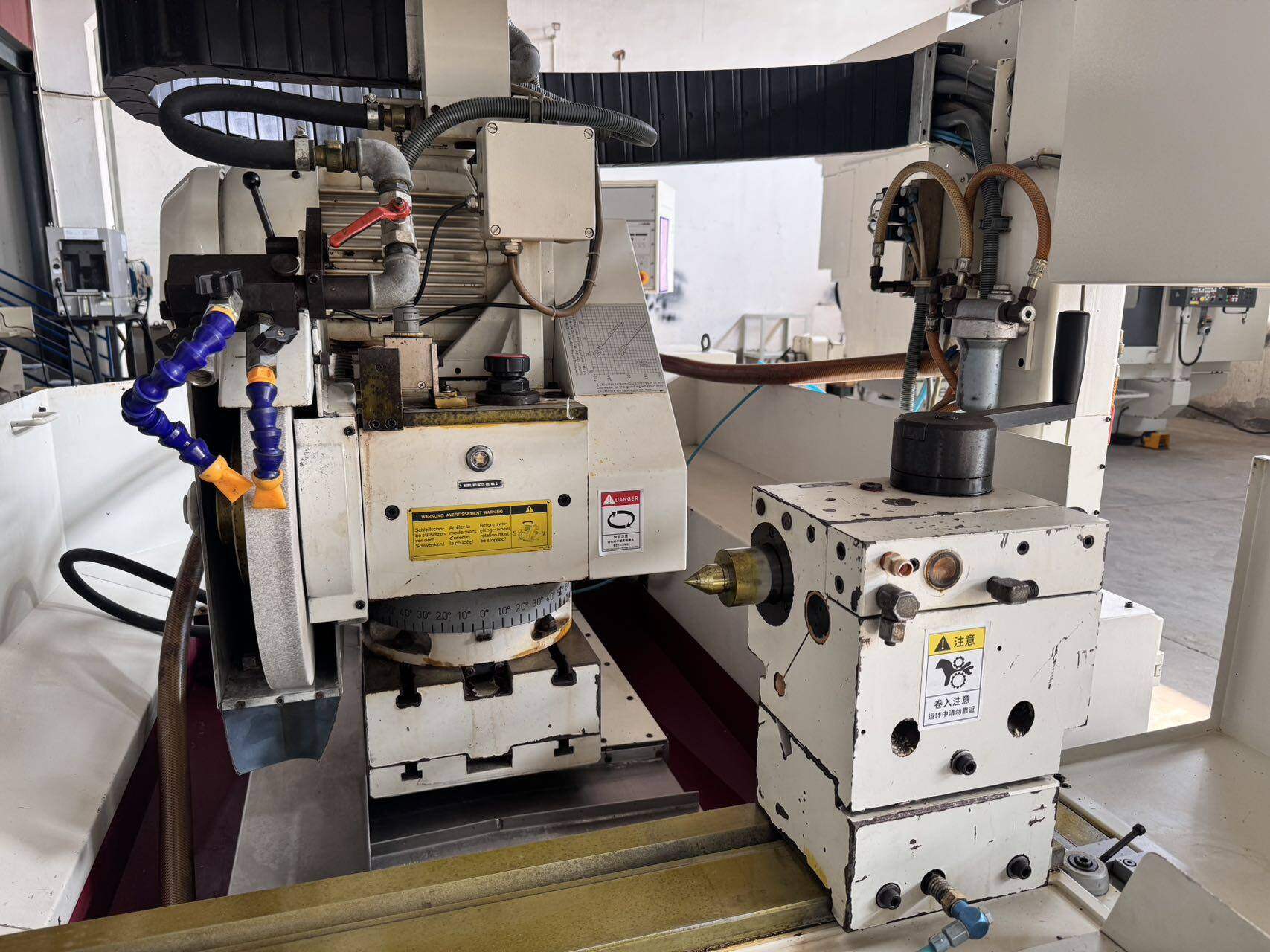

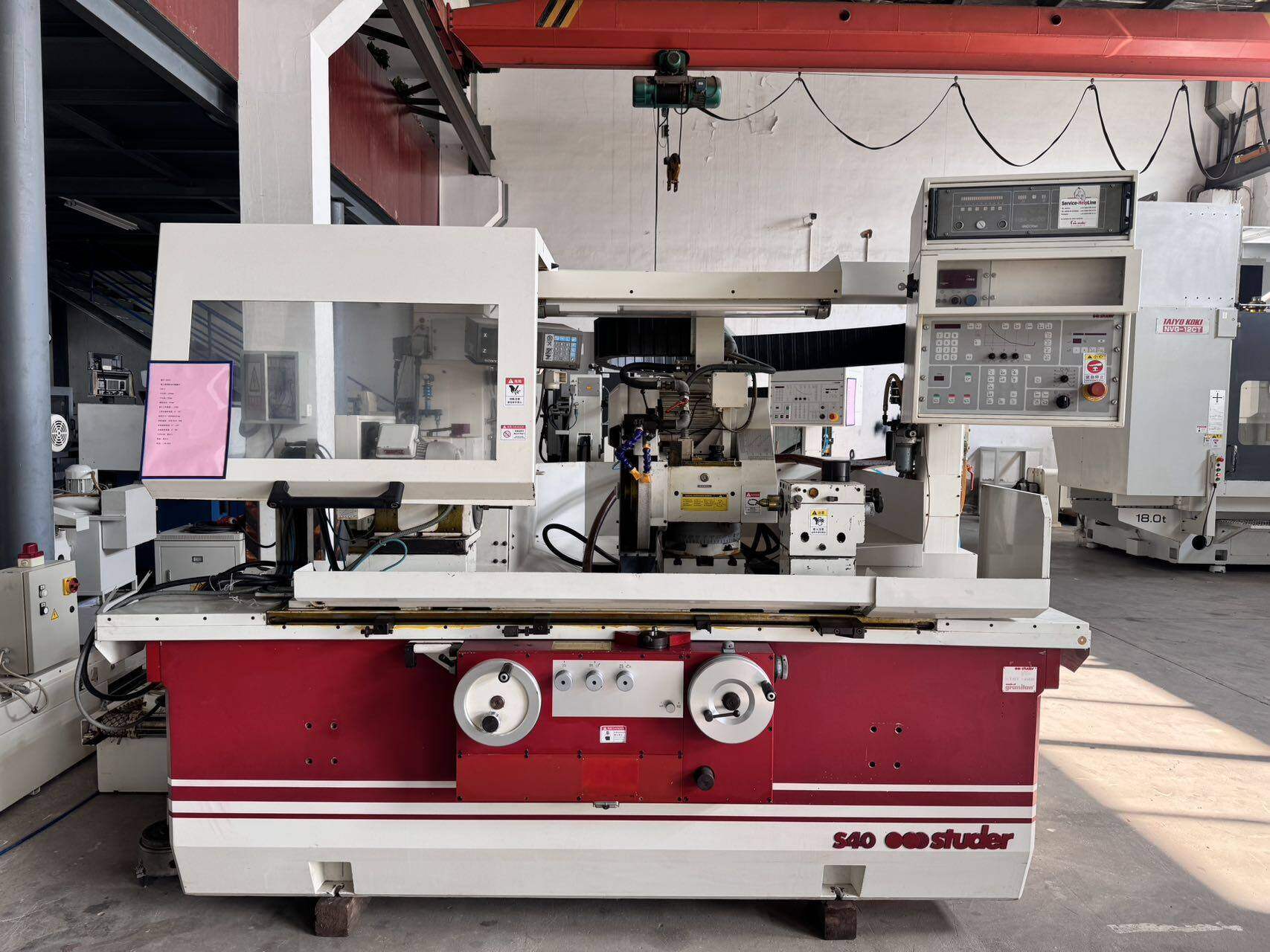

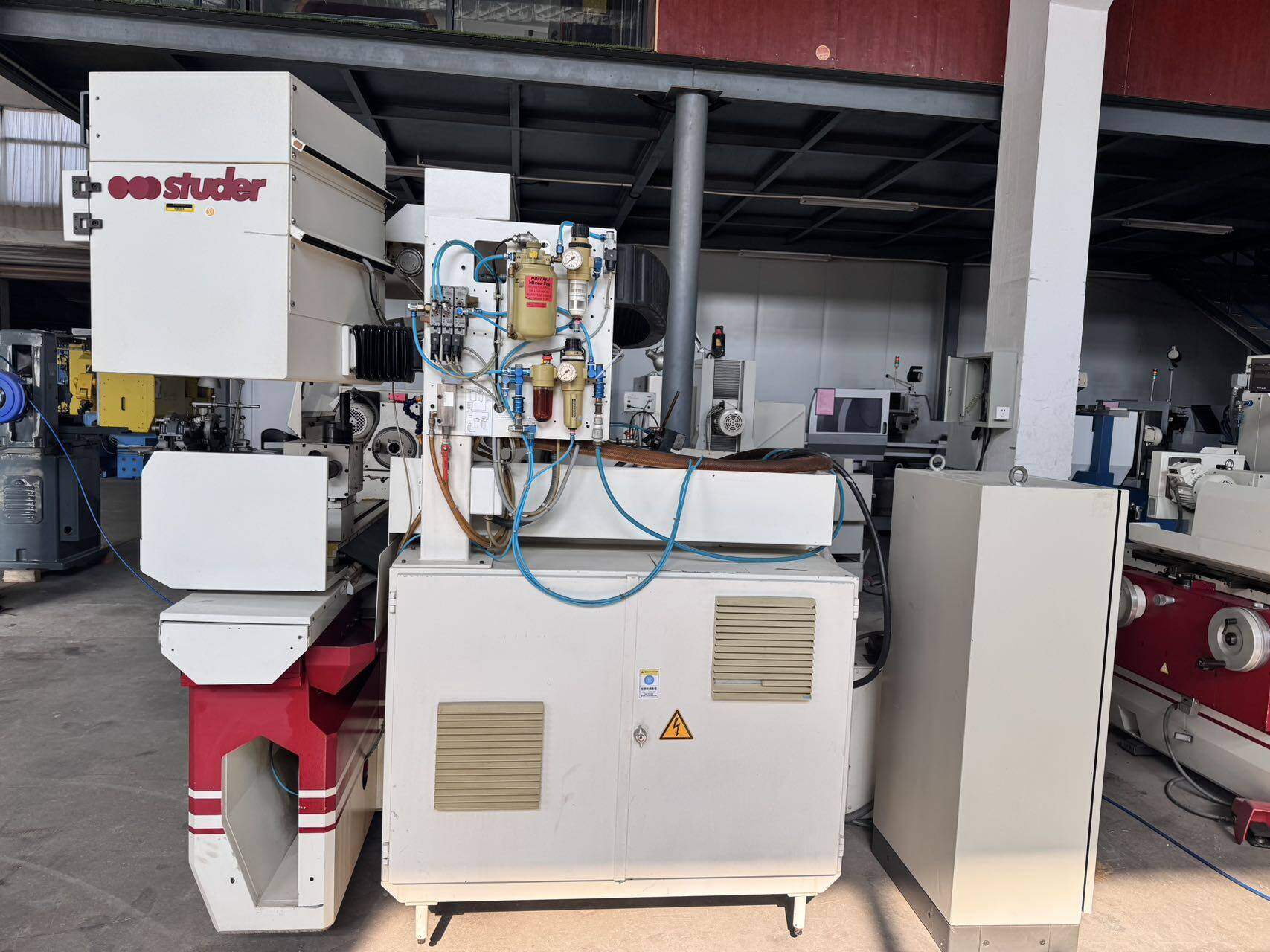

Swiss Studer Internal and External Cylindrical Grinding Machine
No.: 00523
Stut, Switzerland, Internal and External Cylindrical Grinding Machine
S40-2
Centre distance: 1000 mm
Centre height: 225 mm
Grinding diameter: 450 mm
Maximum workpiece weight: 130 kg
Table rotation angle: 0°–30°
Grinding wheel dimensions: 400 × 80 × 127 mm
Grinding wheel speed: 1670 / 2210 RPM
Grinding wheel rotation angle: 0°–180°
Headstock rotation angle: 0°–90°
Workpiece headstock: Morse Taper No. 5
Tailstock: Morse Taper No. 3
Voltage: Three-phase 380 V
Product specifications are subject to the actual machine.
