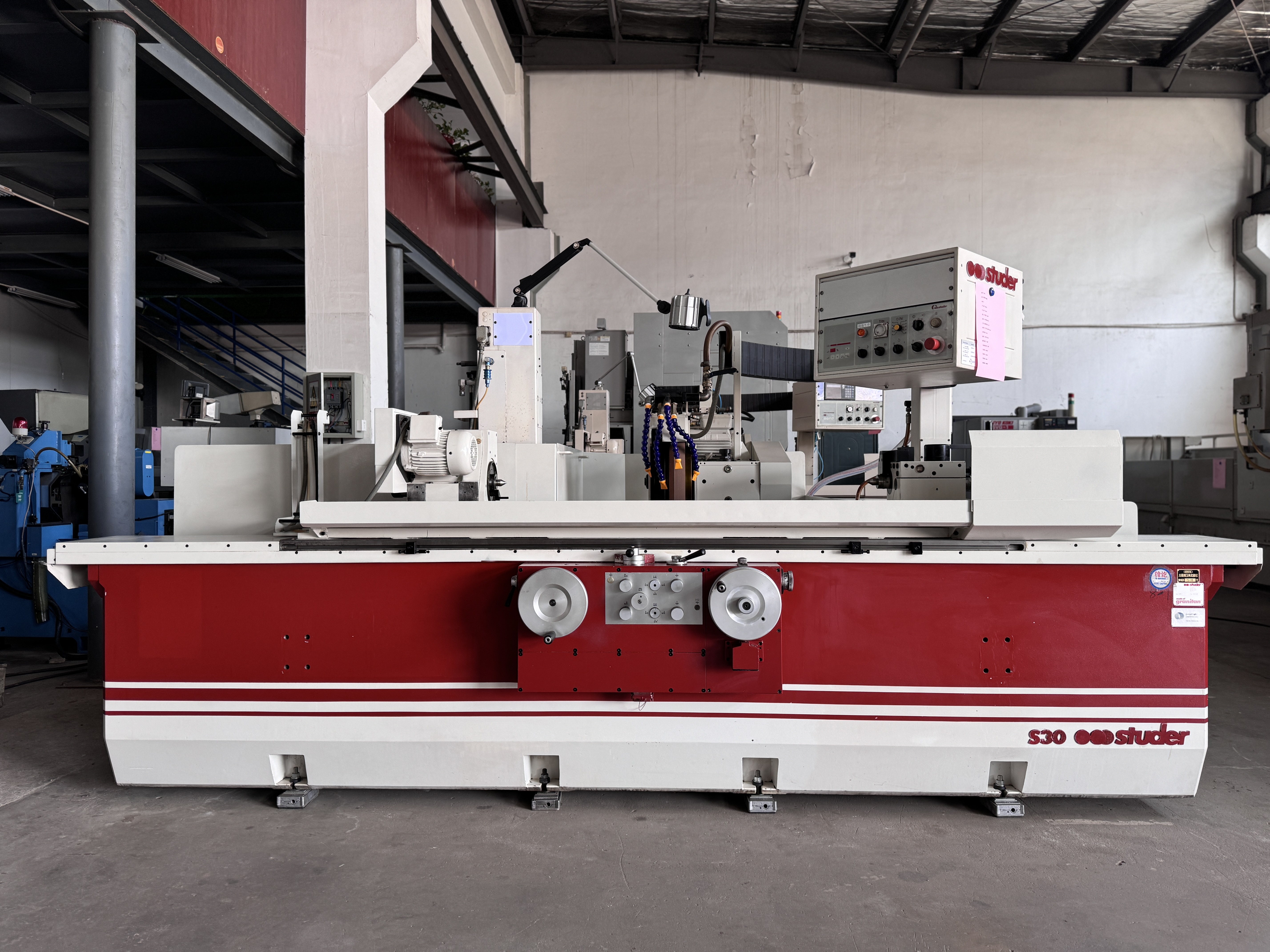

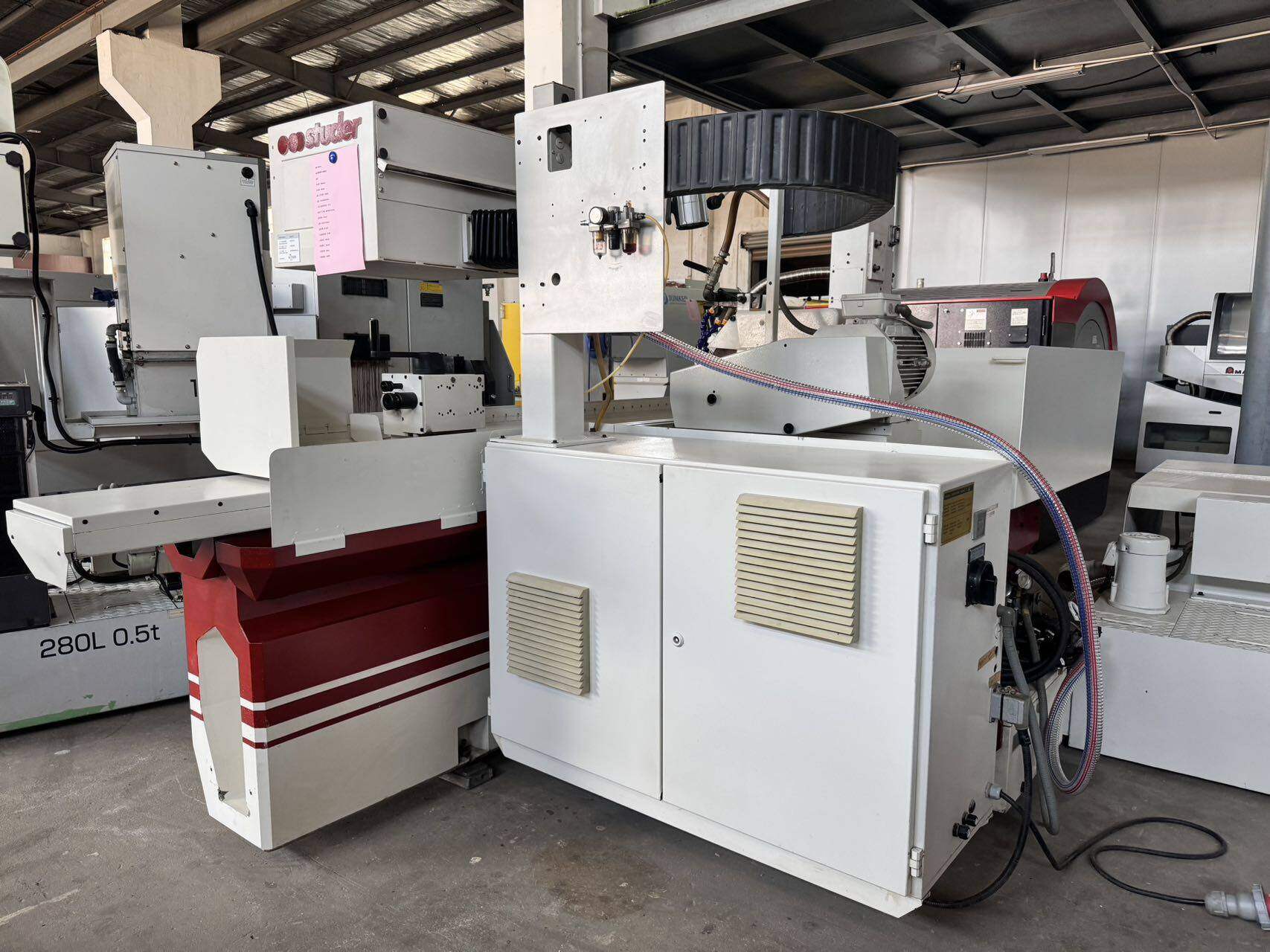

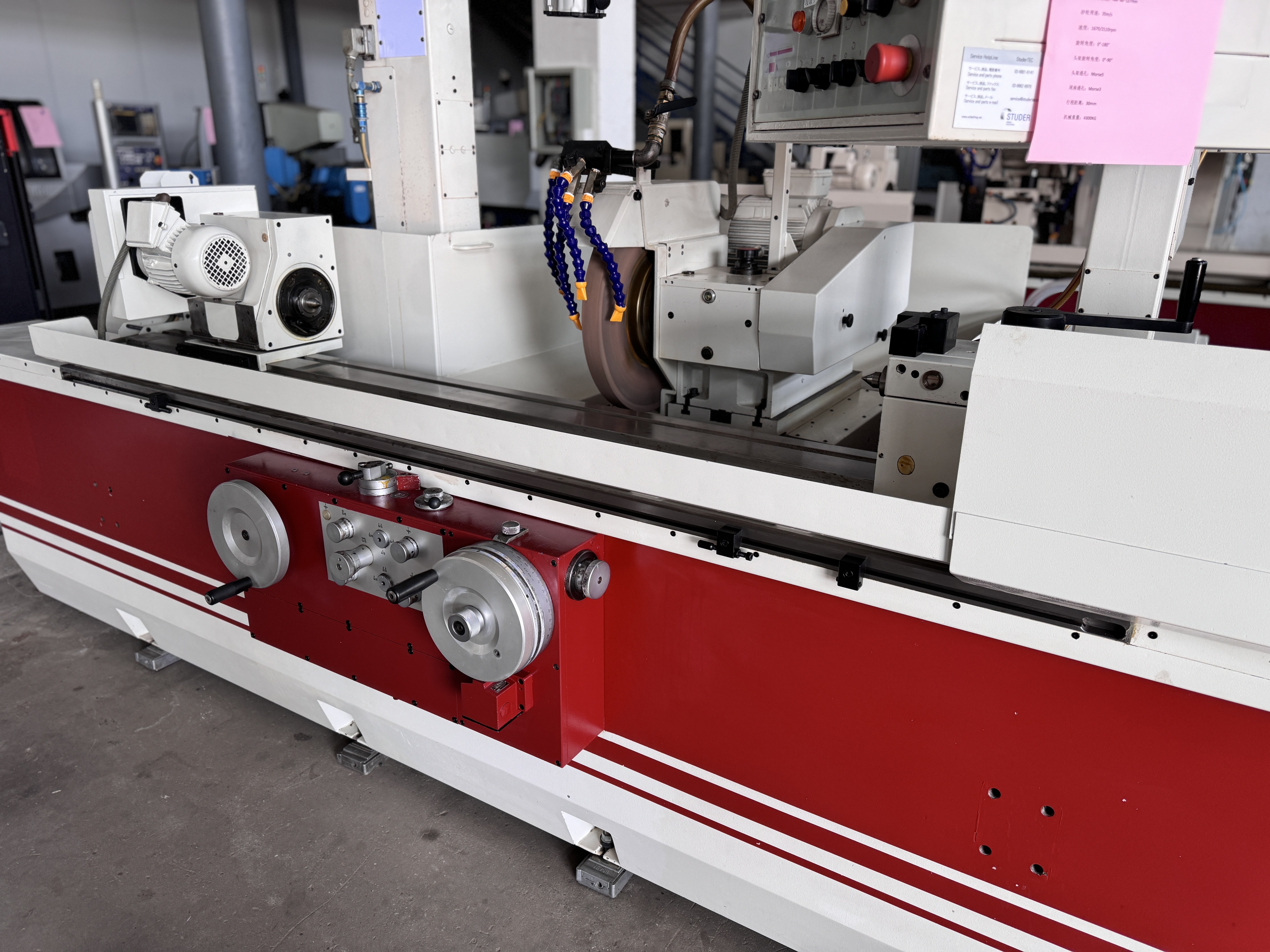

Stutter Cylindrical Grinding Machine (Switzerland)
Model No.: 00441
Stut (Switzerland) Cylindrical Grinding Machine
S30-1
Center Distance: 1600 mm
Center Height: 125 mm
Maximum Workpiece Weight: 100 kg
Spindle Rotation Angle: 0°–6°

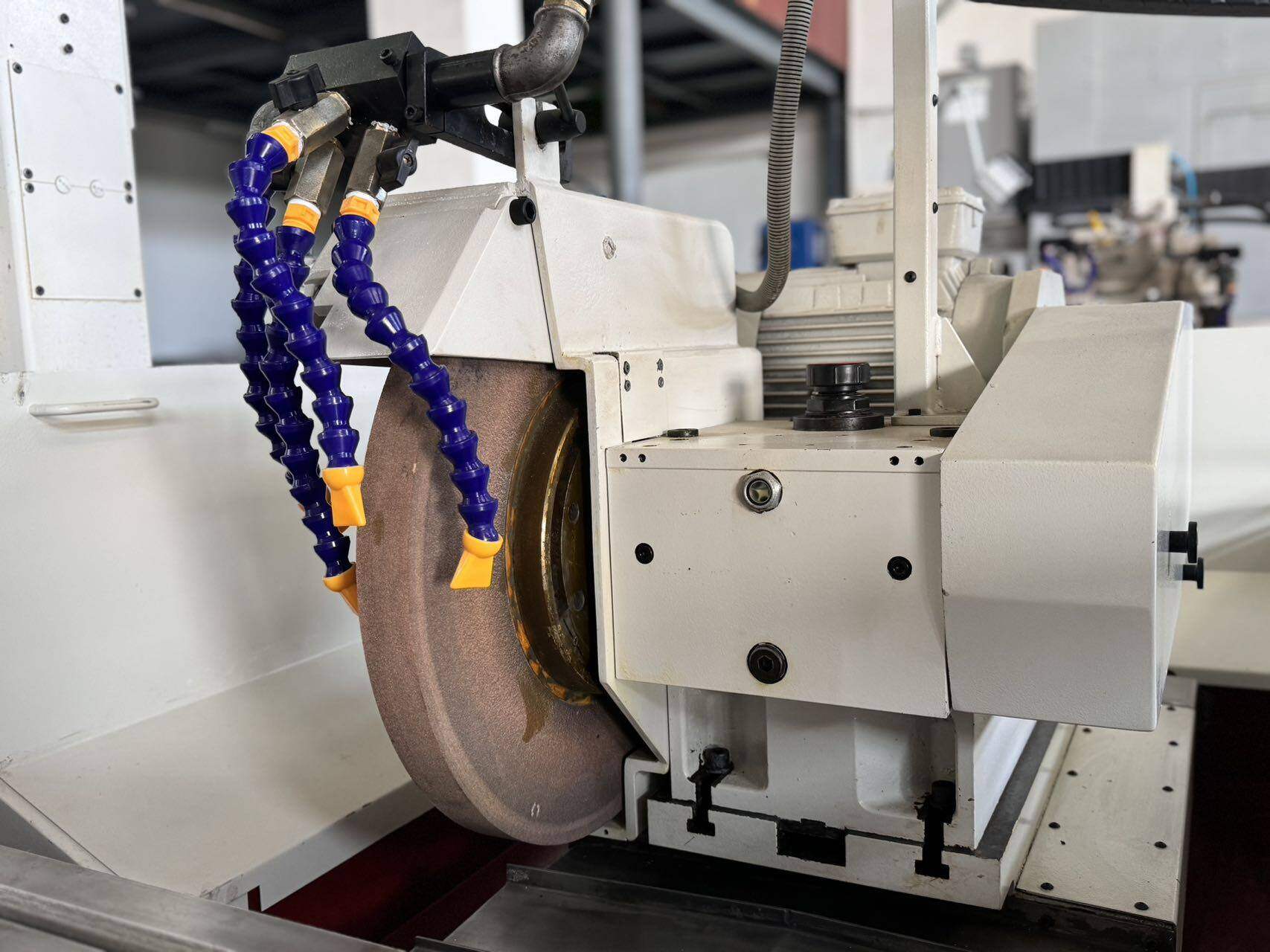

Grinding Wheel Dimensions (Left Side): 400 × 80 × 127 mm
Grinding wheel spindle speed: 1670/2110 rpm
Headstock rotation angle: 0°–90°
Spindle taper: Morse Taper No. 5

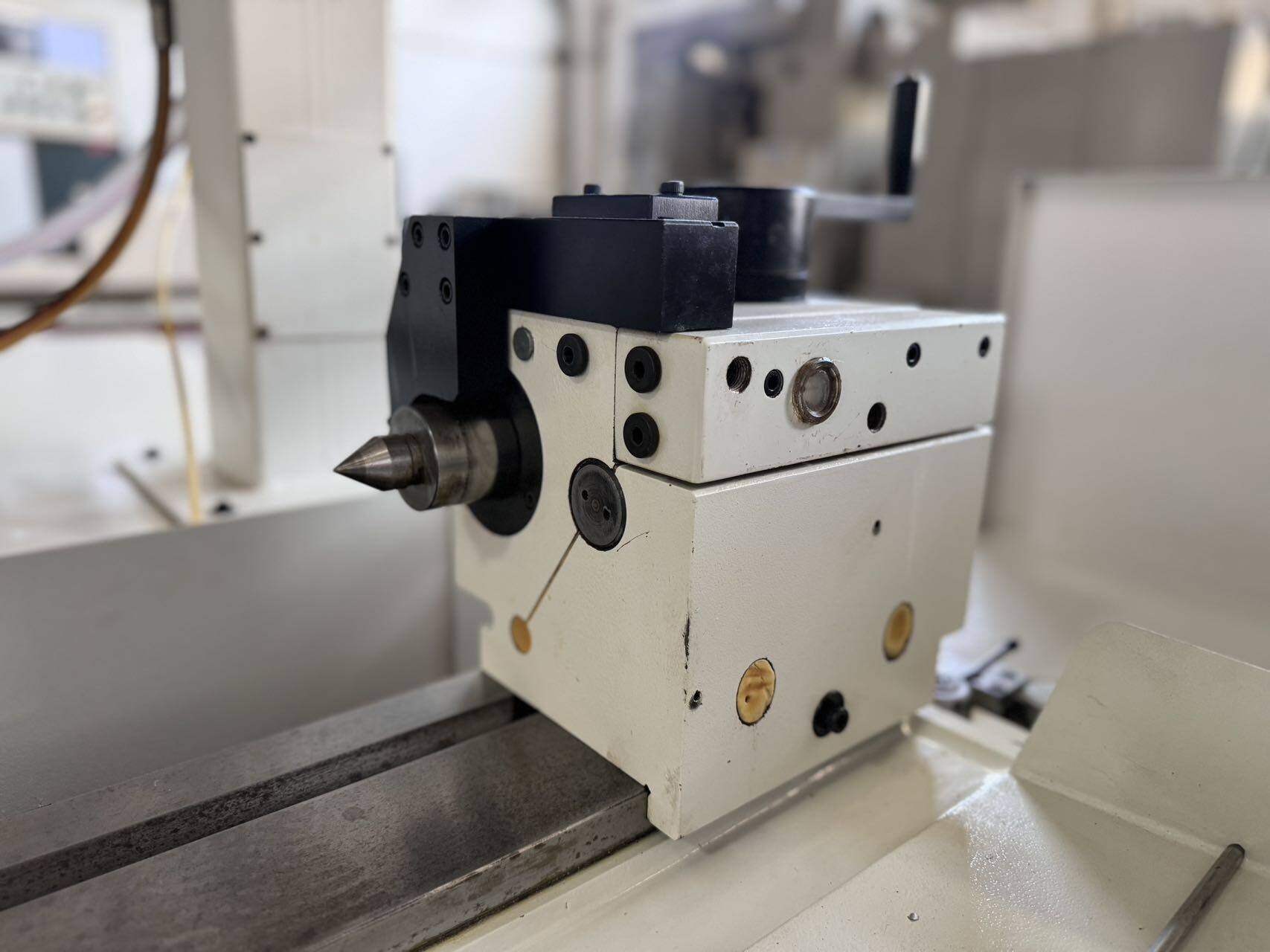

Tailstock taper: Morse Taper No. 3
Machine weight: 4300 kg
Power requirement: 5.5 kW
Voltage: Three-phase 200 V
Product specifications are subject to the actual machine.
- Category：STUDER
- Share：
- Inquiry
- Details
Model No.: 00441
Stut (Switzerland) Cylindrical Grinding Machine
S30-1
Center Distance: 1600 mm
Center Height: 125 mm
Maximum Workpiece Weight: 100 kg
Spindle Rotation Angle: 0°–6°
Grinding Wheel Dimensions (Left Side): 400 × 80 × 127 mm
Grinding wheel spindle speed: 1670/2110 rpm
Headstock rotation angle: 0°–90°
Spindle taper: Morse Taper No. 5
Tailstock taper: Morse Taper No. 3
Machine weight: 4300 kg
Power requirement: 5.5 kW
Voltage: Three-phase 200 V
Product specifications are subject to the actual machine.
