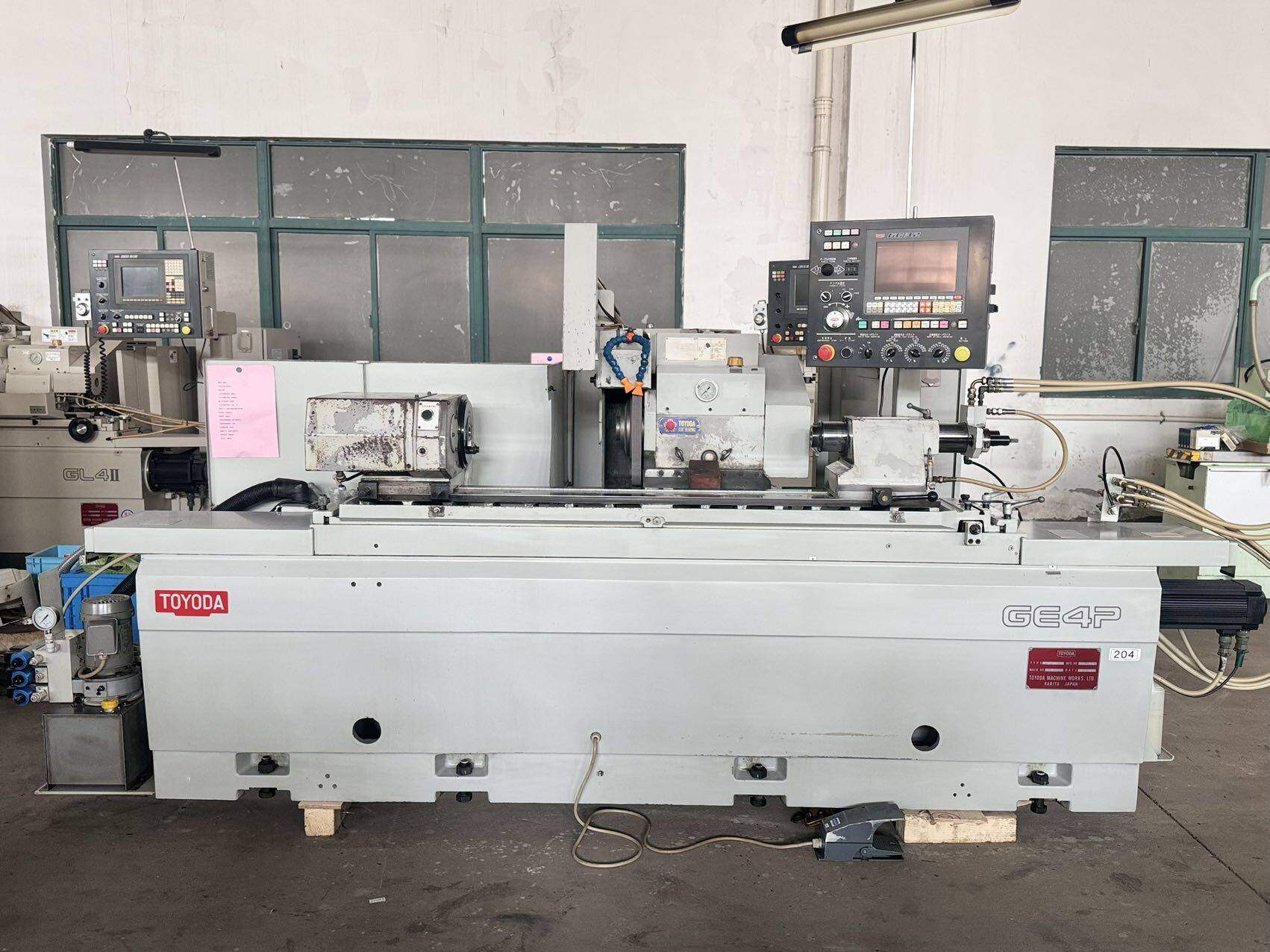

Toyota Japan Cylindrical Grinding Machine
Serial No.: 00517
Toyota Japan Cylindrical Grinder
GE4P-100
Table Rotation Diameter: 320mm
Table Grinding Length: 1000mm
Maximum Load Capacity: 150KG
Table Rotation Angle: 0°-10°
Grinding Wheel Size: 405*75Max100*127mm
Grinding Wheel Speed: 1550min⁻¹
Workpiece Spindle Speed: 10-500min⁻¹
Spindle and Tailstock Taper Bore: Morse No.4
Machine Dimensions: 4520*1850mm
Machine Weight: 5000KG
Voltage: Three-phase 200V
Total Power: 20KVA
Product parameters shall be subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
Serial No.: 00517
Toyota Japan Cylindrical Grinder
GE4P-100
Table Rotation Diameter: 320mm
Table Grinding Length: 1000mm
Maximum Load Capacity: 150KG
Table Rotation Angle: 0°-10°
Grinding Wheel Size: 405*75Max100*127mm
Grinding Wheel Speed: 1550min⁻¹
Workpiece Spindle Speed: 10-500min⁻¹
Spindle and Tailstock Taper Bore: Morse No.4
Machine Dimensions: 4520*1850mm
Machine Weight: 5000KG
Voltage: Three-phase 200V
Total Power: 20KVA
Product parameters shall be subject to the actual machine.
