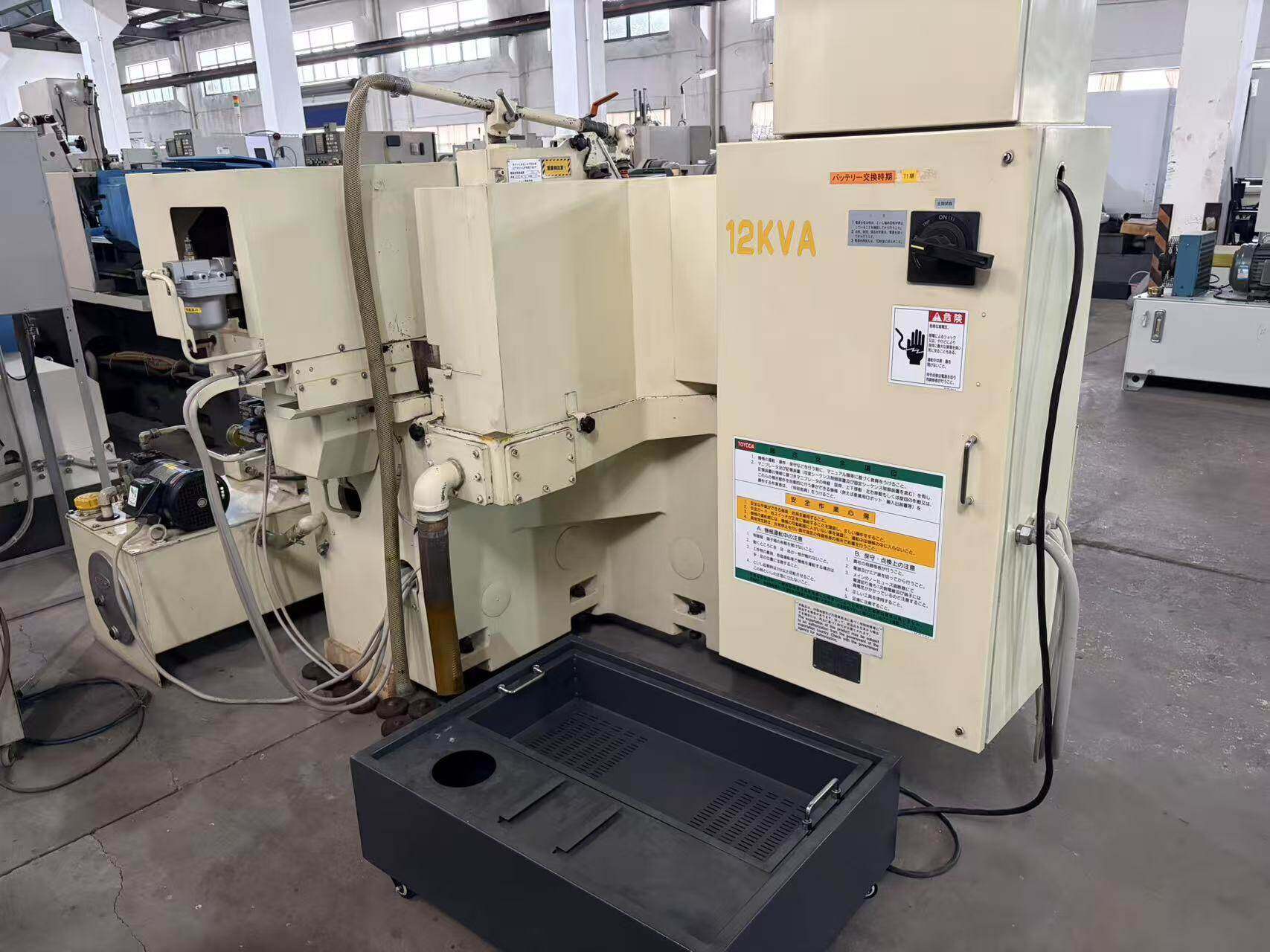

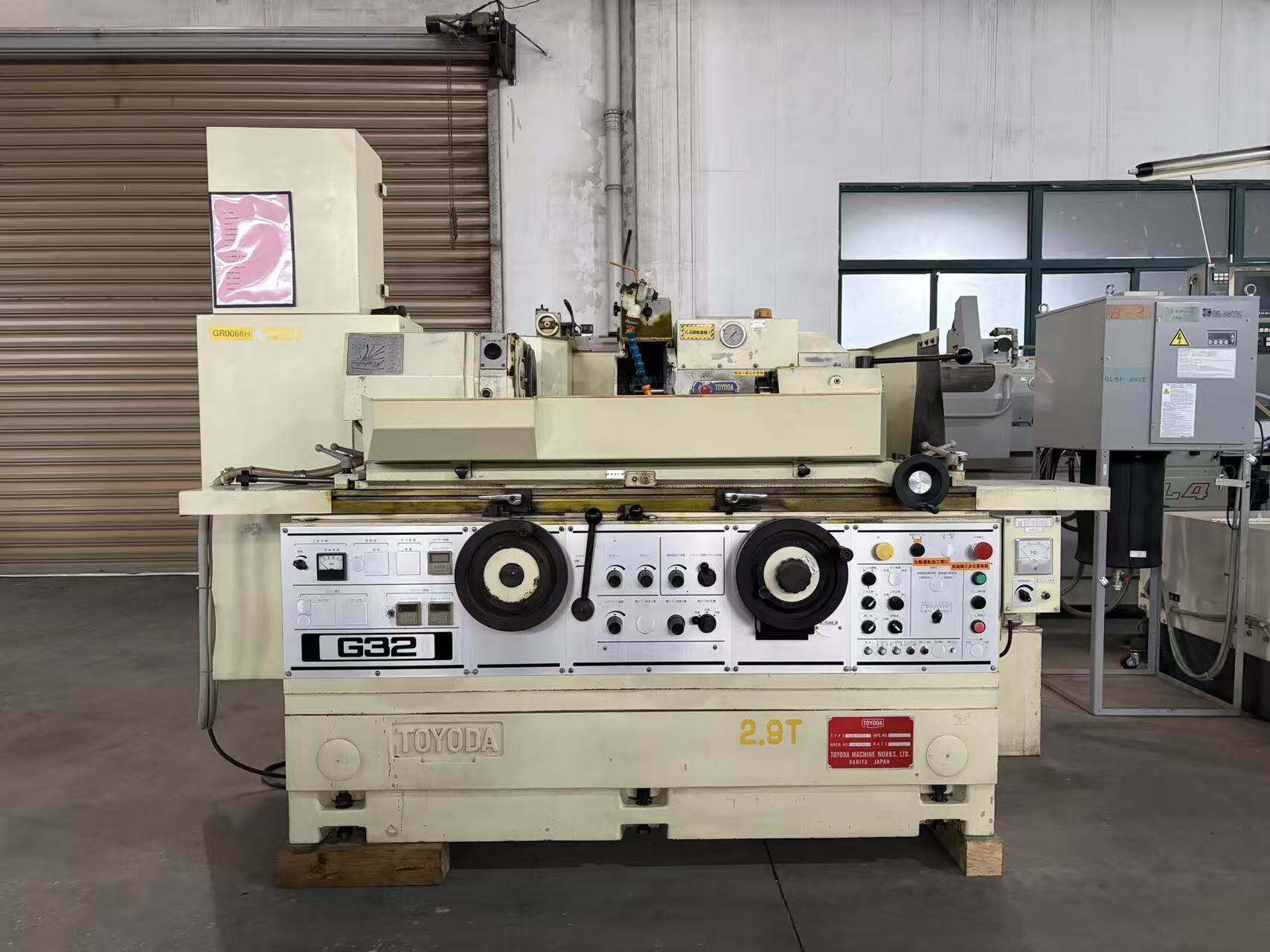

Japanese Toyota Cylindrical Grinder
No.: 00502
Toyota Japan Cylindrical Grinding Machine
GOP32*50
Table Rotation Diameter: 320mm
Table Grinding Length: 500mm
Maximum Load Weight: 150KG
Grinding Wheel Size: 405*75*127mm
Grinding Wheel Spindle Speed: 1570/1845min⁻¹
Workpiece Spindle Speed: 21～500min⁻¹
Table Rotation Angle: -5°, +12.5°
Spindle and Tailstock Taper Hole: Morse No.4
Machine Dimensions: 2640*1840mm
Machine Weight: 2900KG
Voltage: Three-phase 200V
Product parameters shall be subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
No.: 00502
Toyota Japan Cylindrical Grinding Machine
GOP32*50
Table Rotation Diameter: 320mm
Table Grinding Length: 500mm
Maximum Load Weight: 150KG
Grinding Wheel Size: 405*75*127mm
Grinding Wheel Spindle Speed: 1570/1845min⁻¹
Workpiece Spindle Speed: 21～500min⁻¹
Table Rotation Angle: -5°, +12.5°
Spindle and Tailstock Taper Hole: Morse No.4
Machine Dimensions: 2640*1840mm
Machine Weight: 2900KG
Voltage: Three-phase 200V
Product parameters shall be subject to the actual machine.
