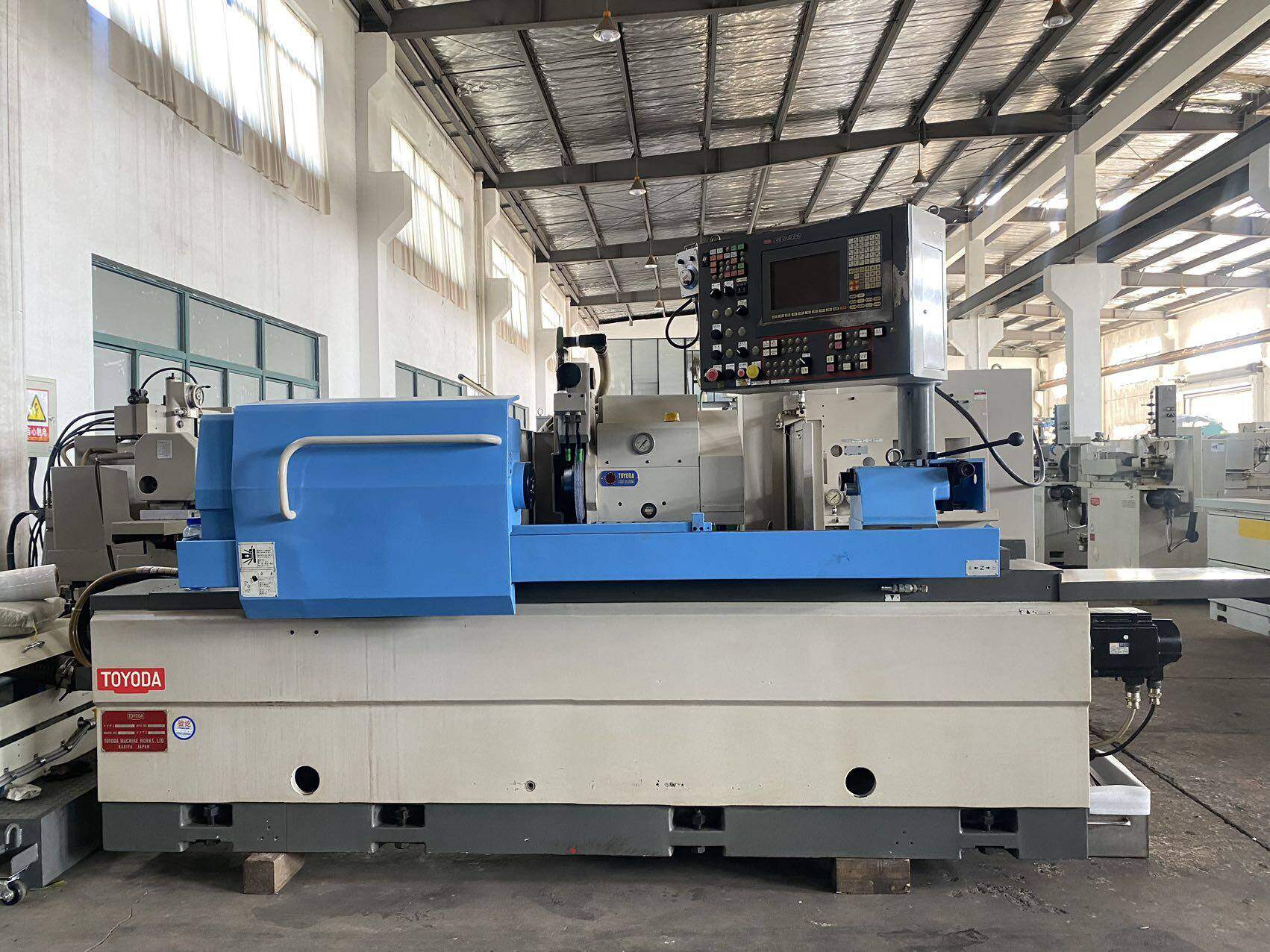

Toyota Cylindrical Grinding Machine (Japan)
No.: 00395
Toyota (Japan) Cylindrical Grinding Machine
GL4P-100CII
Table Rotation Diameter: 320 mm
Table Grinding Length: 800 mm
Maximum Load Weight: 150 kg
Grinding Wheel Dimensions: 510 × Max 100 × 203.2 mm
Grinding Wheel Spindle Rotation Angle: 90°
Grinding Wheel Spindle Speed: 1685 rpm
Workpiece Spindle Speed: 1–300 rpm
Spindle and Tailstock Taper: Morse Taper 4
Machine Dimensions: 4400 × 2700 mm
Machine Weight: 4900 kg
Voltage: 3-phase 200 V
Total Power: 21 kVA
Product specifications are subject to the actual machine.
