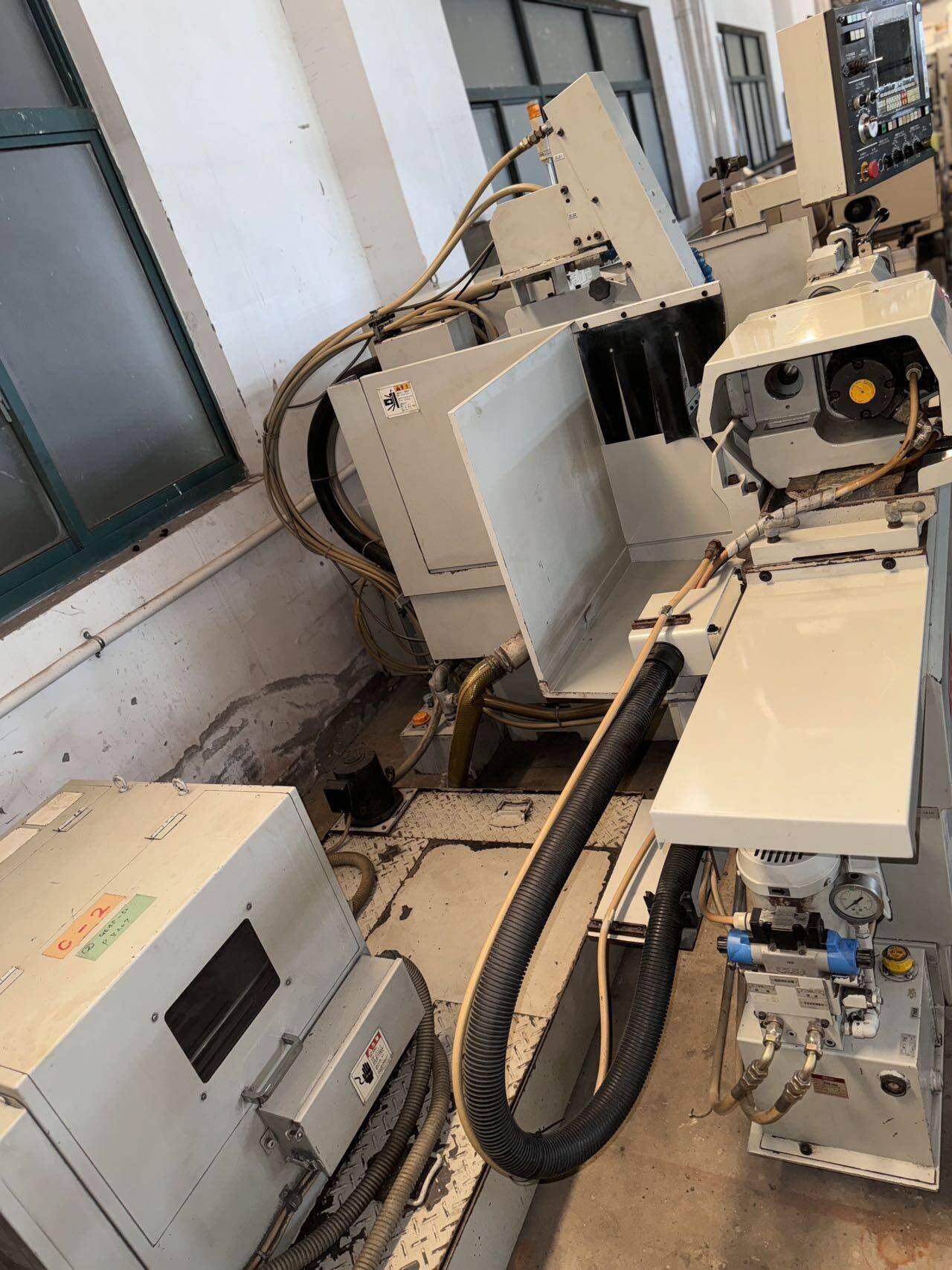

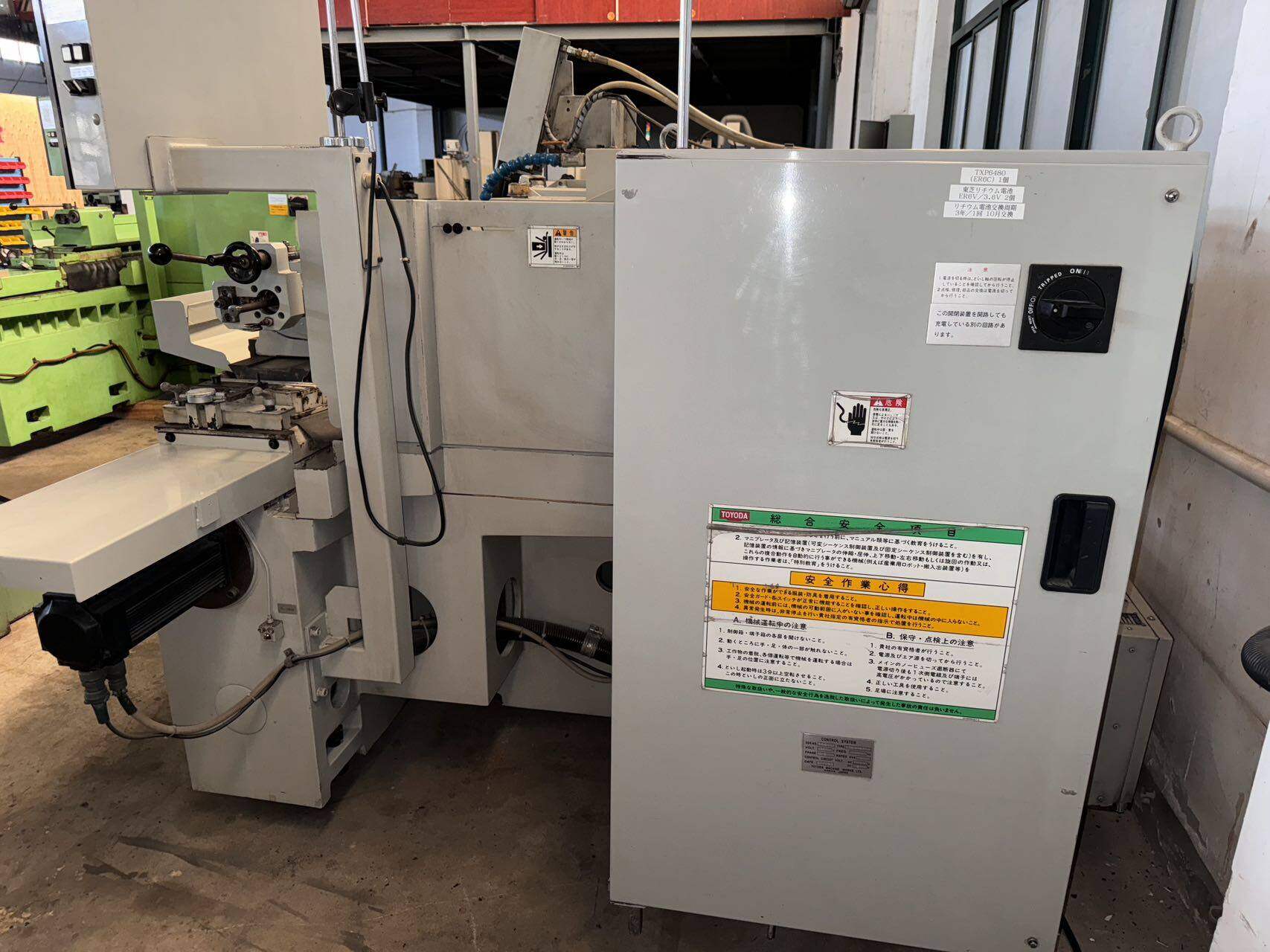

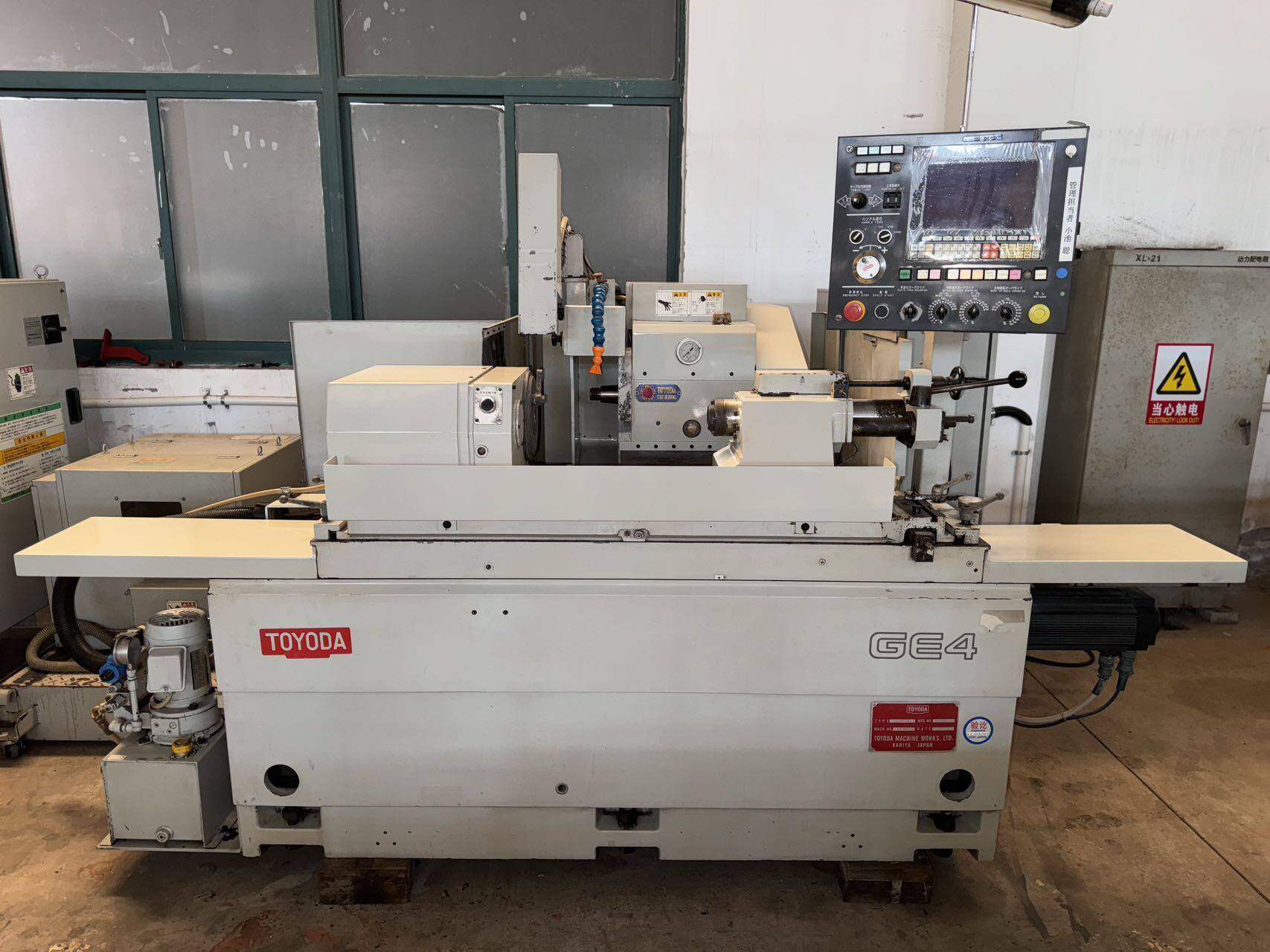

Toyota Cylindrical Grinding Machine (Japan)
No.: 00394
Toyota (Japan) Cylindrical Grinding Machine
GE4P-50
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Load Weight: 150 kg
Table Rotation Angle: 0°, +12.5°
Grinding Wheel Dimensions: 405 × 75 × Max 100 × 127 mm
Grinding Wheel Spindle Speed: 1550 rpm
Workpiece Spindle Speed: 10–500 rpm
Spindle and Tailstock Taper: Morse Taper 4
Machine Dimensions: 3560 × 1850 mm
Machine Weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
No.: 00394
Toyota (Japan) Cylindrical Grinding Machine
GE4P-50
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Load Weight: 150 kg
Table Rotation Angle: 0°, +12.5°
Grinding Wheel Dimensions: 405 × 75 × Max 100 × 127 mm
Grinding Wheel Spindle Speed: 1550 rpm
Workpiece Spindle Speed: 10–500 rpm
Spindle and Tailstock Taper: Morse Taper 4
Machine Dimensions: 3560 × 1850 mm
Machine Weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
