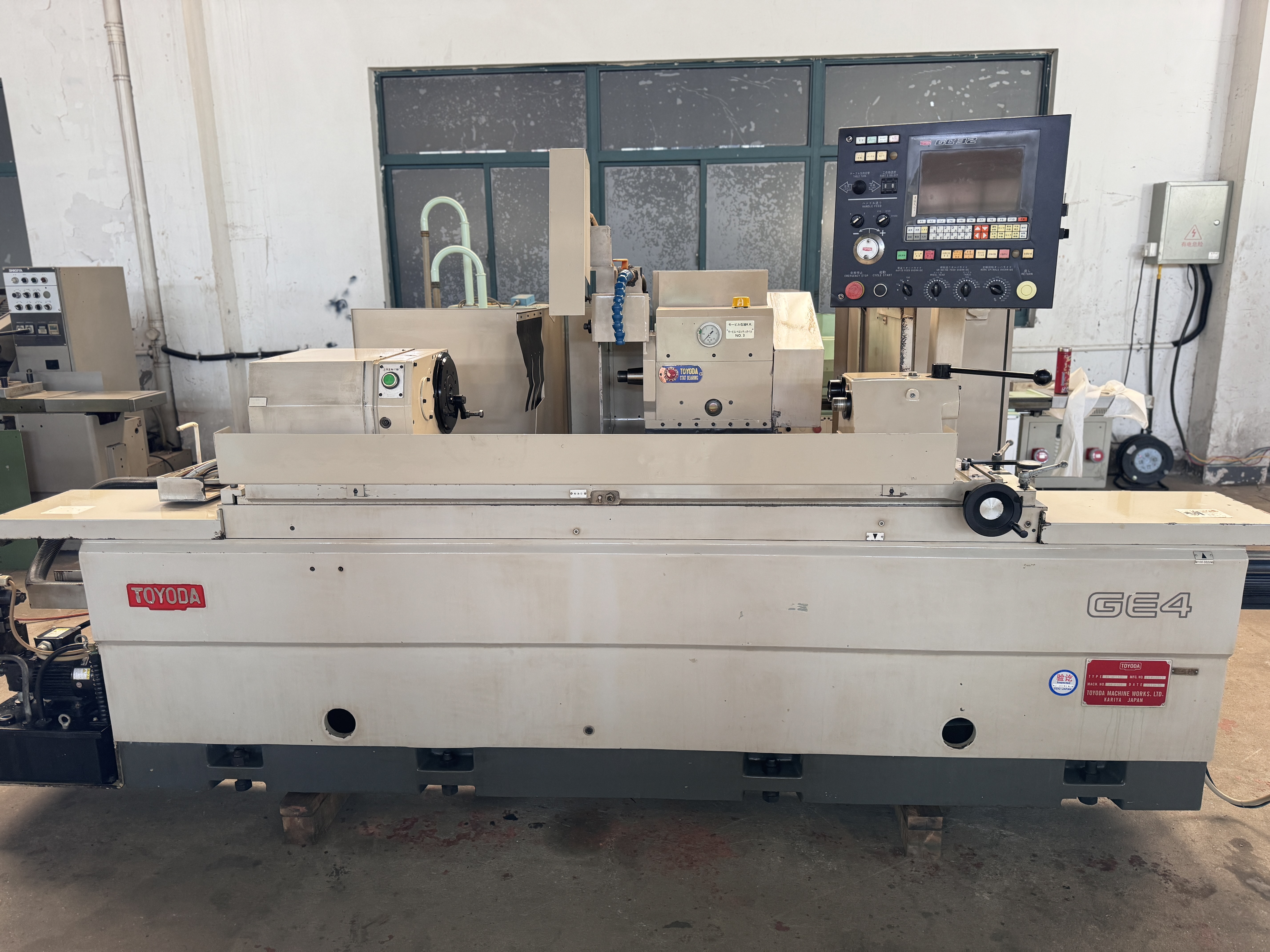

Toyota Cylindrical Grinding Machine (Japan)
No.: 00383
Toyota Cylindrical Grinder
GE4P-100 (Face Gauge)
Table Rotation Diameter: 320 mm
Table Grinding Length: 1000 mm
Table Rotation Angle: -0°, +10°
Maximum Workpiece Weight: 150 kg
Grinding Wheel Dimensions: 405 × 75 × 127 mm
Workpiece Headstock Rotation Angle: -30°, +90°
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Weight: 5,000 kg
Voltage: 3-phase 200 V
Total Power: 20 kVA
- Category：TOYODA
- Share：
- Inquiry
- Details
No.: 00383
Toyota Cylindrical Grinder
GE4P-100 (Face Gauge)
Table Rotation Diameter: 320 mm
Table Grinding Length: 1000 mm
Table Rotation Angle: -0°, +10°
Maximum Workpiece Weight: 150 kg
Grinding Wheel Dimensions: 405 × 75 × 127 mm
Workpiece Headstock Rotation Angle: -30°, +90°
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Weight: 5,000 kg
Voltage: 3-phase 200 V
Total Power: 20 kVA
Product specifications are subject to the actual machine.
