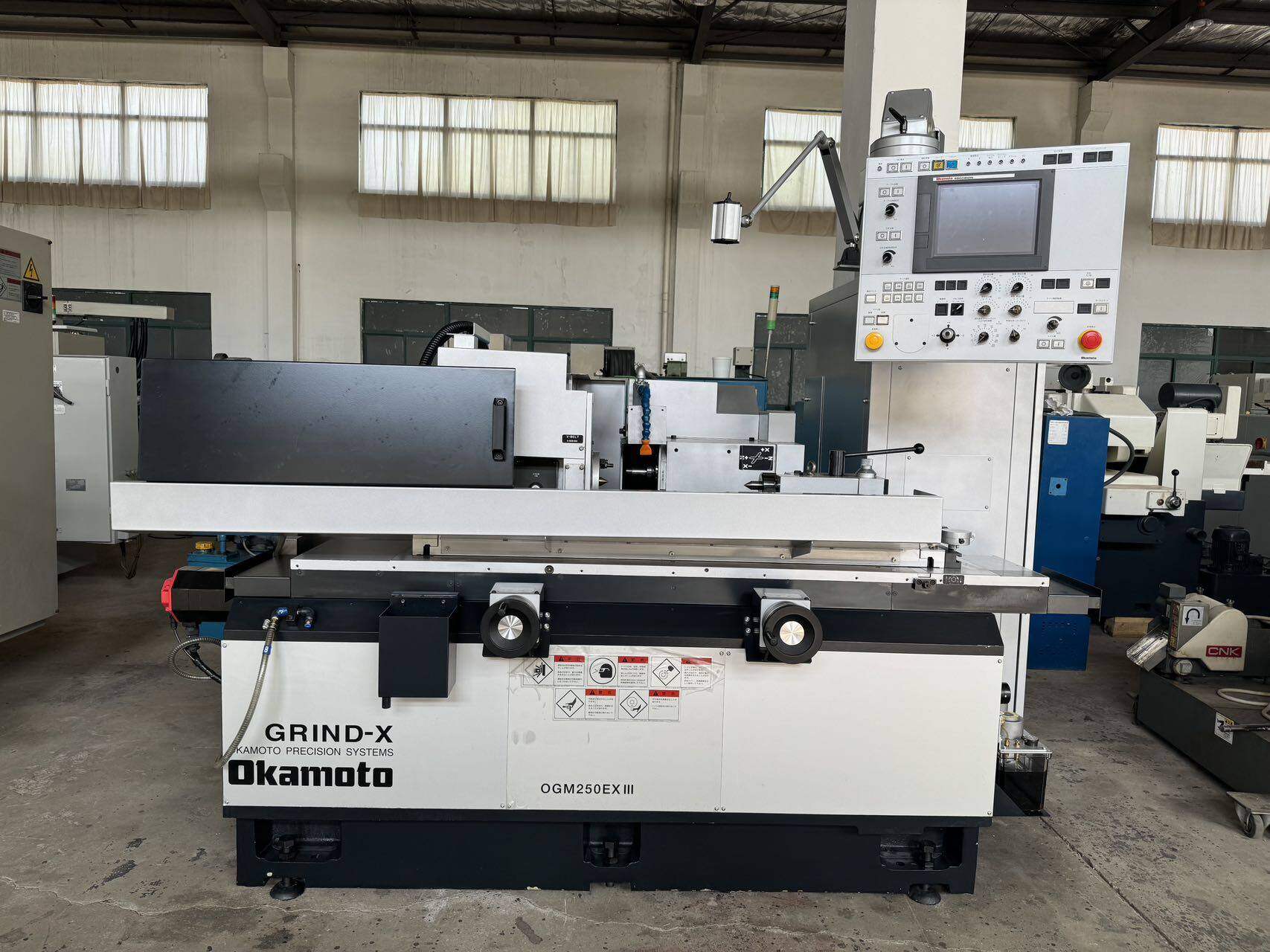

Okamoto CNC External Cylindrical Grinding Machine (Japan)
No.: 00380
Okamoto CNC Cylindrical Grinding Machine (Japan)
OGM250EXIII (New machine at used price)
Table grinding length: 500 mm
Table rotation diameter: 200 mm
Grinding wheel dimensions: 355 × 38 × 127 mm
Grinding wheel spindle speed: 1614–2247 rpm
Workpiece Spindle Speed: 10–500 rpm
Table Rotation Angle: -9°, 0°
Workpiece Spindle Rotation Angle: -90°, 30°

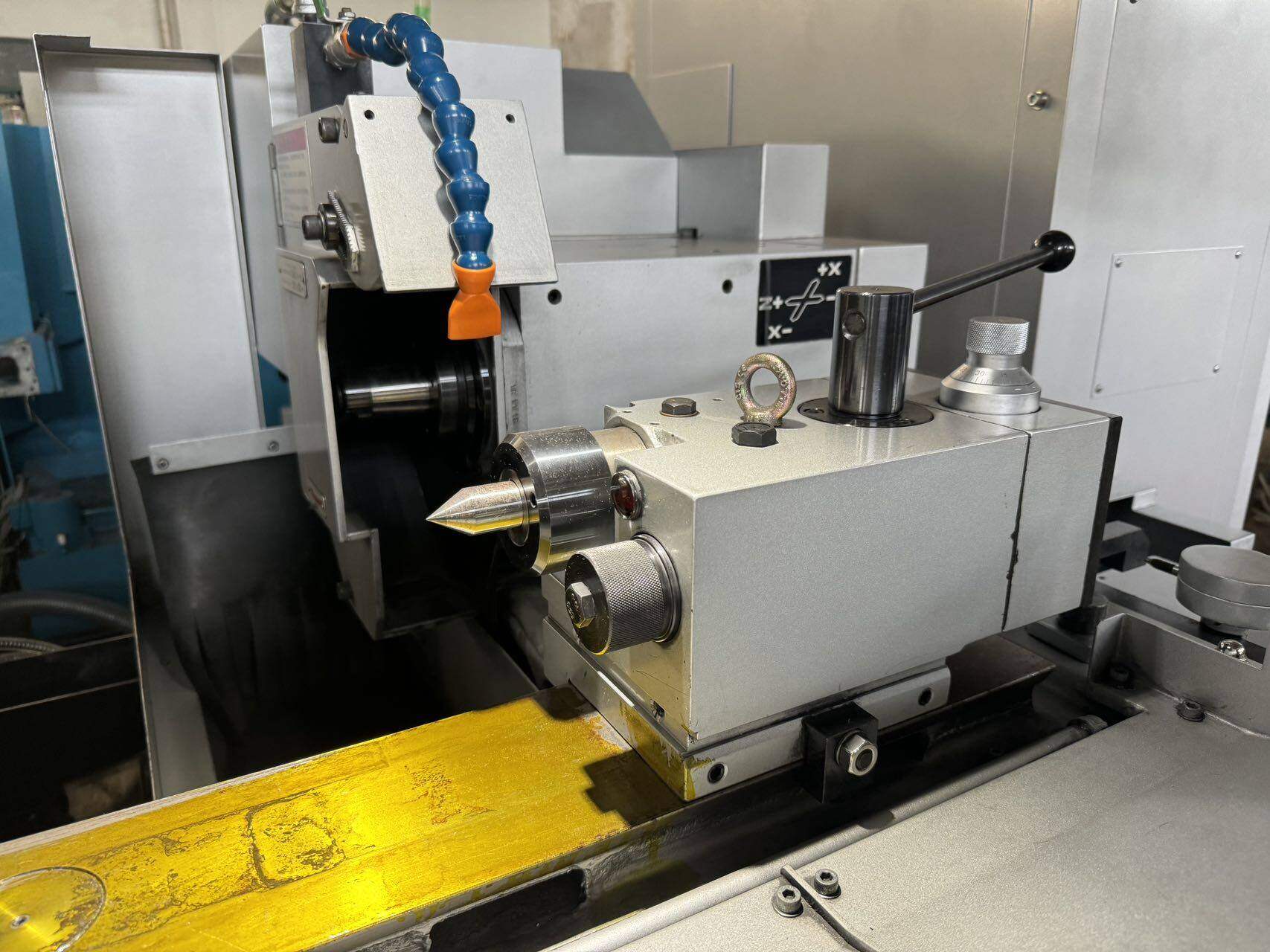

Spindle and Tailstock Taper: Morse Taper No. 3
Machine Dimensions: 2920 × 2010 × 1950 mm
Machine Weight: 3400 kg
Voltage: Three-phase 200 V
Total power: 15 kVA
Product specifications are subject to the actual machine.
