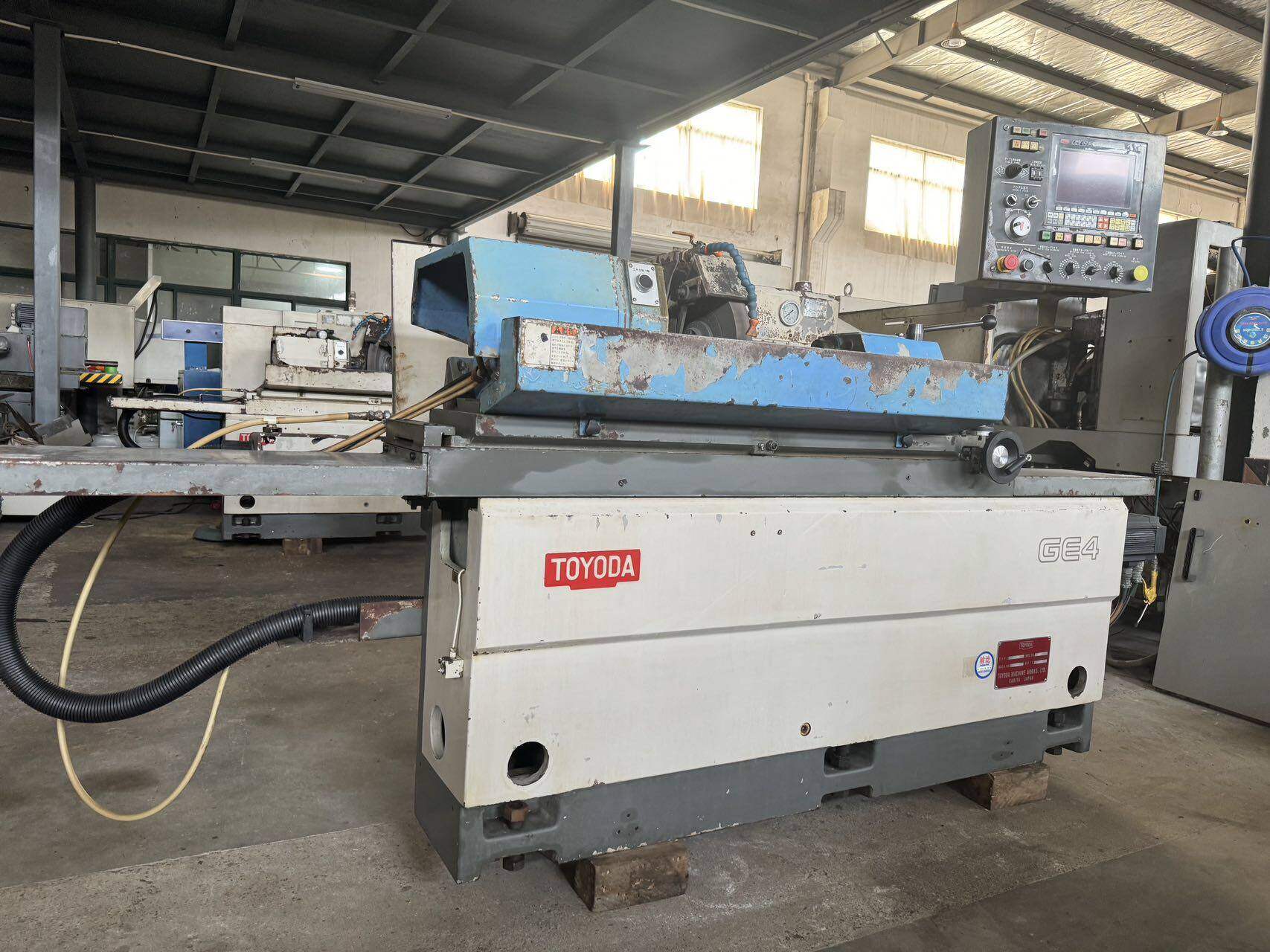

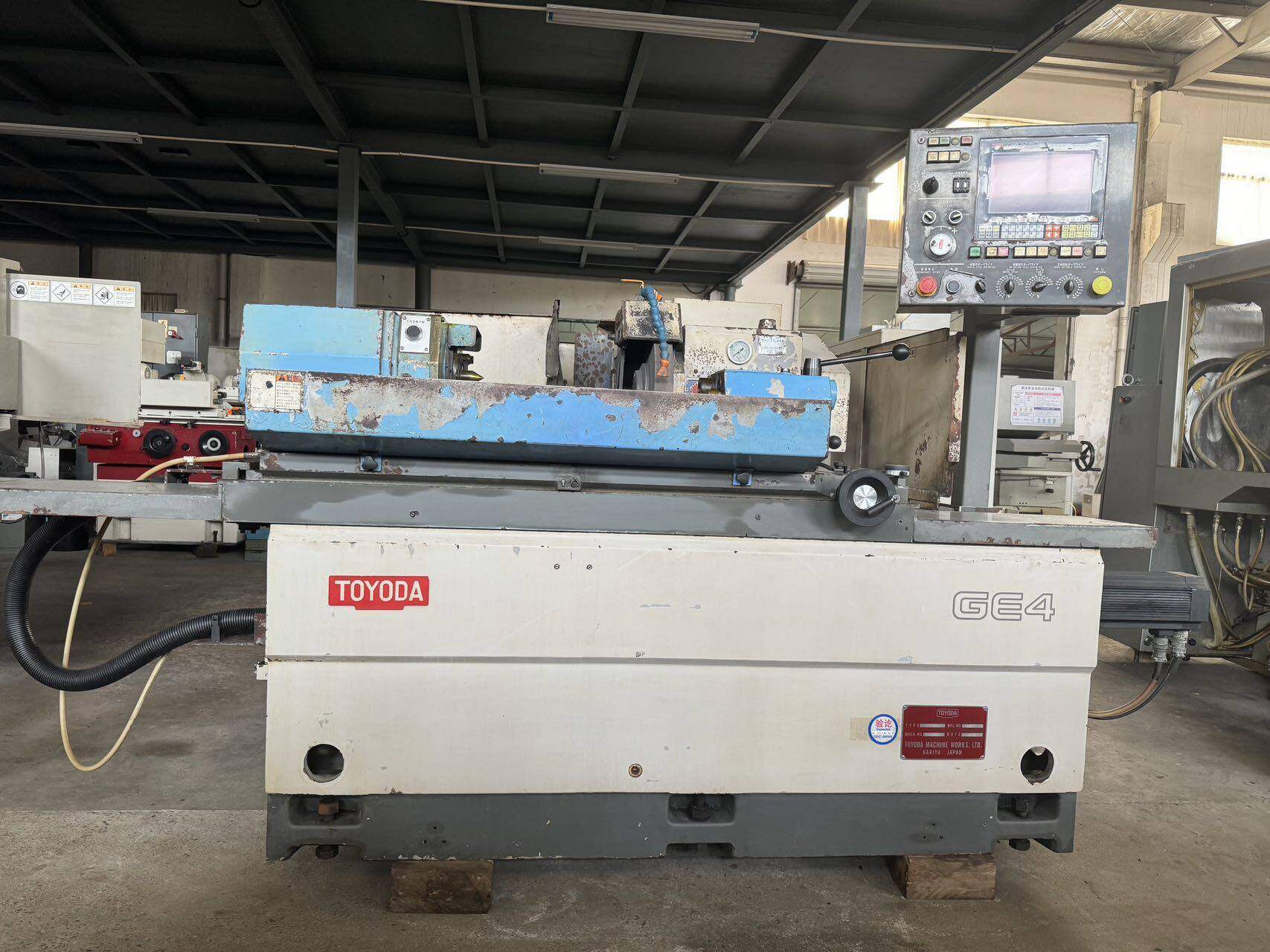

Toyota Cylindrical Grinding Machine (Japan)
No.: 00373
Toyota (Japan) Cylindrical Grinding Machine
GE4P-50
Table rotation diameter: 300 mm
Table grinding length: 500 mm
Maximum load weight: 150 kg
Table rotation angle: 0°, +12.5°
Grinding wheel dimensions: 405 × 75 × 100 × 127 mm (max.)
Grinding Wheel Spindle Rotation Angle: 90°
Grinding Wheel Spindle Speed: 1550 rpm
Workpiece Headstock Angle Range: -30°, 90°
Workpiece Spindle Speed: 10–500 rpm
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Dimensions: 3560 × 1850 mm
Machine weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
No.: 00373
Toyota (Japan) Cylindrical Grinding Machine
GE4P-50
Table rotation diameter: 300 mm
Table grinding length: 500 mm
Maximum load weight: 150 kg
Table rotation angle: 0°, +12.5°
Grinding wheel dimensions: 405 × 75 × 100 × 127 mm (max.)
Grinding Wheel Spindle Rotation Angle: 90°
Grinding Wheel Spindle Speed: 1550 rpm
Workpiece Headstock Angle Range: -30°, 90°
Workpiece Spindle Speed: 10–500 rpm
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Dimensions: 3560 × 1850 mm
Machine weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
