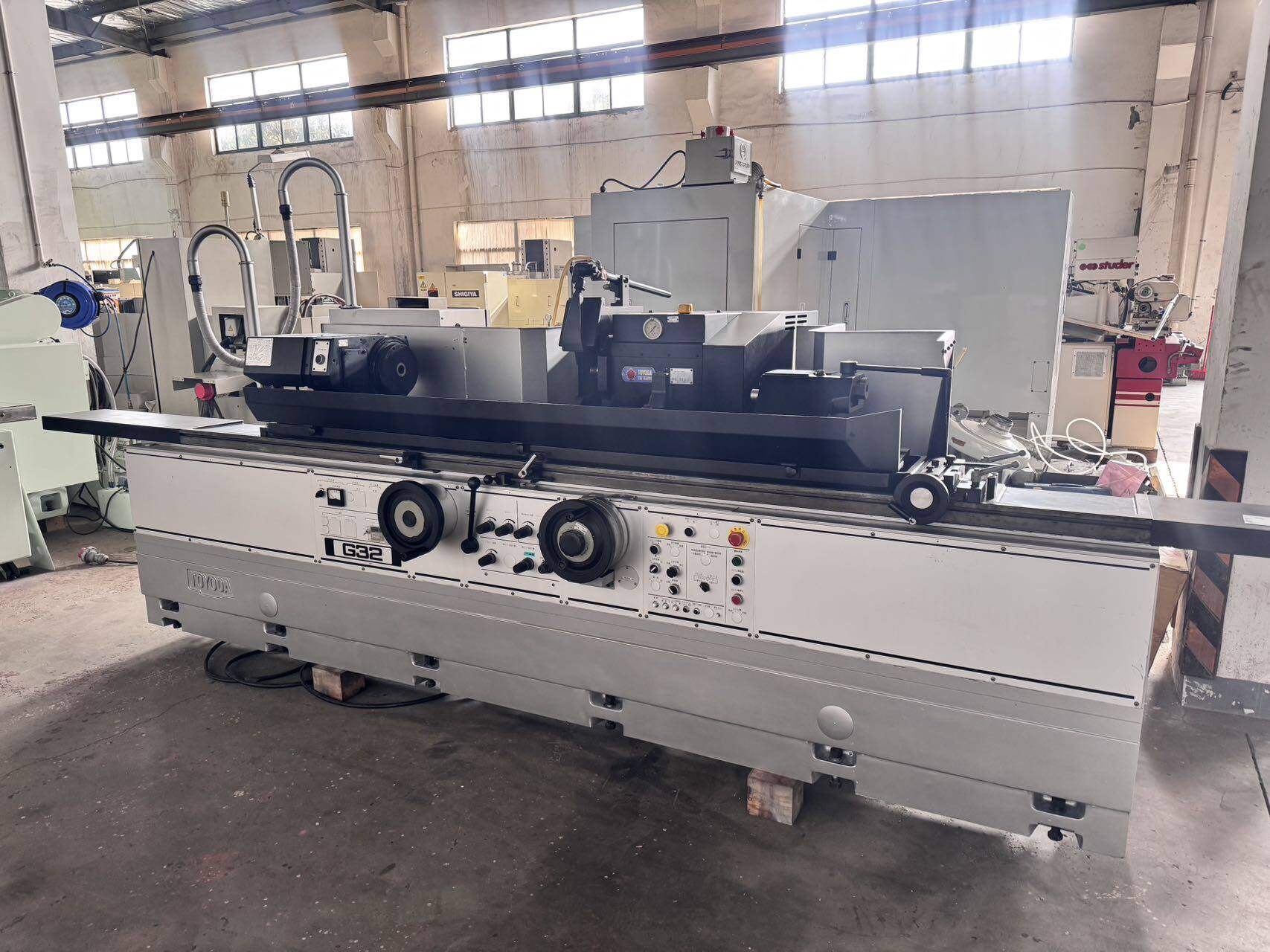

Japan Toyota Cylindrical Grinder
Serial No.: 00560
Toyota Japan Cylindrical Grinder
GOP32*150
Table Swing Diameter: 320mm
Table Grinding Length: 1500mm
Maximum Workpiece Weight: 150KG
Table Rotation Angle: +8.5°, -3°
Grinding Wheel Size: 405*75*127mm
Peripheral Speed: 30m/s
Rotational Speed: 1570/1845min⁻¹
Spindle and Tailstock Taper Bore: MT4
Sleeve Stroke: 25mm
Voltage: Three-phase 200V
Total Power: 10.8KVA 11.2
Machine Dimensions: 6550*1800mm
Machine Weight: 4600KG
Product parameters shall be subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
Serial No.: 00560
Toyota Japan Cylindrical Grinder
GOP32*150
Table Swing Diameter: 320mm
Table Grinding Length: 1500mm
Maximum Workpiece Weight: 150KG
Table Rotation Angle: +8.5°, -3°
Grinding Wheel Size: 405*75*127mm
Peripheral Speed: 30m/s
Rotational Speed: 1570/1845min⁻¹
Spindle and Tailstock Taper Bore: MT4
Sleeve Stroke: 25mm
Voltage: Three-phase 200V
Total Power: 10.8KVA 11.2
Machine Dimensions: 6550*1800mm
Machine Weight: 4600KG
Product parameters shall be subject to the actual machine.
