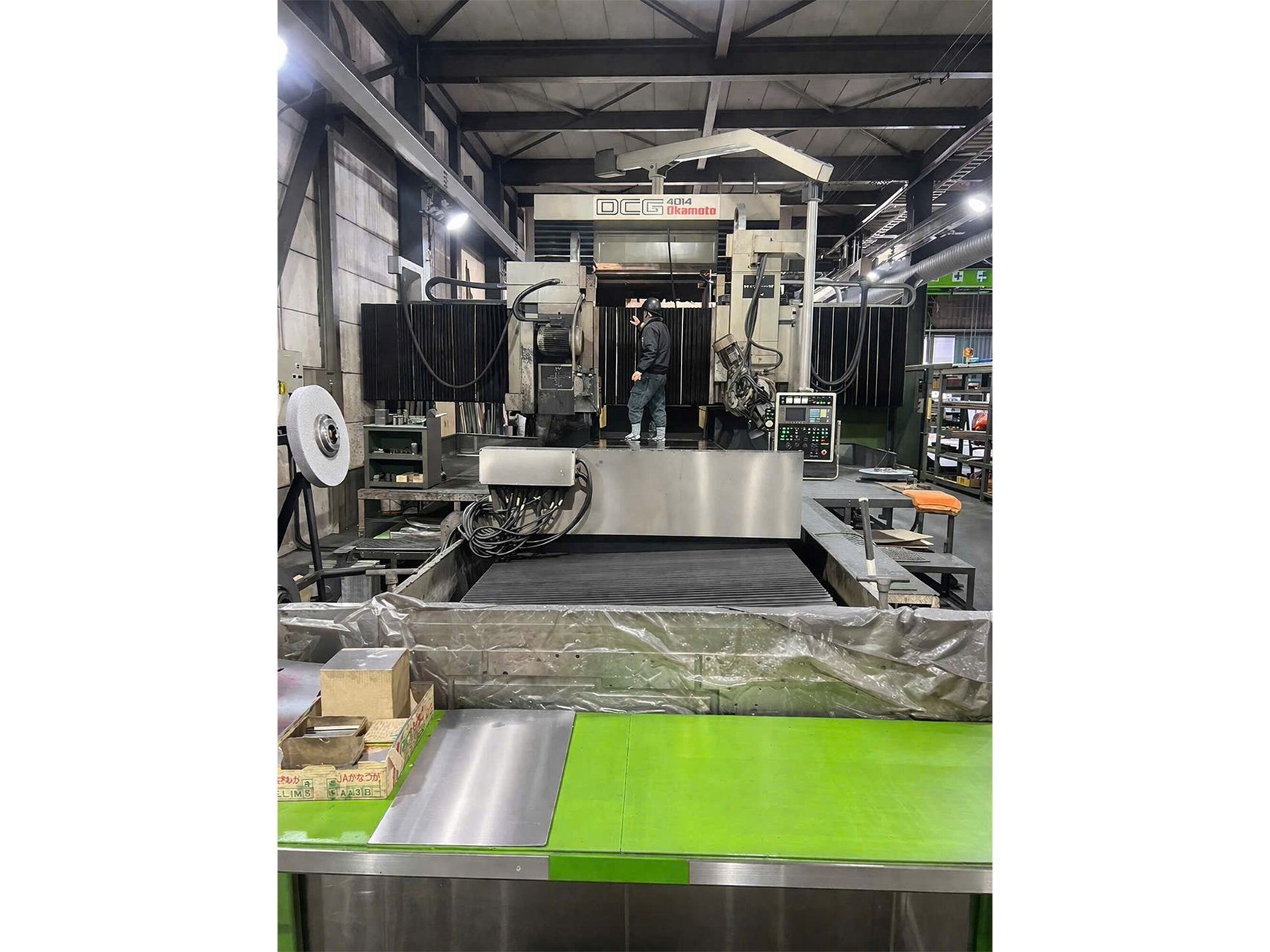

Okamoto CNC Gantry Grinding Machine (Japan)
No. 00581
Okamoto CNC Gantry Grinding Machine (Japan)
DCG-4014
Maximum machining height: 1250 mm (grinding wheel spindle φ610)

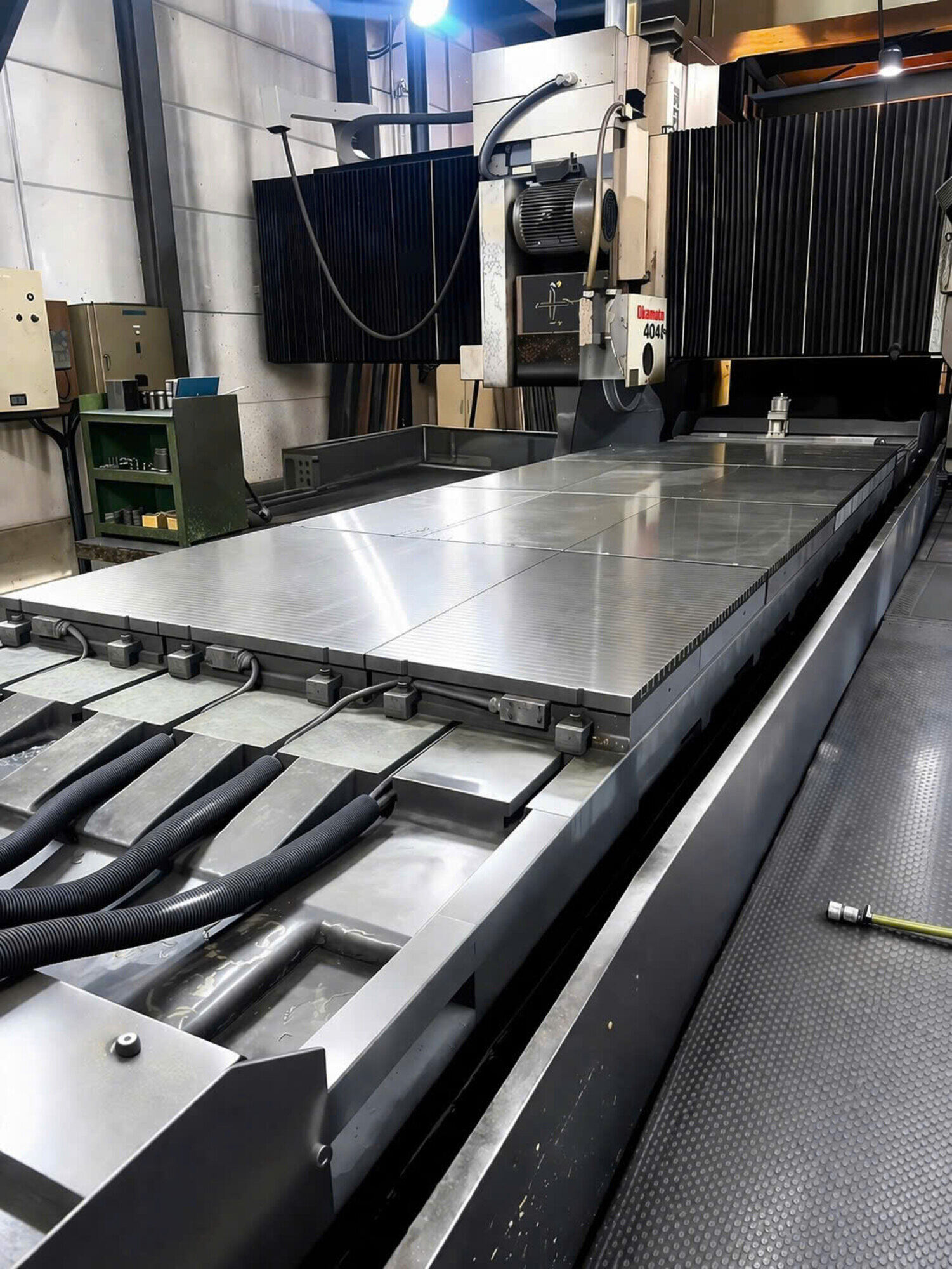

Worktable dimensions: 4000 × 1350 mm
Maximum Throughput Width: 1600 mm
Load Capacity: 12 T
Maximum Left-Right Feed Stroke: 4500 mm
High Speed: 5–30 m/min (stepless speed variation)
Low Speed: 2 m/min (fixed speed)
Jog Feed: 2 m/min (fixed speed)
Front-Back Feed Stroke: 2445 mm
Rapid Feed Speed: 3000 mm/min
Inkremental Feed Rate: 0.0001–99.9999 mm
Grinding Head Vertical Feed Travel (Y-axis): 150 mm
Rotary Spindle (V-axis) Travel: 500 mm
Rapid Feed Speed: 1000 mm/min
Gantry Beam Vertical Feed Travel: 1300 mm
Feed Rate at 50 Hz (60 Hz): 425 (510) mm/min
Transverse Grinding Wheel Specifications (Max.): φ610 × 100 × 203.2 mm
Grinding Wheel Spindle Speed at 60 Hz: 980 rpm
Rotary Spindle Grinding Wheel Specifications (Max.): φ510 × 50 × 127 mm
Grinding wheel spindle speed at 60 Hz: 900–3000 rpm
Rotating vertical spindle (A-axis) rotation angle: ±65°
Rapid feed rate: 1 rpm (360°)
Manual pulse feed: 0.001° (0.01°)
Product specifications are subject to the actual machine.
