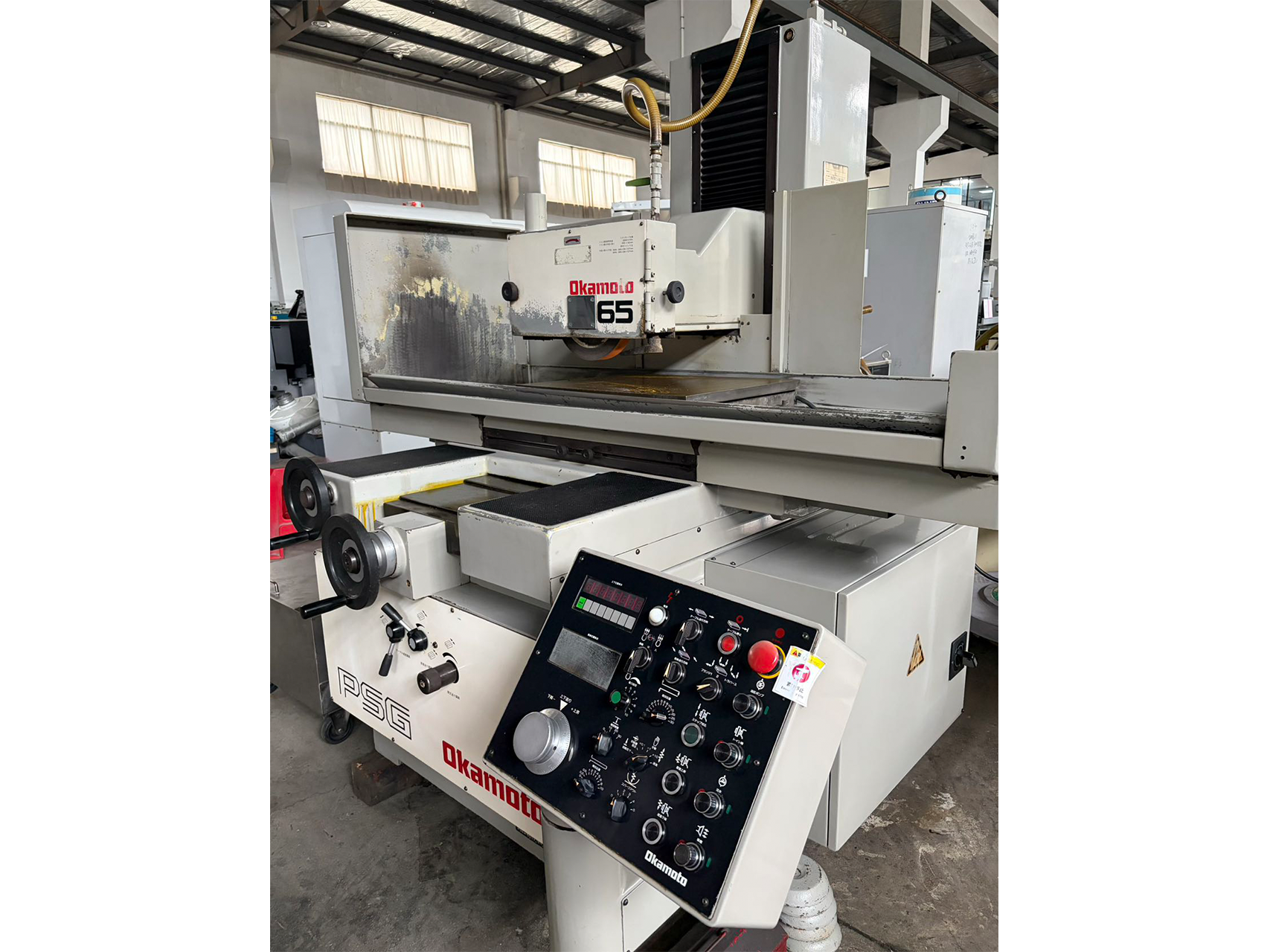

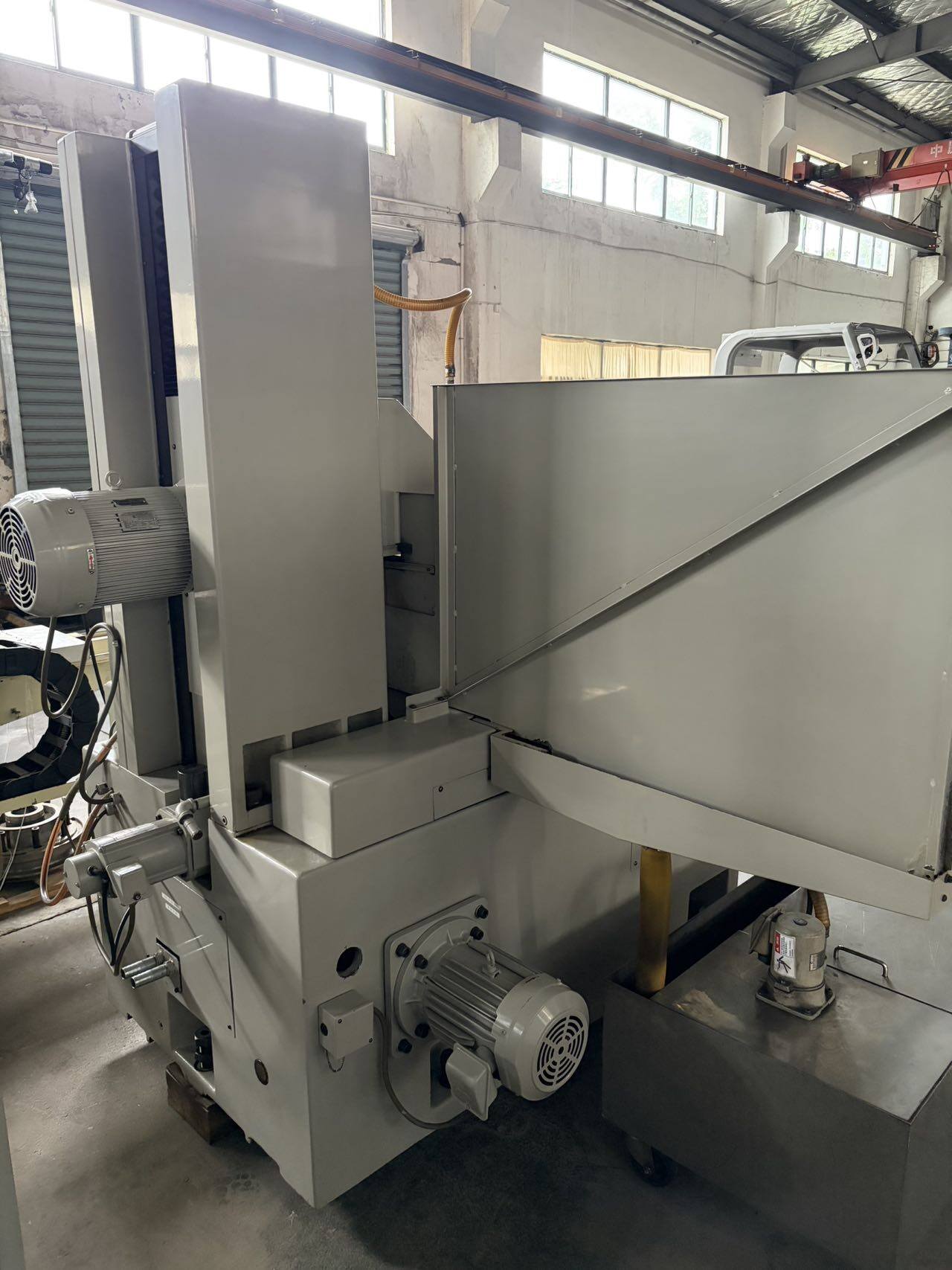

Okamoto (Japan) Surface Grinder
Part No.: 00578
Okamoto (Japan) Surface Grinder
PSG-65DX
Table Dimensions: 650 × 500 mm
Maximum Travel: 750 × 540 mm
Distance from Table to Spindle: 50 Hz: 22.5–522.5 mm
60 Hz: 47.5–547.5 mm
Maximum Load Capacity: 700 kg
Grinding Wheel Dimensions: 355/305 × 38 × 127 mm
Rotational Speed at 50 Hz: 1500 min⁻¹
at 60 Hz: 1800 min⁻¹
Voltage: Three-phase 200 V
Total Power: 8 kVA
Machine Weight: 3500 kg
Machine Dimensions: 2725 × 2450 × 2026 mm
- Category：Okamoto
- Share：
- Inquiry
- Details
Part No.: 00578
Okamoto (Japan) Surface Grinder
PSG-65DX
Table Dimensions: 650 × 500 mm
Maximum Travel: 750 × 540 mm
Distance from Table to Spindle: 50 Hz: 22.5–522.5 mm
60 Hz: 47.5–547.5 mm
Maximum Load Capacity: 700 kg
Grinding Wheel Dimensions: 355/305 × 38 × 127 mm
Rotational Speed at 50 Hz: 1500 min⁻¹
at 60 Hz: 1800 min⁻¹
Voltage: Three-phase 200 V
Total Power: 8 kVA
Machine Weight: 3500 kg
Machine Dimensions: 2725 × 2450 × 2026 mm
