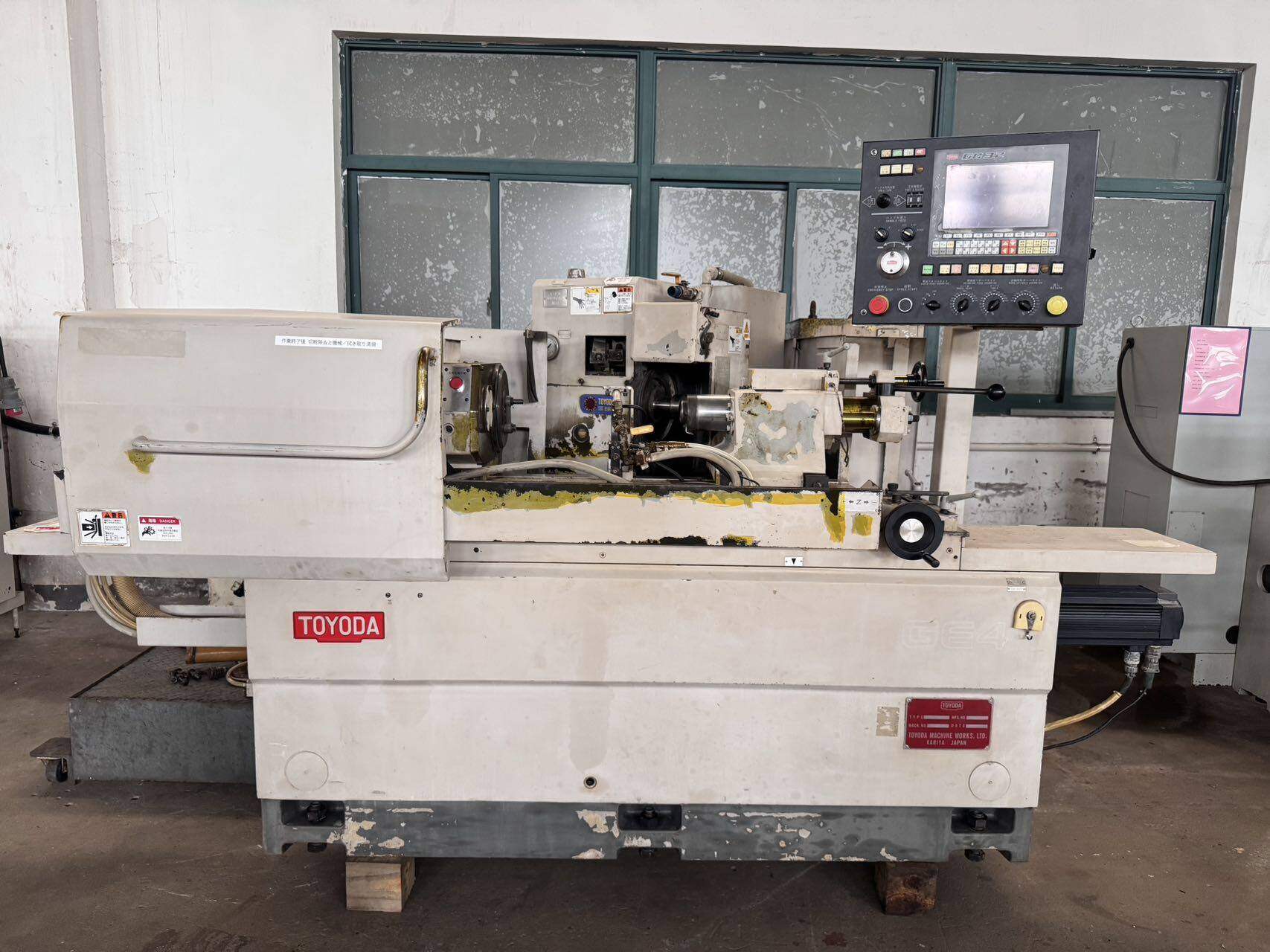

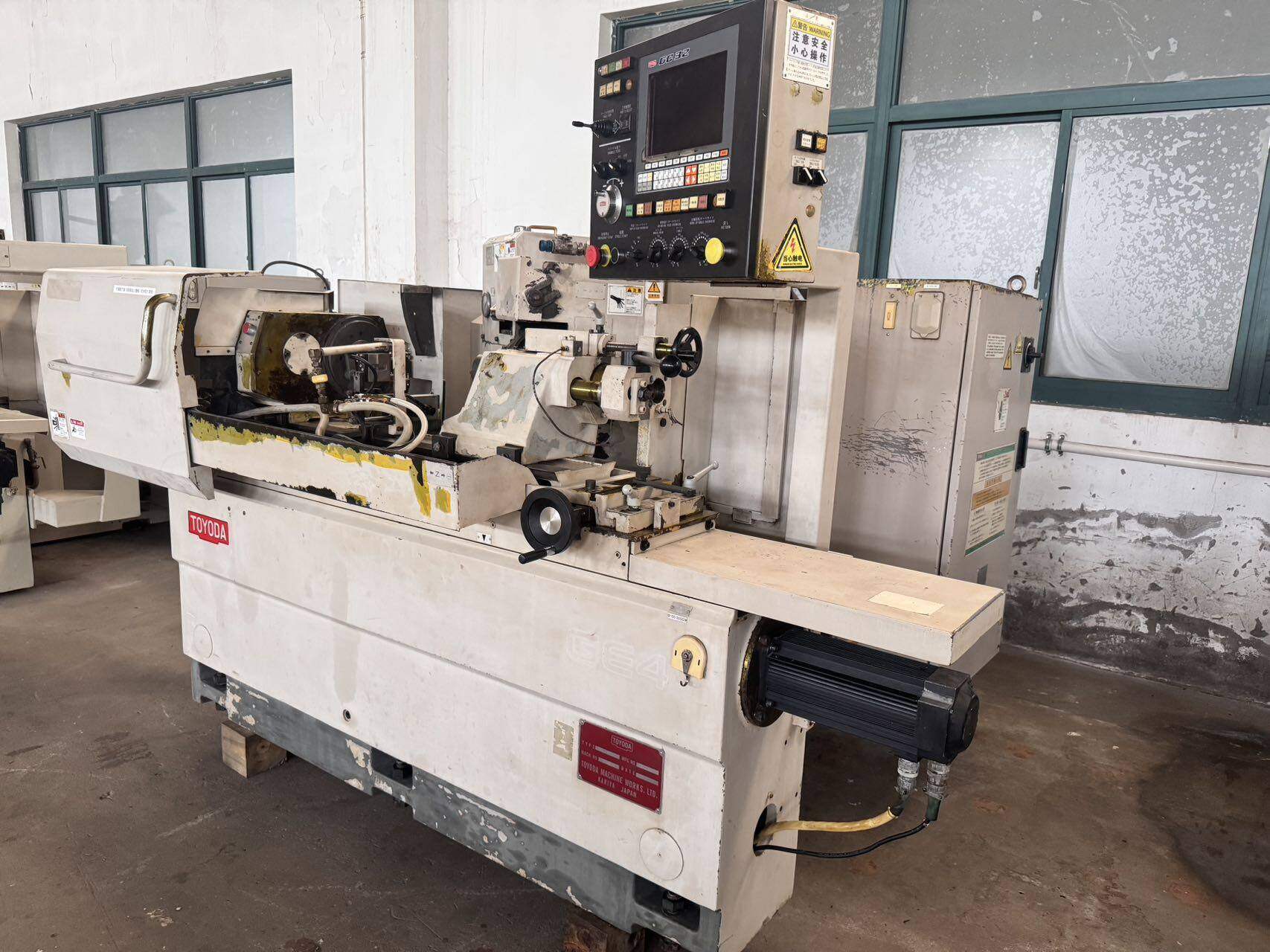

Toyota (Japan) Slant-feed Cylindrical Grinding Machine
No. 00582
Toyota (Japan) Slant-feed Cylindrical Grinding Machine
GE4A-50
Table Rotation Diameter: 300 mm
Table Grinding Length: 500 mm
Maximum Load Weight: 150 kg
Table Rotation Angle: +12.5°, -0°
Grinding Wheel Dimensions: 455 × 75 × 127 mm
Spindle Head Rotation Speed: 10–500 min⁻¹
Spindle and Tailstock Bores: MT4
Voltage: Three-phase 200 V
Total Power: 20 kVA
Machine Weight: 4,000 kg
Machine Dimensions: 3,550 × 1,950 mm
Product specifications are subject to the actual machine.
