Toyota (Japan) Cylindrical Grinding Machine
No. 00559

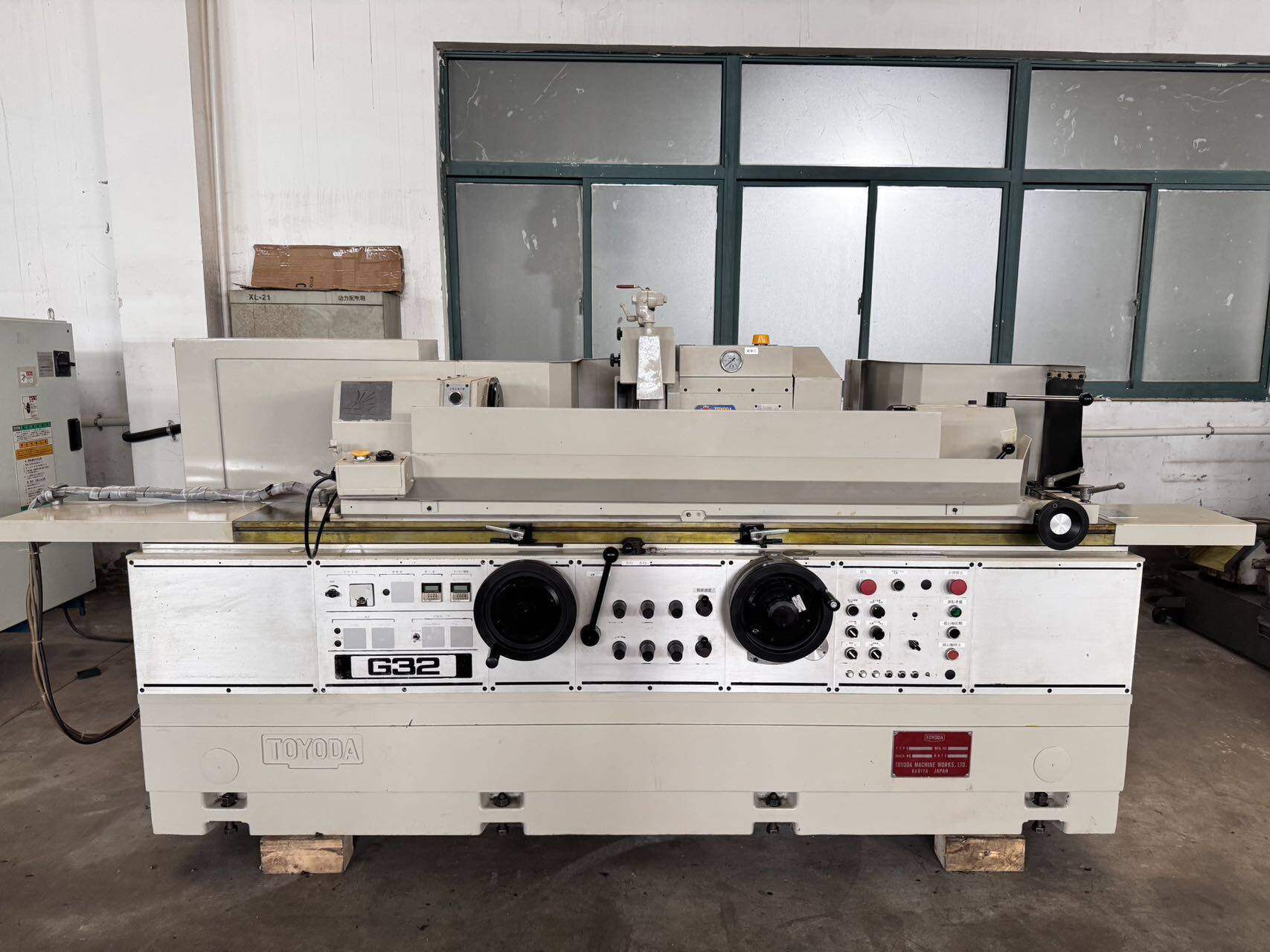

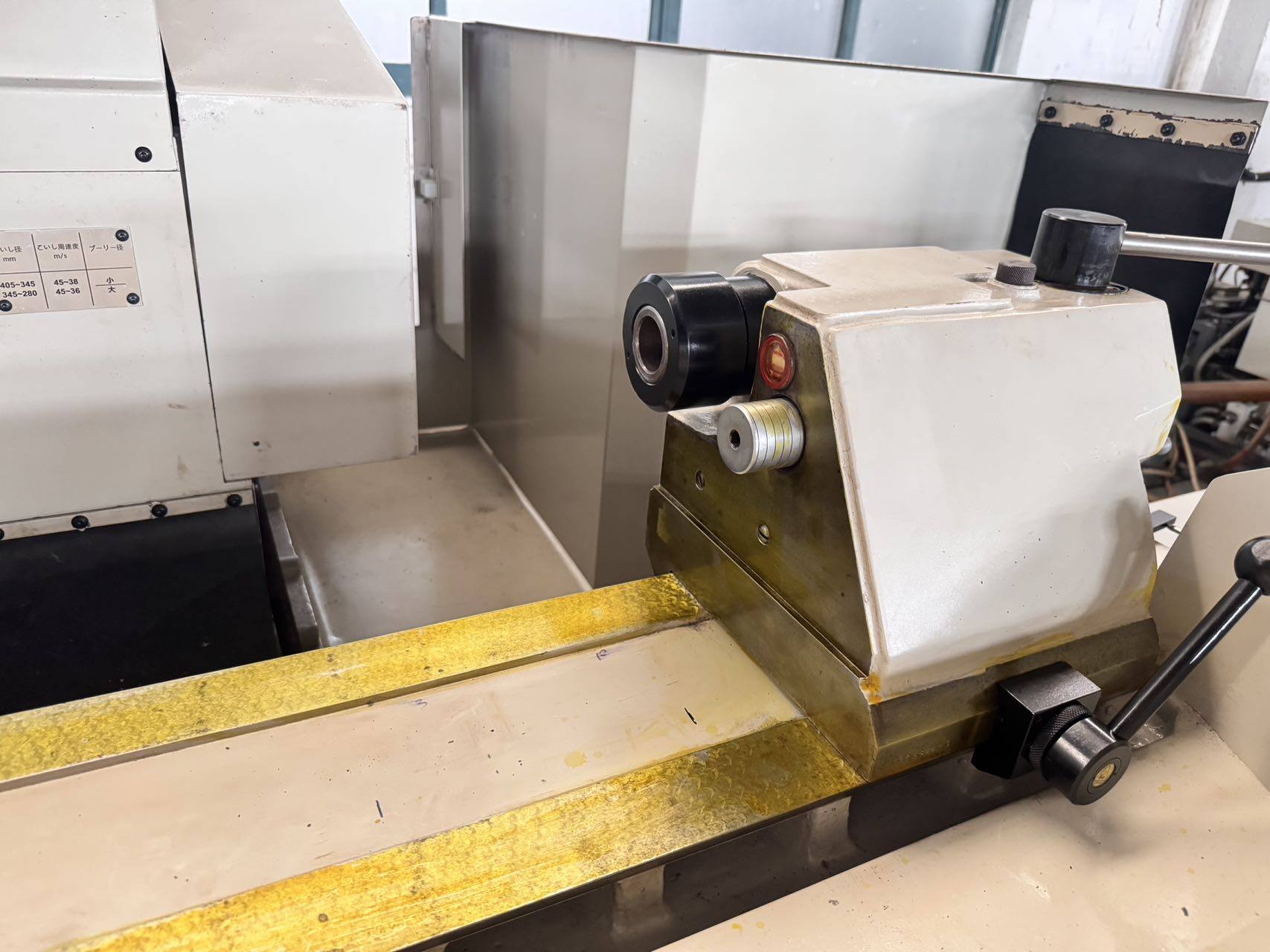

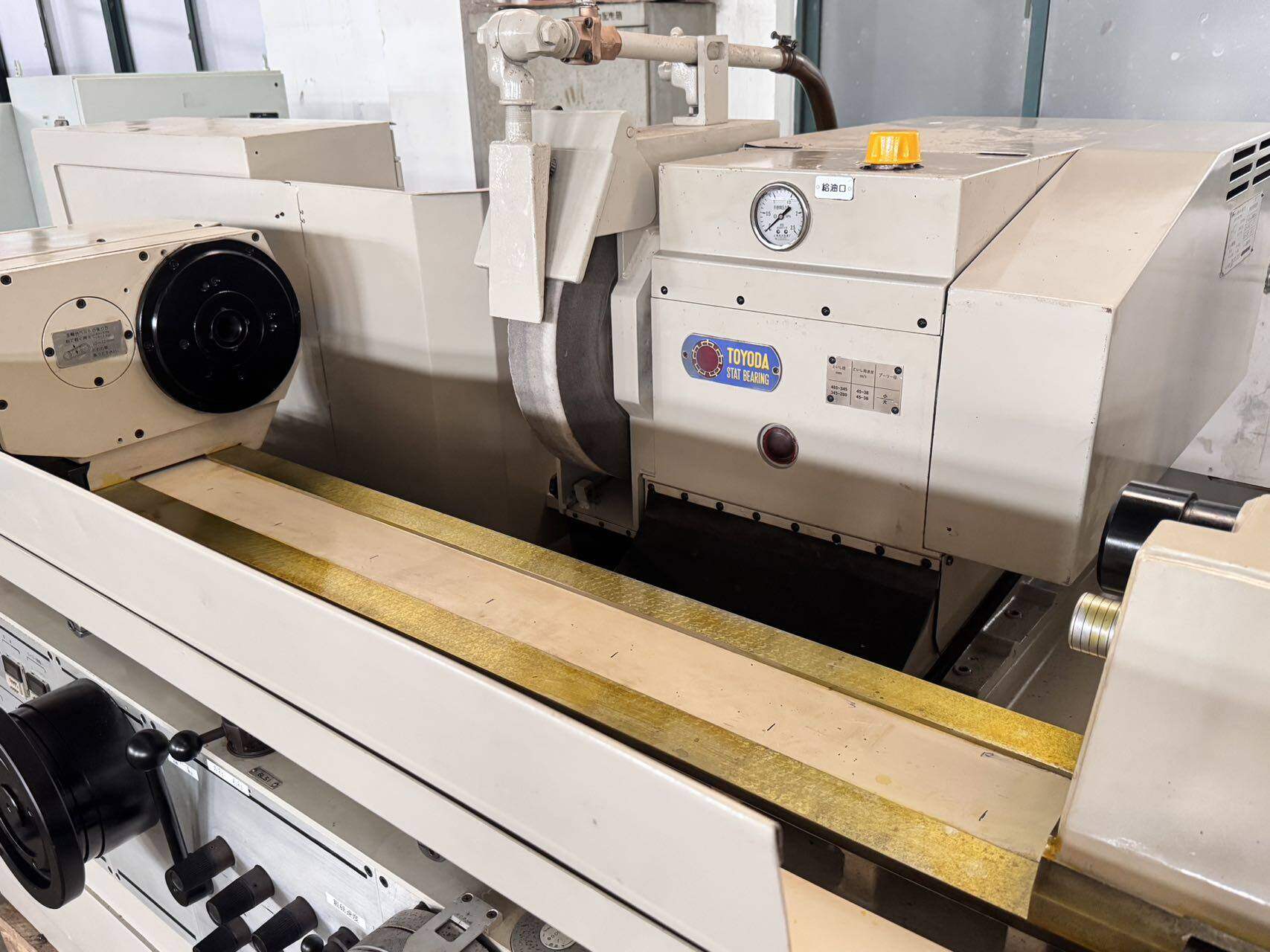

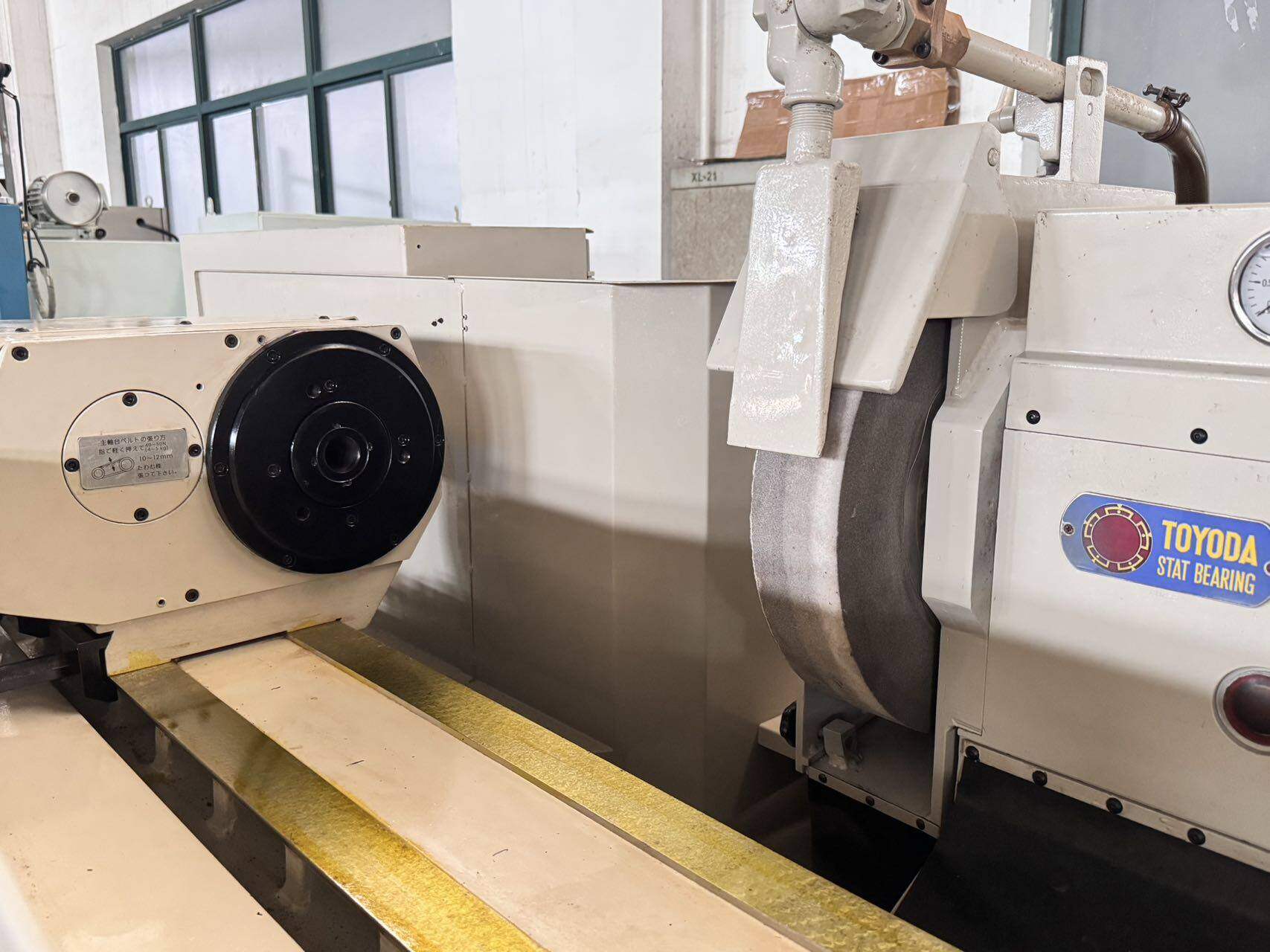

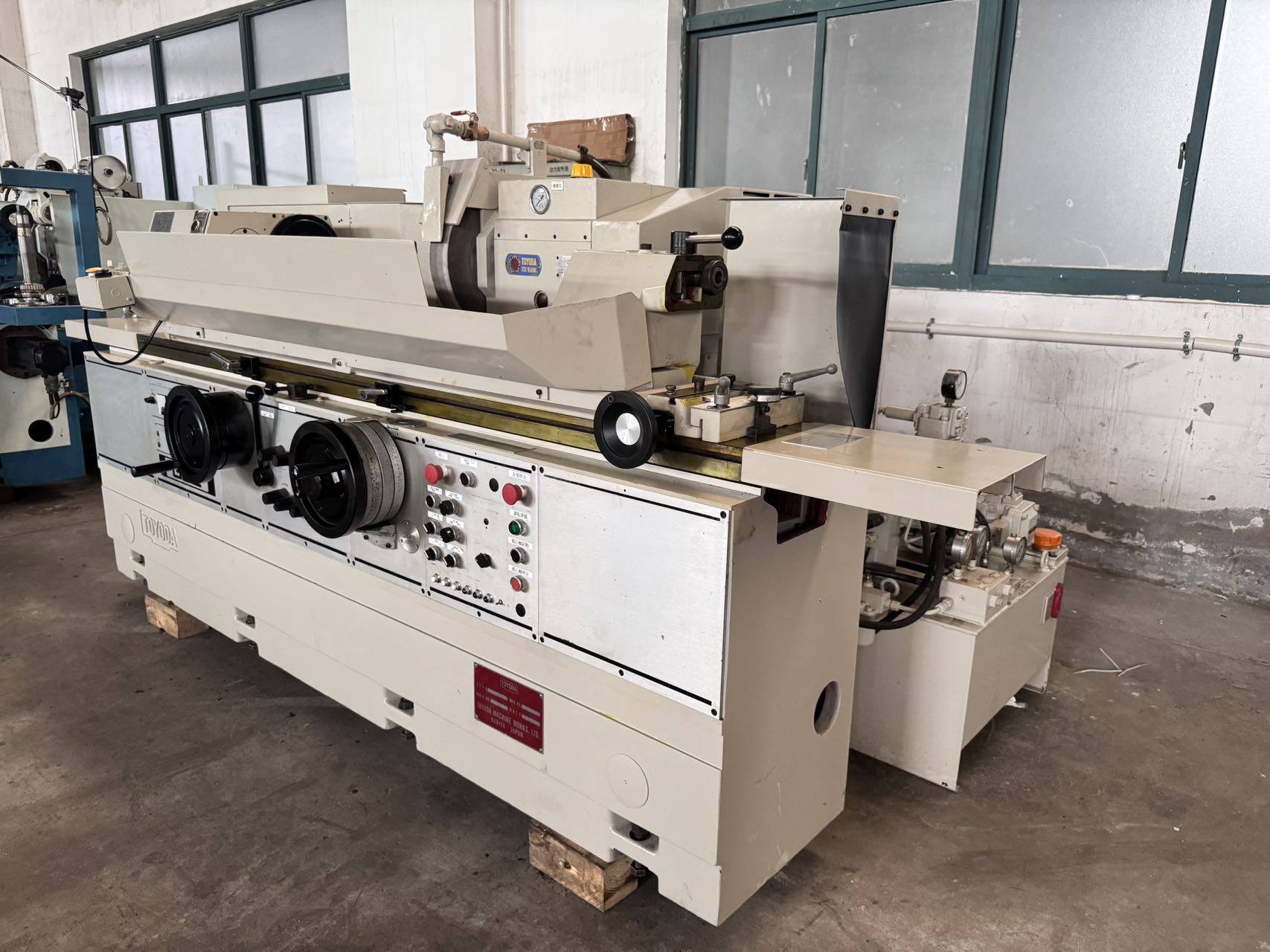

Toyota (Japan) Cylindrical Grinding Machine
GOP32*100
Table Rotation Diameter: 320 mm
Table Grinding Length: 1000 mm
Maximum Load Capacity: 150 kg
Grinding Wheel Dimensions: 405 × 100 × 127 mm
Table Rotation Angle: +10°, -3°
Spindle and Tailstock Bores: MT4
Spindle Speed: 21–500 rpm
Voltage: Three-phase 200 V
Total Power: 12 kVA
Machine Weight: 3,800 kg
Machine Dimensions: 4,500 × 1,840 mm
Product specifications are subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
No. 00559
Toyota (Japan) Cylindrical Grinding Machine
GOP32*100
Table Rotation Diameter: 320 mm
Table Grinding Length: 1000 mm
Maximum Load Capacity: 150 kg
Grinding Wheel Dimensions: 405 × 100 × 127 mm
Table Rotation Angle: +10°, -3°
Spindle and Tailstock Bores: MT4
Spindle Speed: 21–500 rpm
Voltage: Three-phase 200 V
Total Power: 12 kVA
Machine Weight: 3,800 kg
Machine Dimensions: 4,500 × 1,840 mm
Product specifications are subject to the actual machine.
