Taylor Cylindricity Measuring Instrument
No.: 00467

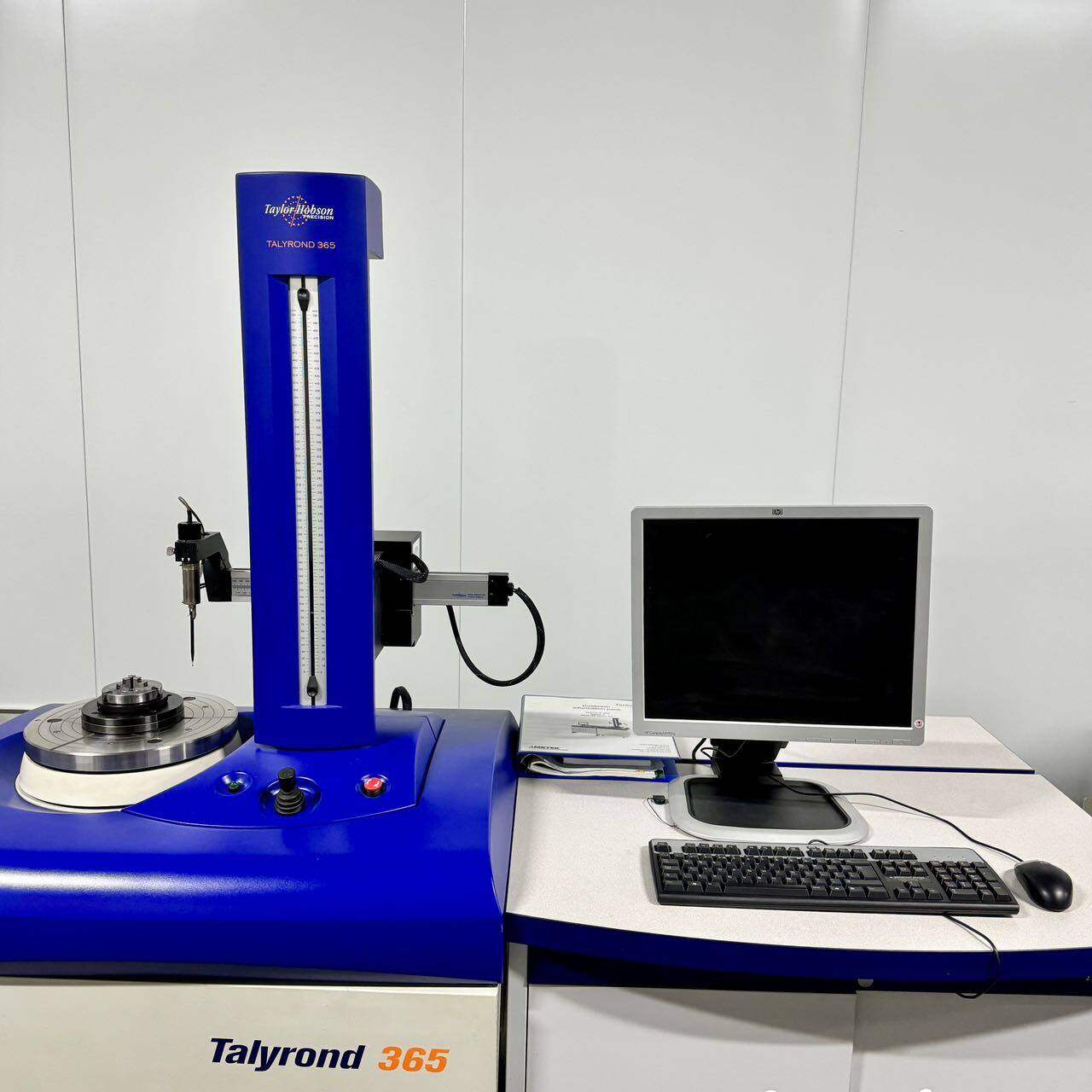

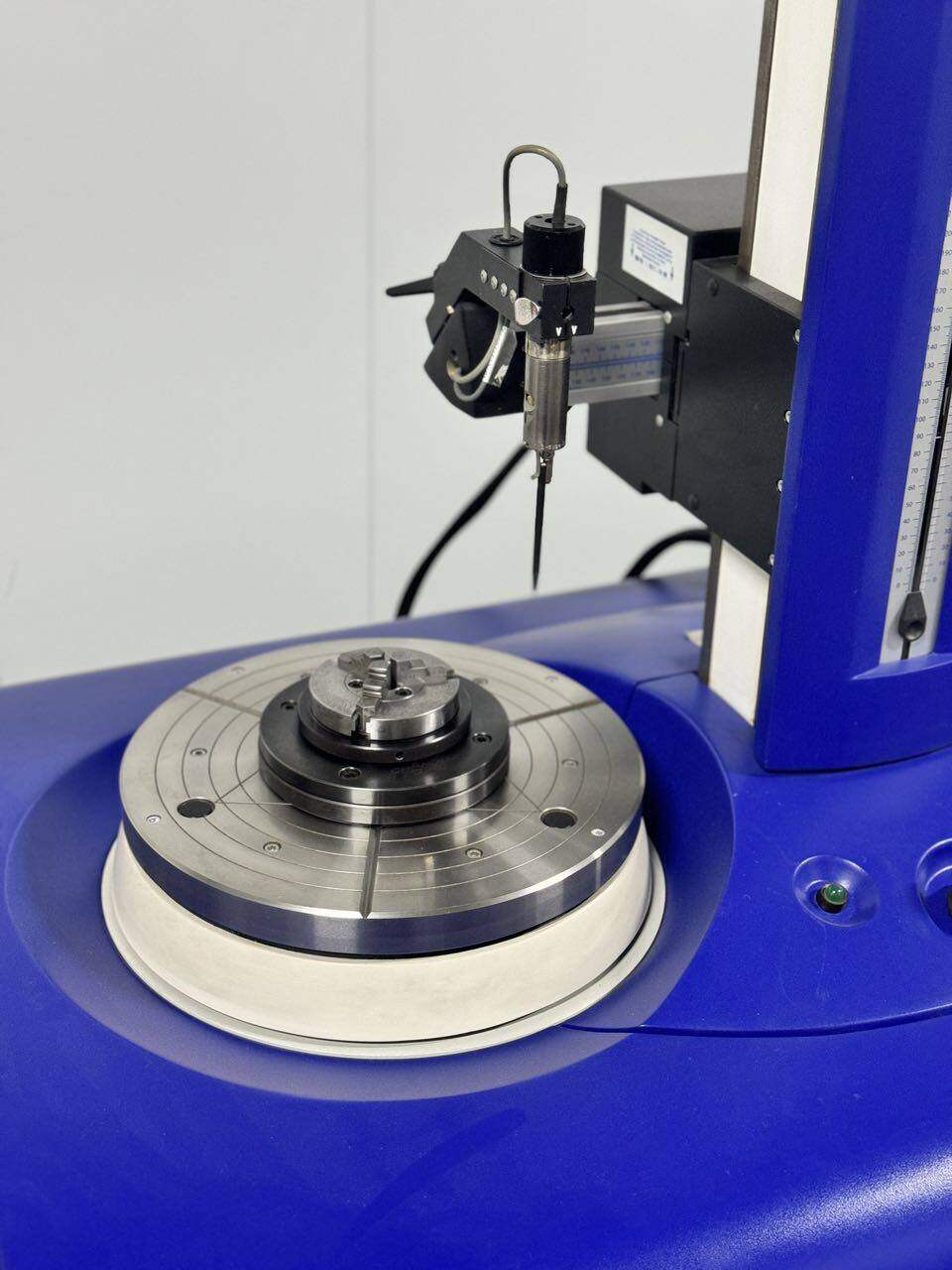

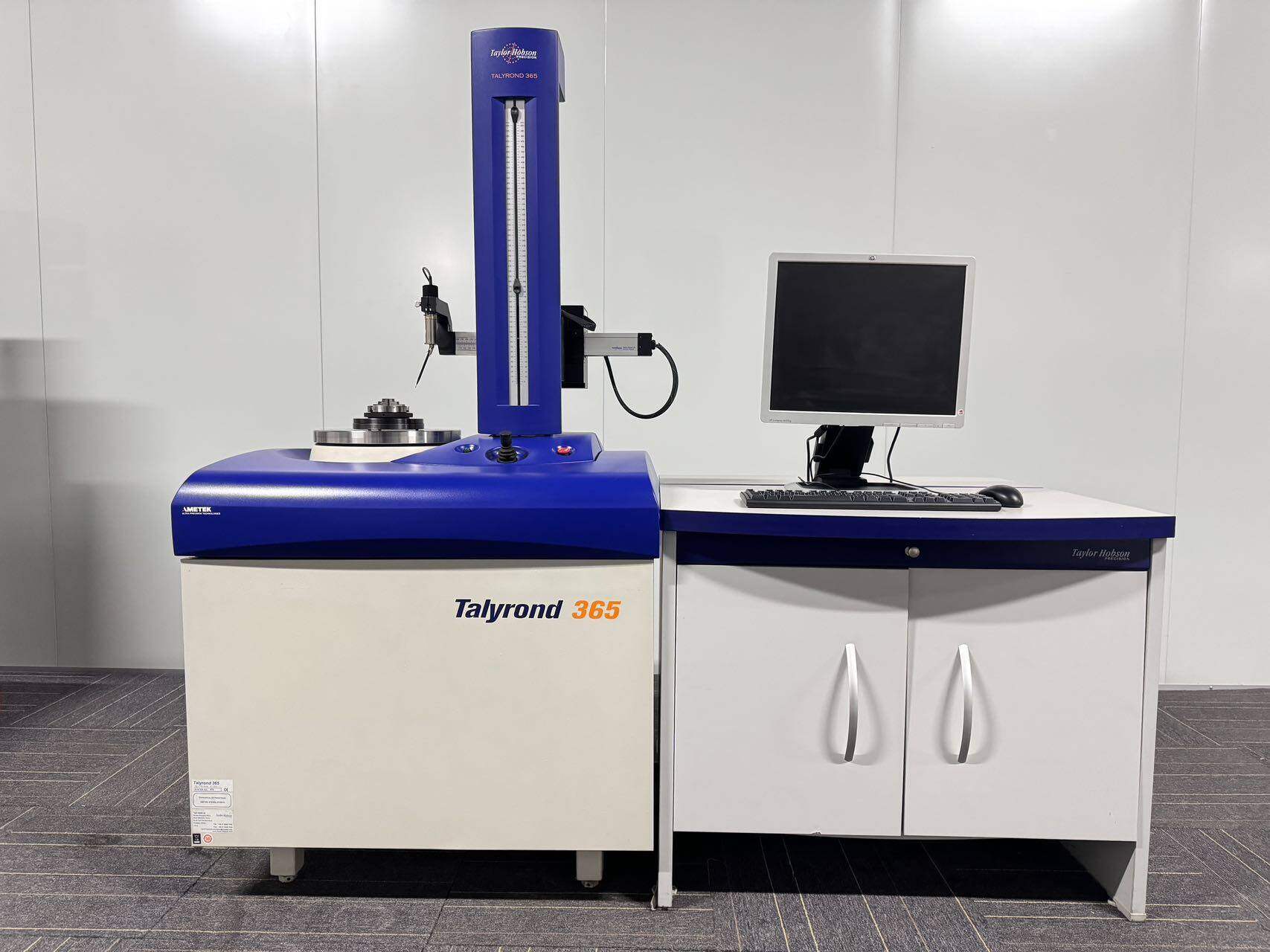

Taylor Cylindricity Measuring Instrument
Talyrond 365
Measurable Workpiece Diameter: 400mm (expandable to 500mm)
Measurable Workpiece Height: 500mm
Measurable Workpiece Hole Depth: 160mm
Maximum Measuring Diameter: 350mm (expandable to 450mm)
Workpiece Weight: 75kg (Automatic Centering and Leveling)
20kg (Manual Centering and Leveling)
Full-Straightness Error: 0.3μm/500mm
100mm Straightness Error: 0.15μm/100mm
Column-to-Spindle Parallelism: 1μm/500mm
Position Control: ±5μm
Moving Speed: 0.25-20mm/s (Movement and Measurement)
0.5-5mm/s (Contact)
Length Measurement Accuracy: 0.03μm/mm + 1.5μm
Positioning Resolution: 0.25μm
Rotational Speed Options: 0.6, 1, 2, 6, 10rpm
Automatic sensor calibration, automatic tracking, automatic centering and leveling
High-precision air bearing spindle accuracy up to ±0.02μm
Minimum Sensor Resolution: 0.0012μm
Positioning control accuracy of column and cross arm improved to ±5μm
Machine Dimensions: 870*705*1660mm
Machine Weight: 286KG
Product parameters shall be subject to the actual machine.
