Taylor Cylindricity Tester
No.: 00500

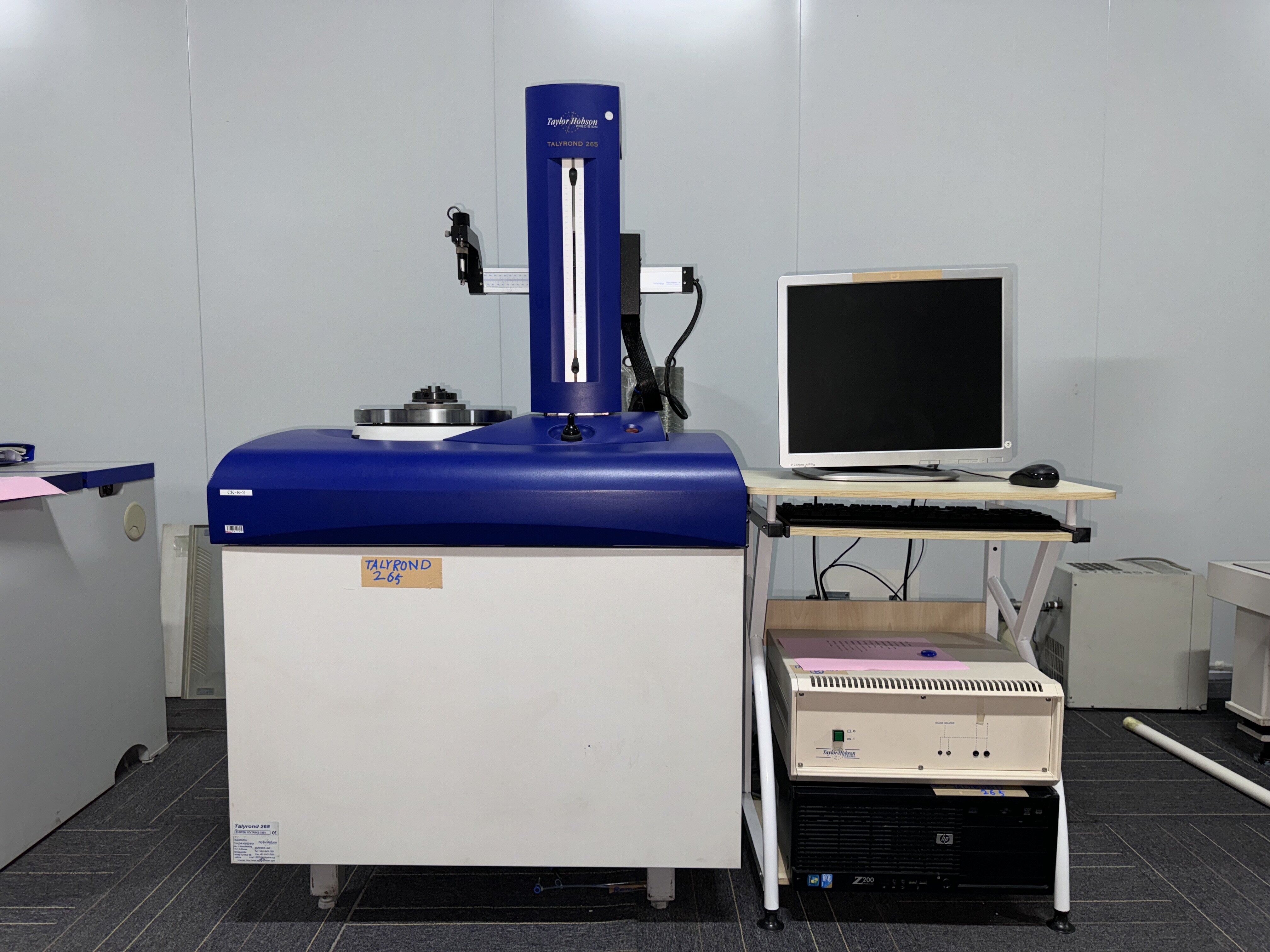

Taylor Cylindricity Measuring Instrument

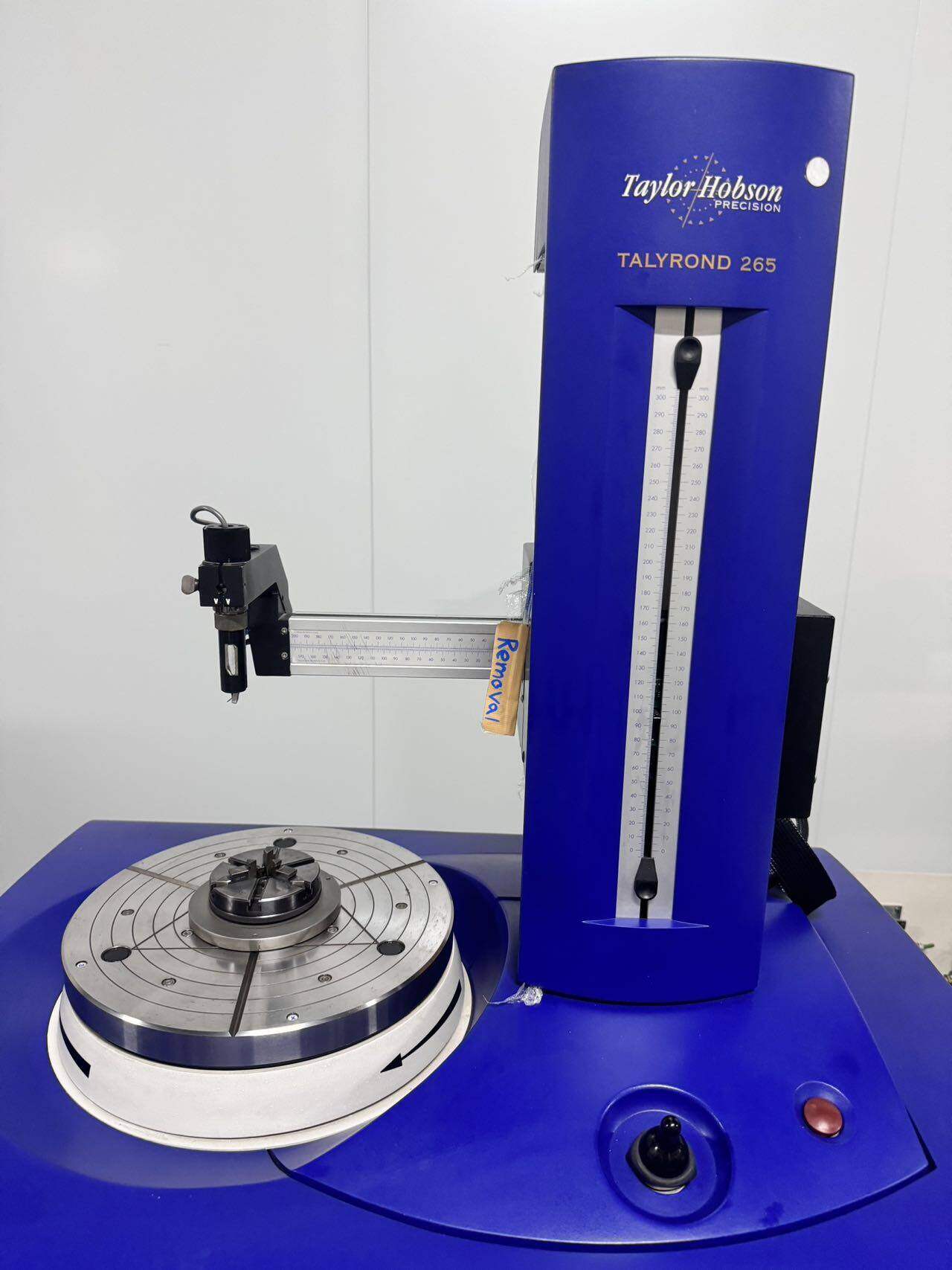

Talyrond 265
Maximum Measuring Diameter: 350mm
Maximum Measuring Height: 350mm
Maximum Load Capacity: 50KG
Centering Range: ±5mm
Leveling Range: ±60 arcminutes
Measurement Accuracy: 0.06μm (±1mm)
Measurement Accuracy: 0.012μm (±0.2mm)
Perpendicularity: 0.25μm/100mm
Single-Phase Power Voltage: 100-120V
Power Voltage: 220-240V 75VA
Frequency: 50/60Hz
Product parameters shall be subject to the actual machine.
- Category：Taylor Hobson
- Share：
- Inquiry
- Details
No.: 00500
Taylor Cylindricity Measuring Instrument
Talyrond 265
Maximum Measuring Diameter: 350mm
Maximum Measuring Height: 350mm
Maximum Load Capacity: 50KG
Centering Range: ±5mm
Leveling Range: ±60 arcminutes
Measurement Accuracy: 0.06μm (±1mm)
Measurement Accuracy: 0.012μm (±0.2mm)
Perpendicularity: 0.25μm/100mm
Single-Phase Power Voltage: 100-120V
Power Voltage: 220-240V 75VA
Frequency: 50/60Hz
Product parameters shall be subject to the actual machine.
