Taylor Cylindricity Tester
No.: 00544

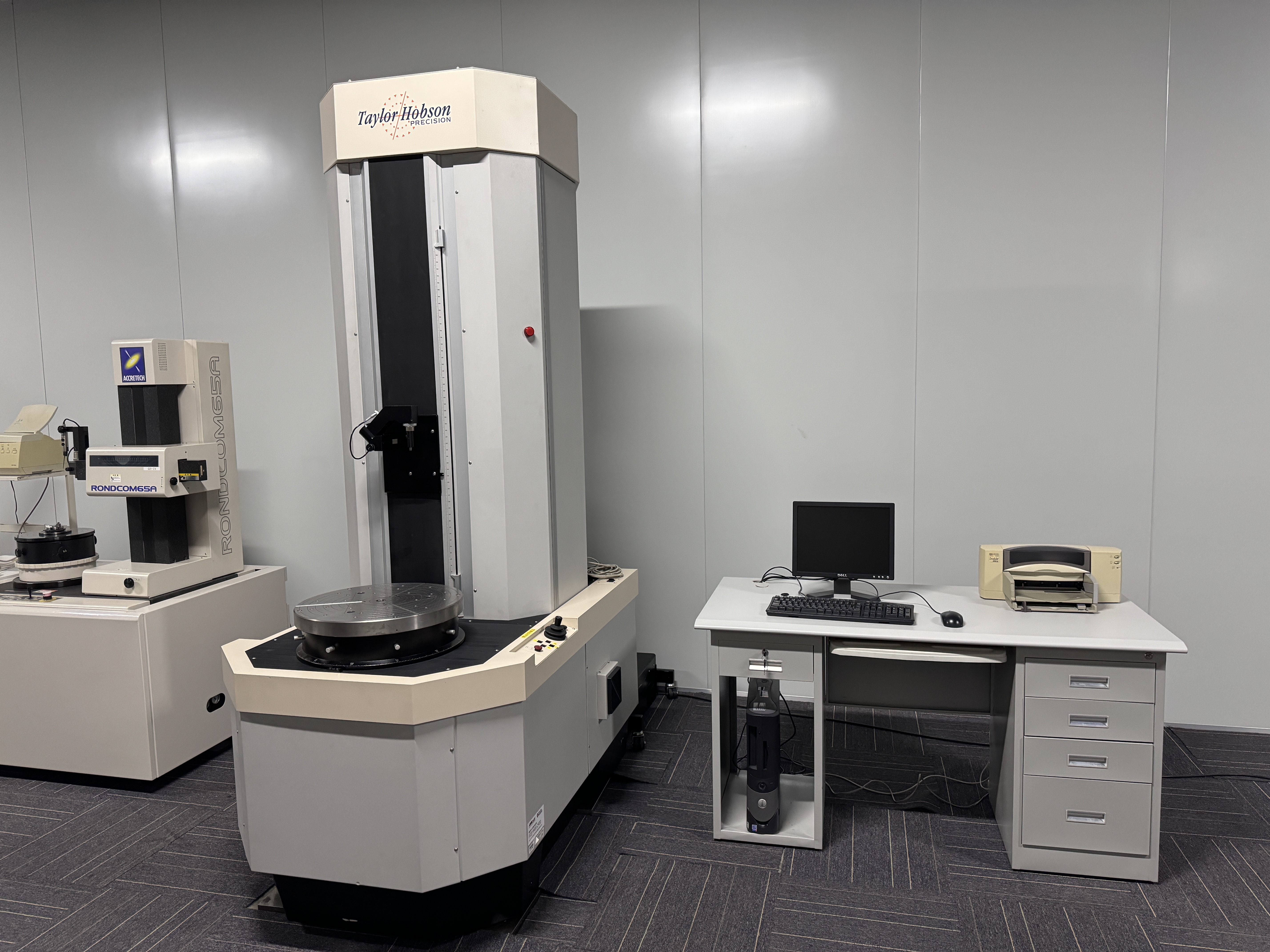

Talyrond Cylindricity Tester
Talyrond 400
Maximum diameter: 450 mm
Maximum load capacity: 225 kg
Spindle rotation speed: 0.6, 1.0, 2.0, 6.0 rpm
Rotational accuracy: 0.05 μm + 0.0003 μm/mm under concentric load
Measuring height: 1000 mm
Drive speed: 0.5 mm/s (measurement), 20 mm/s (adjustment)
Straightness accuracy: 1.0 μm/1000 mm, 0.25 μm/100 mm
Position control accuracy: ±20 μm
Measurement resolution: 1 μm
Horizontal drive arm measuring length: 300 mm
Drive speed: 0.5 mm/s (measurement), 20 mm/s (adjustment)
Straightness accuracy: 1.25 μm/300 mm, 0.25 μm/100 mm
Position control accuracy: 50 μm
Standard arm length: 100 mm
Standard resolution: ±1.0 mm, resolution: 0.060 μm
High resolution: ±0.2 mm, resolution: 0.012 μm
Product specifications are subject to the actual machine.
