Taylor Cylindricity Measuring Instrument
No.: 00563

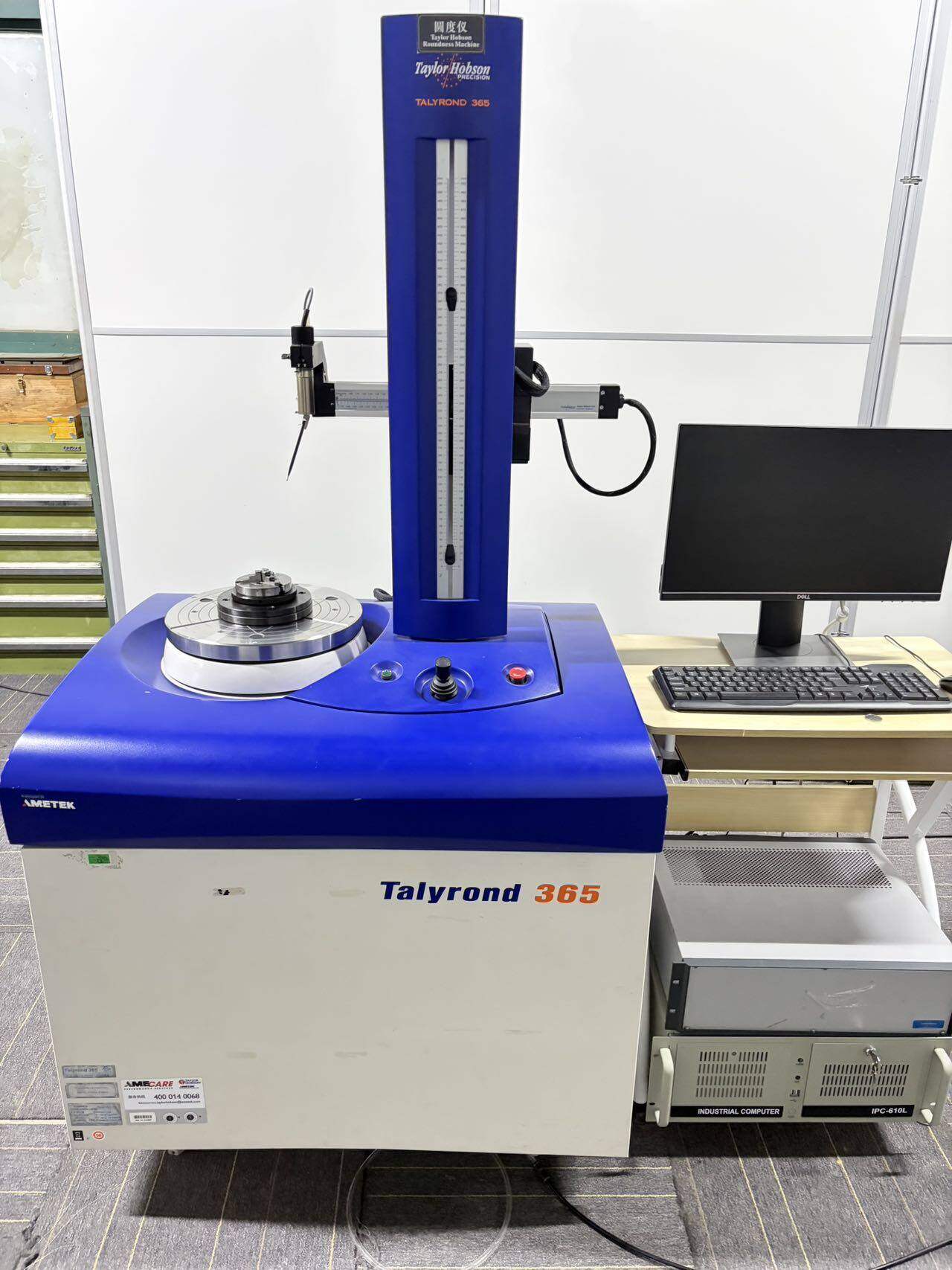

Talyrond Cylindricity Tester
Talyrond 365
Workpiece diameter range: 400 mm (extendable to 500 mm)
Workpiece height range: 500 mm
Bore depth range: 160 mm
Maximum measurement diameter: 350 mm (extendable to 450 mm)
Workpiece weight: Automatic centring and levelling: 75 kg
Manual centring and levelling: 20 kg
Straightness error over full travel: 0.3 μm/500 mm
Straightness error over 100 mm: 0.15 μm/100 mm
Parallelism of column to spindle: 1 μm/500 mm
Position control: ±5 μm
Travel speed: 0.25–20 mm/s (travel and measurement)
0.5–5 mm/s (contact)
Length measurement: 0.03 μm/mm + 1.5 μm
Positioning resolution: 0.25 μm
Rotation speed options: 0.6, 1, 2, 6, 10 rpm
Automatic sensor calibration, automatic tracking, automaticself-centring and levelling
High-precision gas-bearing spindle with accuracy of ±0.02 μm
Minimum sensor resolution: 0.0012 μm
Position control accuracy of column and crossarm improved to ±5 μm
Machine dimensions: 870 × 705 × 1660 mm
Machine weight: 286 kg
Product specifications are subject to the actual machine.
