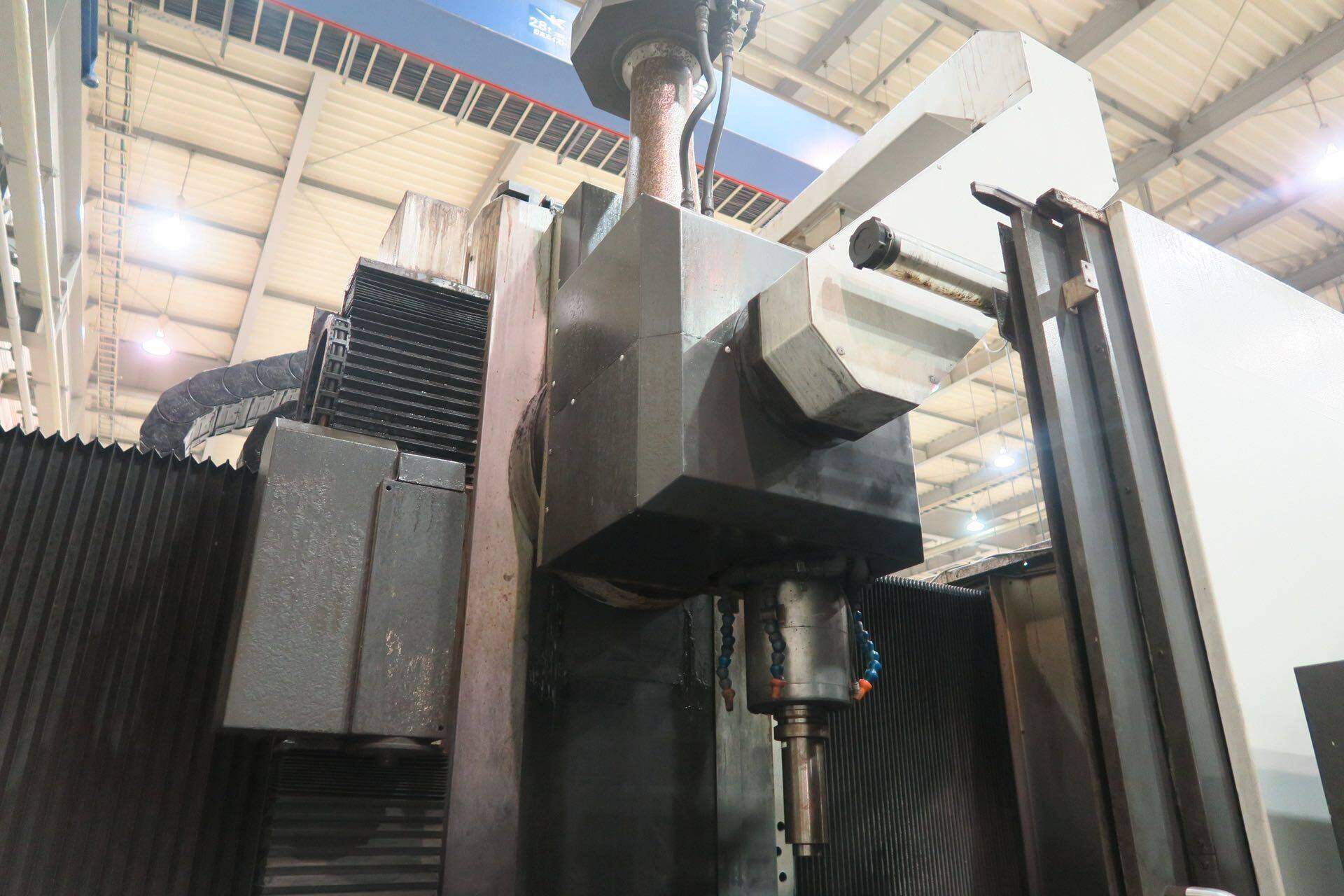

Sun Machinery Vertical Grinding Machine, Japan
No.: 00554

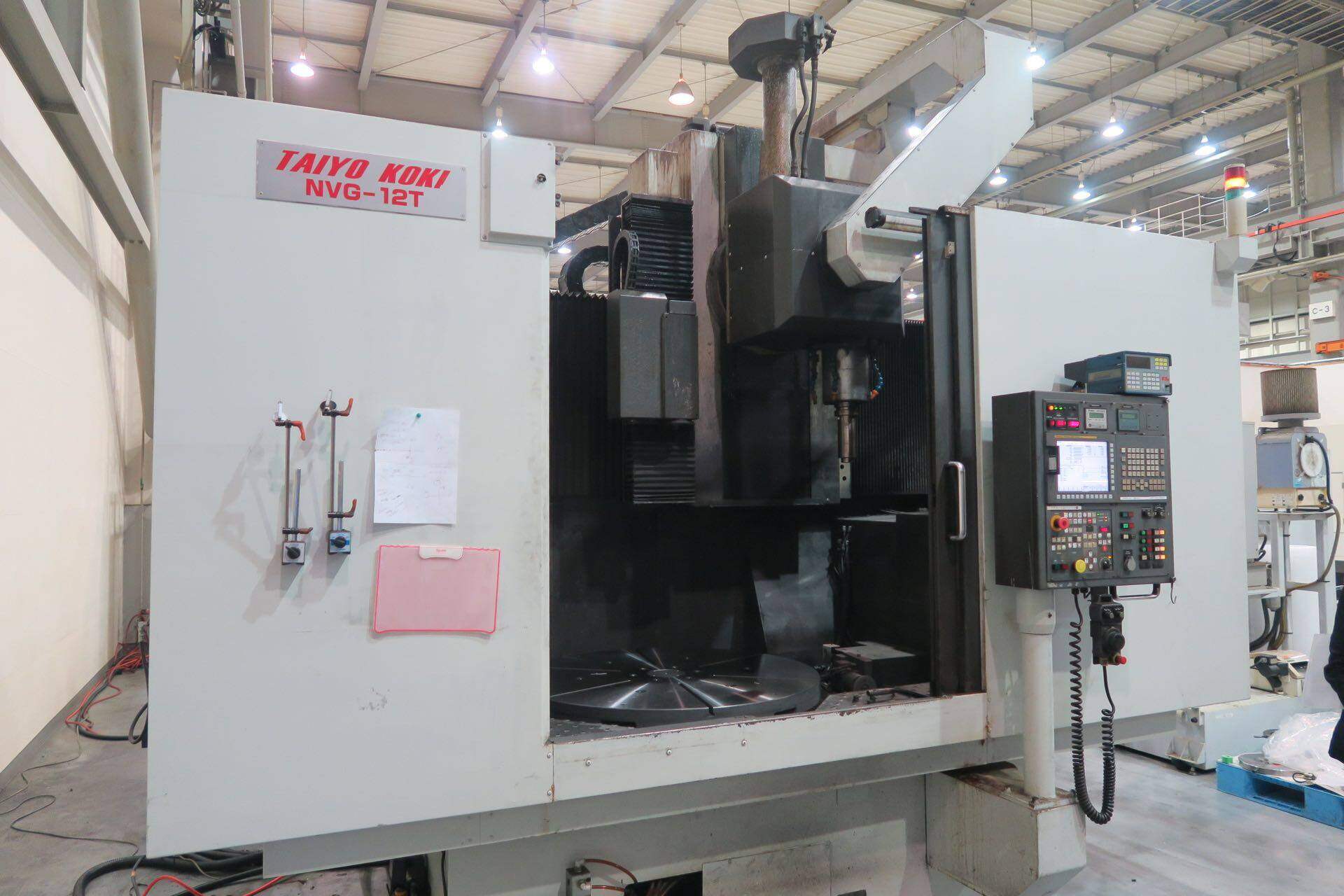

TAIYO KOKI Vertical Grinding Machine
Model: NVG-12T
Grindable Bore Diameter: (45) ~ Φ1200mm
Grindable Outer Diameter Range: Max Φ1200mm
Maximum Grindable Length (Outer Diameter): 500mm
Spindle Swing Diameter: Φ1250mm
Installable Workpiece Height: 600mm

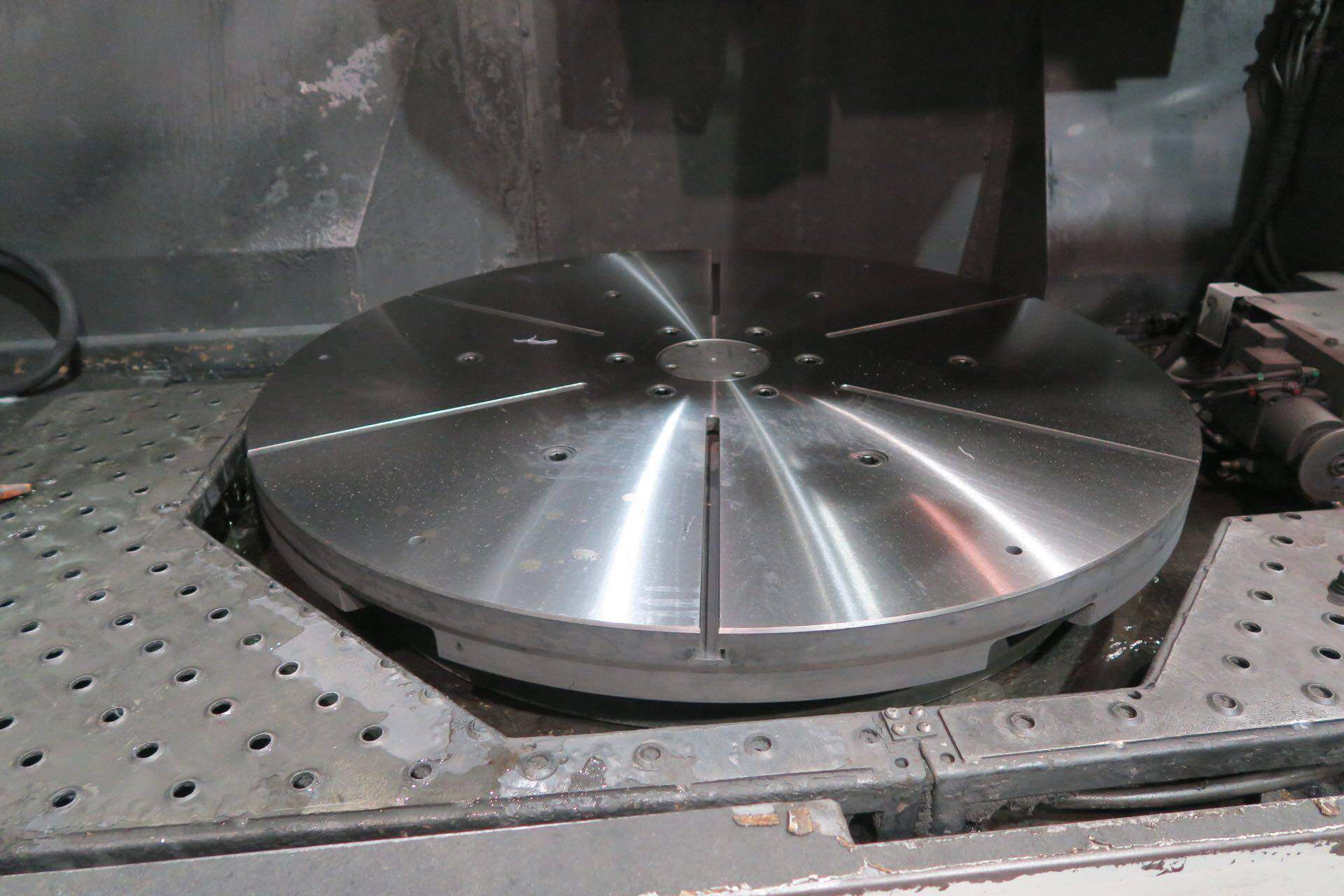

Load Capacity of Spindle Worktable: 2500KG

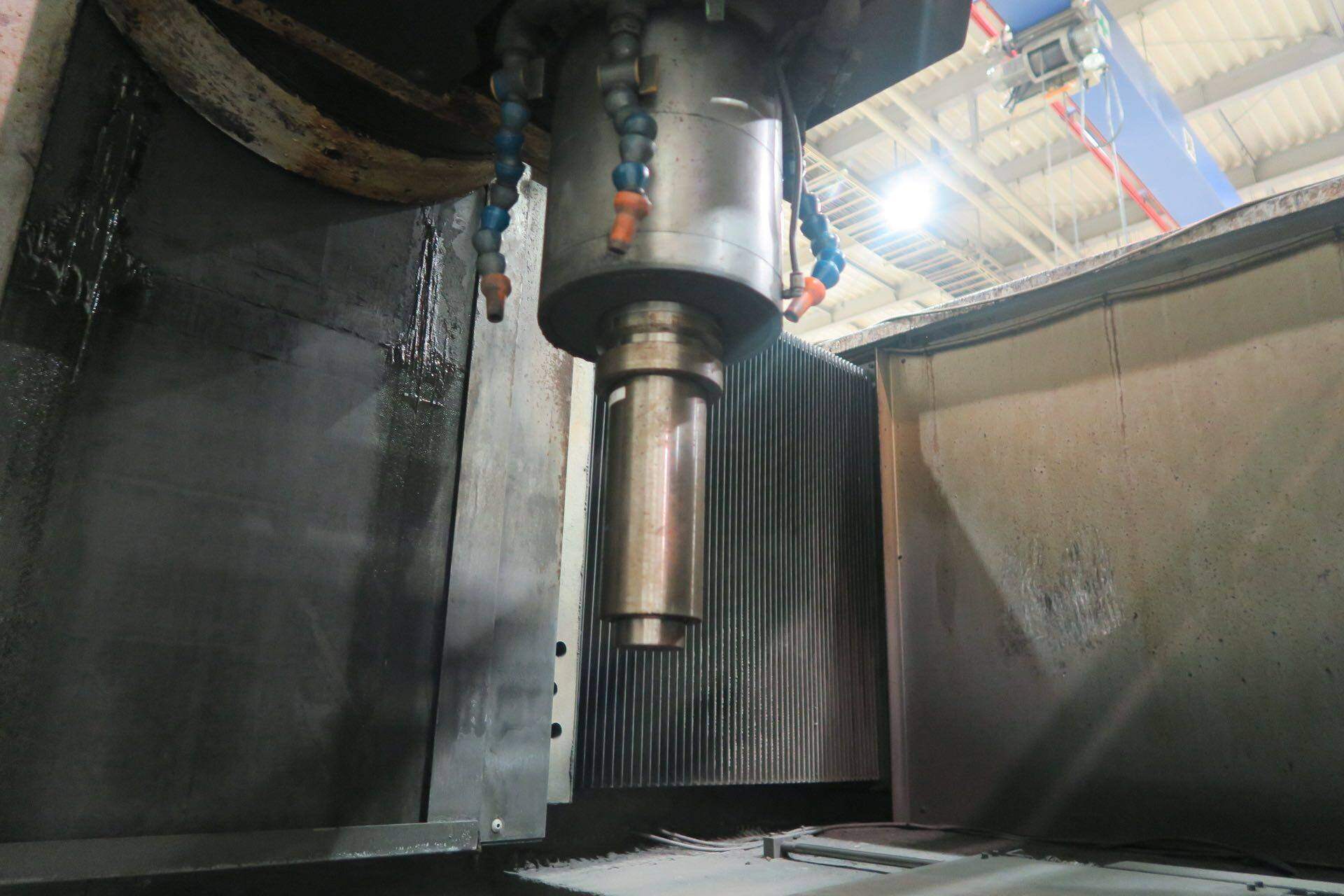

Internal Grinding Wheel Spindle
Rotational Speed: 2500~10000min⁻¹
Applicable Grinding Wheel: Φ40～Φ250mm
Taper Hole: BT50

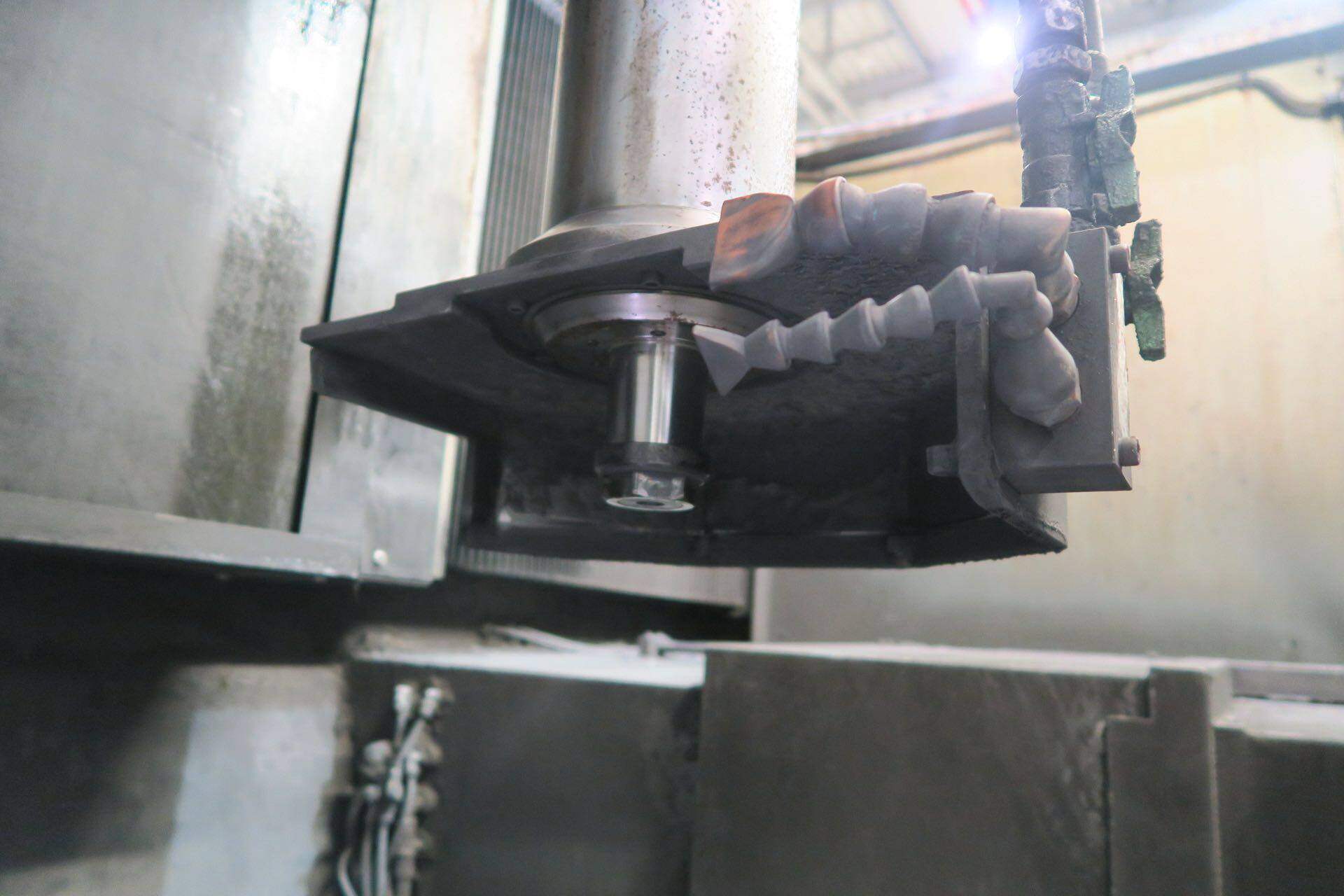

External Grinding Wheel Spindle
Rotational Speed: 2400~3000min⁻¹
Applicable Grinding Wheel: 355*t65mm
Maximum Operating Speed: 2700m/min
Spindle Rotation Speed: 5～100min⁻¹
Machine Weight: 17000KG
Machine Dimensions: 3810*4300*3600mm
Product parameters shall be subject to the actual machine.
