Sun Machinery Japan Vertical Grinding Machine
No.: 00565

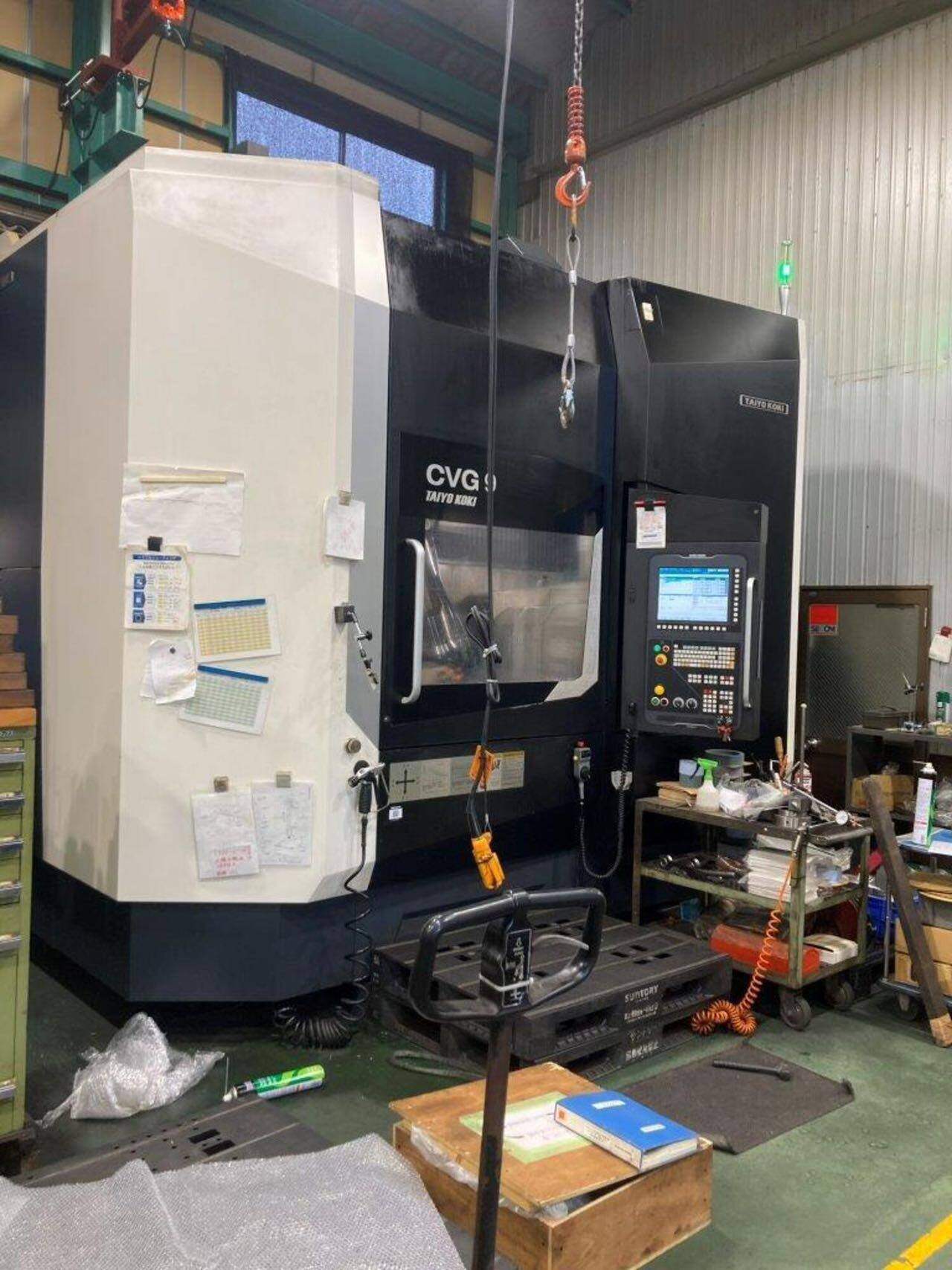

Taiyo Koki (Japan) Vertical Grinding Machine
CVG-9
Inner diameter range: Φ50–900 mm
Outer diameter range: Φ900 mm
Grinding length (inner/outer diameter): 600 mm
Spindle swing diameter: Φ950 mm
Maximum workpiece height: 700 mm
Spindle table load capacity: 1100 kg
Internal grinding spindle
Rotational speed: 2800–9000 rpm
Grinding wheel size: Φ45–250 mm
Taper: HSK-E100
Grinding wheel power: 11 kW
External grinding spindle
Rotational speed: 2400–3000 rpm
Grinding wheel: Φ355 × t75 mm
Maximum peripheral speed: 2700 m/min
Output power: 5.5 kW
Spindle speed: ~250 rpm
X-axis travel: 1250 × 350 mm
Travel speed: 30,000 mm/min
Z-axis travel: 750 mm
Travel speed: 24,000 mm/min
Swivel angle of grinding wheel: 0° for internal diameter, 0° and 22.5° for external diameter
Total power: 54 kVA
Machine weight: 14,500 kg
Product specifications are subject to the actual machine.
