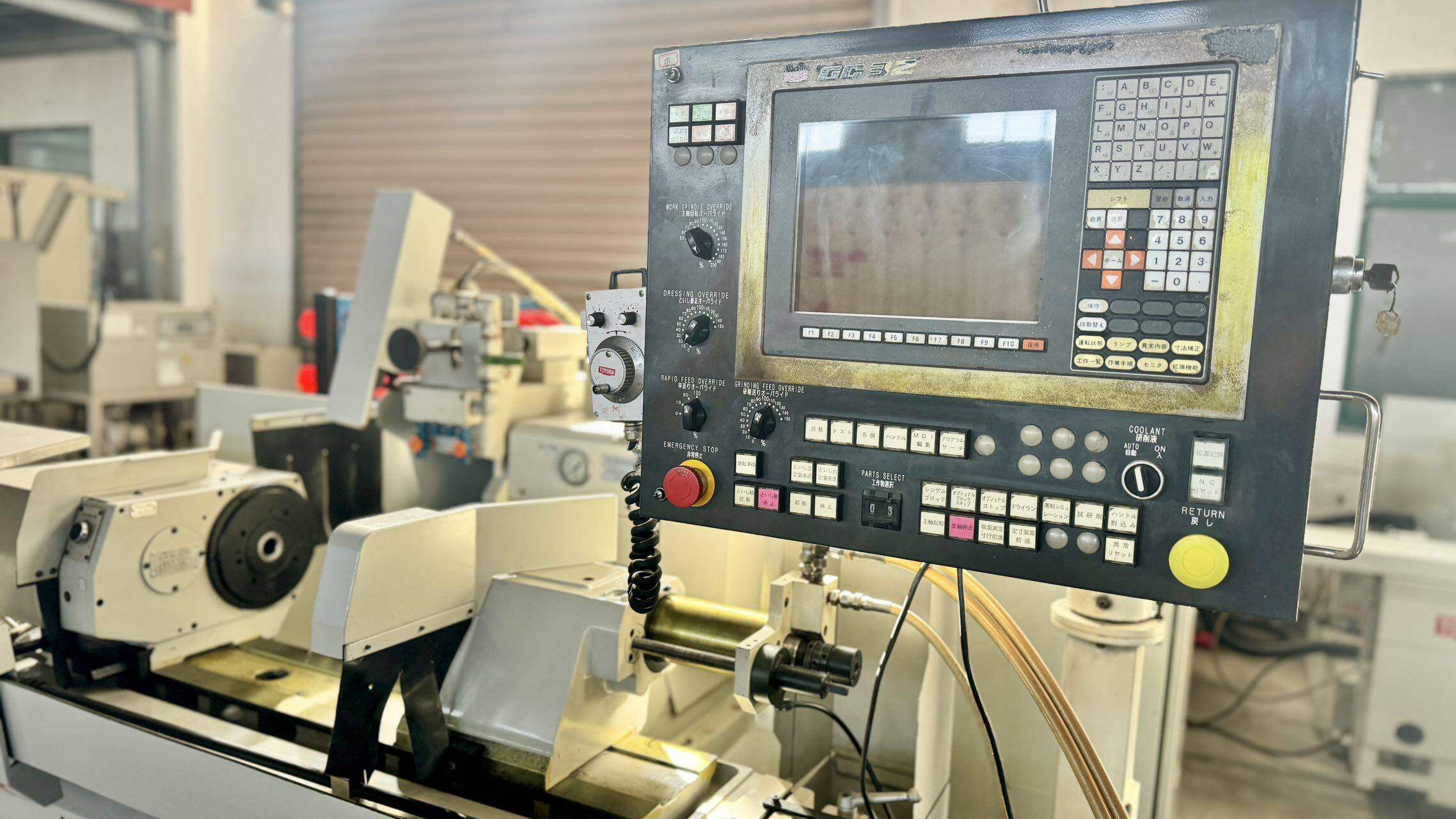

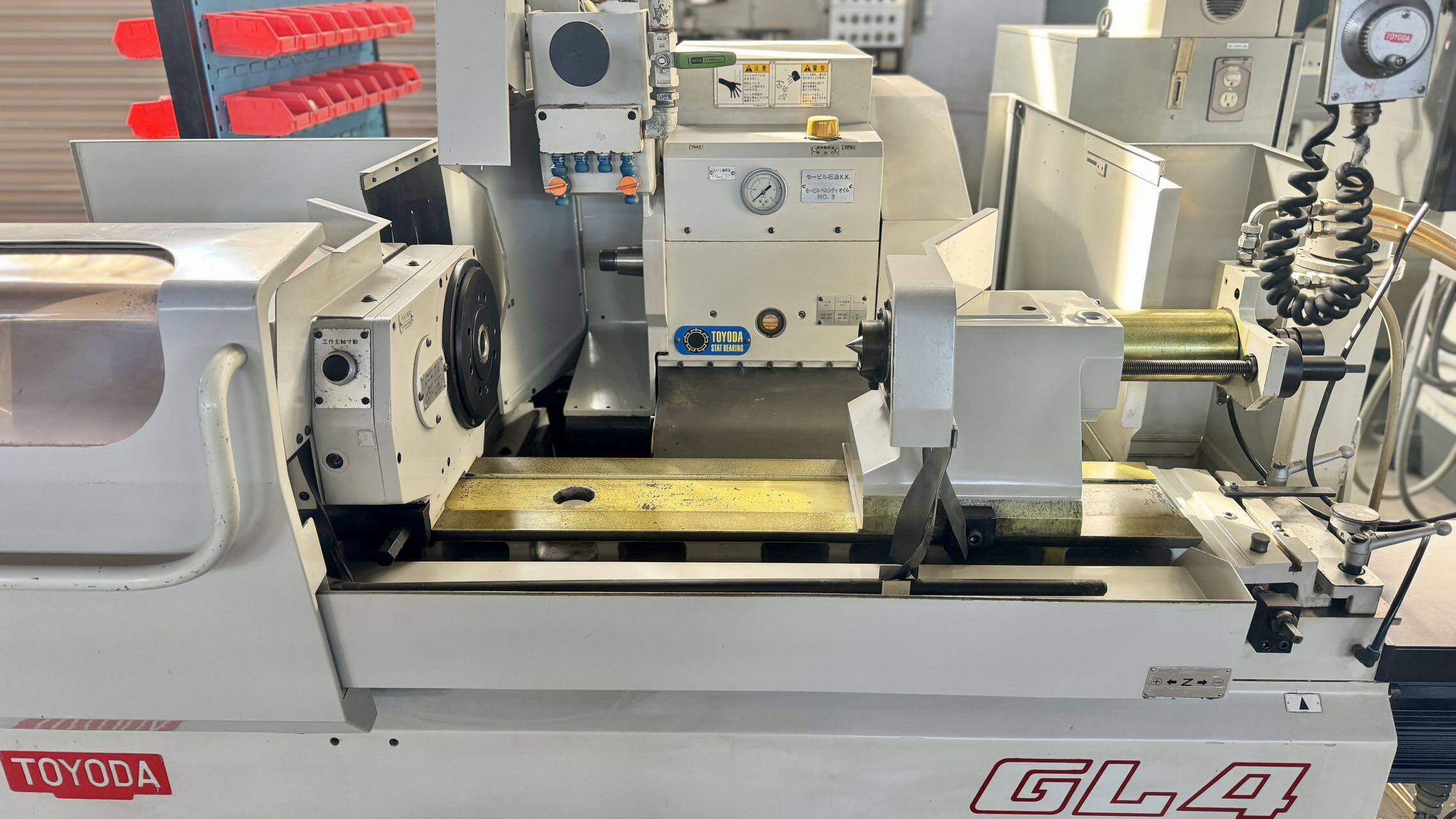

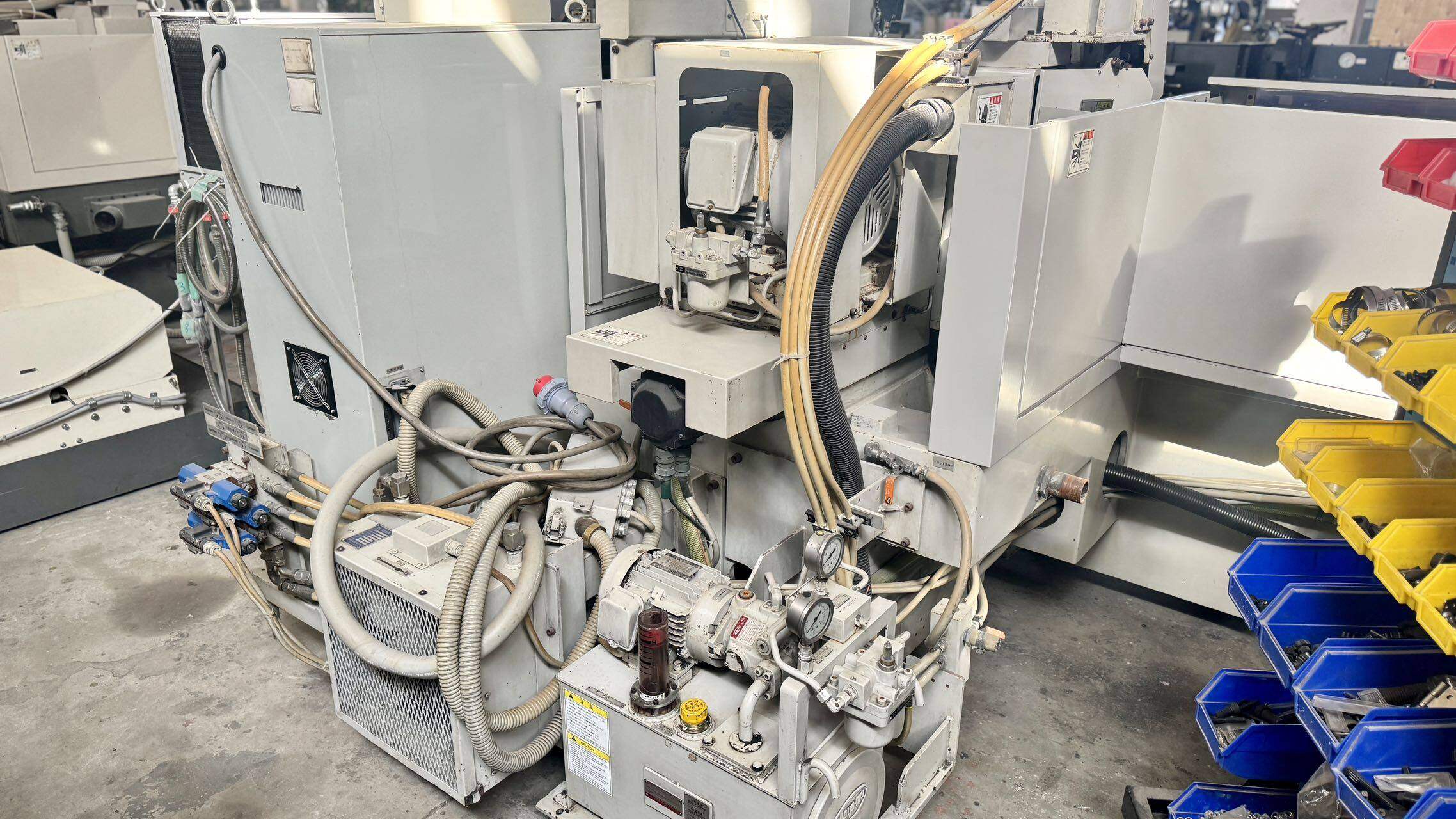

Toyota Cylindrical Grinding Machine (Japan)
Model No.: 00295
Toyota (Japan) Cylindrical Grinding Machine
GL4P-50
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Workpiece Weight: 130 kg
Table Rotation Angle: 0°, +12°
Grinding Wheel Dimensions: 405 × (75–100 max) × 127 mm
Grinding Wheel Speed: 2120 rpm
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Dimensions: 3200 × 2700 mm
Machine Weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
Model No.: 00295
Toyota (Japan) Cylindrical Grinding Machine
GL4P-50
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Workpiece Weight: 130 kg
Table Rotation Angle: 0°, +12°
Grinding Wheel Dimensions: 405 × (75–100 max) × 127 mm
Grinding Wheel Speed: 2120 rpm
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Dimensions: 3200 × 2700 mm
Machine Weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
