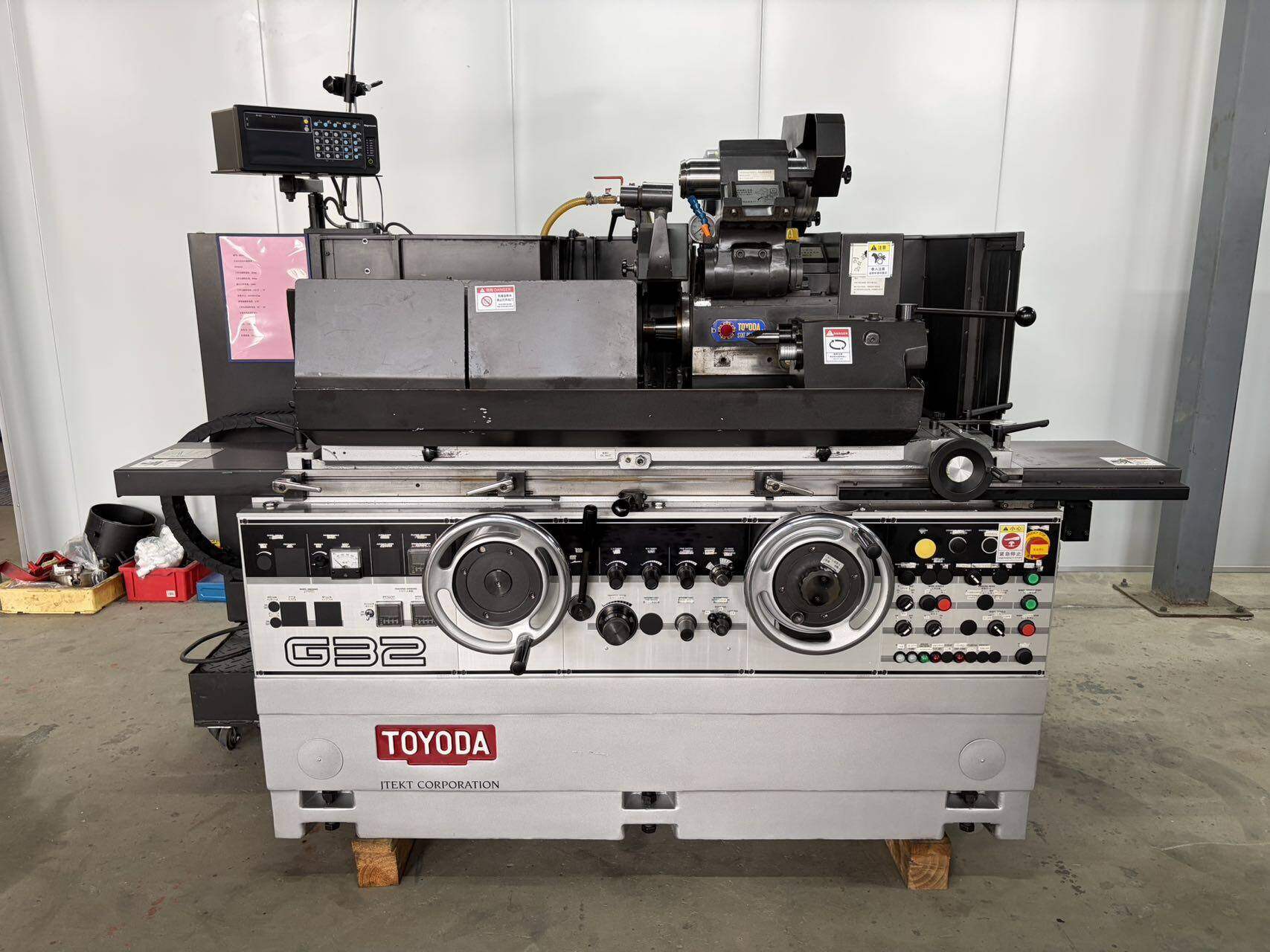

Japan Toyota Internal and External Cylindrical Grinding Machine
No.: 00567
Toyota (Japan) Internal and External Cylindrical Grinding Machine
GUP32*50
Table rotation diameter: 320 mm
Table grinding length: 500 mm
Maximum workpiece weight: 150 kg
Table rotation angle: +12.5°, -0°
Grinding wheel dimensions: 355 × 50 × 127 mm
Grinding wheel spindle rotation angle: ±30°
Workpiece headstock rotation angle: 30°–90°
Spindle and tailstock through-hole: MT4
Centre pin stroke: 25 mm
Voltage: Three-phase 200 V
Total power: 11.2 kVA
Machine weight: 2,900 kg
Machine dimensions: 2,640 × 1,840 mm
Product specifications are subject to the actual machine.
