Okamoto CNC Surface Grinder (Japan)
- Category：Okamoto
- Share：
- Inquiry
- Details
No.: 0065

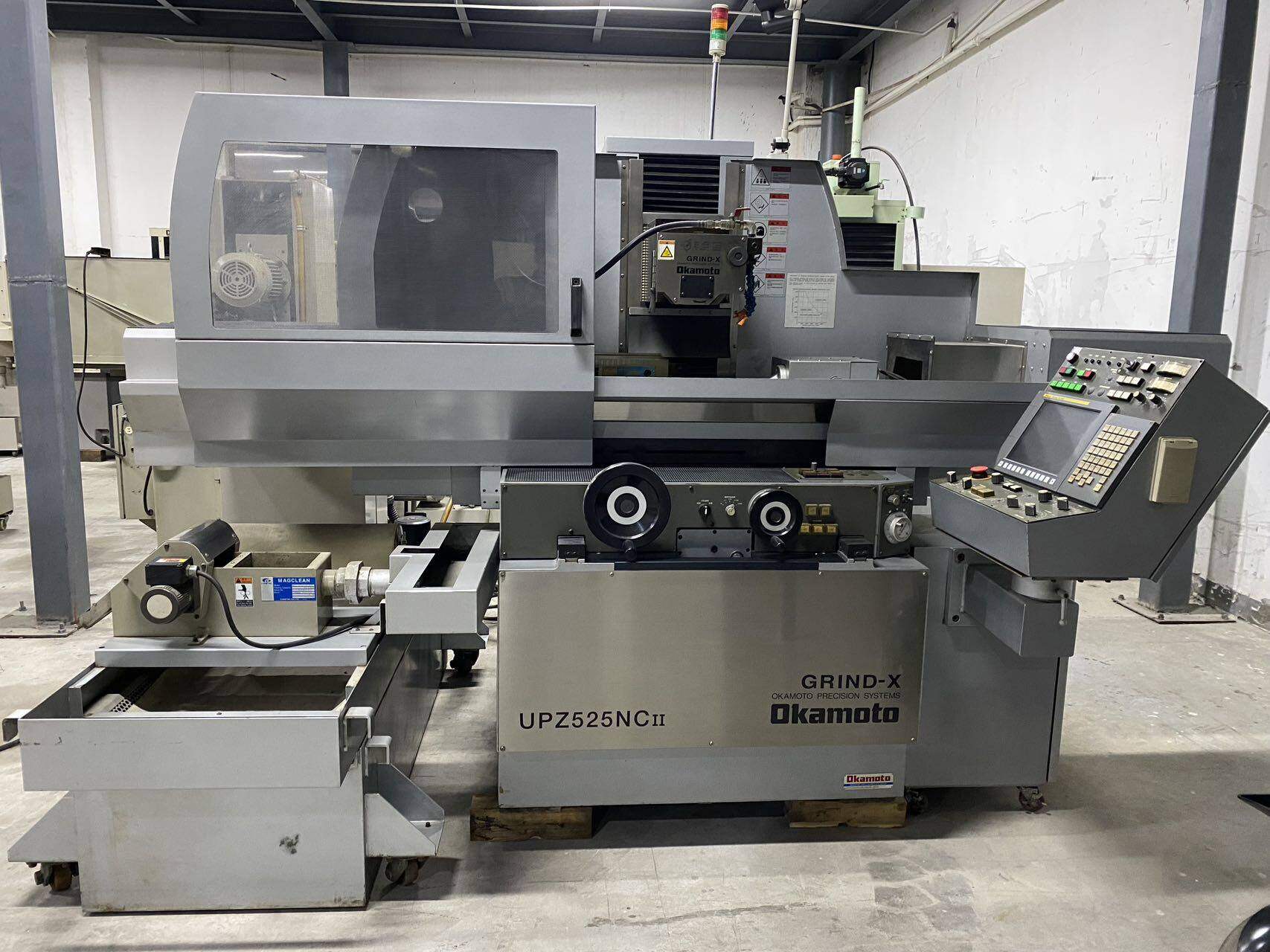

Okamoto CNC Surface Grinder (Japan)
UPZ525NC
Configuration: FANUC Series Oi-MD

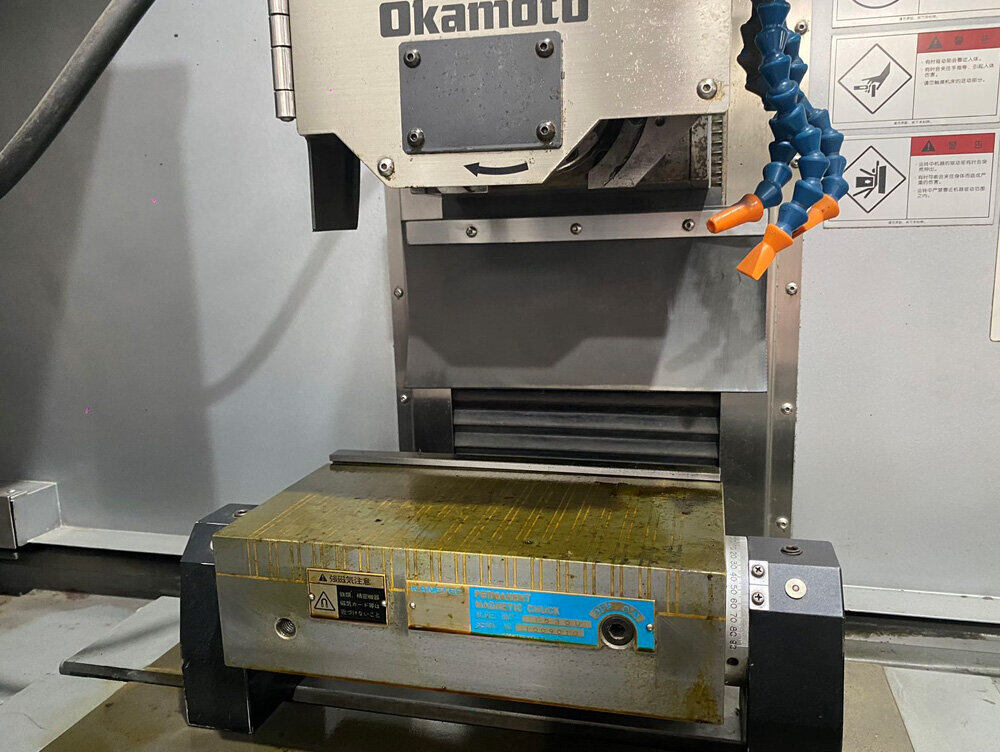

Sine-wave magnetic table, table area: 550 × 250 mm
Left-right × front-back: 650 × 280 mm
Grinding wheel dimensions: 205 × 19 × 50.8 mm
Grinding wheel spindle speed: 500–3600 rpm
Hydraulic system; lateral feed speed: 0.8–25 m/min; per-revolution travel: 70 mm; automatic longitudinal feed range: 1–1000 mm/min; minimum setting increment: 0.001 mm; simultaneous control of both axes.
Footprint: 3100 × 3006 × 2160 mm;
Voltage: Three-phase 200 V
Product specifications are subject to the actual machine.
