- Details
Model No.: 0064

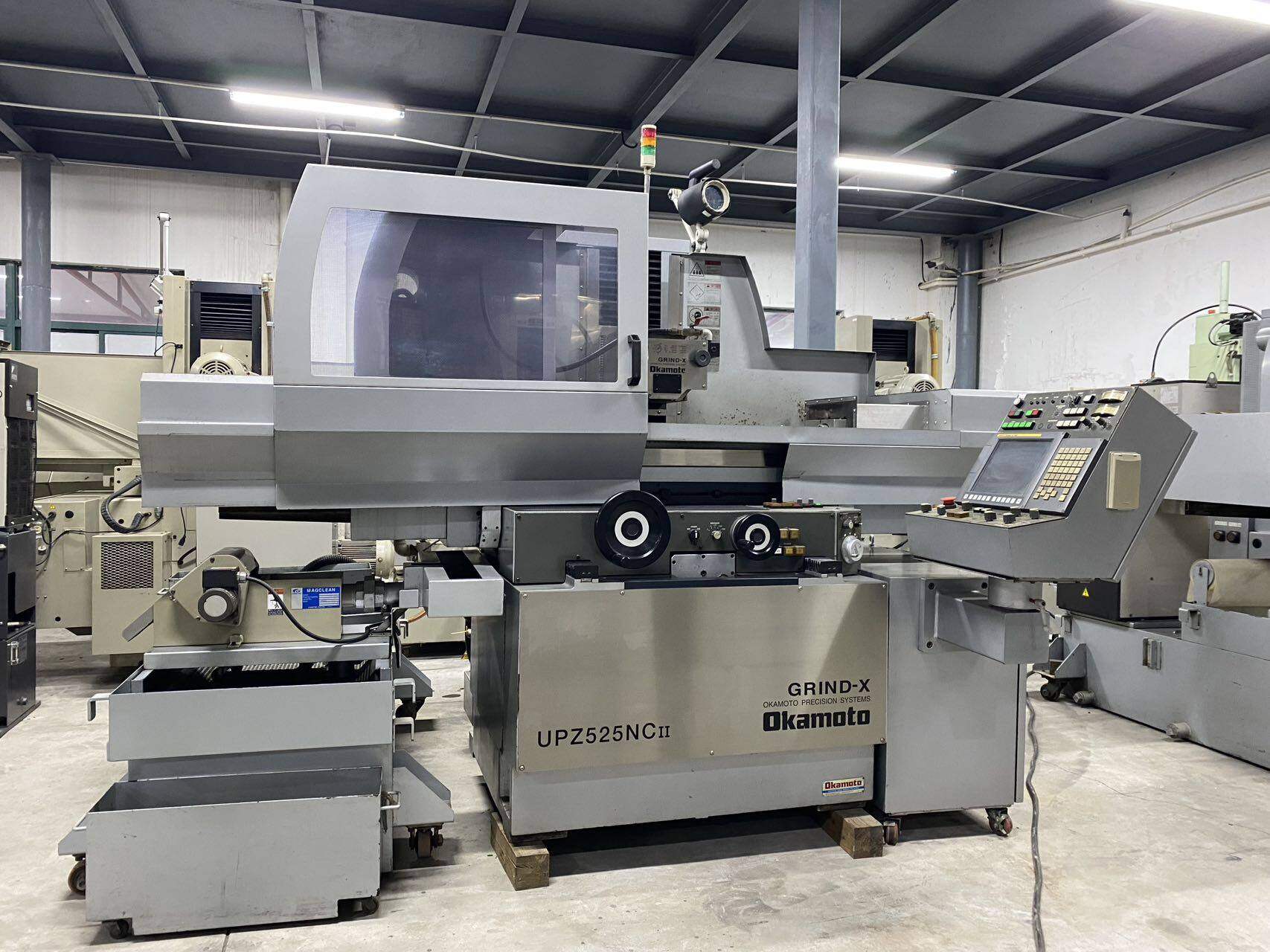

Okamoto CNC Surface Grinder (Japan)
UPZ525NC

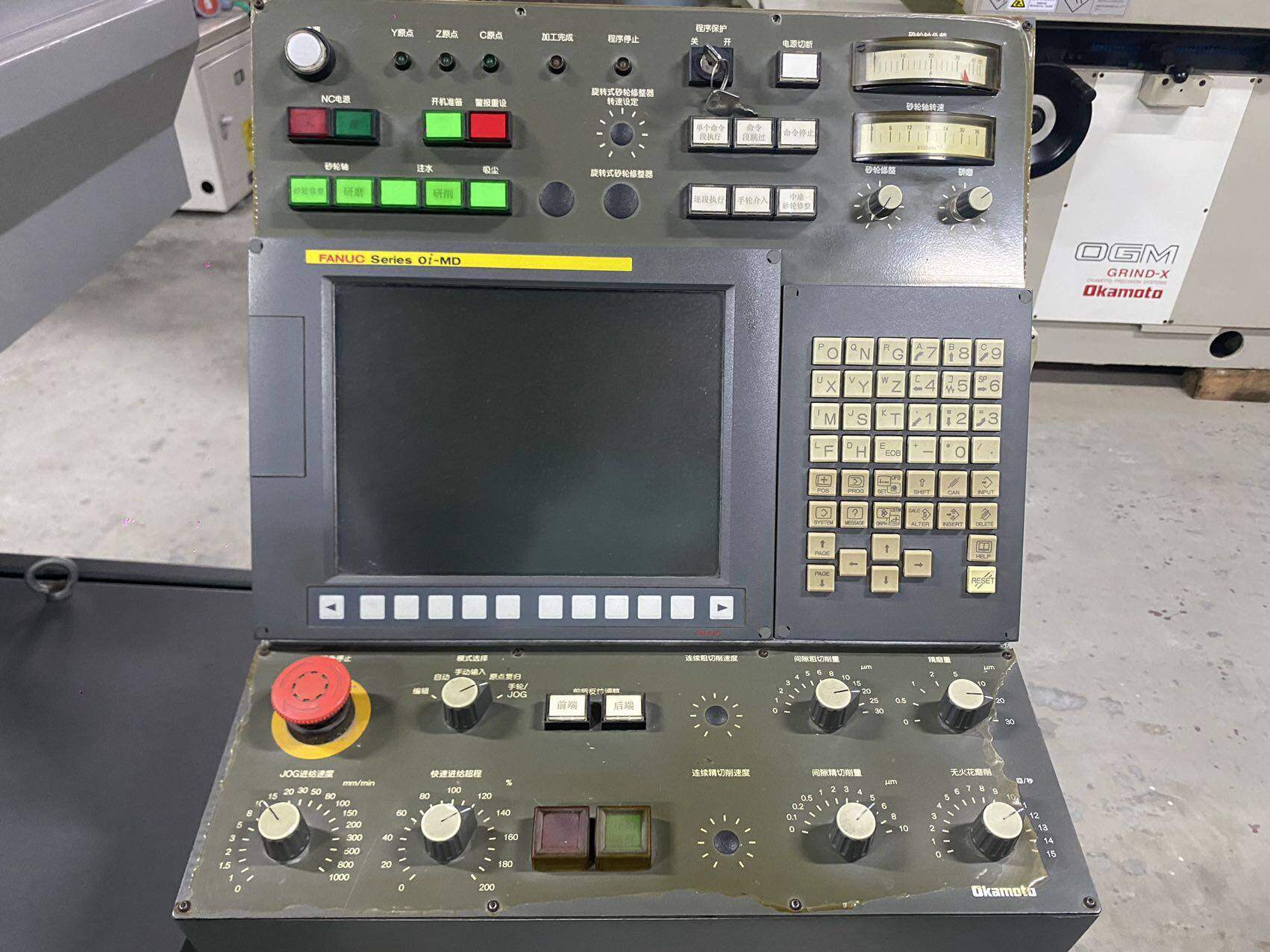

Configuration: FANUC Series Oi-MD
Table Size: 550 × 250 mm
X-Y × Z-Axis Travel: 650 × 280 mm
Grinding Wheel Dimensions: 205 x 19 x 50.8 mm
Grinding Wheel Spindle Speed: 500–3600 rpm
Hydraulic System, Lateral Feed Speed: 0.8–25 m/min
Rotary travel per revolution: 70 mm; automatic feed range: 1–1000 mm/min
Minimum setting increment: 0.001 mm; simultaneous control of two axes.
Footprint: 3100 × 3006 × 216 mm
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
