Stutterer Cylindrical and Internal Grinding Machines (Switzerland)
Center-to-center distance: 400 mm
Center height: 125 mm
Machine weight: 4,300 kg
- Category：STUDER
- Share：
- Inquiry
- Details

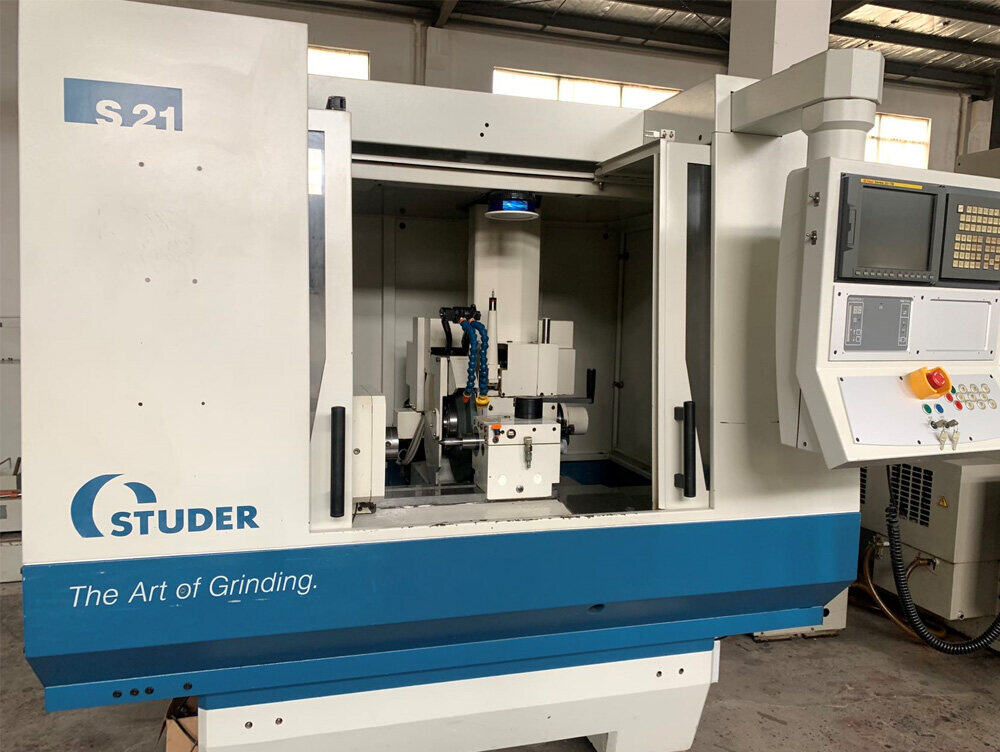

Stut, Switzerland Internal and External Cylindrical Grinding Machine
S21

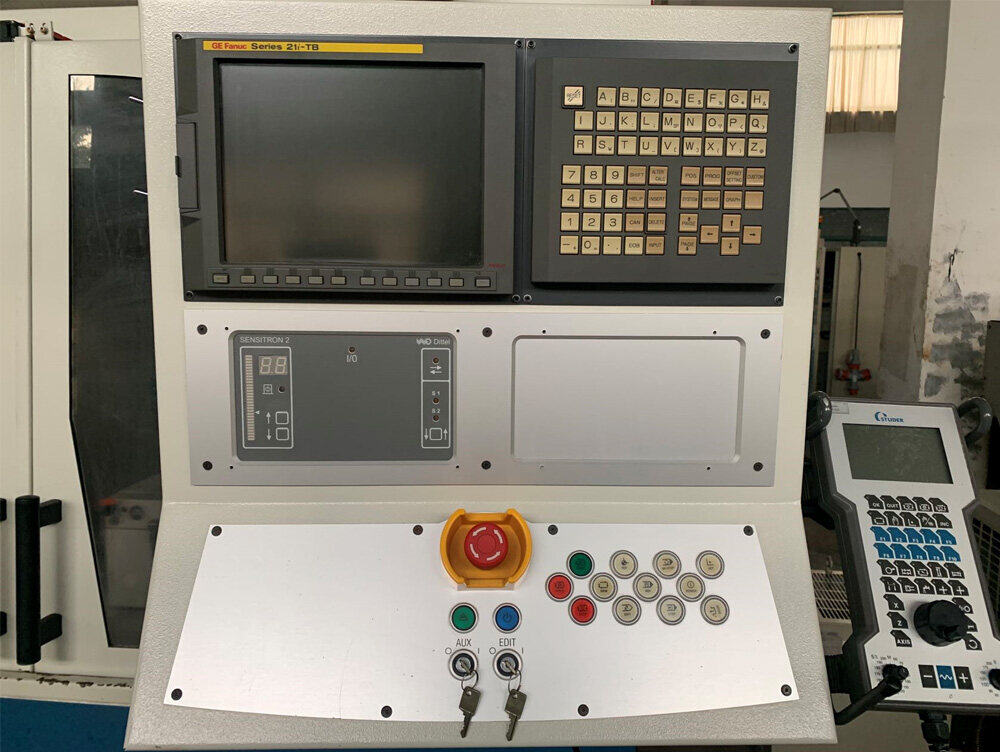

System: FANUC Series 21i-TB
Center Distance: 400 mm
Center Height: 125 mm
Maximum Load Capacity: 30 kg
Maximum X-Axis Travel: 254 mm
Speed Range: 0.001–5000 mm/min
Maximum Y-Axis Travel: 483 mm
Speed Range: 0.001–10,000 mm/min
Left/Right Grinding Wheel Dimensions: 400 × 40 × 127 mm
Grinding wheel head rotation range: -15° to 195°
Spindle rotation speed: 1–1500 rpm
Spindle arbor: MK4

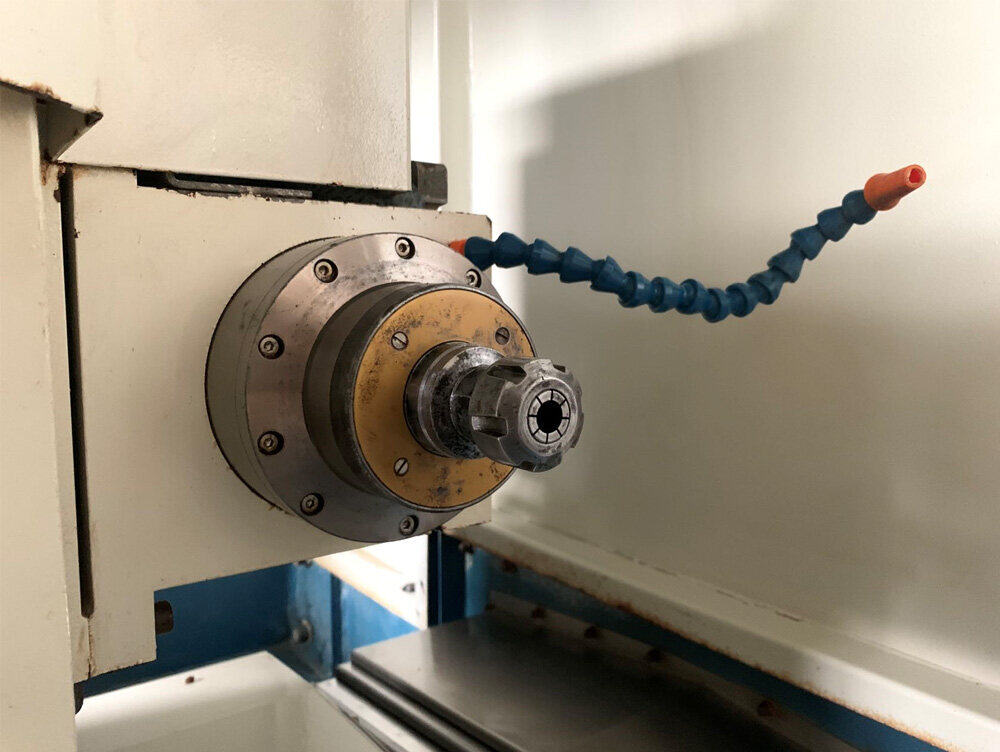

Internal grinding head speed: 60,000 rpm

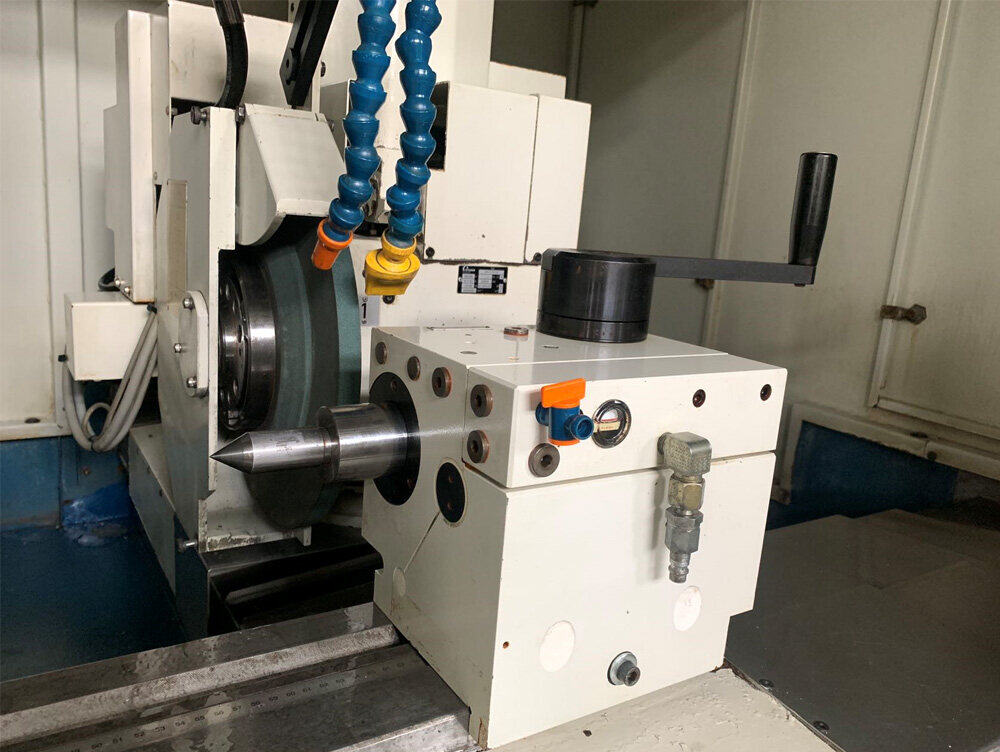

Tailstock arbor: Morse 3
Tailstock sleeve stroke: 35 mm
Tailstock sleeve diameter: 50 mm
Machine weight: 4,300 kg
