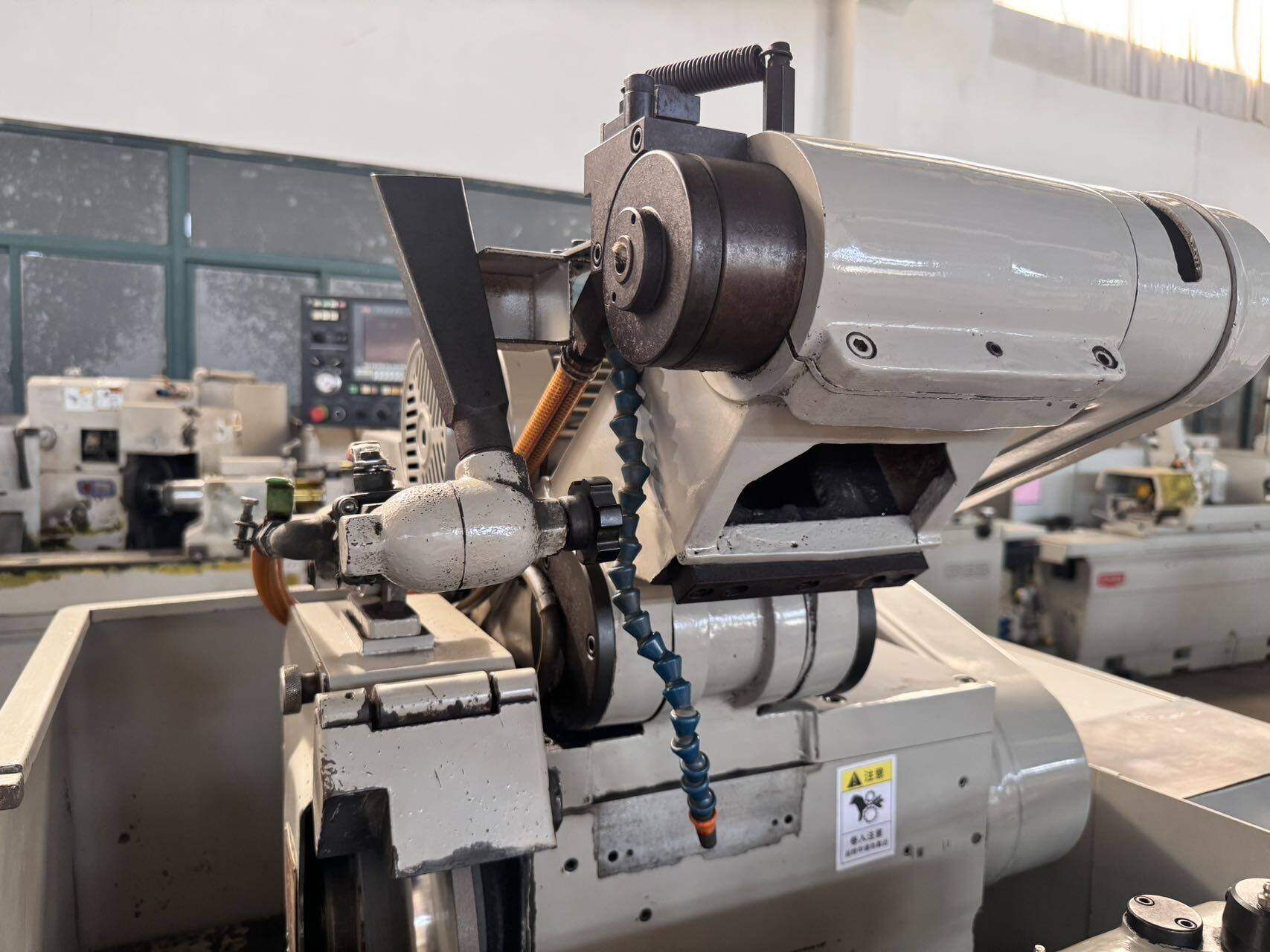

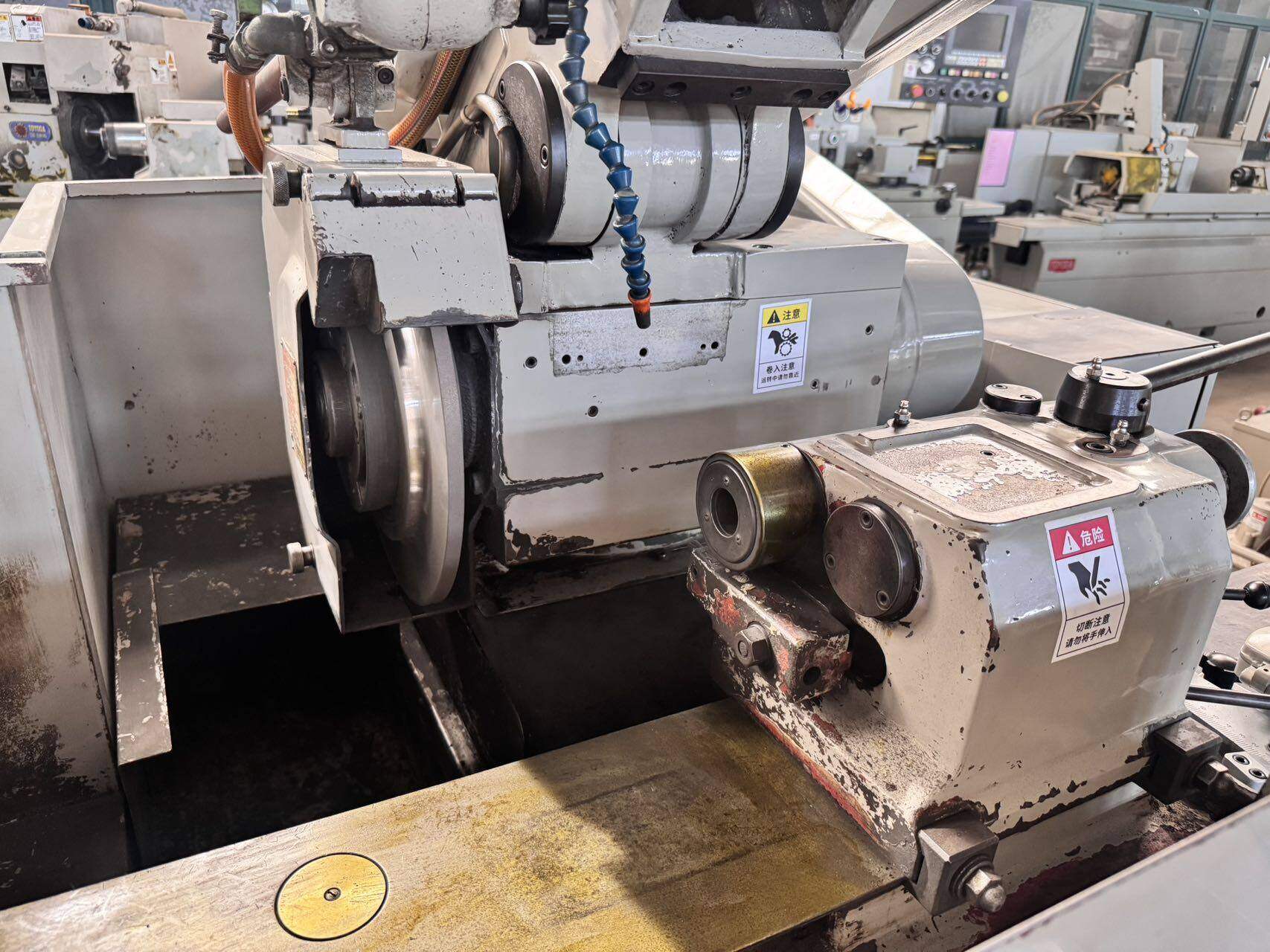

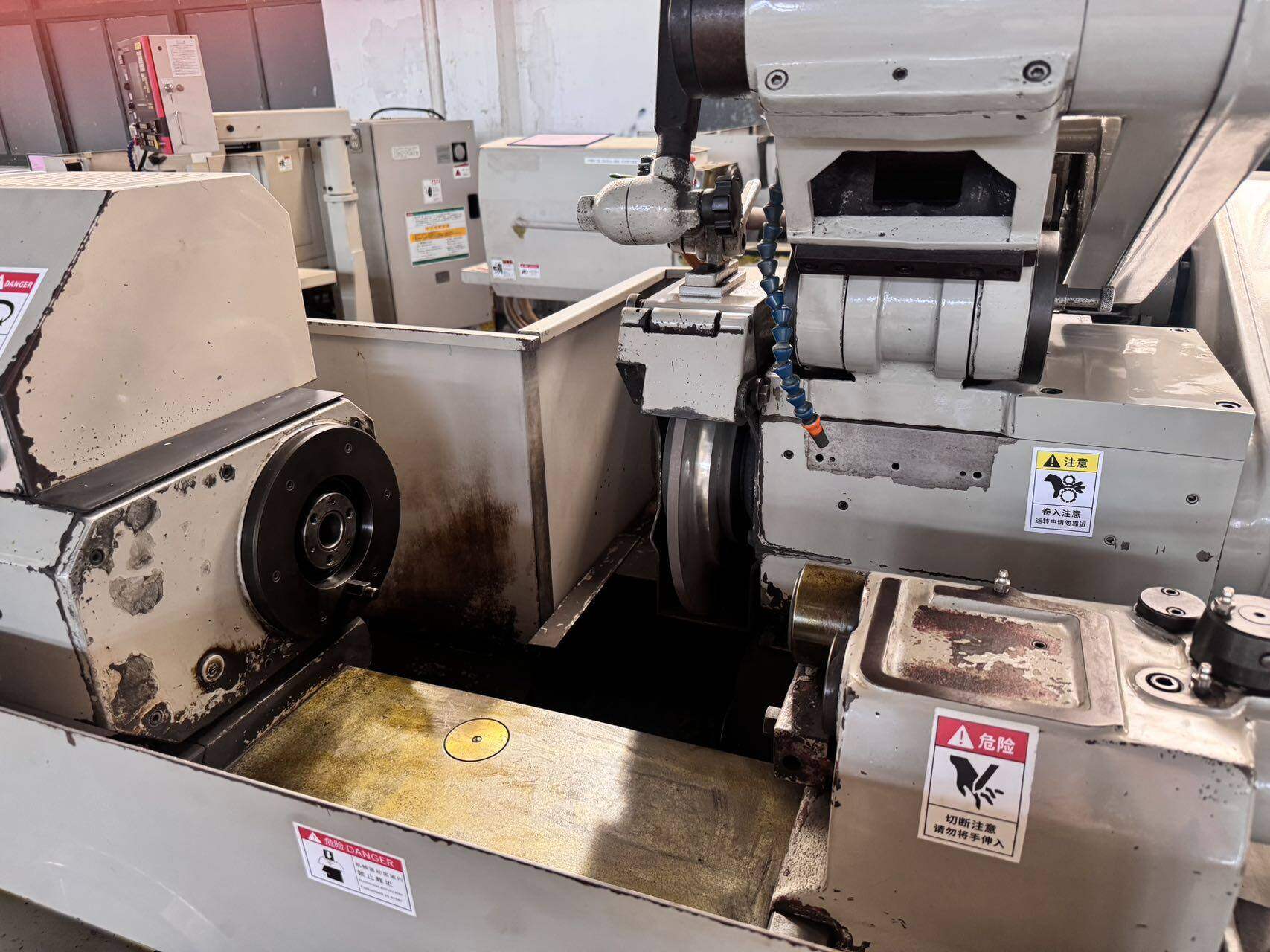

Kikiya (Japan) Internal and External Cylindrical Grinder
No.: 00588
Kikiya (Japan) Internal and External Cylindrical Grinder
GU-30B·40H
Worktable Rotation Diameter: 300 mm
Worktable Grinding Length: 400 mm
Maximum Load Capacity: 130 kg
Grinding Wheel Dimensions: 355 × 50 × 127 mm
Grinding Wheel Spindle Rotation Angle: ±30°
Worktable Rotation Angle: -1°, 11°
Spindle Head Rotation Angle: 120°
Spindle and Tailstock Bore: MT4
Center Presser Travel: 30 mm
Voltage: Three-phase 200 V
Machine Weight: 2,800 kg
Product specifications are subject to the actual machine.
