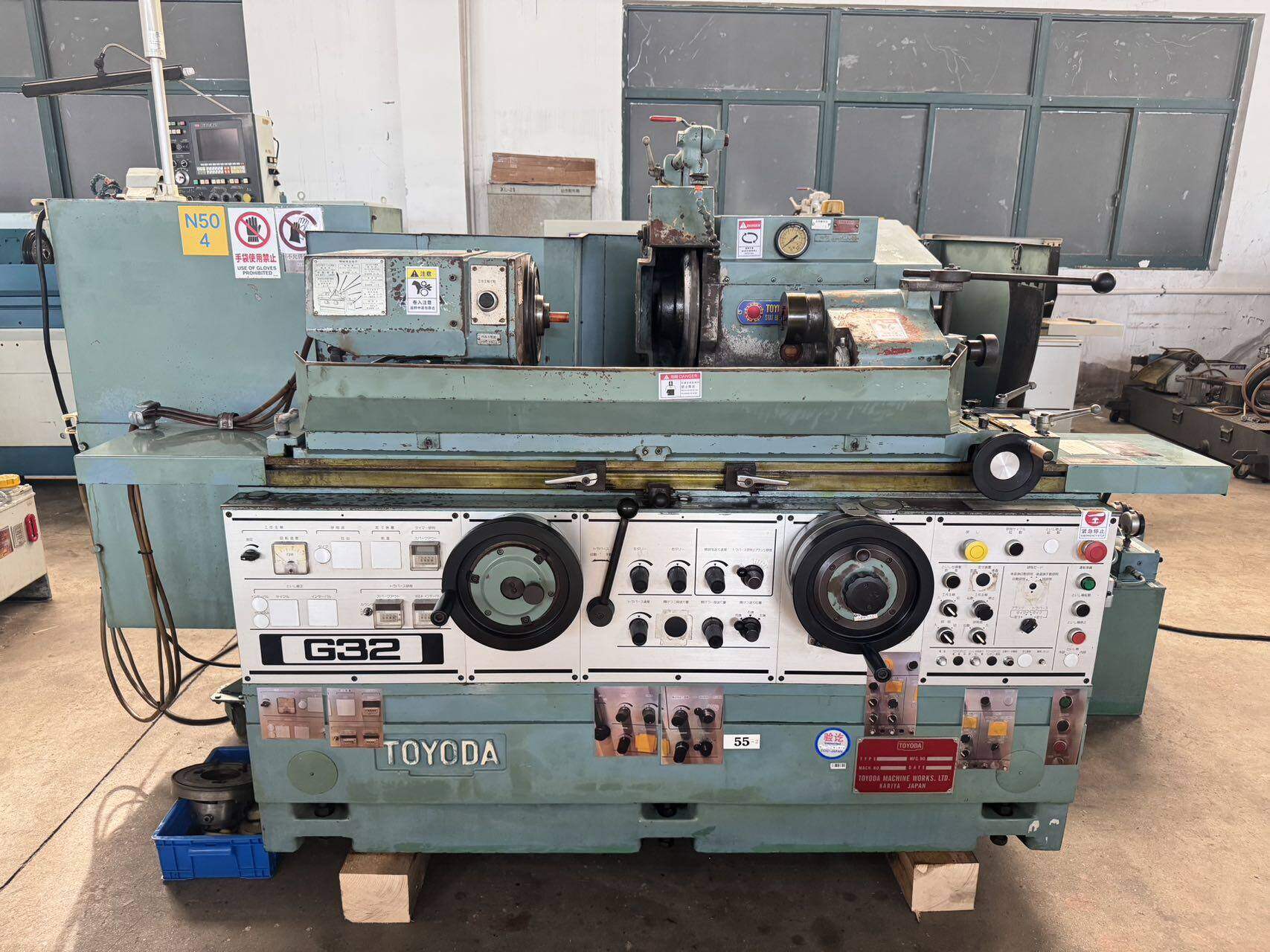

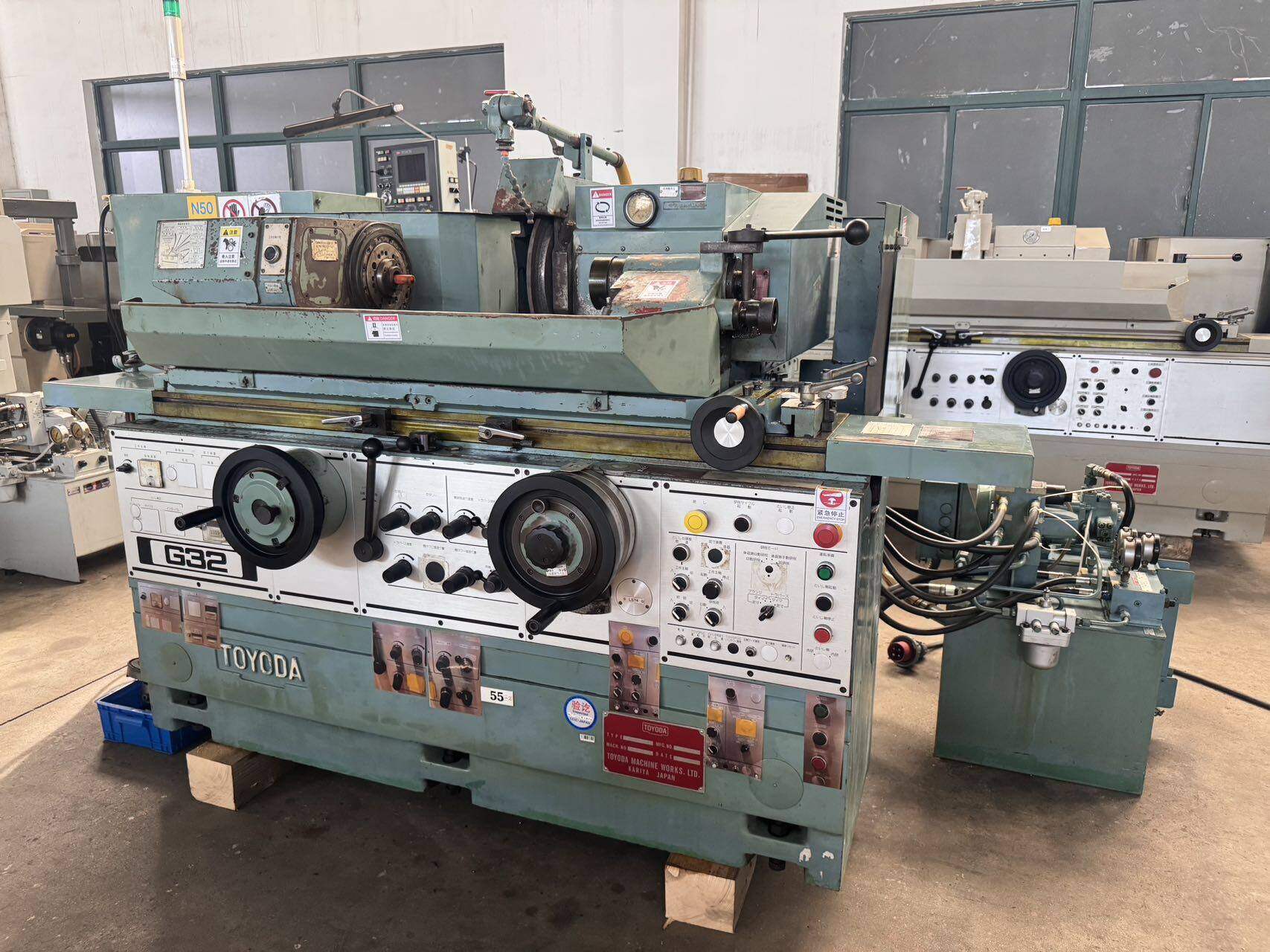

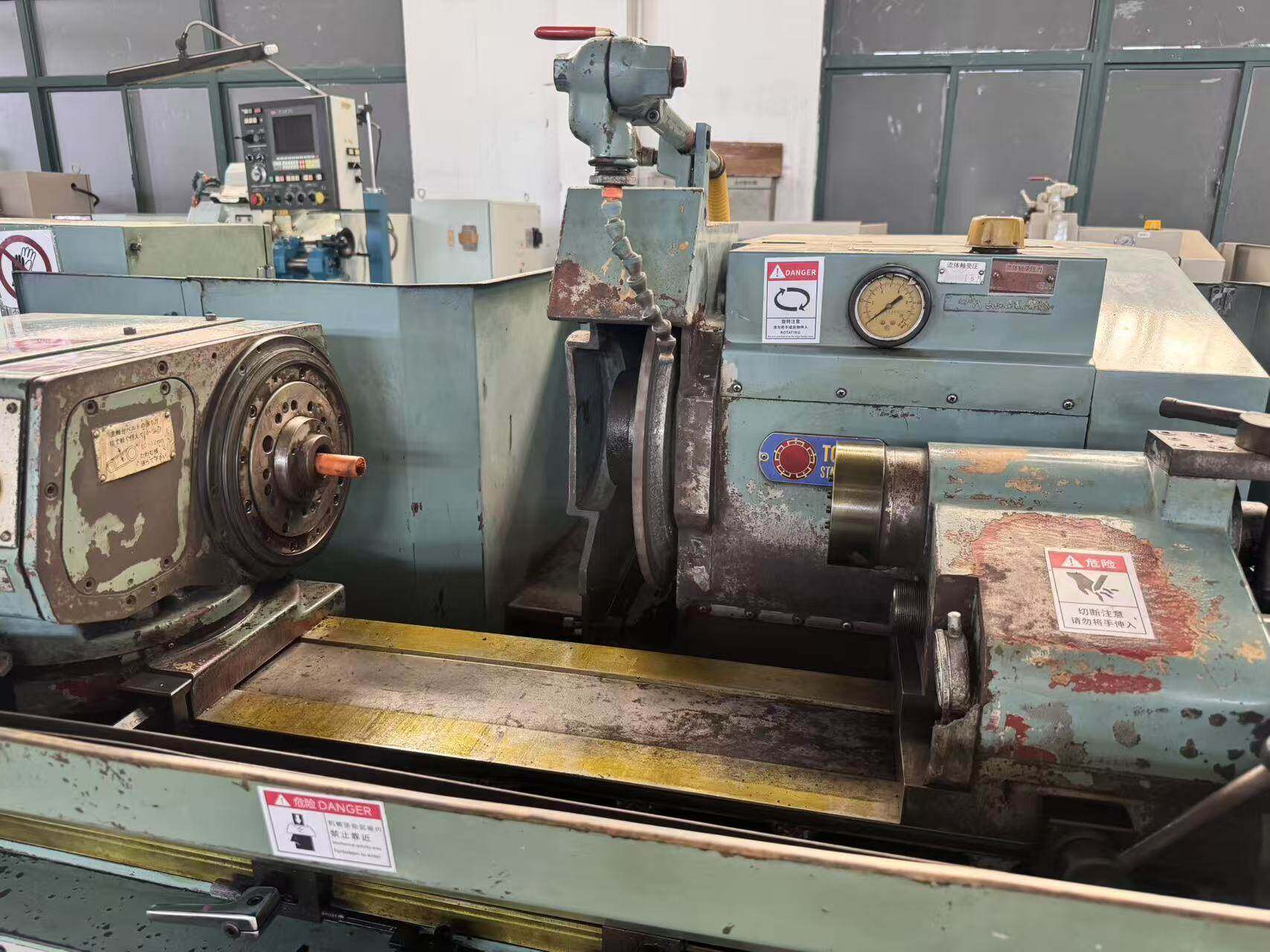

Toyota (Japan) Cylindrical Grinder
No.: 00572
Toyota (Japan) Cylindrical Grinder
GOP32*50
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Load Capacity: 150 kg
Workpiece Headstock Angle Range: -30° to 90°
Grinding Wheel Dimensions: 405 × 75 × 127 mm
Table Rotation Angle: +12.5°, -5°
Spindle and Tailstock Taper: MT4
Voltage: Three-phase 200 V
Total Power: 14 kVA
Machine Weight: 2,900 kg
Machine Dimensions: 2,730 × 1,800 mm
Product specifications are subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
No.: 00572
Toyota (Japan) Cylindrical Grinder
GOP32*50
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Load Capacity: 150 kg
Workpiece Headstock Angle Range: -30° to 90°
Grinding Wheel Dimensions: 405 × 75 × 127 mm
Table Rotation Angle: +12.5°, -5°
Spindle and Tailstock Taper: MT4
Voltage: Three-phase 200 V
Total Power: 14 kVA
Machine Weight: 2,900 kg
Machine Dimensions: 2,730 × 1,800 mm
Product specifications are subject to the actual machine.
