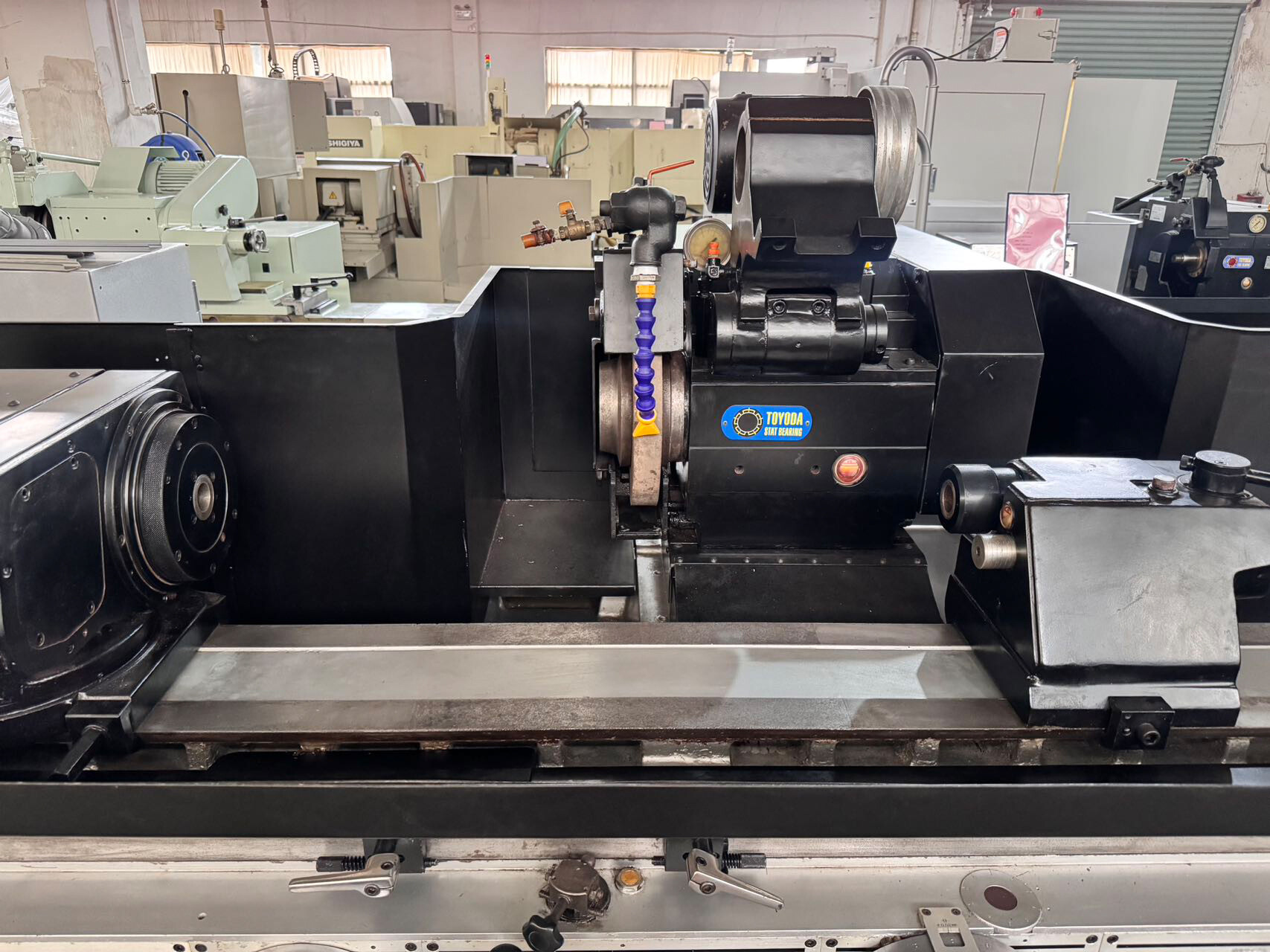

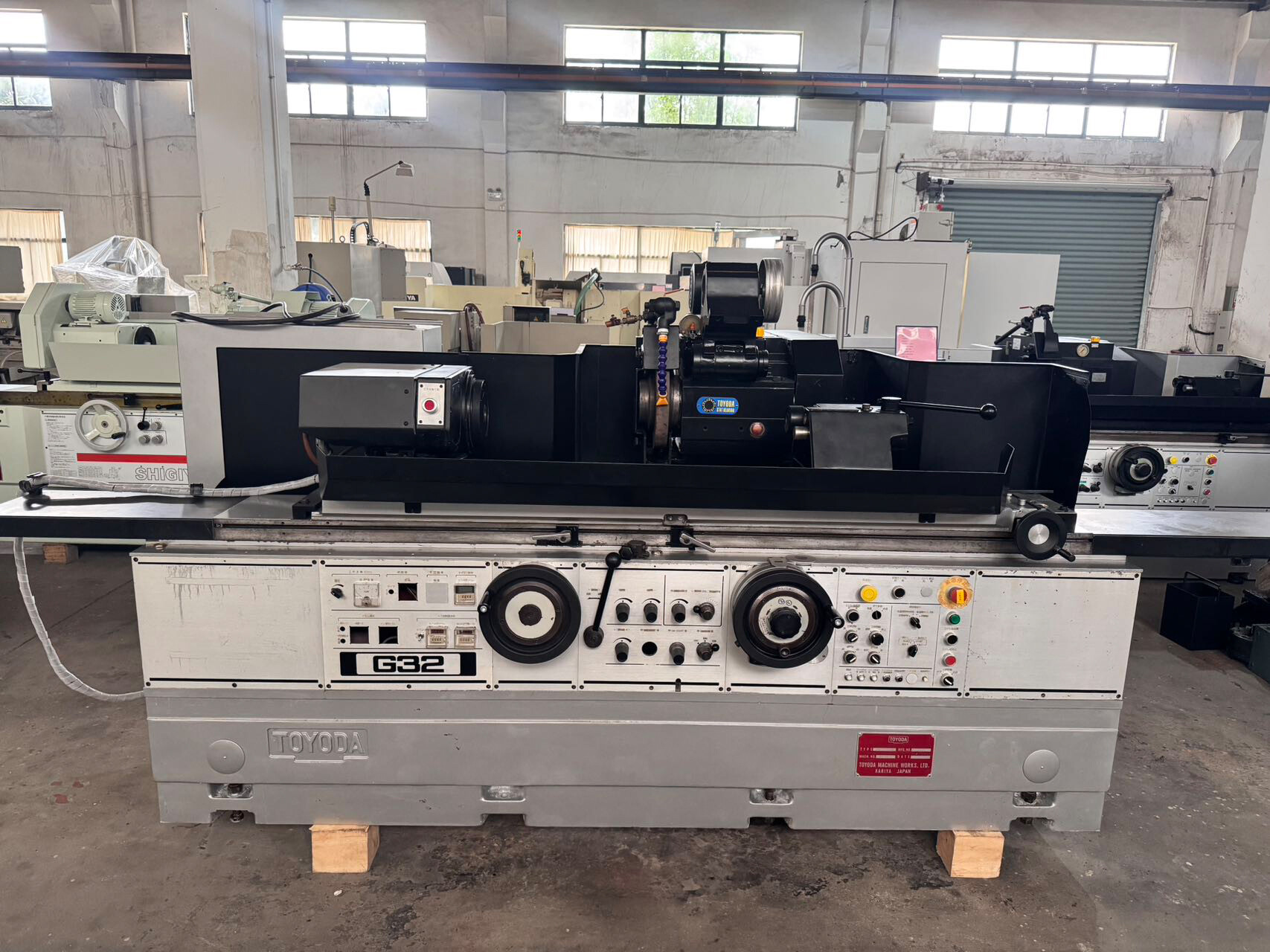

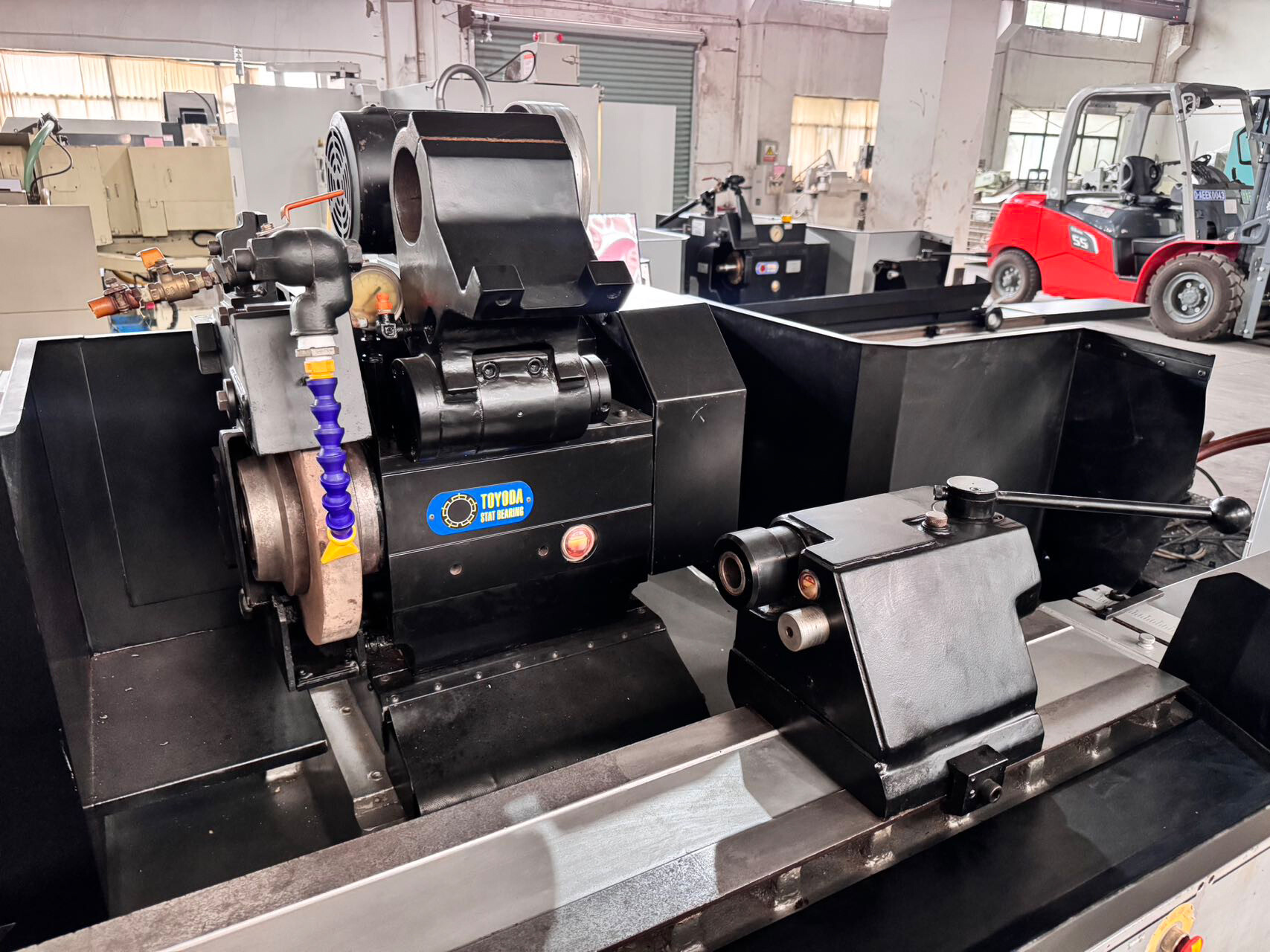

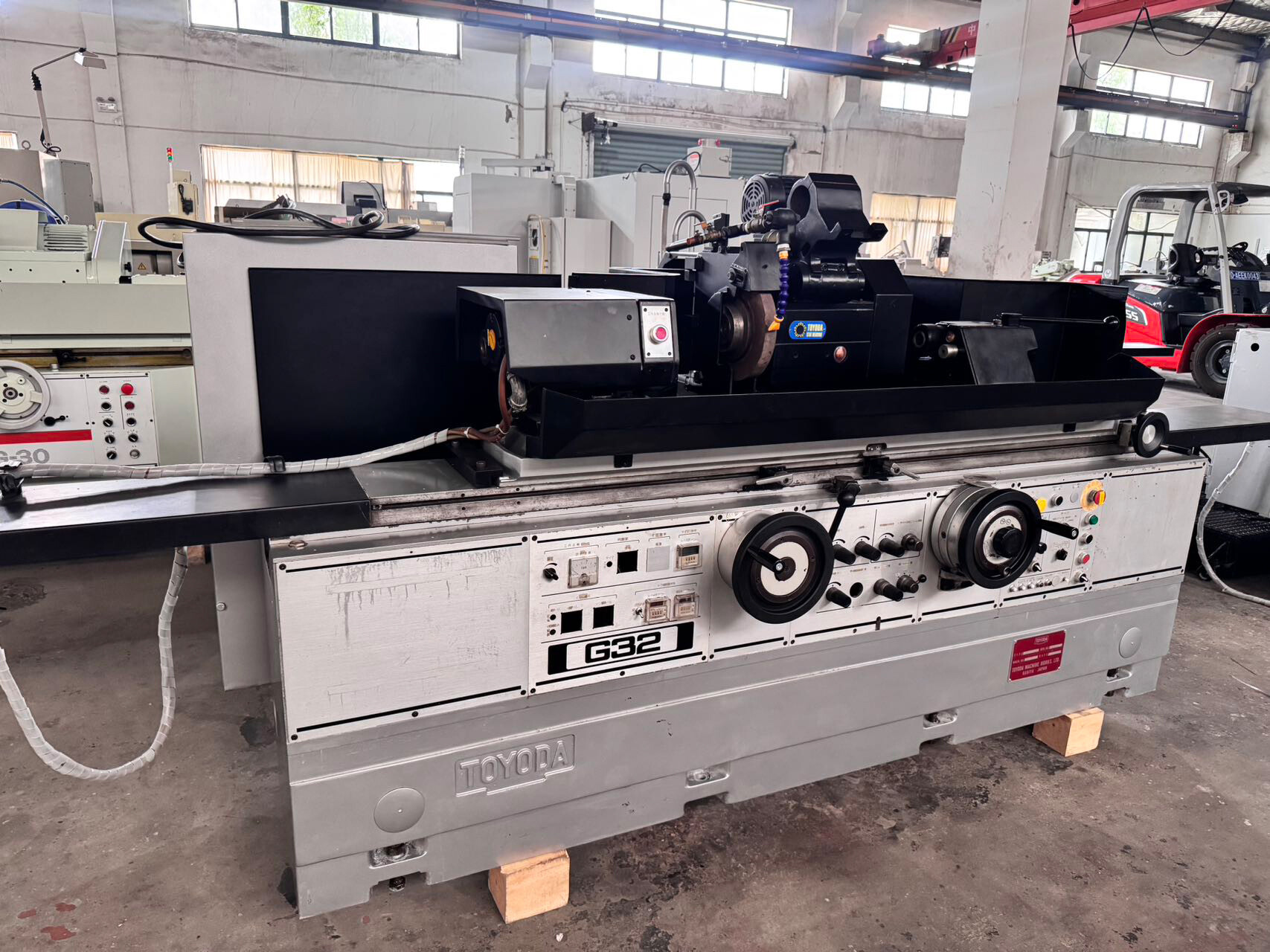

Toyota Internal and External Cylindrical Grinding Machines (Japan)
No.: 00568
Table Rotation Diameter: 320 mm
Table Grinding Length: 1000 mm
Maximum Load Capacity: 150 kg
Grinding Wheel Dimensions: 355 × 50 × 127 mm
Grinding Wheel Spindle Rotation Angle: ±30°
Table Rotation Angle: +10°, -3°
Spindle and Tailstock Bore: MT4
Spindle Head Rotation Angle: 30°–90°
Spindle Speed: 16–500 rpm
Sleeve Stroke: 25 mm
Voltage: Three-phase 200 V
Total Power: 10.8 kVA
Machine Weight: 3,800 kg
Machine Dimensions: 4,500 × 1,840 mm
- Category：TOYODA
- Share：
- Inquiry
- Details
Toyota GUP32*100 Internal and External Cylindrical Grinder (Japan)
Table Rotation Diameter: 320 mm
Table Grinding Length: 1000 mm
Maximum Load Capacity: 150 kg
Grinding Wheel Dimensions: 355 × 50 × 127 mm
Grinding Wheel Spindle Rotation Angle: ±30°
Table Rotation Angle: +10°, -3°
Spindle and Tailstock Bore: MT4
Spindle Head Rotation Angle: 30°–90°
Spindle Speed: 16–500 rpm
Sleeve Stroke: 25 mm
Voltage: Three-phase 200 V
Total Power: 10.8 kVA
Machine Weight: 3,800 kg
Machine Dimensions: 4,500 × 1,840 mm
