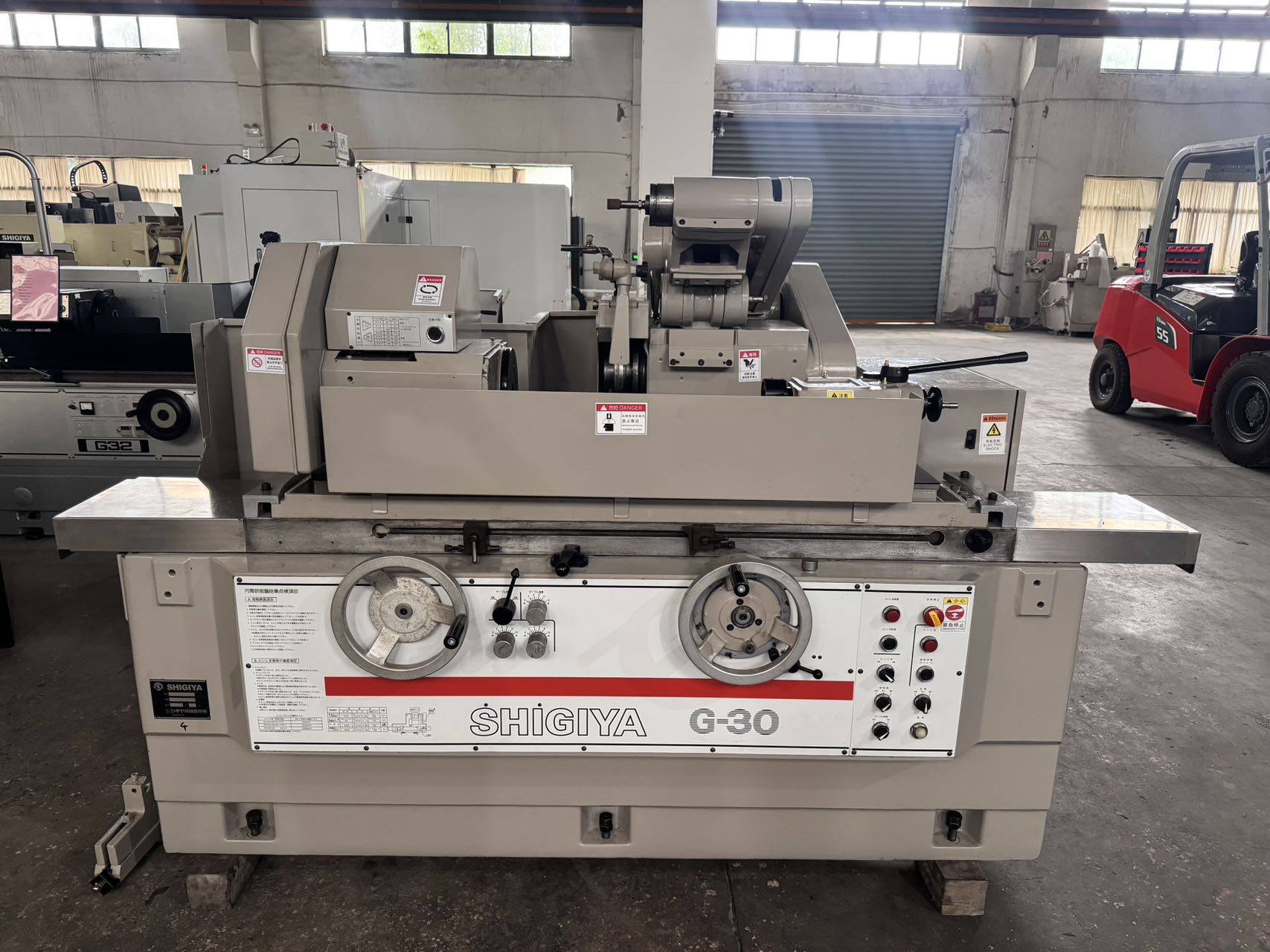

Kikiya (Japan) Internal and External Cylindrical Grinder
No.: 00569
Kikiya (Japan) Internal and External Cylindrical Grinder
GU-30B·60H
Table grinding length: 600 mm
Table rotation diameter: 300 mm
Maximum workpiece weight: 130 kg
Grinding wheel dimensions: 355 × 25–50 × 152.4 mm
Grinding wheel spindle rotation angle: ±30°
Workpiece headstock rotation angle: 120°
Spindle speed at 50 Hz: 28–303 rpm
Table rotation angle: 9°–1°
Feed rate: 50–4000 mm/min
Spindle and tailstock spindle taper: MT4
Center support travel: 30 mm
Voltage: 3-phase 200 V
Total power:
Machine weight: 3100 kg
- Category：External cylindrical grinding machine
- Share：
- Inquiry
- Details
No.: 00569
Kikiya (Japan) Internal and External Cylindrical Grinder
GU-30B·60H
Table grinding length: 600 mm
Table rotation diameter: 300 mm
Maximum workpiece weight: 130 kg
Grinding wheel dimensions: 355 × 25–50 × 152.4 mm
Grinding wheel spindle rotation angle: ±30°
Workpiece headstock rotation angle: 120°
Spindle speed at 50 Hz: 28–303 rpm
Table rotation angle: 9°–1°
Feed rate: 50–4000 mm/min
Spindle and tailstock spindle taper: MT4
Center support travel: 30 mm
Voltage: 3-phase 200 V
Total power:
Machine weight: 3100 kg
