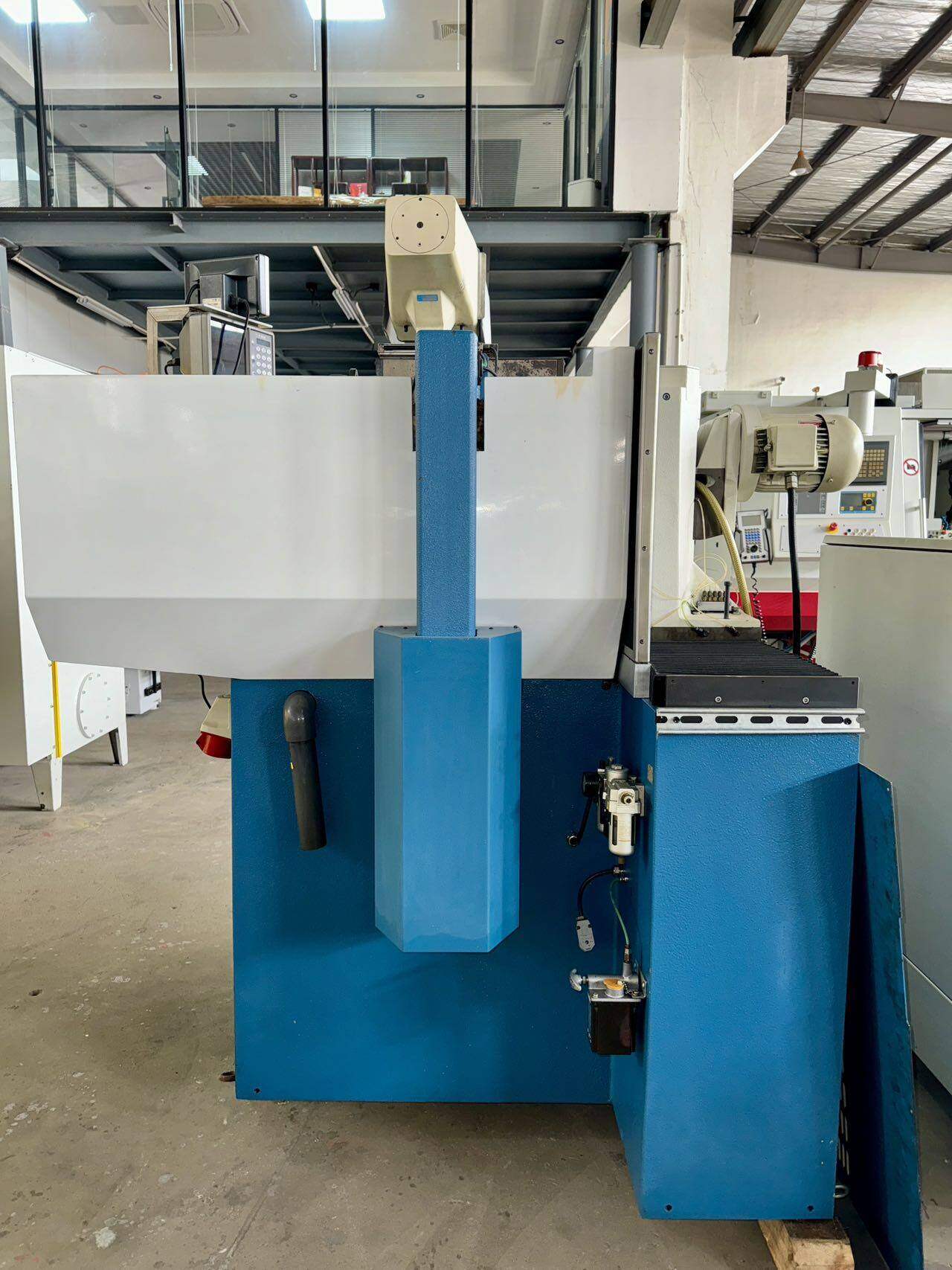

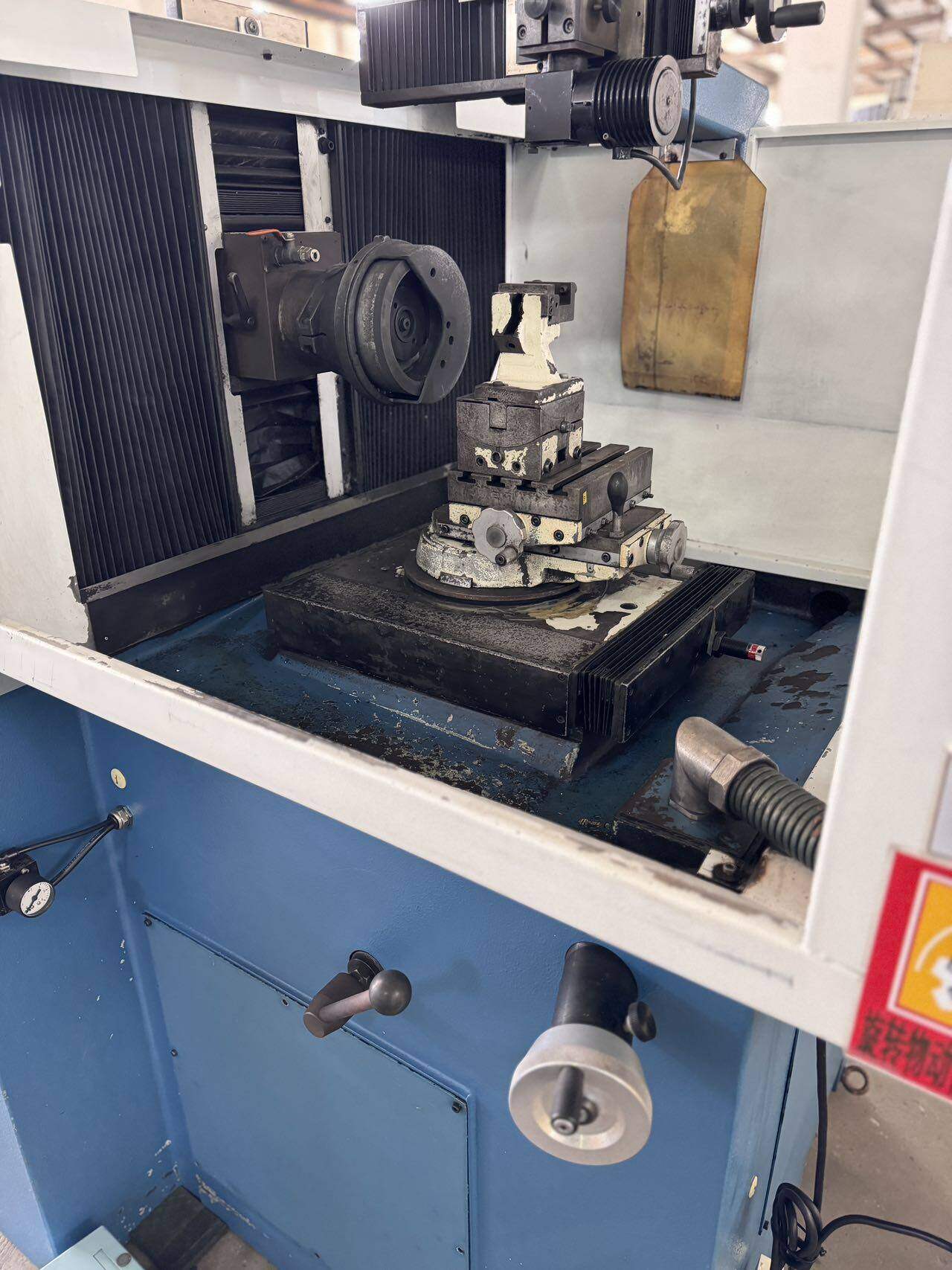

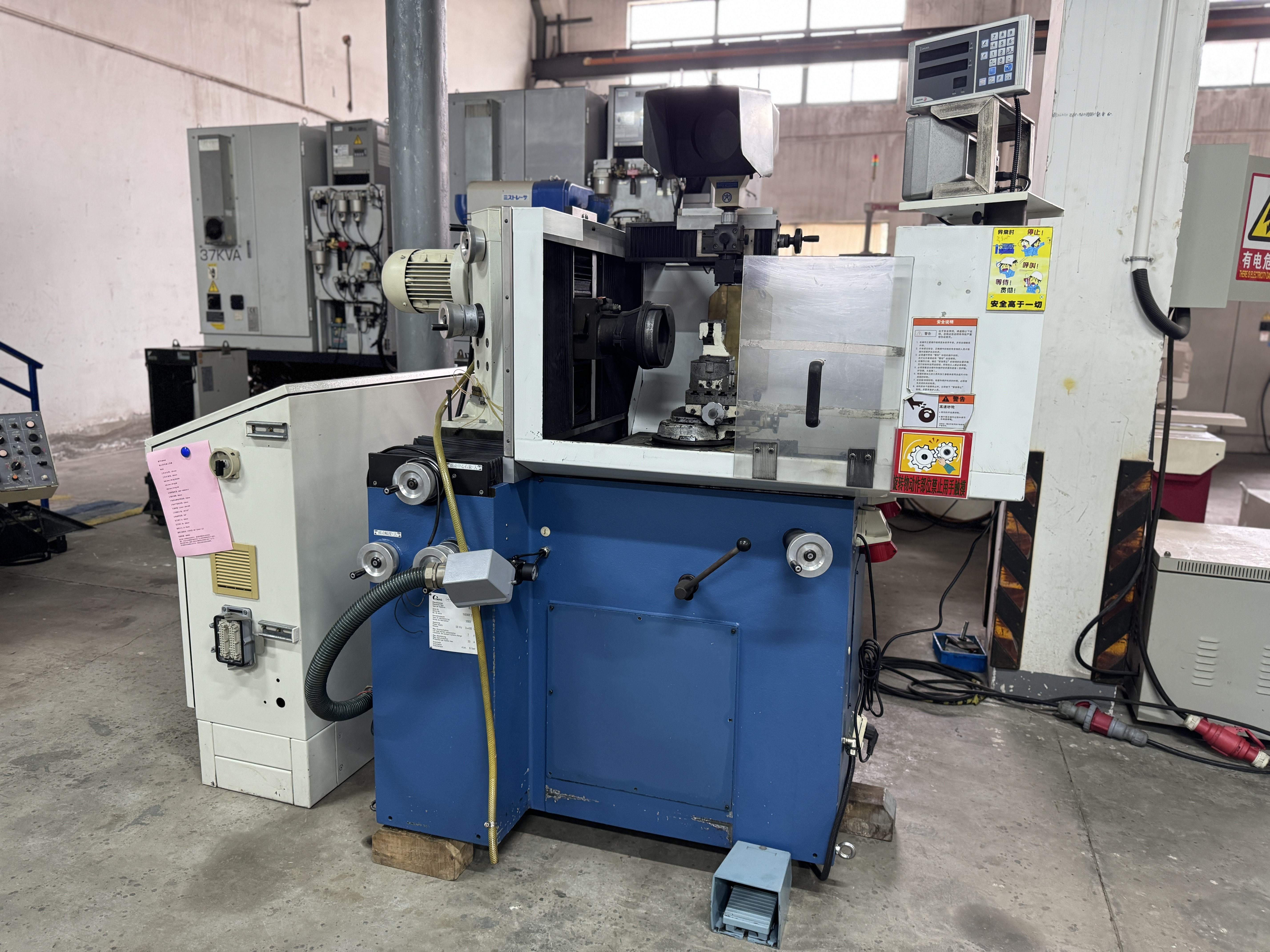

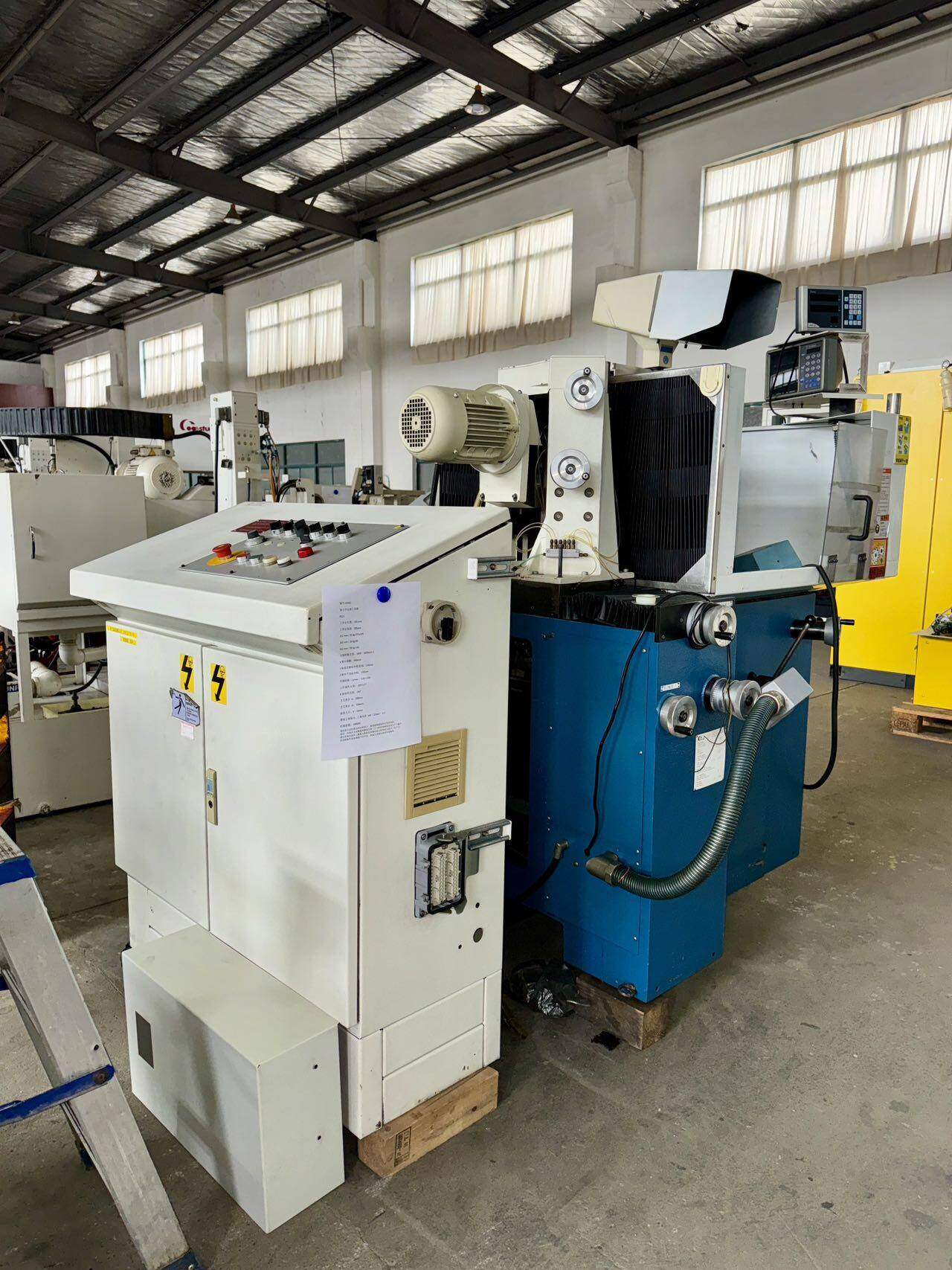

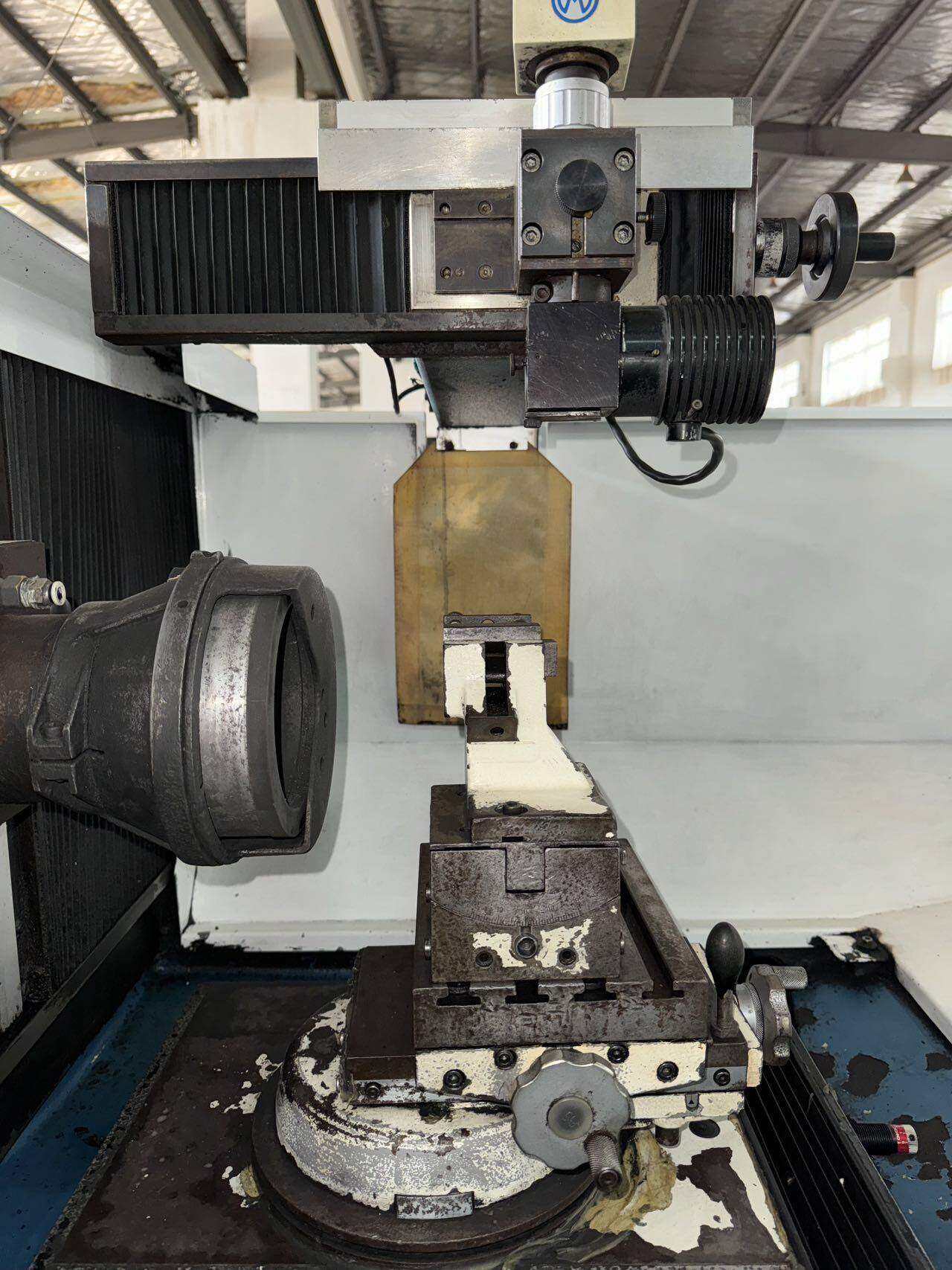

Swiss Ewag Tool Grinding Machine
No.: 00462
Ewag Tool Grinder, Switzerland
RS15
Table Length: 155 mm
Table Width: 205 mm
102mm/25kg: 60
102mm/25kg: 130
Spindle Speed: 1000～6000 min⁻¹
X Lateral Adjustment: 490 mm
Y-Axis Vertical Grinding Stroke Linear Travel: 130 mm
Z-Axis Horizontal Feed Stroke: 120 mm
Adjustable Speed (1/min): 100-1300
Workpiece Tilt A-Axis: -10°/+27°
B-Axis Rotation Range: 240°
Cross Slide U: 100 mm
Cross Slide W: 100 mm
Oscillation Range: 0～70 mm
Grinding Spindle Drive, Three-Phase Motor kW (1/min): 2.2
Machine Weight: 1800KG
Machine Dimensions: 1630*1250*1900mm
Voltage: Three-Phase 200V
Its robust and anti-vibration structural design ensures ultra-high precision and long service life.
Measurement and grinding can be completed in one clamping setup, delivering excellent profile accuracy and improved productivity.

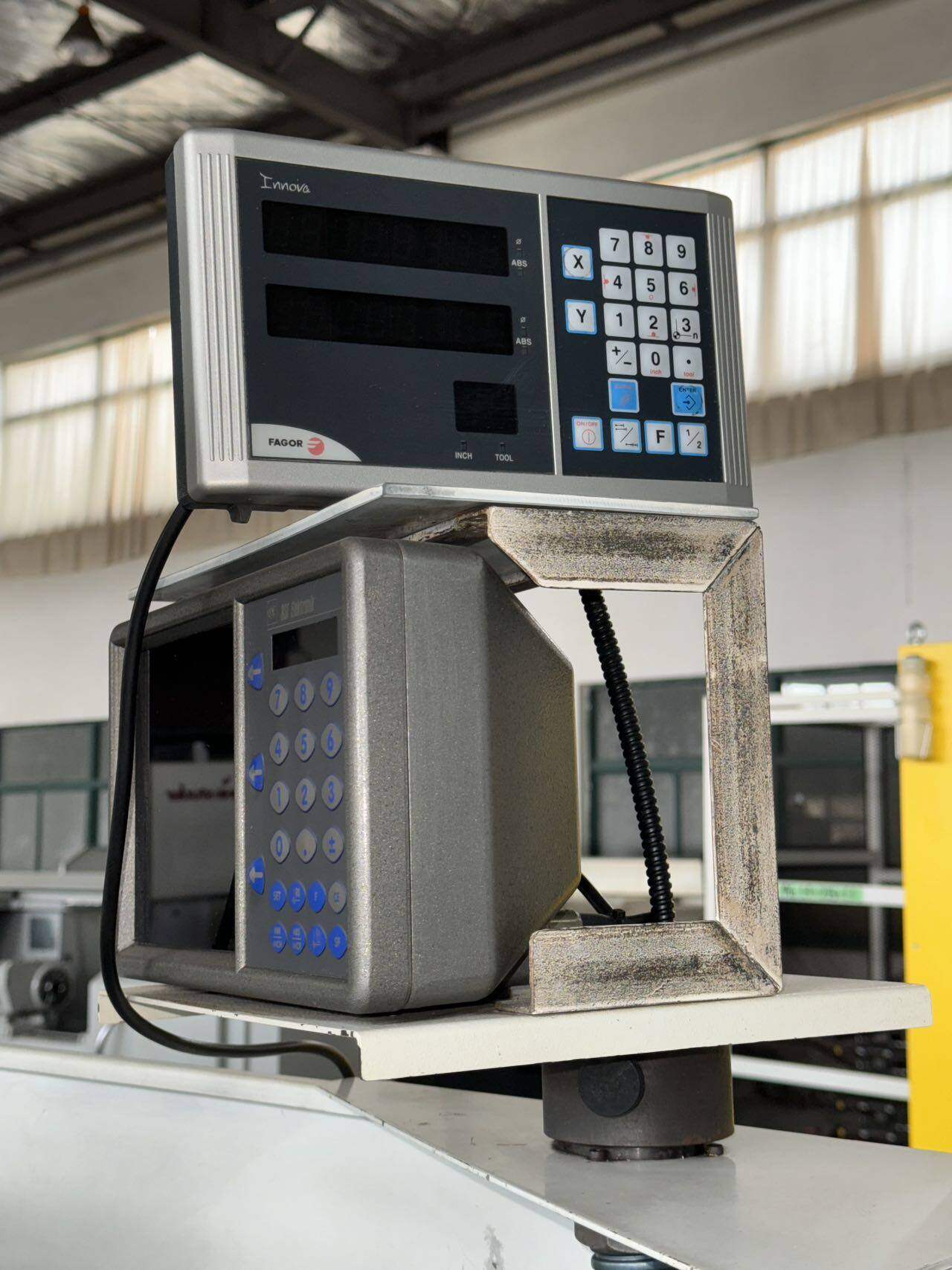

Productivity is enhanced by on-machine measurement combined with a projector and digital display.

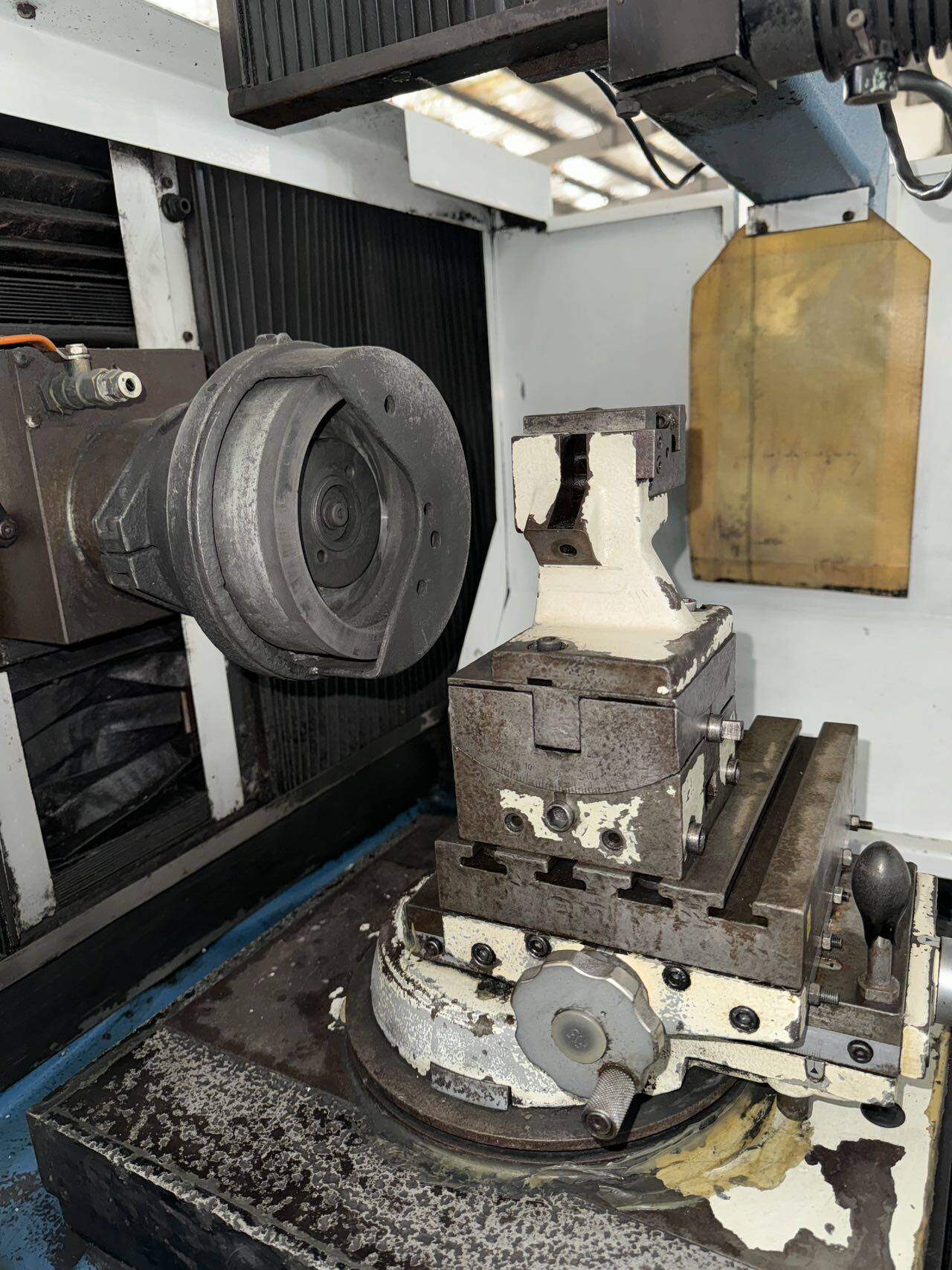

Multi-functional accessories enable grinding of convex and concave radii, spherical surfaces, and multi-surface grinding of deep-hole drills.
Product parameters shall be subject to the actual machine.
