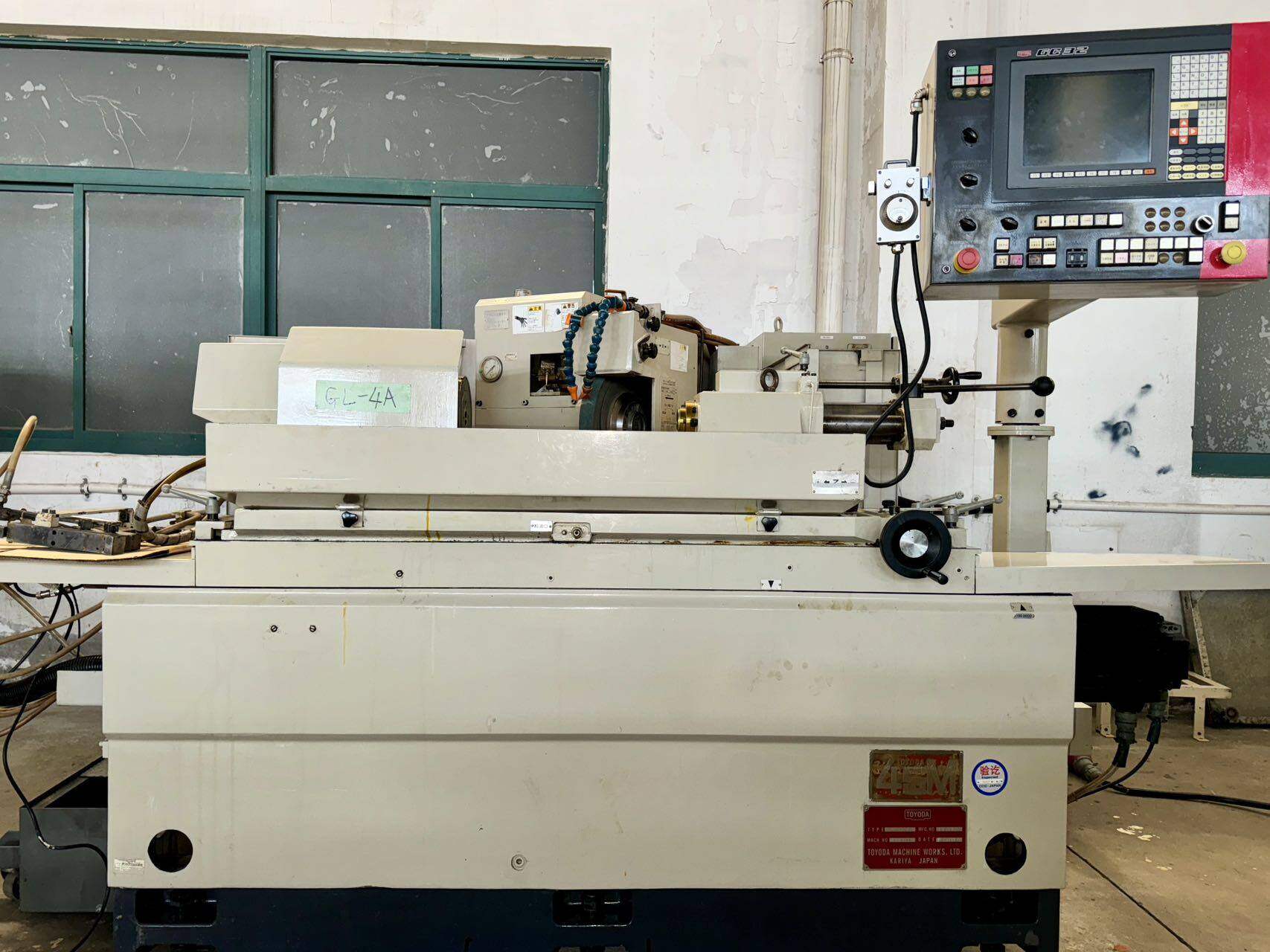

Toyota (Japan) Slant-bed External Cylindrical Grinding Machine
No.: 00456
Toyota (Japan) Slant-Bed External Cylindrical Grinding Machine
GL4A-50II
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Travel (Left/Right): 770 mm
Table Rotation Angle: 0°, +12.5°
Maximum Workpiece Weight: 150 kg
Grinding Wheel Dimensions: 455 × (75–100 max) × 127 mm
Grinding Wheel Speed: 1380 rpm
Workpiece Spindle Speed: 16–500 rpm
Spindle and Tailstock Taper: Morse Taper 4
Machine Dimensions: 3560 × 2130 mm
Machine Weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
- Category：TOYODA
- Share：
- Inquiry
- Details
No.: 00456
Toyota (Japan) Slant-Bed External Cylindrical Grinding Machine
GL4A-50II
Table Rotation Diameter: 320 mm
Table Grinding Length: 500 mm
Maximum Travel (Left/Right): 770 mm
Table Rotation Angle: 0°, +12.5°
Maximum Workpiece Weight: 150 kg
Grinding Wheel Dimensions: 455 × (75–100 max) × 127 mm
Grinding Wheel Speed: 1380 rpm
Workpiece Spindle Speed: 16–500 rpm
Spindle and Tailstock Taper: Morse Taper 4
Machine Dimensions: 3560 × 2130 mm
Machine Weight: 4000 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
