Xijia CNC Cylindrical Grinding Machine
No.: 00450

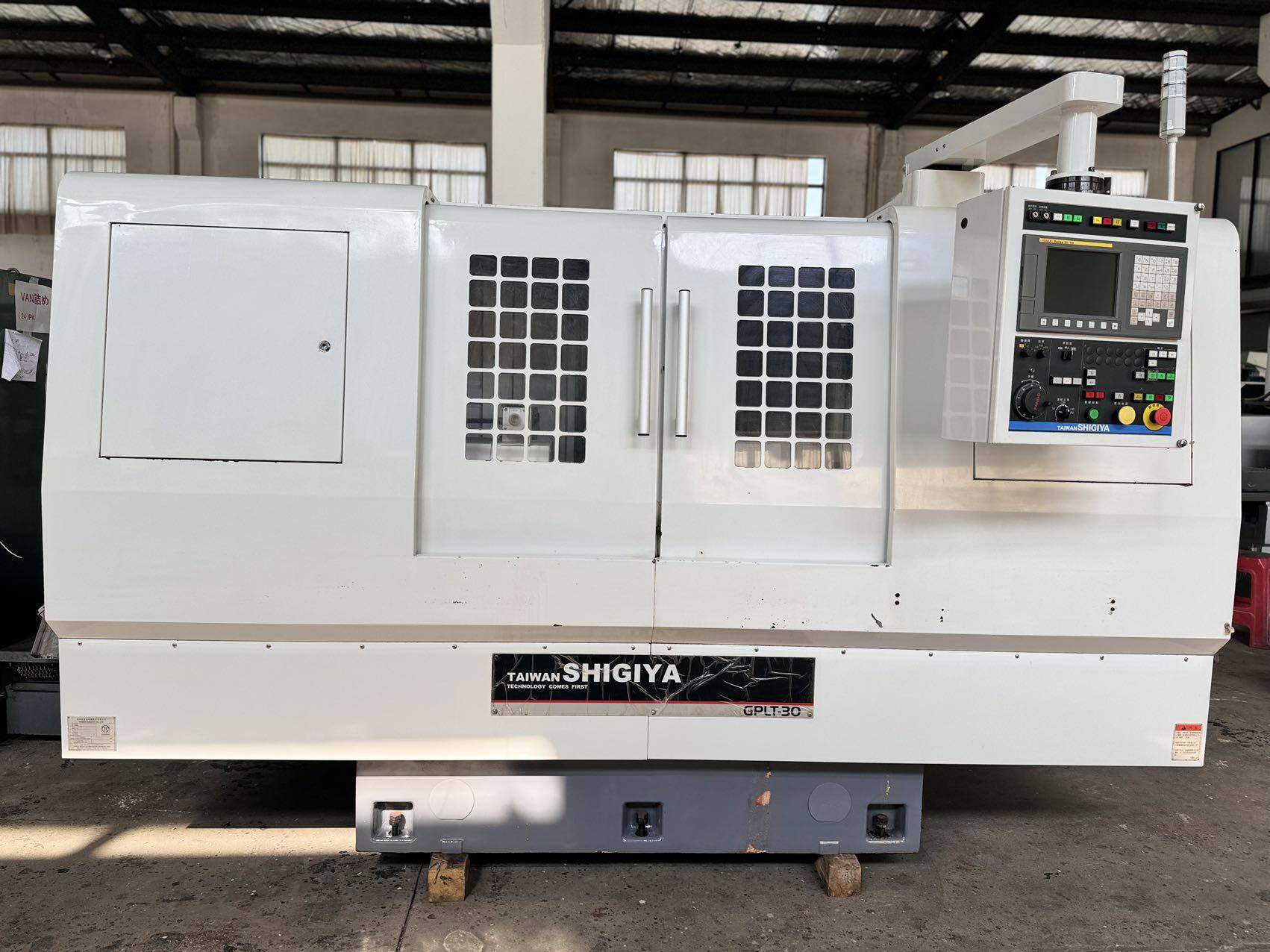

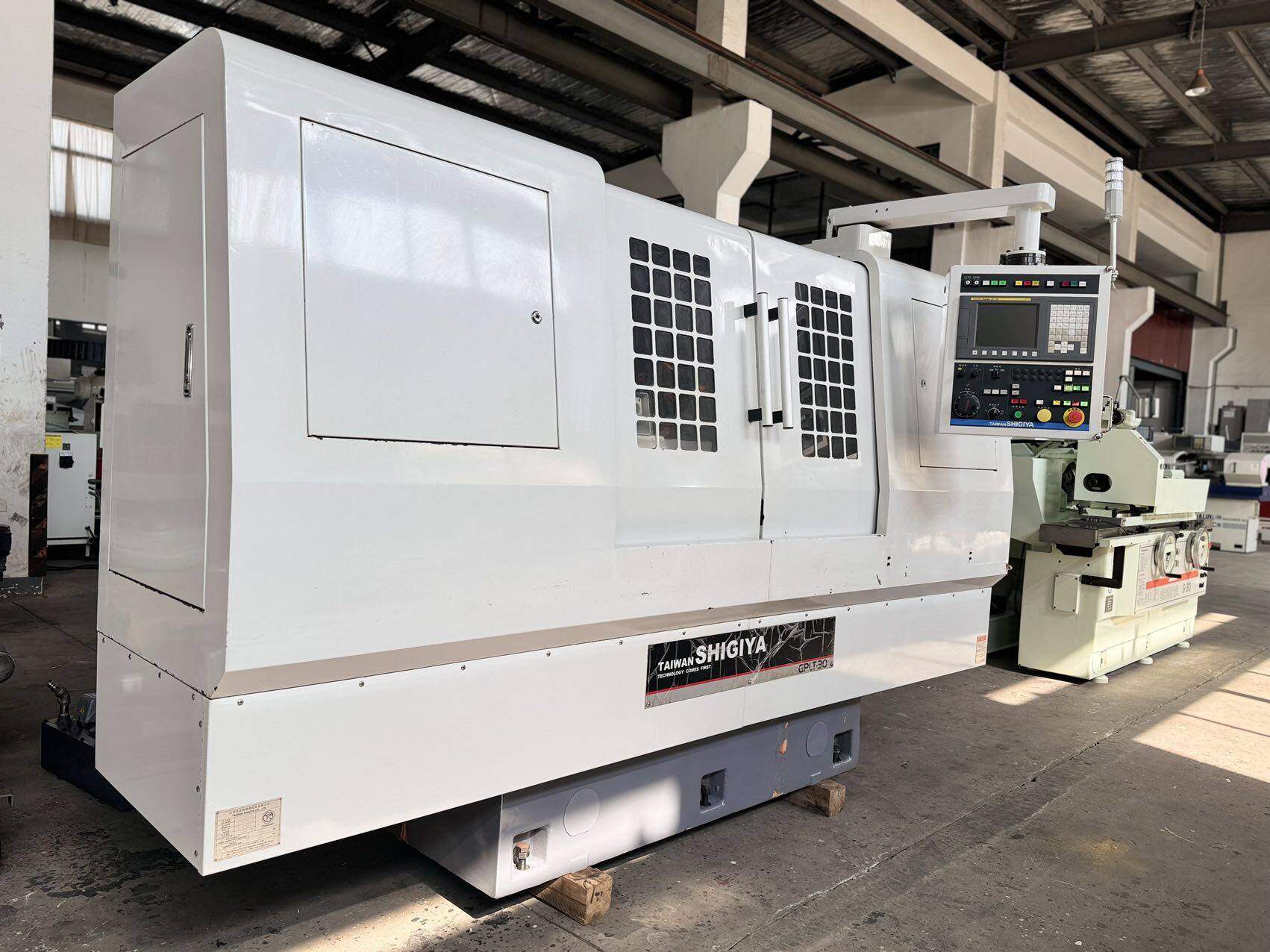

Xijiya CNC Cylindrical Grinding Machine
GPLT-30.50

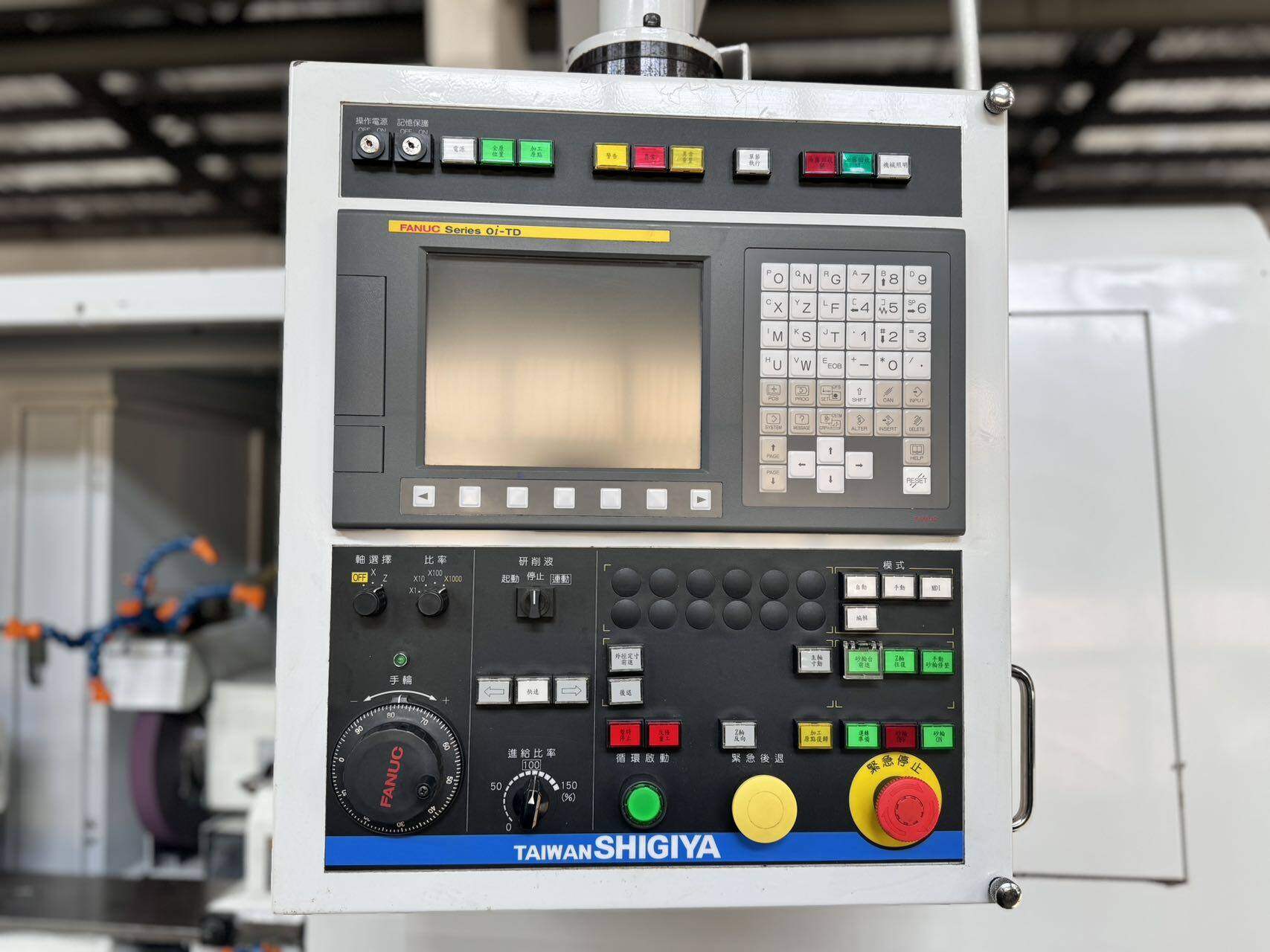

Controller: FANUC 0iTD
Table Grinding Length: 500 mm
Table Rotation Diameter: 300 mm
Maximum Workpiece Weight: 150 kg
Grinding Wheel Spindle Rotation Angle: ±30°
Table Rotation Angle: 0°, -11°

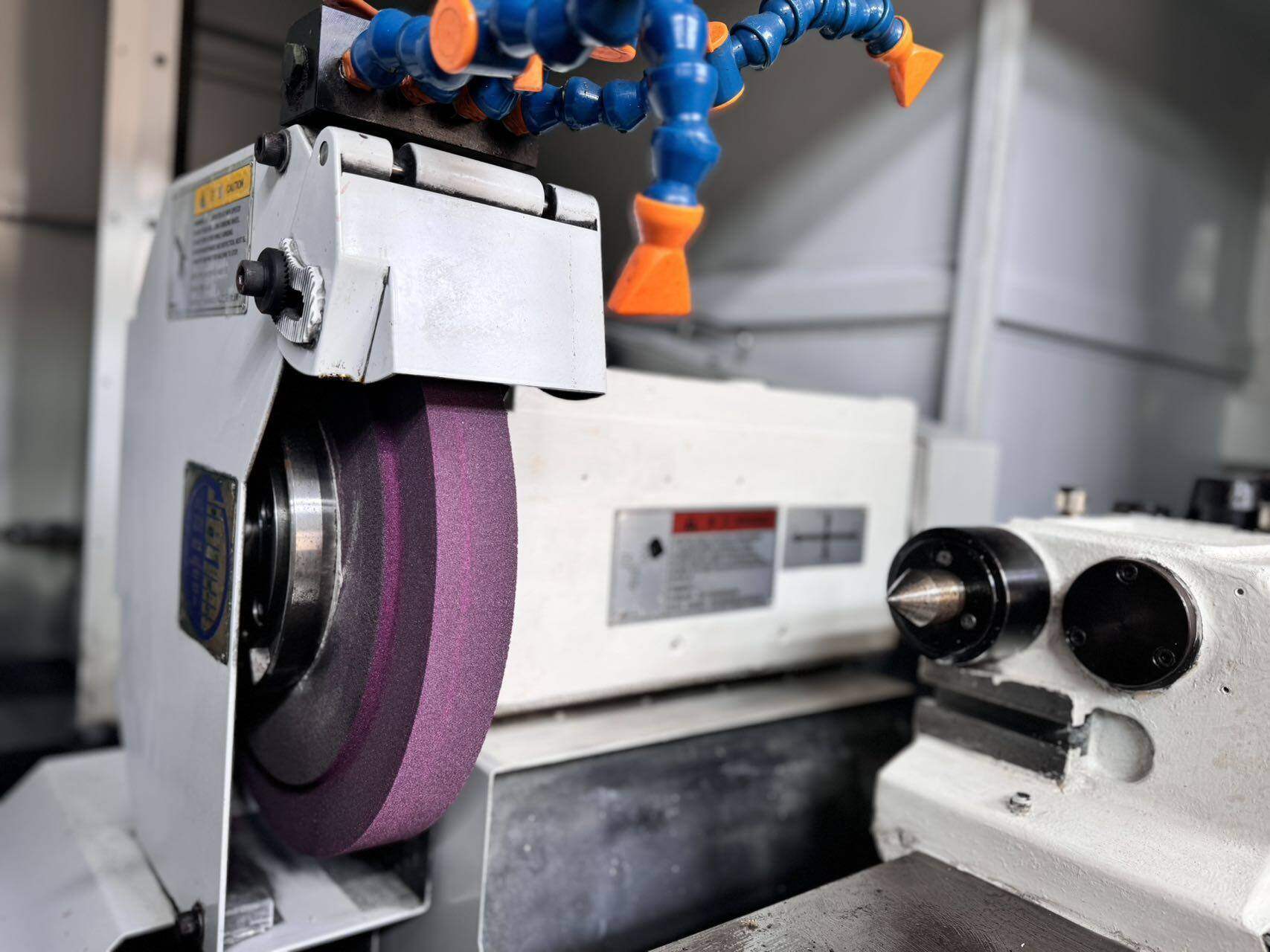

Grinding Wheel Dimensions: 405 × 25–50 × 152.4 mm
Grinding wheel spindle speed: 1545 rpm
Workpiece spindle speed: 15–600 rpm
Spindle and tailstock taper: Morse T4
Machine weight: 4300 kg
Voltage: 3-phase 200 V
Total power: 28 kVA
Product specifications are subject to the actual machine.
