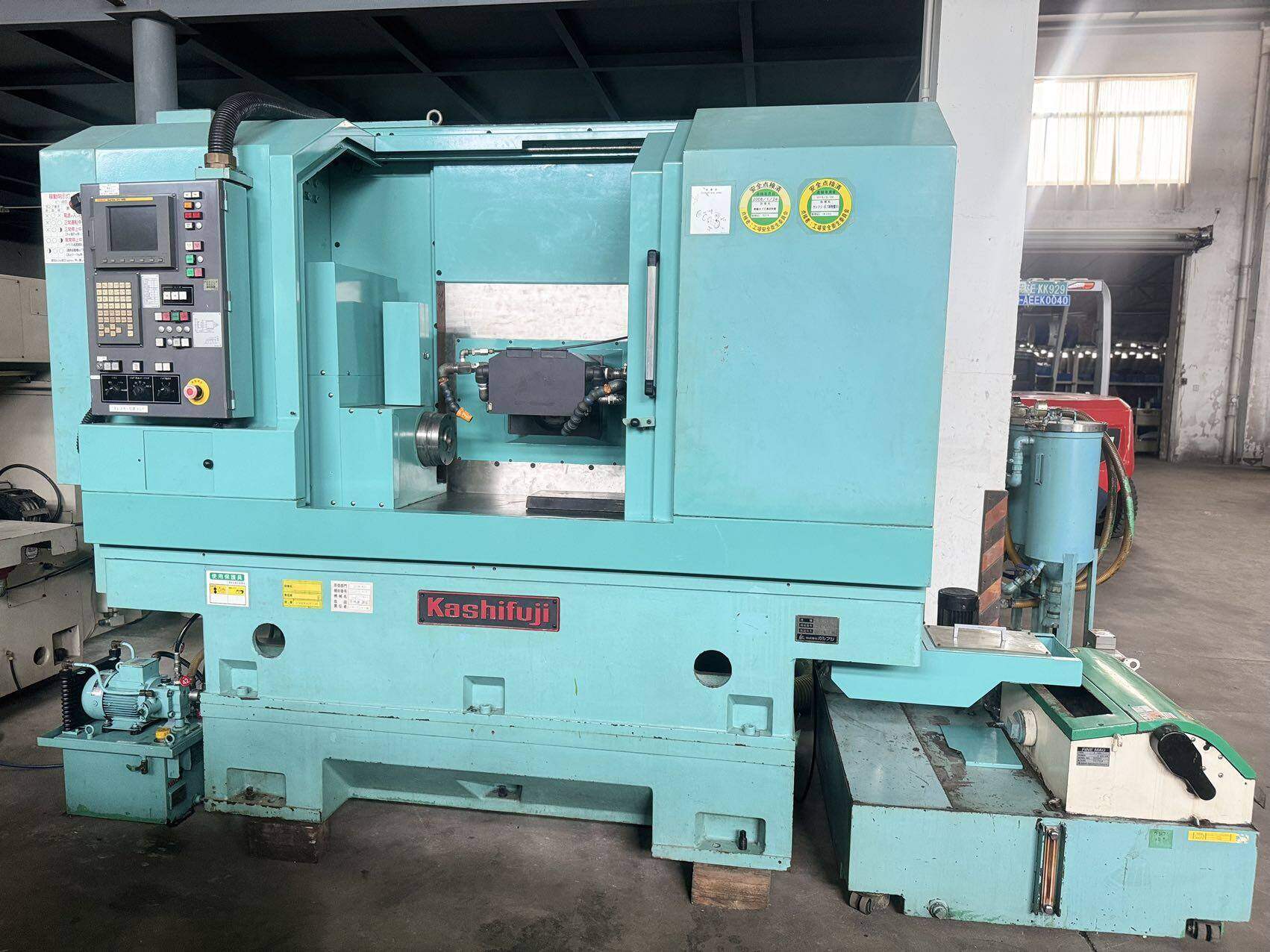

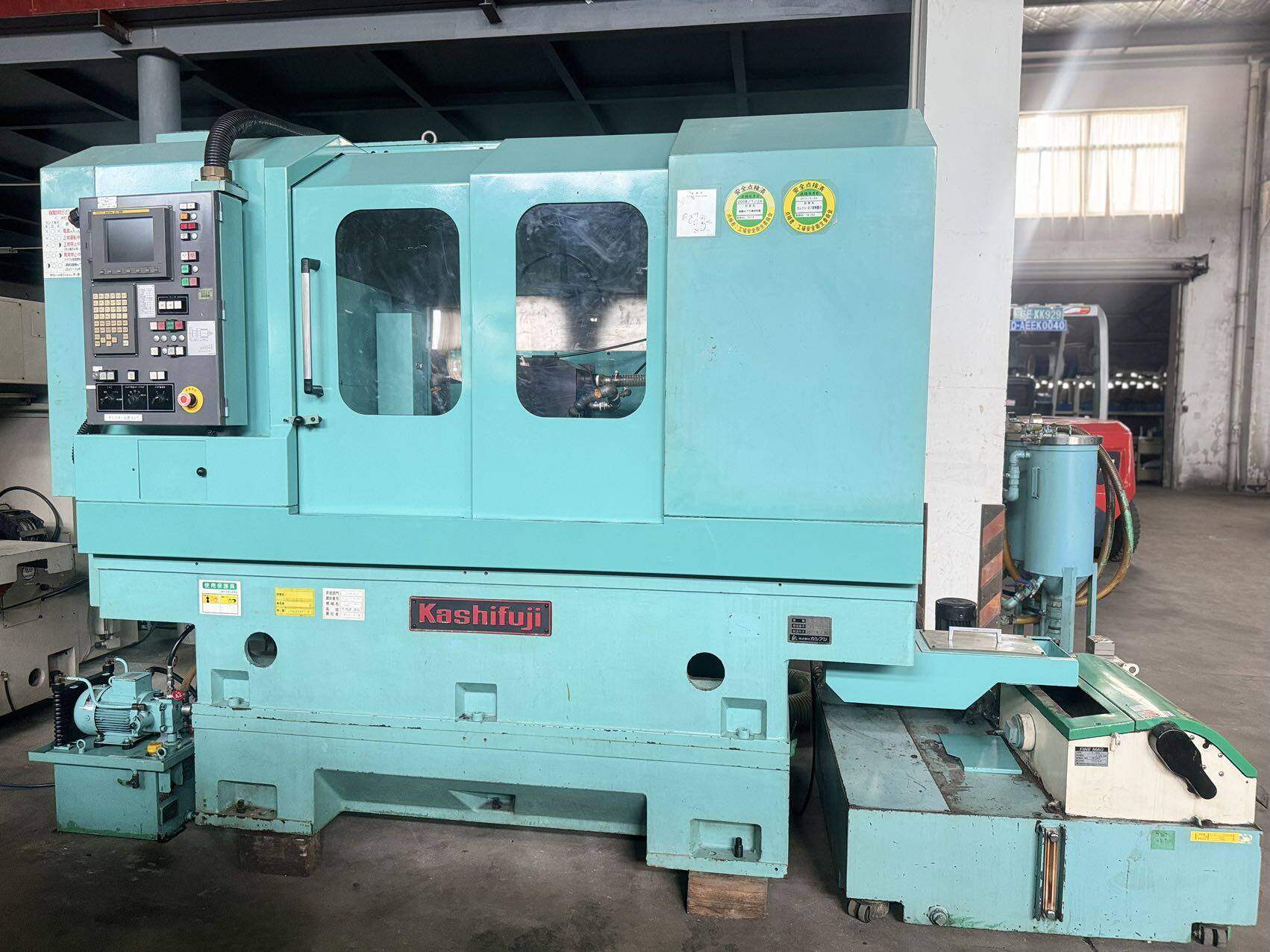

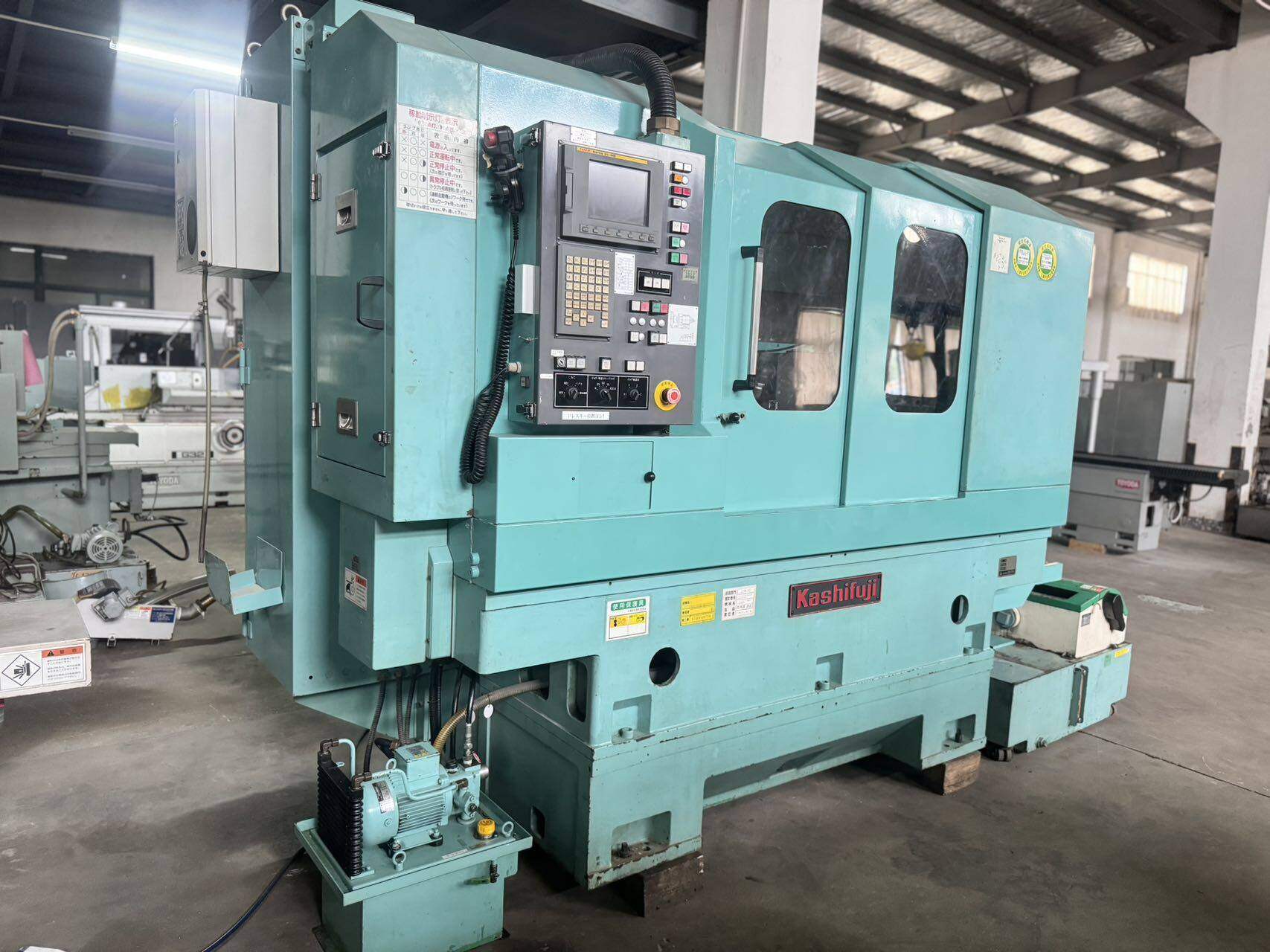

Japanese Kafuski CNC Hob Grinding Machine
Serial No.: 00473
Japan Kafuski CNC Hob Grinding Machine
Model: KG253
Maximum grindable hob diameter: 250mm
Maximum grindable groove depth: 35mm
Maximum mountable grinding wheel diameter: 200mm
Grinding wheel offset distance: +40～-90mm
Spindle rotational speed: Max 6000min⁻¹
X, Y, Z-axis travel range: 180*130*400mm
Rapid feed speed: Max 6000mm/min
Maximum Z-axis rapid feed speed: 15000mm/min
Maximum C-axis rotational speed: 25min⁻¹
Distance between spindle and indexing shaft end face: 200~600mm
Indexing shaft end face diameter: 160mm
Indexing shaft bore diameter: 70mm (Depth: 40mm)
Distance between indexing shaft end face and center: 300~800mm
Typical Workpieces to be Processed
High-speed hobs, Cemented carbide hobs, Cermet hobs
Voltage: Three-phase 200V
Total Power: 20KVA
Machine Weight: 5000KG
Machine Dimensions: 2770*1610*2200mm
Product parameters shall be subject to the actual machine.
