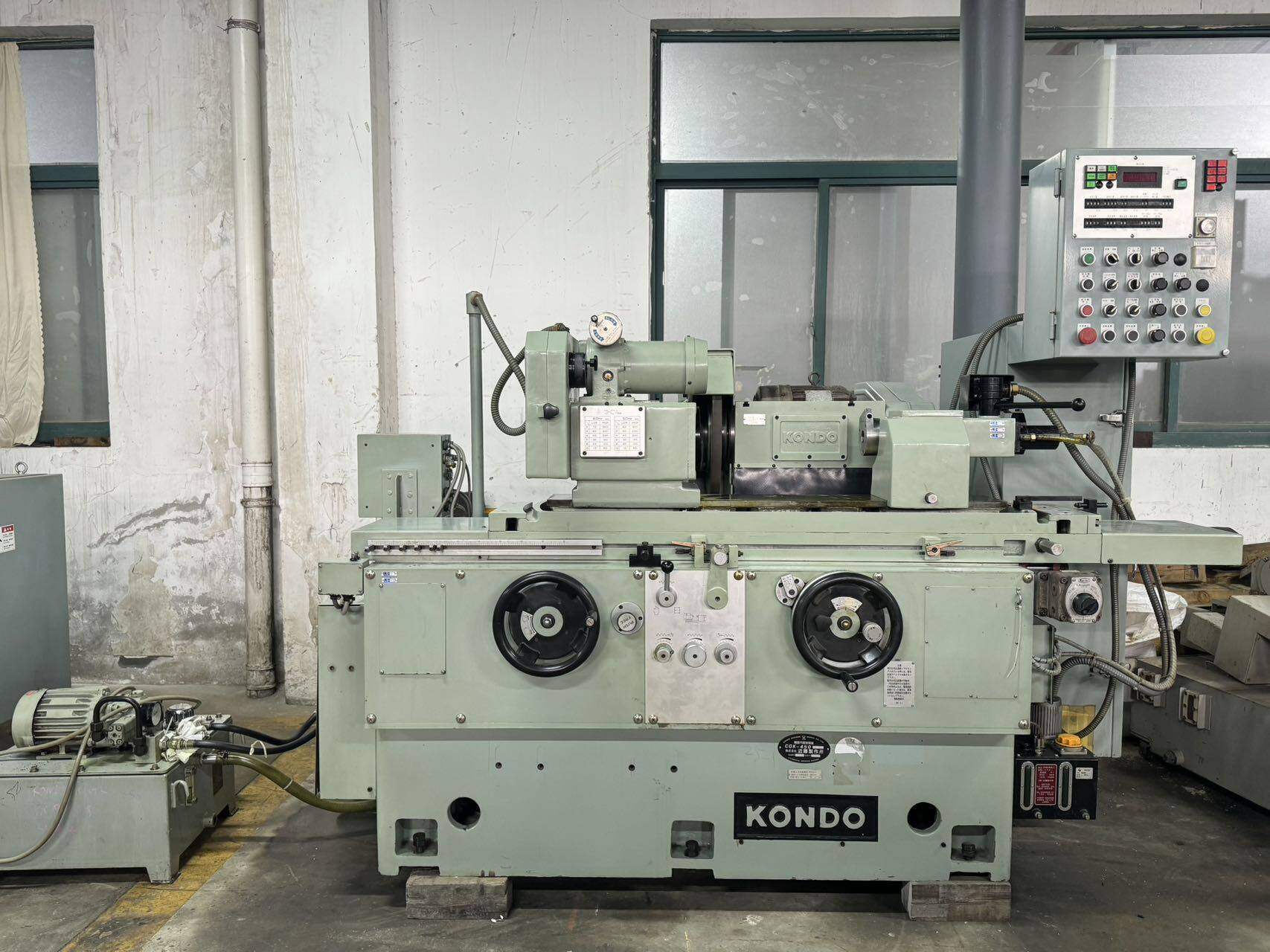

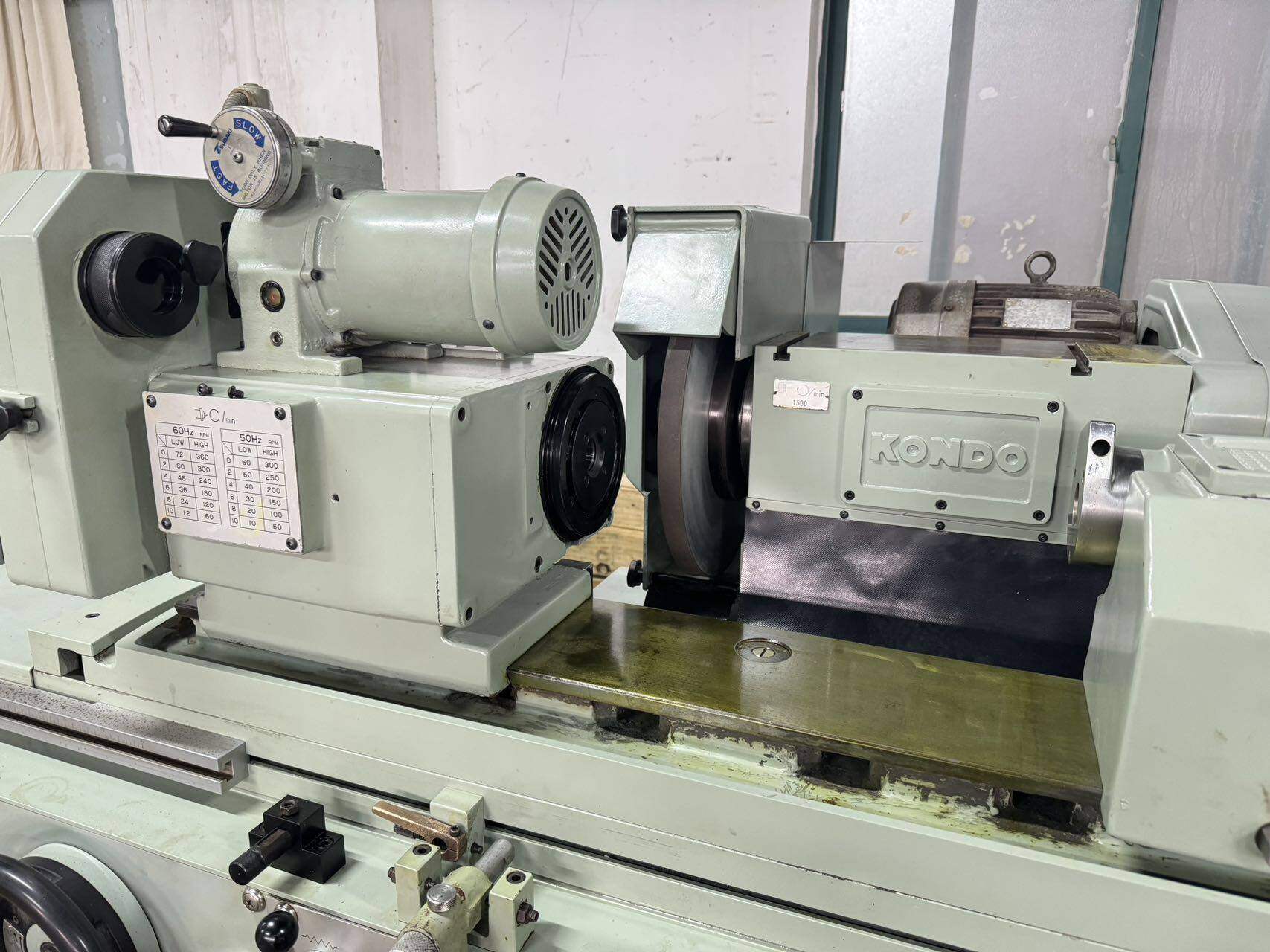

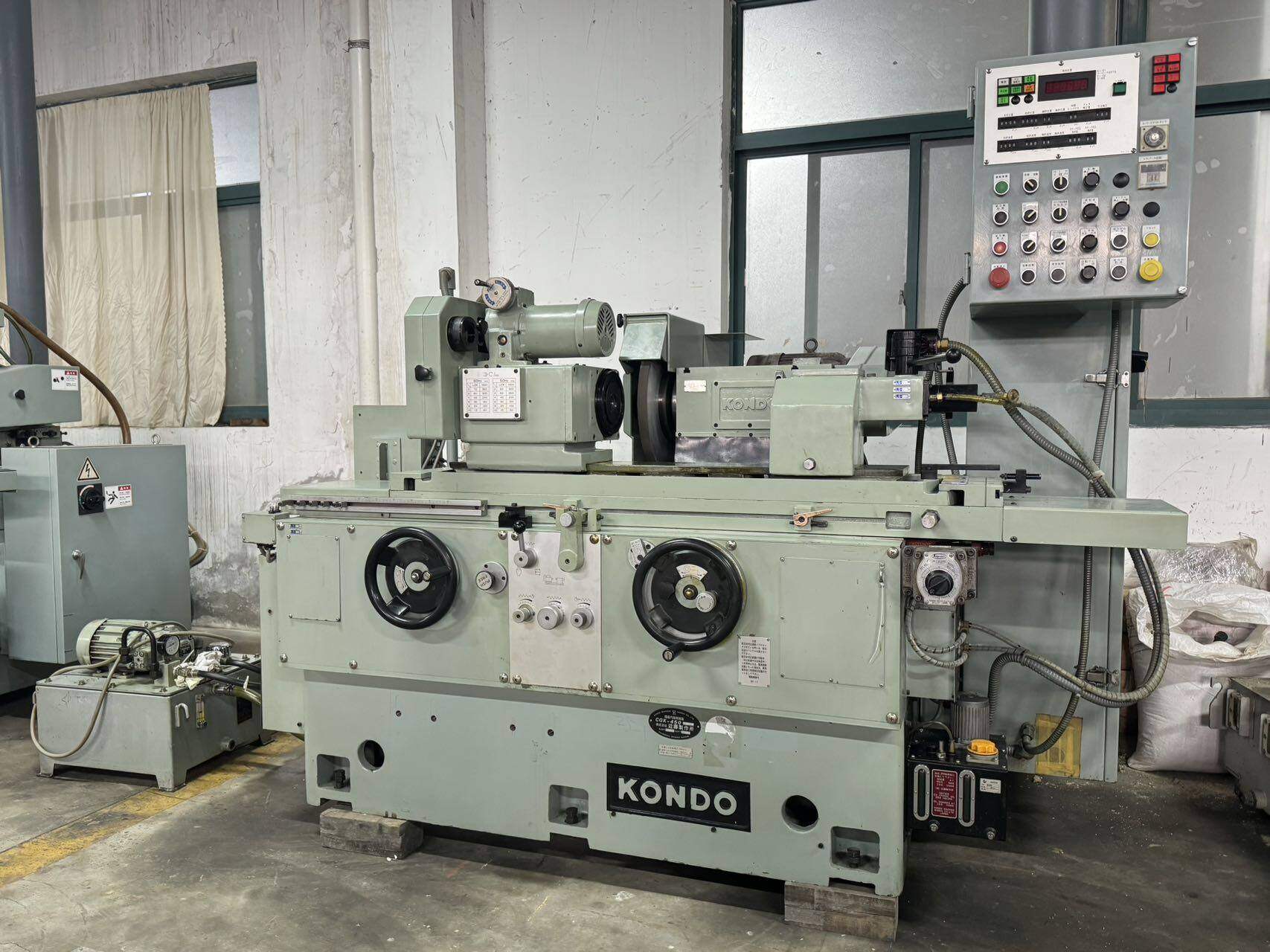

Kondo Cylindrical Grinding Machine (Japan)
No.: 00440
Kondo (Japan) Cylindrical Grinding Machine
CGK-450H-TS
Table Grinding Length: 500 mm
Table Rotation Diameter: 300 mm
Maximum Load Weight: 80 kg
Table Rotation Angle: -4°, +8°
Grinding Wheel Dimensions: 405 × 38 (16–75) × 152.4 mm
Grinding Wheel Spindle Speed: 1500 rpm
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Weight: 3000 kg
Machine Dimensions: 2670 × 1827 × 2000 mm
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
- Category：KONDO
- Share：
- Inquiry
- Details
No.: 00440
Kondo (Japan) Cylindrical Grinding Machine
CGK-450H-TS
Table Grinding Length: 500 mm
Table Rotation Diameter: 300 mm
Maximum Load Weight: 80 kg
Table Rotation Angle: -4°, +8°
Grinding Wheel Dimensions: 405 × 38 (16–75) × 152.4 mm
Grinding Wheel Spindle Speed: 1500 rpm
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Weight: 3000 kg
Machine Dimensions: 2670 × 1827 × 2000 mm
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
