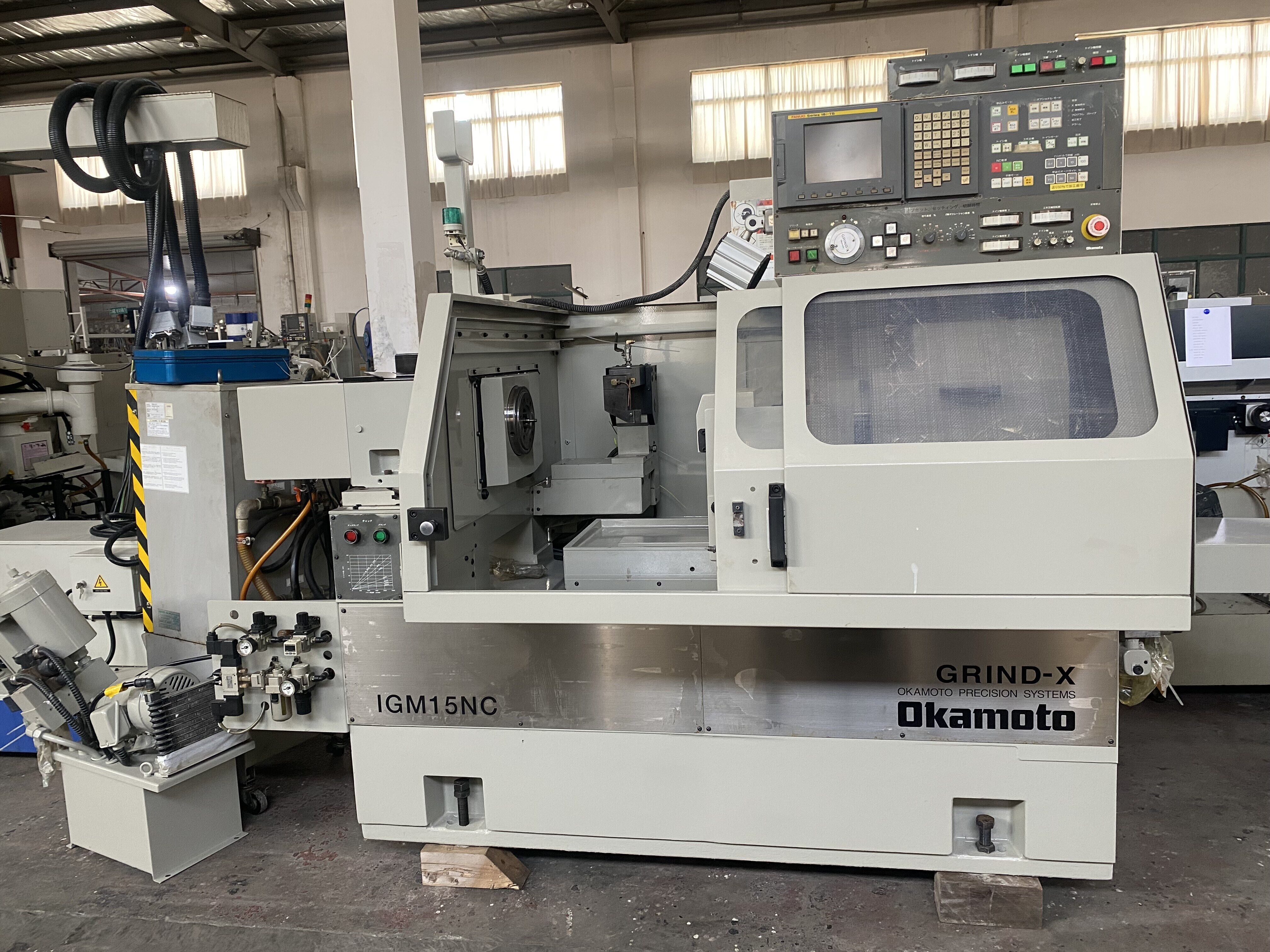

Okamoto Twin-Spindle Internal Grinding Machine (Japan)

Model No.: 00429 Okamoto (Japan) CNC Double-Spindle Internal Grinding Machine IGM-15NC Maximum grinding length: 80 mm Grinding bore diameter: 6–100 mm Maximum chuck outer diameter: 215 mm Vibration within the guard: 600 mm Maximum travel of X and Z axes: 300 × 500 mm Rapid feed rate: 10,000 min⁻¹ Grinding wheel spindle speed: 10,000–60,000 min⁻¹ Grinding wheel spindle speed: 30,000 min⁻¹ Spindle taper: Morse 6 Through-hole diameter: 50 mm Spindle speed: 100–850 rpm Swivel angle: -5° to 15° Machine dimensions: 2800 × 2240 × 1720 mm Machine weight: 2400 kg Voltage: 3-phase 200 V Total power: 12 kVA Product specifications are subject to the actual machine.
  • Category：Okamoto
  • Share：
  • Inquiry
  • Details

Model No.: 00429

Okamoto (Japan) CNC Double-Spindle Internal Grinding Machine

IGM-15NC

Maximum grinding length: 80 mm

Grinding bore diameter: 6–100 mm

Maximum chuck outer diameter: 215 mm

Vibration within the guard: 600 mm

Maximum travel of X and Z axes: 300 × 500 mm

Rapid feed rate: 10,000 min⁻¹

Grinding wheel spindle speed: 10,000–60,000 min⁻¹

Grinding wheel spindle speed: 30,000 min⁻¹

Spindle taper: Morse 6

Through-hole diameter: 50 mm

Spindle speed: 100–850 rpm

Swivel angle: -5° to 15°

Machine dimensions: 2800 × 2240 × 1720 mm

Machine weight: 2400 kg

Voltage: 3-phase 200 V

Total power: 12 kVA

Product specifications are subject to the actual machine.
