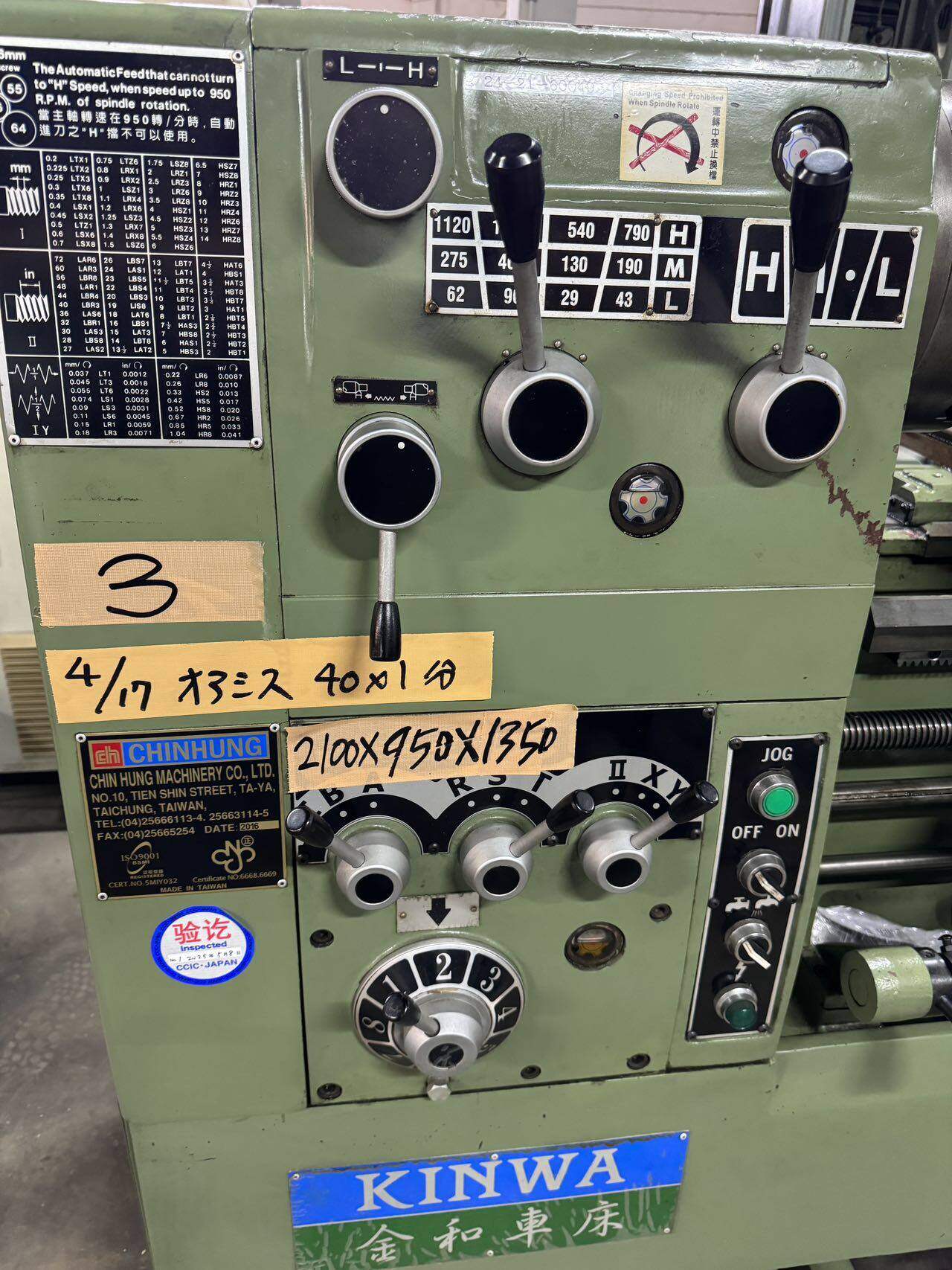

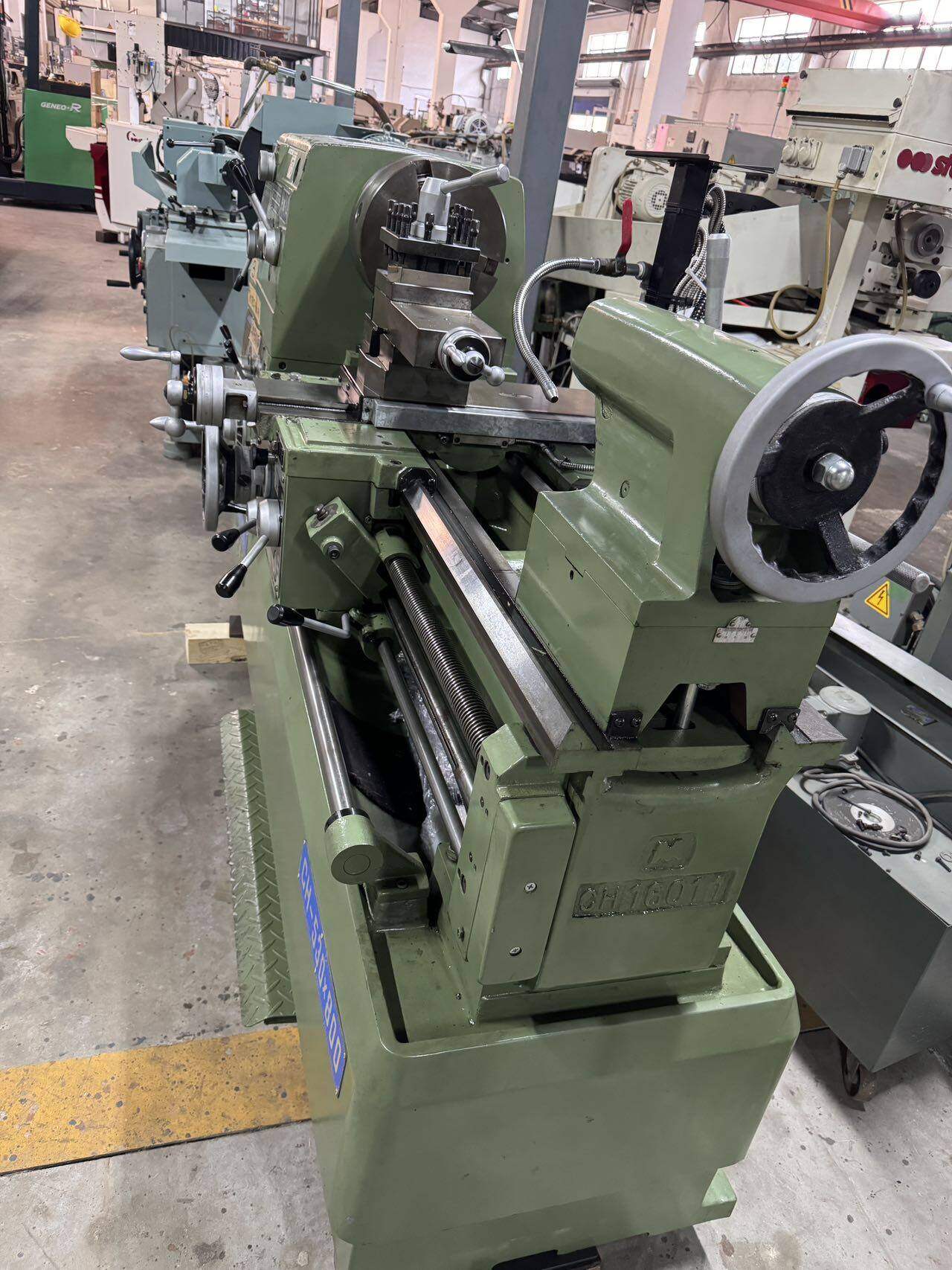

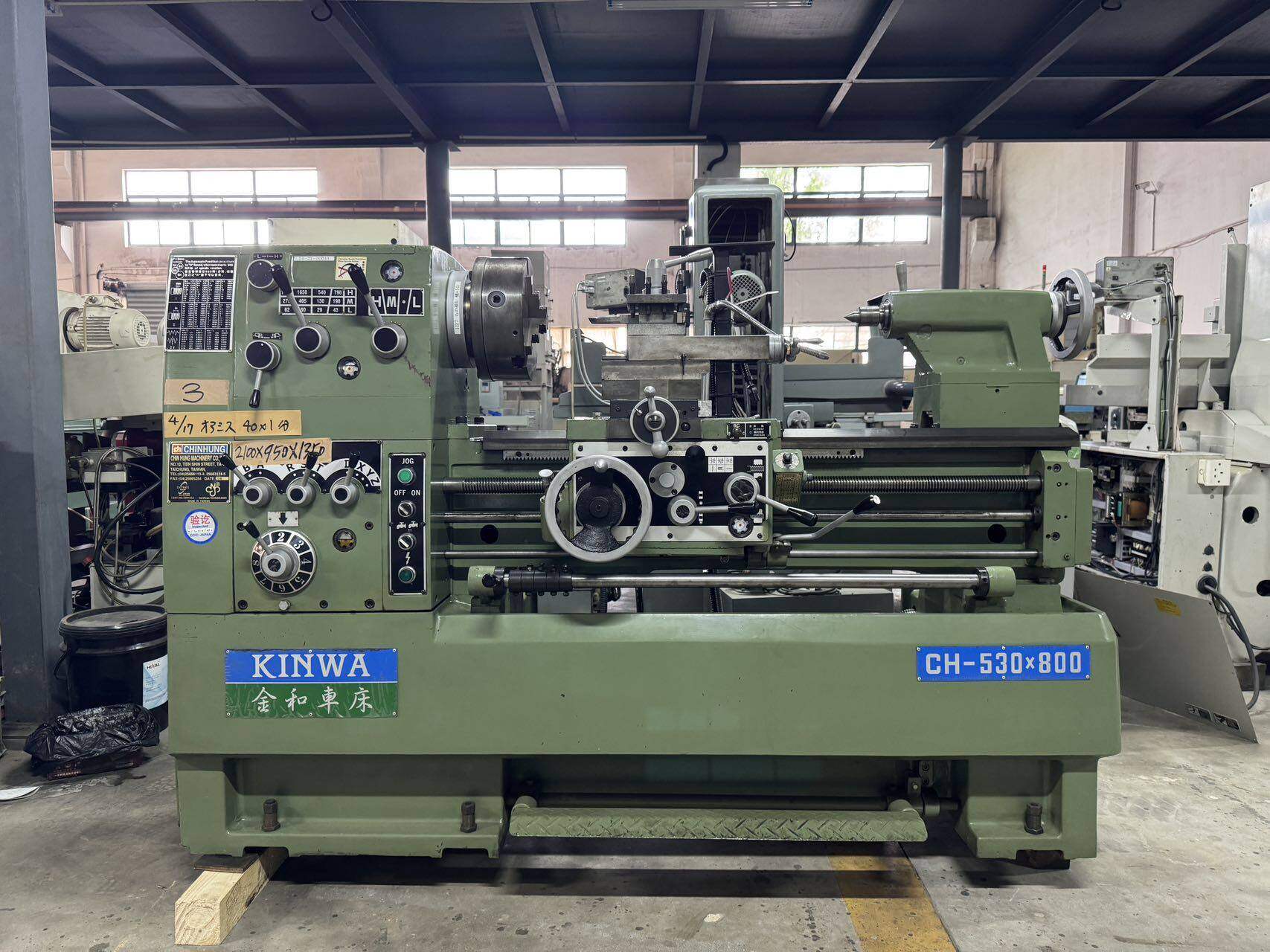

Taiwan Jinhe Lathe
No.: 00497
Taiwan Jinhe Lathe
CH-530*800
Swing over bed: 532mm
Swing over carriage: 368mm
Swing in gap: 710mm
Distance between centers: 800 mm
Bed width: 300mm
Tool post travel: 150mm
Cross slide travel: 265mm
Spindle bore: 58mm
Taper of spindle bore and center: Morse 6 * Morse 4
Spindle nose: A1-6, D1-6
Number of spindle speed stages: 12
Number of feed speed stages: 36
Longitudinal feed range (Metric): 0.037-1.04mm/rev
Lead screw diameter: 35mm
Tailstock quill travel: 150mm
Tailstock quill diameter: 60mm
Spindle taper: MT#4
Spindle motor: 5HP(7.5HP)
Machine height: 1400mm
Floor space: 2000*100*1400mm
Machine weight: 1600KG
Voltage: Three-phase 200V
Product parameters shall be subject to the actual machine.
