Junker Non-Circular Grinding Machines (Germany)
Model No.: 00416

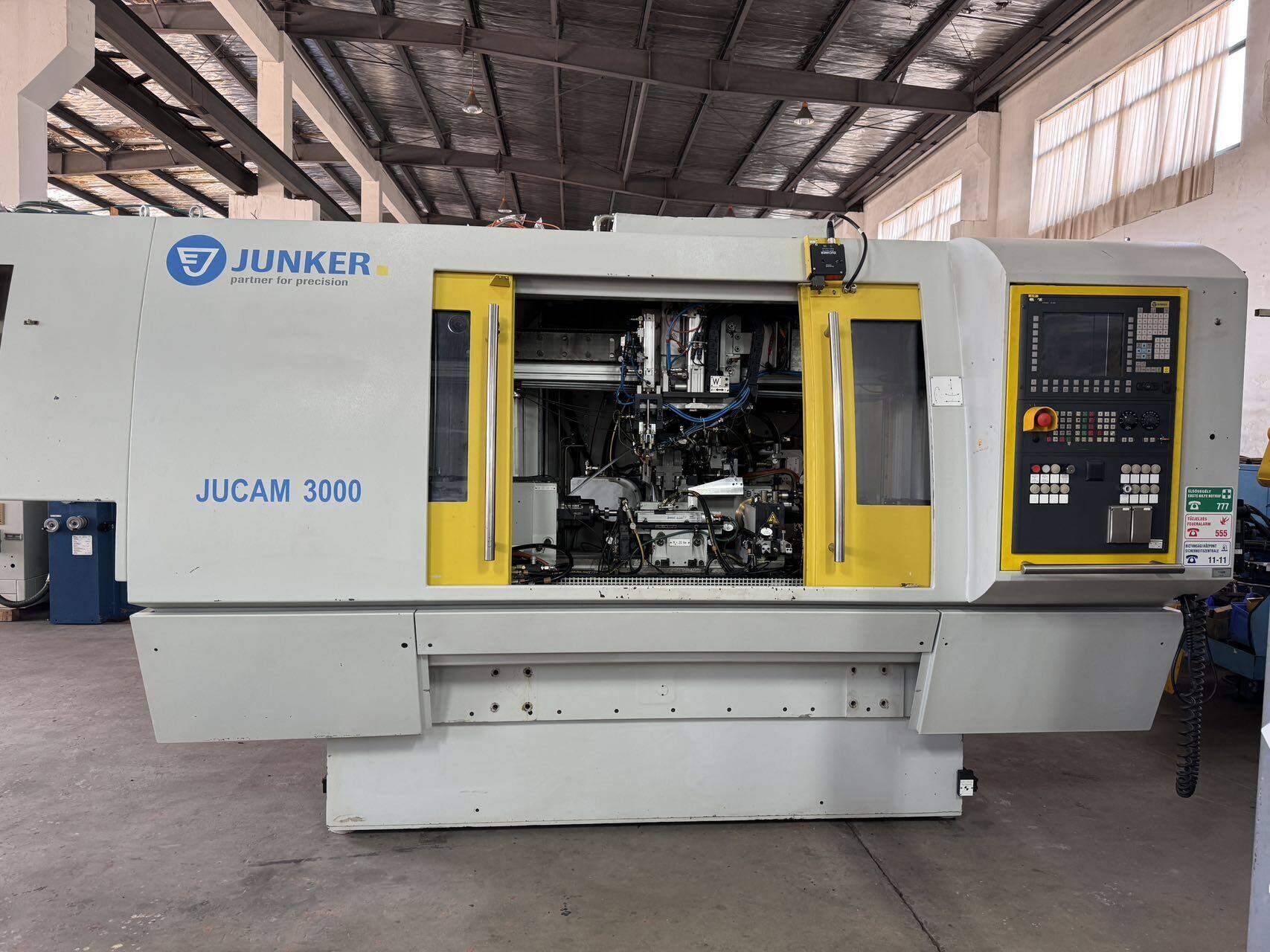

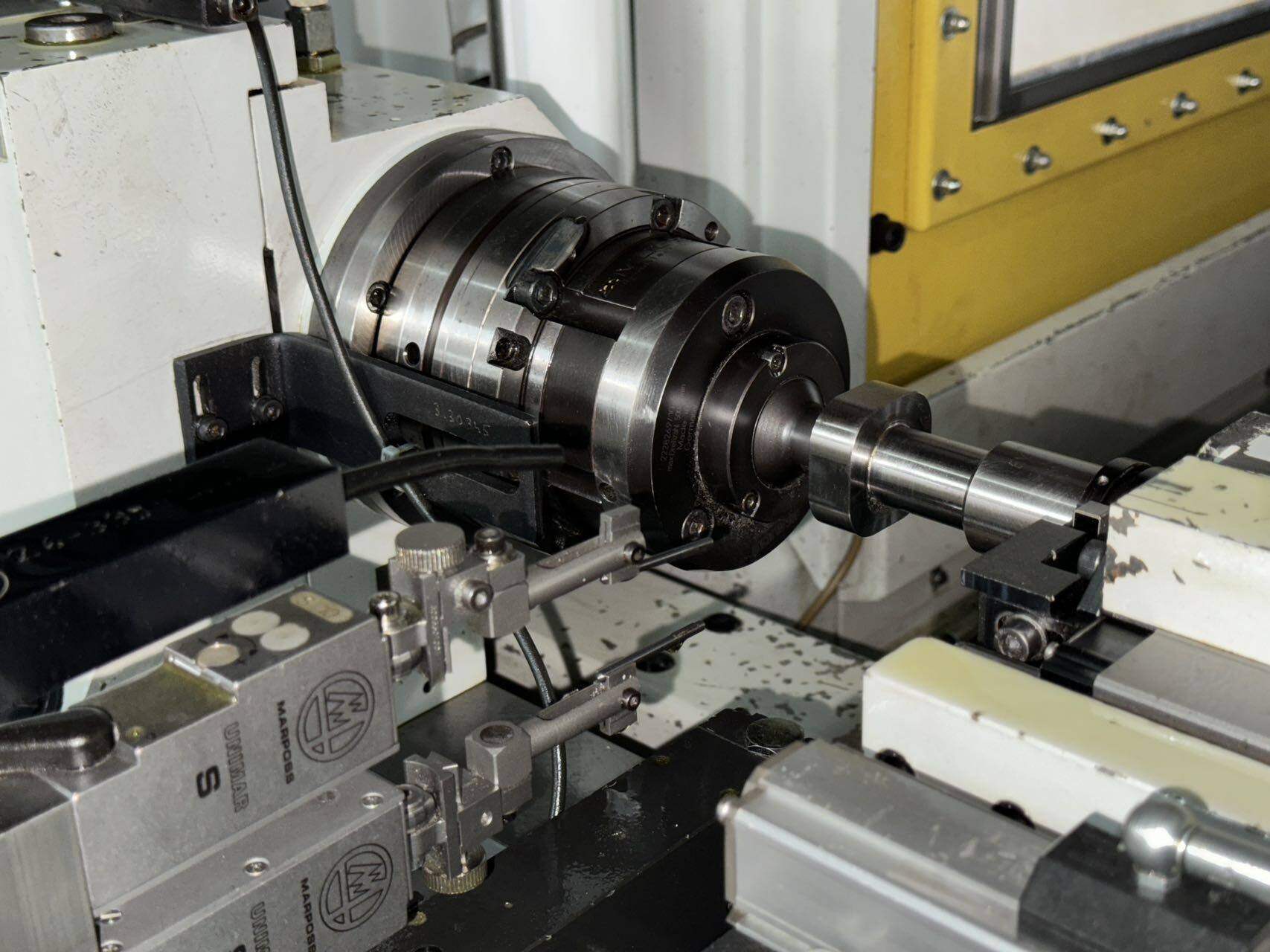

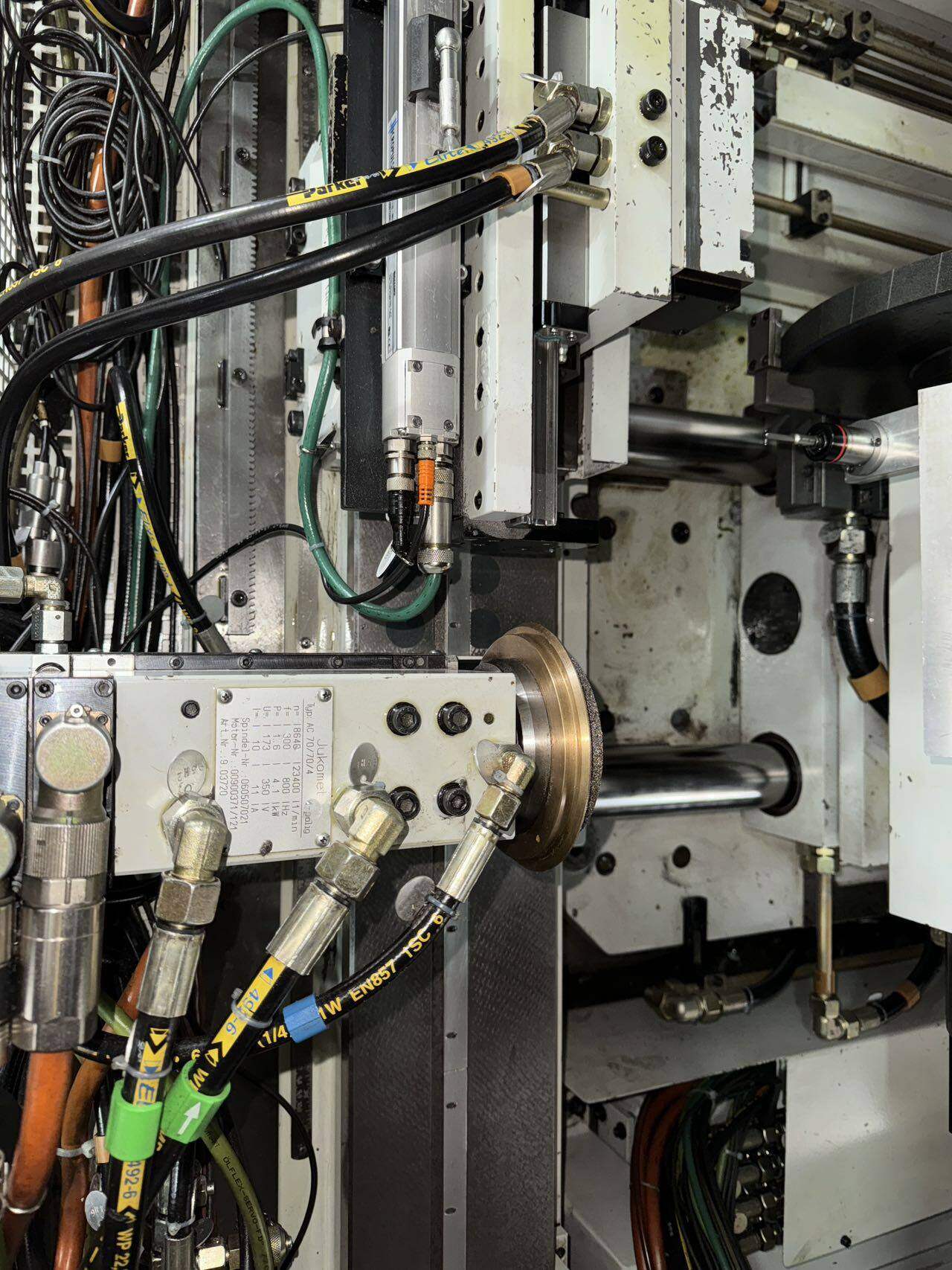

Jucam Non-Circular Grinding Machine (Germany)
Jucam 3000/61 (X-axis with hydrostatic cylindrical guideways)
Clamping length: 400 mm
Center height: 150 mm
Workpiece weight: 15 kg
Grinding wheel diameter: Max. 350 mm
Voltage: 3-phase 380 V

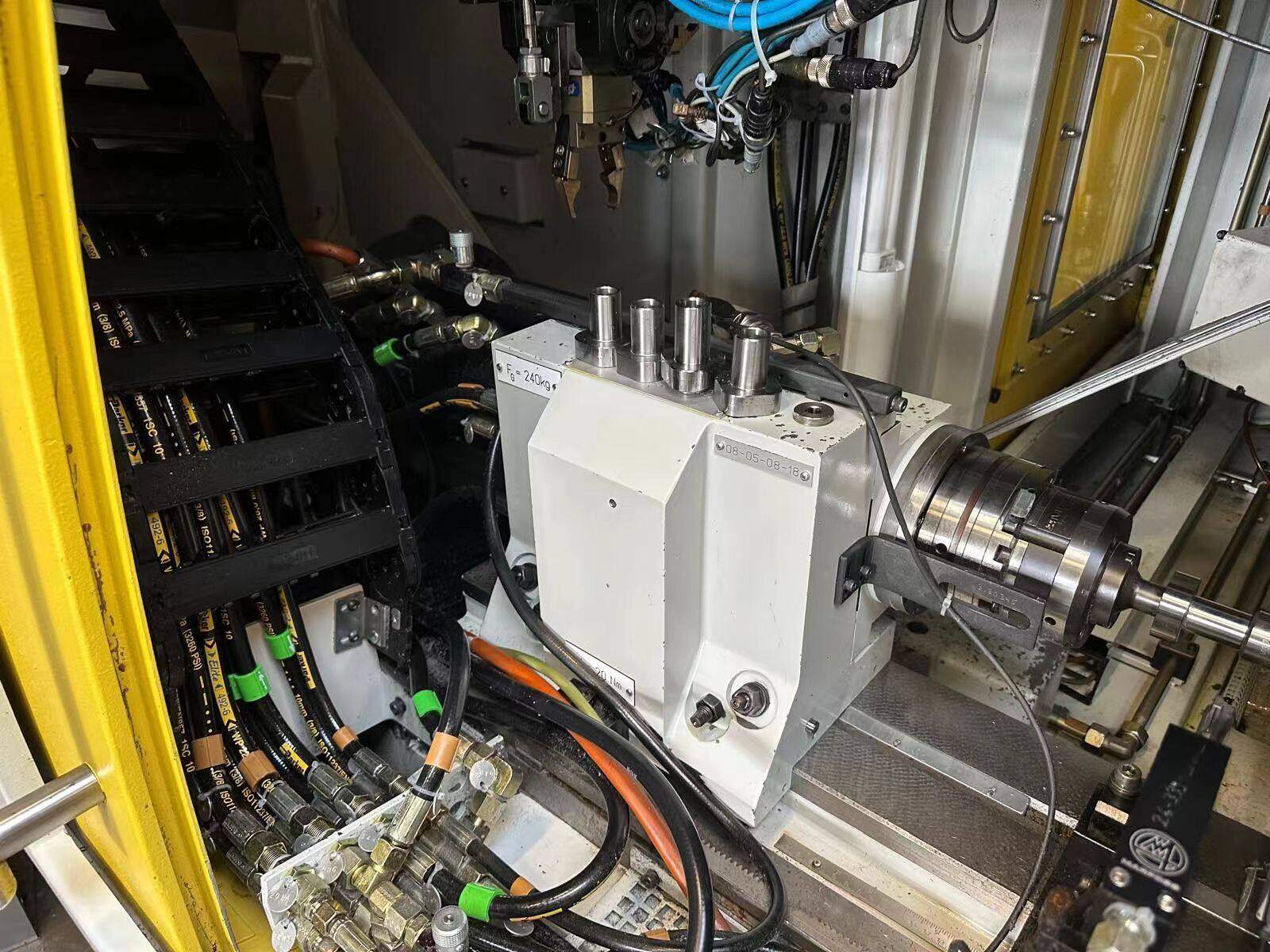

Dual workpiece headstock
Machines various cam profiles, with or without chamfers and fillets
With recesses, polygonal, elliptical, tangential, and internal gears
Grinds not only cams but also journal shafts and thrust faces
Variable-stroke camshaft components
Grinds the entire camshaft—including cam lobes, journal shafts, and small-end faces—in a single setup
X-axis with hydrostatic cylindrical guide
The B-axis of the grinding headstock is driven by a backlash-free gear or torque motor, allowing programmable positioning at every angular position. Resolution: 0.00001 degrees
Equipped with a noise sensor and an automatic single- or two-stage balancing system
Product specifications are subject to the actual machine.
- Category：JUNKER
- Share：
- Inquiry
- Details
Model No.: 00416
Jucam Non-Circular Grinding Machine (Germany)
Jucam 3000/61 (X-axis with hydrostatic cylindrical guideways)
Clamping length: 400 mm
Center height: 150 mm
Workpiece weight: 15 kg
Grinding wheel diameter: Max. 350 mm
Voltage: 3-phase 380 V
Dual workpiece headstock
Machines various cam profiles, with or without chamfers and fillets
With recesses, polygonal, elliptical, tangential, and internal gears
Grinds not only cams but also journal shafts and thrust faces
Variable-stroke camshaft components
Grinds the entire camshaft—including cam lobes, journal shafts, and small-end faces—in a single setup
X-axis with hydrostatic cylindrical guide
The B-axis of the grinding headstock is driven by a backlash-free gear or torque motor, allowing programmable positioning at every angular position. Resolution: 0.00001 degrees
Equipped with a noise sensor and an automatic single- or two-stage balancing system
Product specifications are subject to the actual machine.
