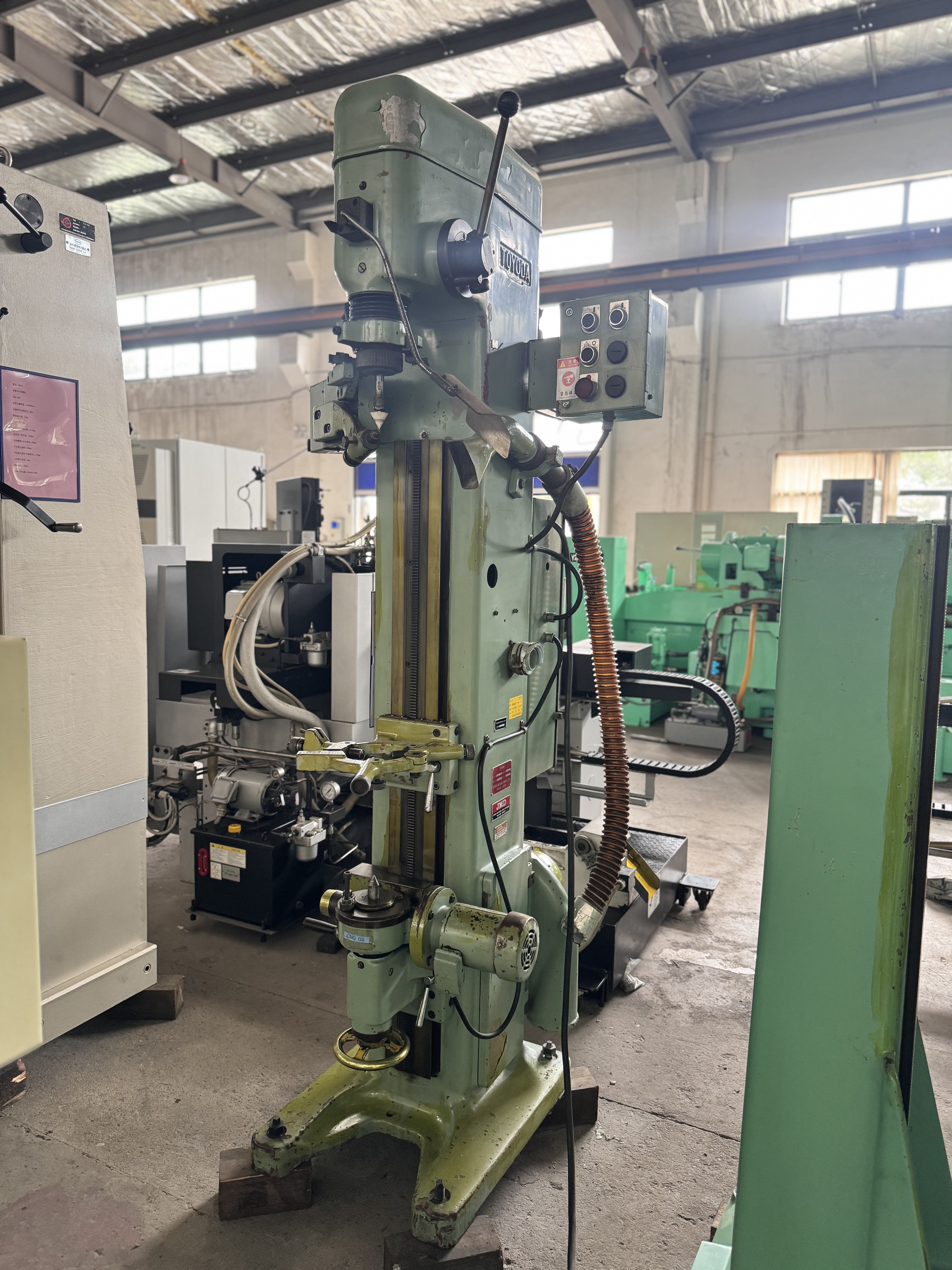

Toyota Machine Works Center Hole Grinding Machine, Japan
No.: 00520
Toyota Koki Centre-hole Grinding Machine
GC12-130
Machining Capabilities
Oscillating: φ280mm
Maximum workpiece length on centre: 1300mm
Maximum workpiece length on spindle table: 1000mm
Oscillating stop: φ4–120mm
Centre hole correction angle: 50–70°
Grinding wheel spindle speed: 10,000 rpm
Grinding wheel spindle vertical travel: 90 mm
Grinding wheel dimensions: Diameter φ18 × Length 30 mm
Grinding wheel spindle feed (interlinked): 0.02, 0.04, 0.06 mm
Grinding wheel spindle motor: 0.75 kW
Spindle head centre bore: MT3
Spindle speed (60 Hz): 45 rpm
Machine weight: 570 kg
Product specifications are subject to the actual machine.
