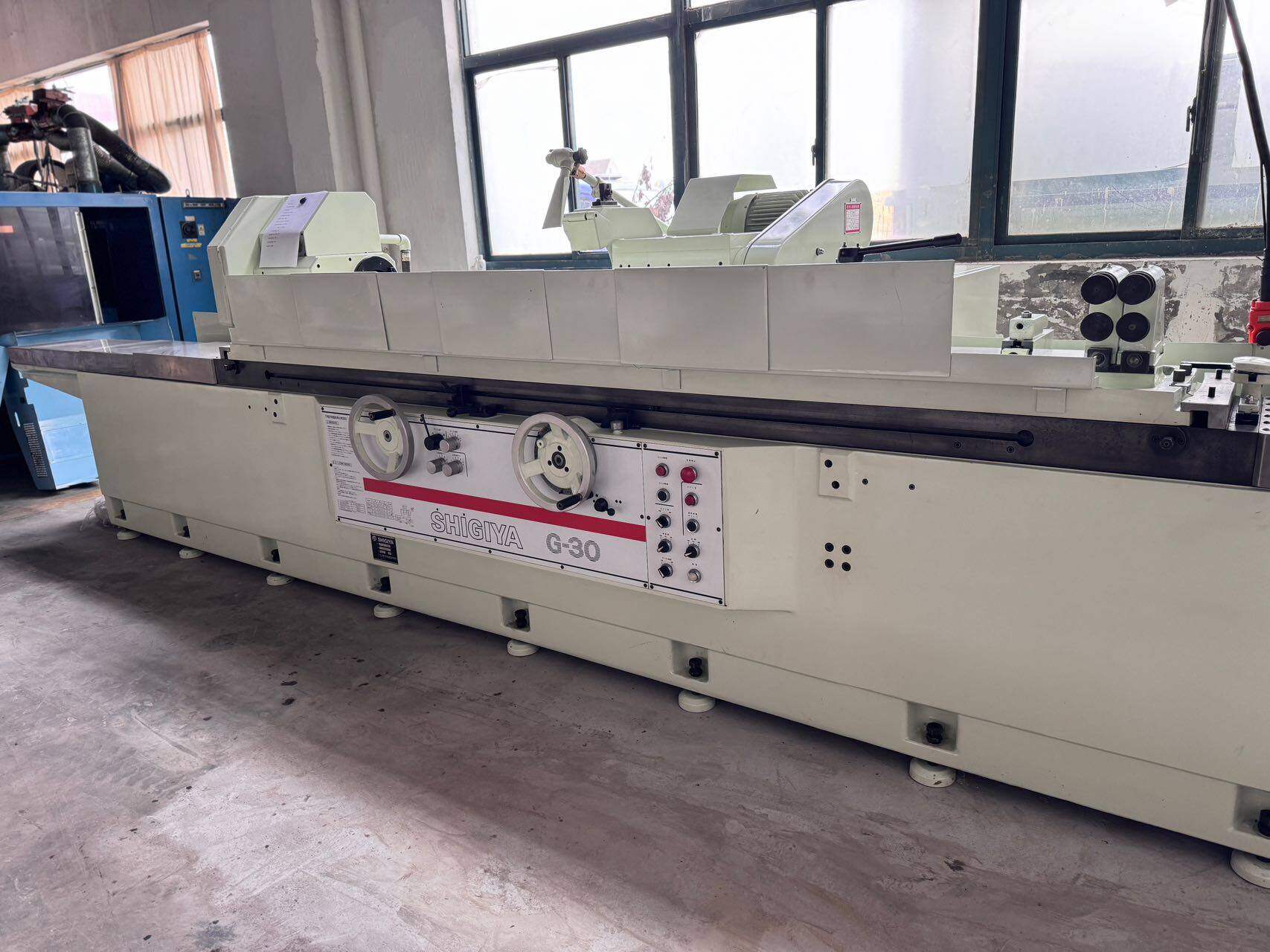

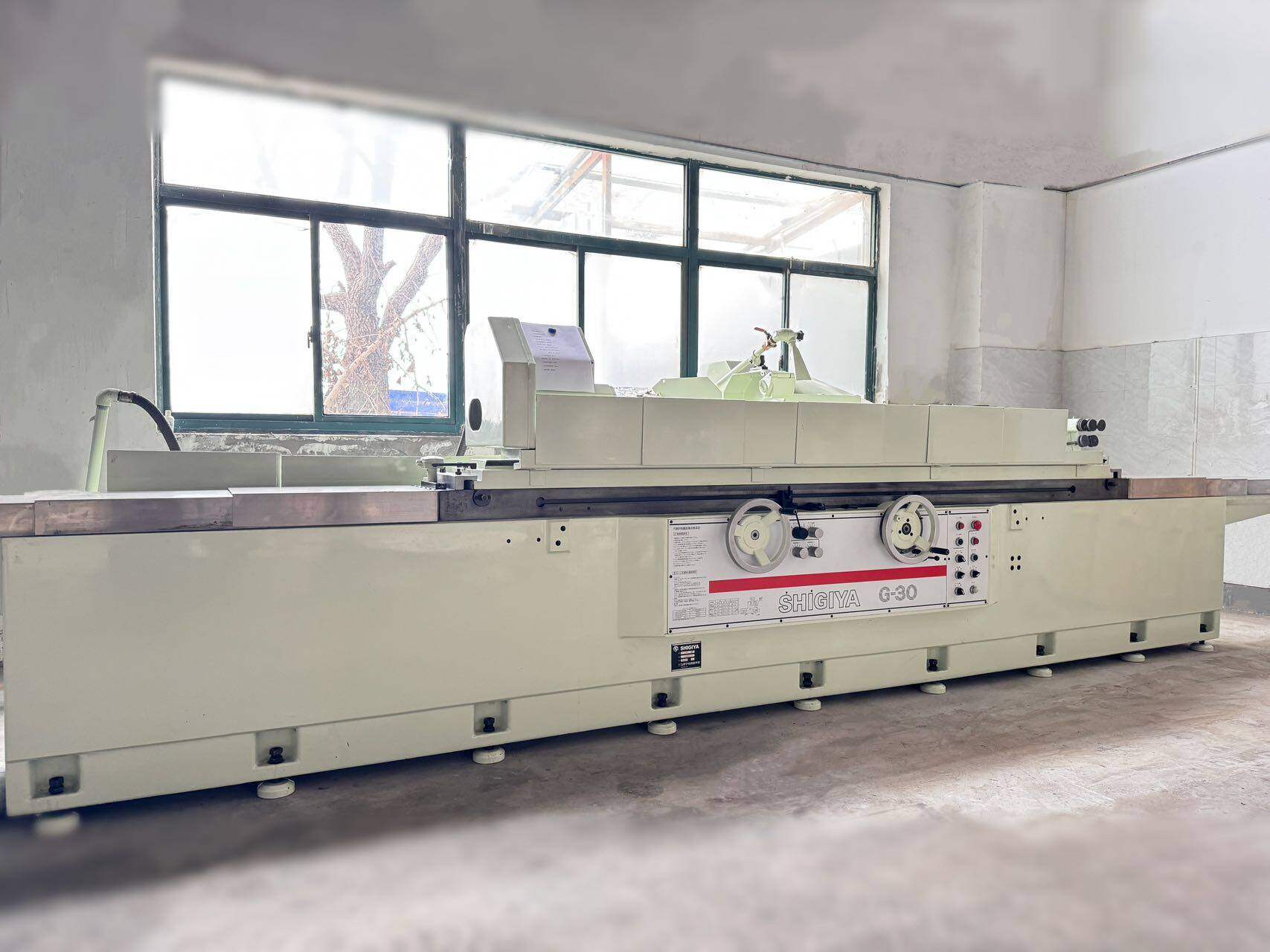

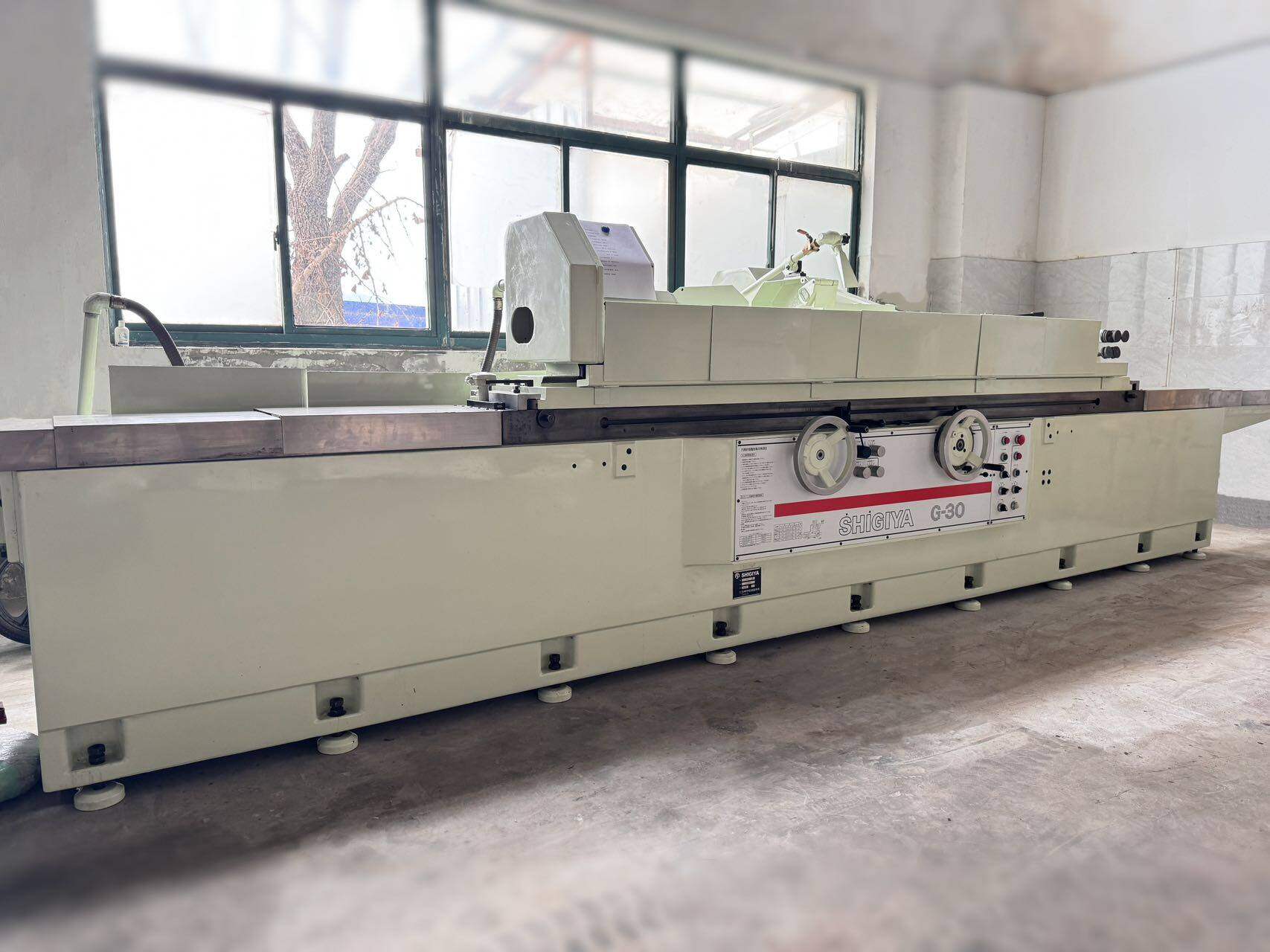

Kikiya Cylindrical Grinding Machine (Japan)
Model No.: 00388
Kikiya (Japan) External Grinding Machine
GP30B·200H
Table grinding length: 2100 mm
Table rotation diameter: 300 mm
Maximum workpiece weight: 130 kg
Grinding wheel dimensions: 405 × 25–75 × 152.4 mm
Grinding Wheel Spindle Speed: 28–303 rpm
Table Rotation Angle: 1°, 4°
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Dimensions: 6640 × 1090 × 1434 mm
Machine Weight: 5800 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
- Category：SHIGIYA
- Share：
- Inquiry
- Details
Model No.: 00388
Kikiya (Japan) External Grinding Machine
GP30B·200H
Table grinding length: 2100 mm
Table rotation diameter: 300 mm
Maximum workpiece weight: 130 kg
Grinding wheel dimensions: 405 × 25–75 × 152.4 mm
Grinding Wheel Spindle Speed: 28–303 rpm
Table Rotation Angle: 1°, 4°
Spindle and Tailstock Taper: Morse Taper No. 4
Machine Dimensions: 6640 × 1090 × 1434 mm
Machine Weight: 5800 kg
Voltage: 3-phase 200 V
Product specifications are subject to the actual machine.
