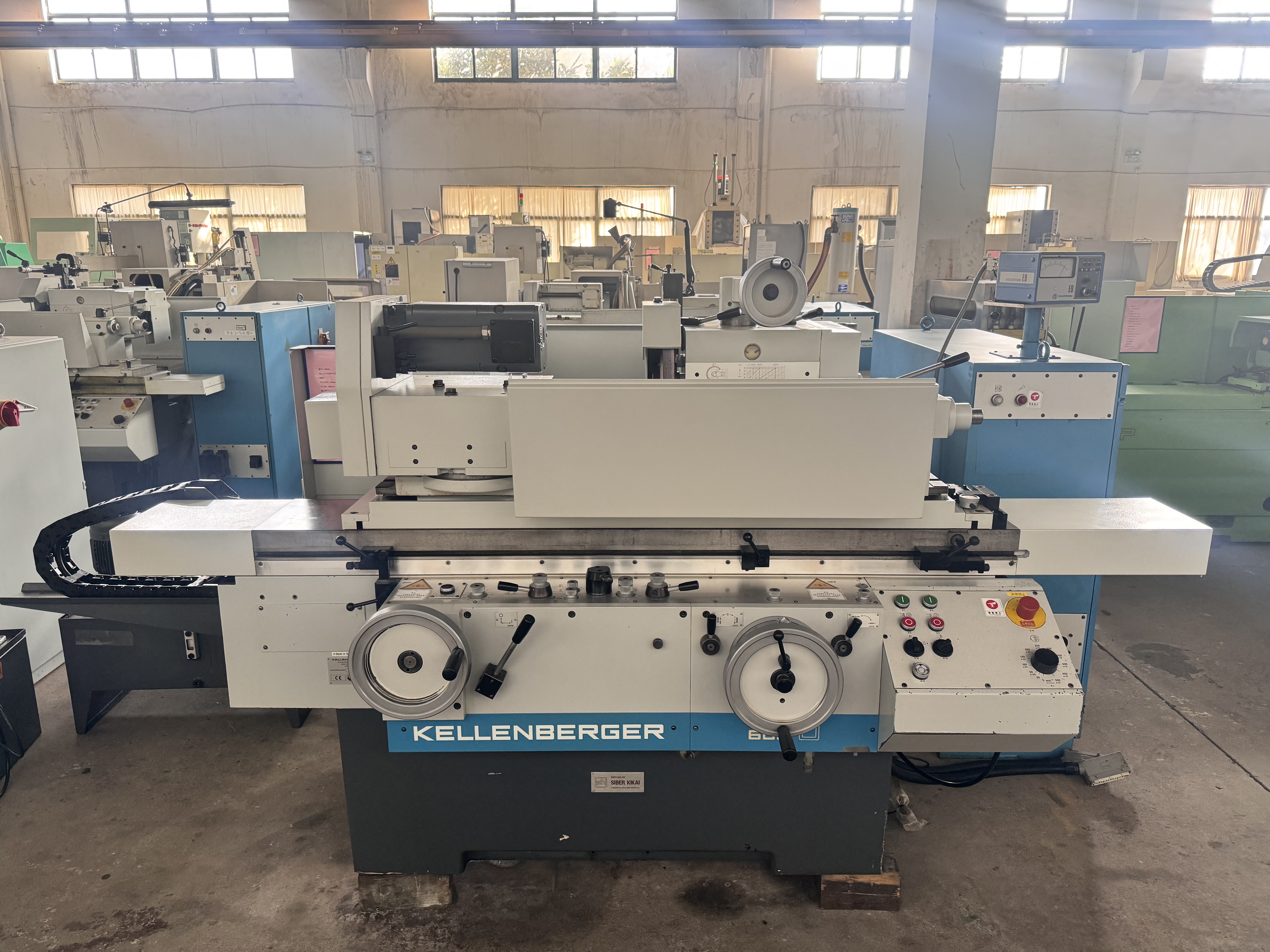

Swiss Kellenberger Internal and External Cylindrical Grinding Machine
No.: 00541
Okamoto CNC Surface Grinding Machine (Japan)
PSG106CA-iQ
Table dimensions: 1016 × 600 mm
Maximum travel: 1200 × 652 mm
Distance from table to grinding wheel: -2.5 to 497.5 mm
Maximum workpiece weight: 1500 kg
Grinding wheel dimensions: 405 × 50 × 127 mm
Speed: 500–2500 rpm
Voltage: Three-phase 200 V
Total power: 18 kVA
Machine weight: 7500 kg
Machine dimensions: 4478 × 4052 × 2275 mm
Product specifications are subject to the actual machine.
- Category：KELLENBERGER
- Share：
- Inquiry
- Details
No.: 00542
Klingelnberg (Switzerland) Internal and External Cylindrical Grinding Machine
600U
Centre height: 125 mm
Centre distance: 600 mm
Maximum grinding length: 600 mm
Grinding diameter: 250 mm
Maximum workpiece weight: 150 kg
Rotation range: -30°, +120°
Workpiece spindle speed: 6–600 rpm
External grinding wheel: 400 × 50 × 127 mm
Right-hand spindle grinding wheel: 300 × 40 × 127 mm
Grinding wheel rotation range: -180°, +90°
Internal grinding spindle speed: 40,000 rpm
Worktable rotation angle: -1°, 10°
Tailstock taper: Morse 4
Spindle taper: Morse 5
Machine weight: 3,300 kg
Product specifications are subject to the actual machine.
