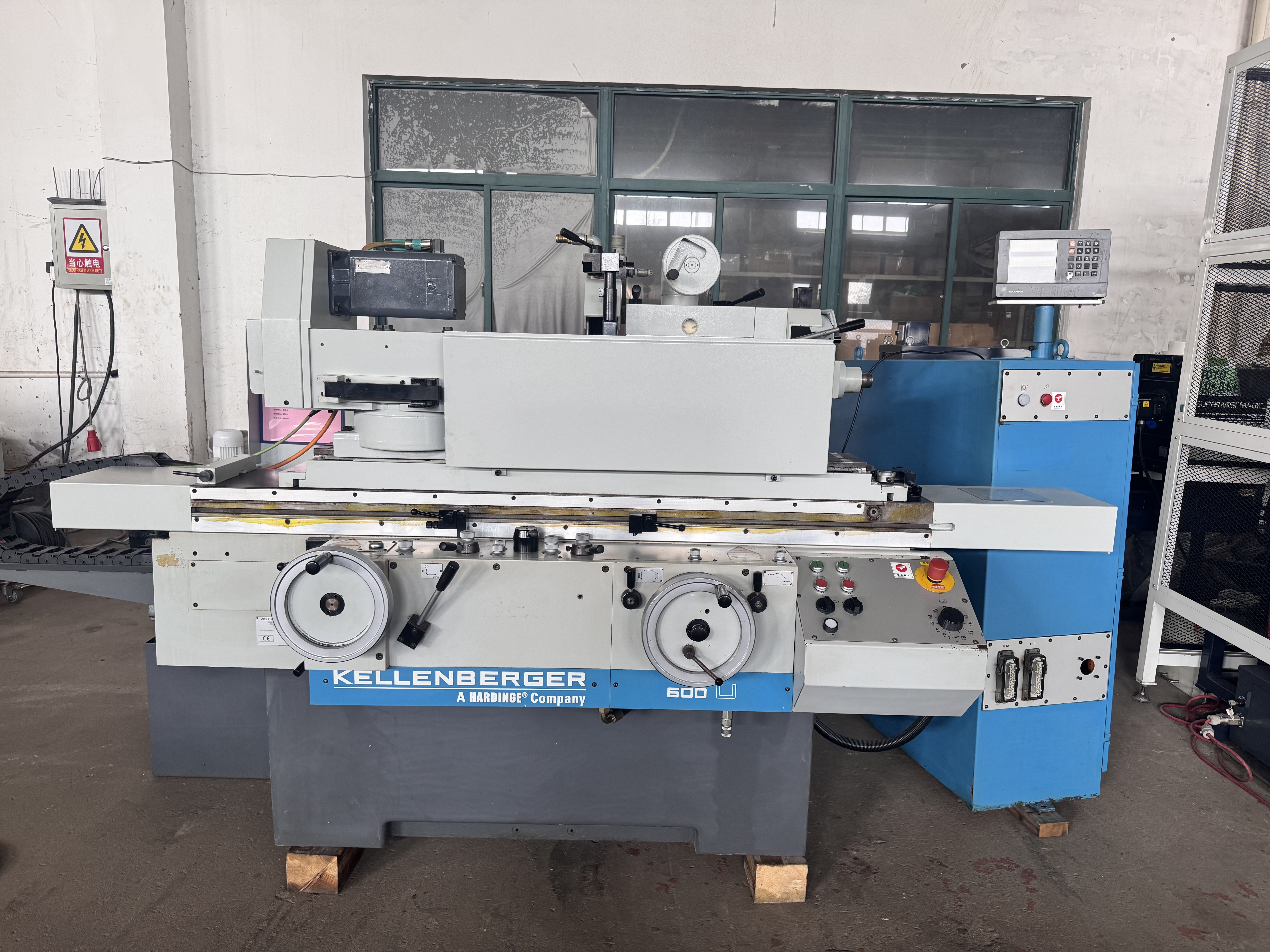

Swiss Klingelnberg Internal and External Cylindrical Grinding Machine
Serial No.: 00543
Kellenberger Internal and External Cylindrical Grinding Machine, Switzerland
600U
Center Height: 175mm
Center Distance: 600mm
Max Grinding Length: 600mm
Grinding Diameter: 350mm
Max Workpiece Weight: 150KG
Rotation Range: -30°, +120°
Workpiece Spindle Speed: 6-600min⁻¹
External Grinding Wheel: 400*50*127mm
Right-end Spindle Grinding Wheel: 300*40*127mm
Grinding Wheel Rotation Range: -180°, +90°
Table Rotation Angle: -1°, 10°
Tailstock Taper Bore: Morse 4
Spindle Taper Bore: Morse 5
Machine Weight: 3300KG
Product parameters shall be subject to the actual machine.
- Category：KELLENBERGER
- Share：
- Inquiry
- Details
Serial No.: 00543
Kellenberger Internal and External Cylindrical Grinding Machine, Switzerland
600U
Center Height: 175mm
Center Distance: 600mm
Max Grinding Length: 600mm
Grinding Diameter: 350mm
Max Workpiece Weight: 150KG
Rotation Range: -30°, +120°
Workpiece Spindle Speed: 6-600min⁻¹
External Grinding Wheel: 400*50*127mm
Right-end Spindle Grinding Wheel: 300*40*127mm
Grinding Wheel Rotation Range: -180°, +90°
Table Rotation Angle: -1°, 10°
Tailstock Taper Bore: Morse 4
Spindle Taper Bore: Morse 5
Machine Weight: 3300KG
Product parameters shall be subject to the actual machine.
