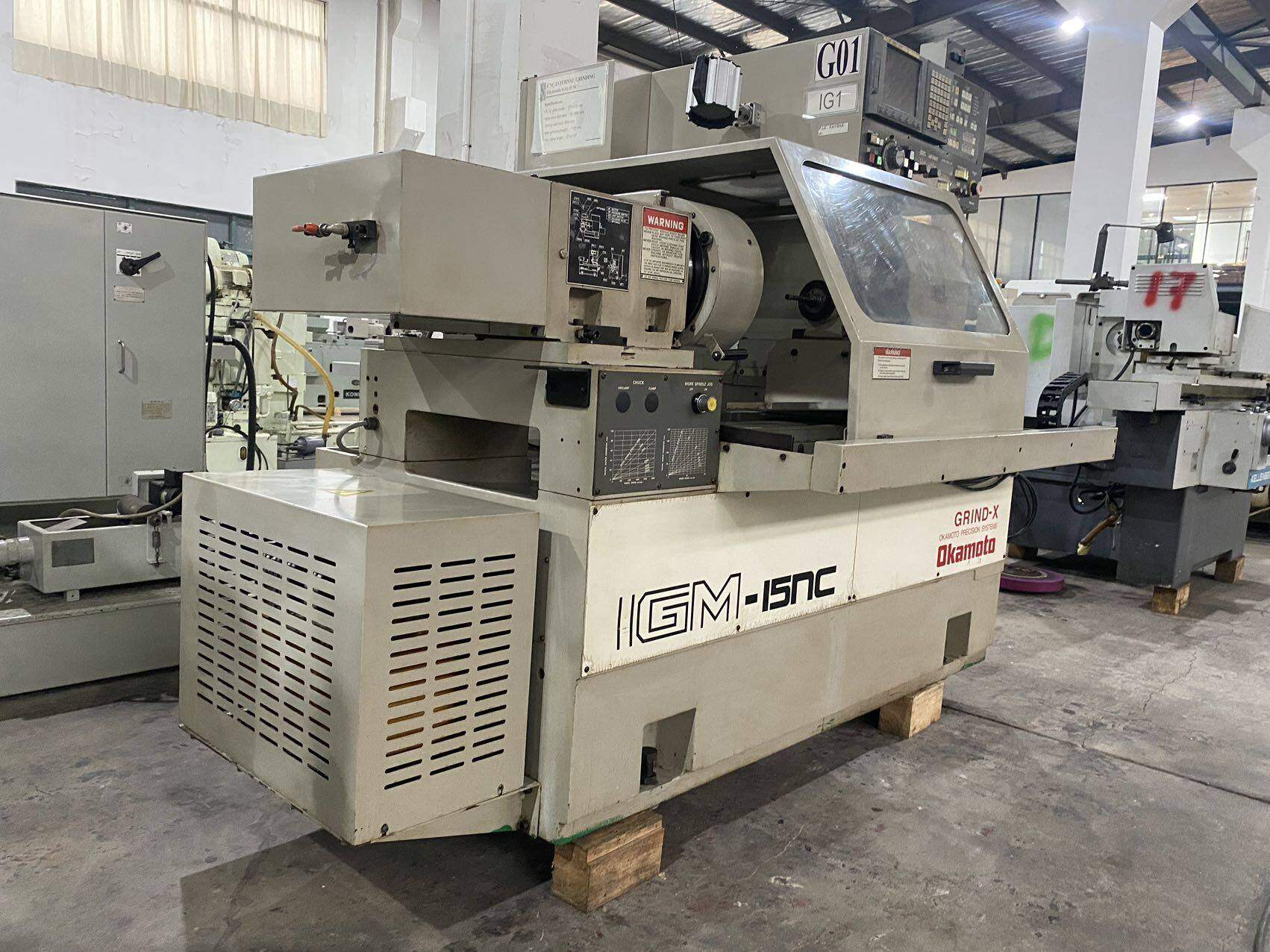

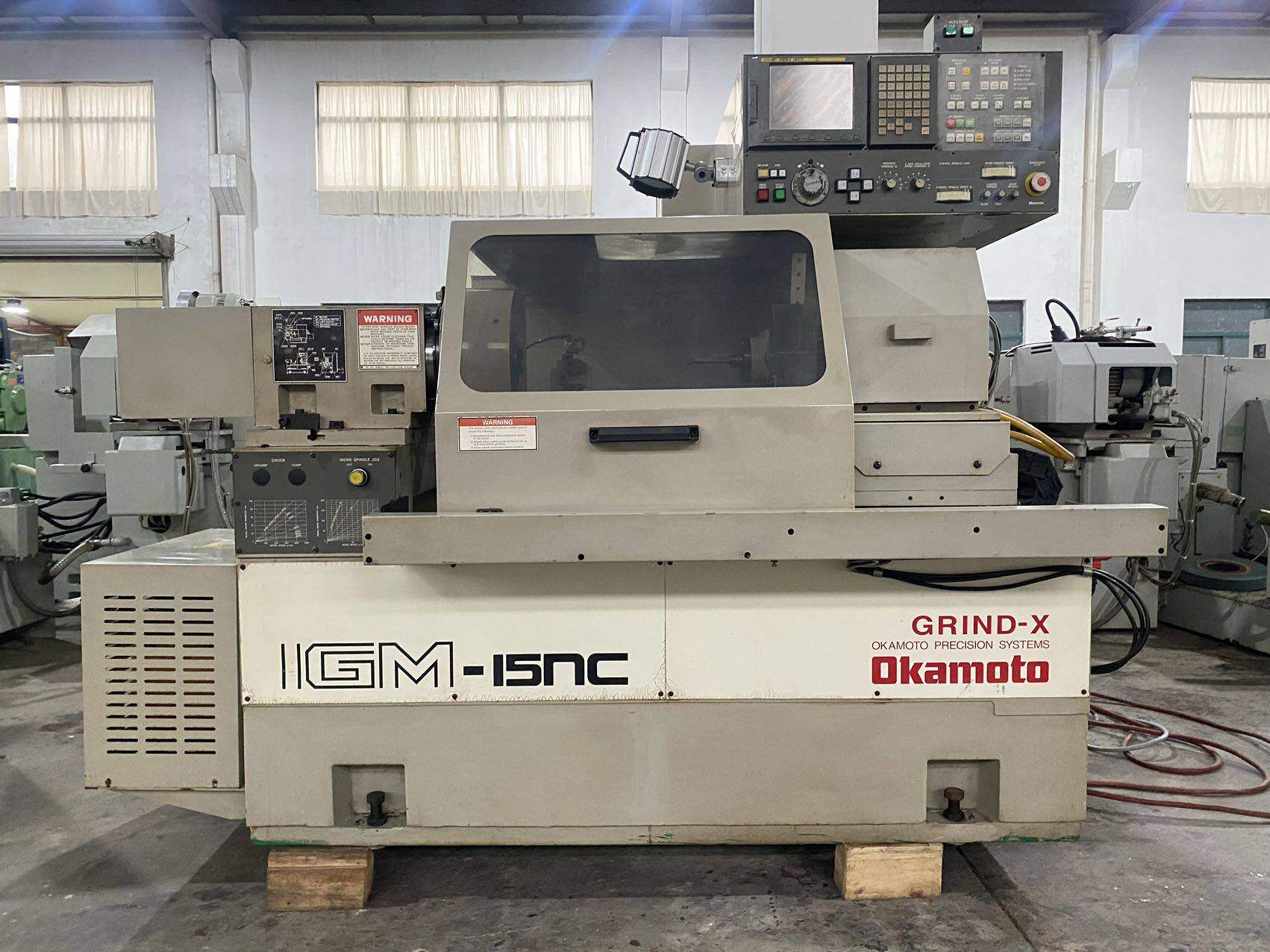

Okamoto Internal Grinding Machine (Japan)
No.: 00360
Okamoto (Japan) Internal Grinding Machine
IGM-15NC
Table grinding inner diameter: 6–150 mm
Table grinding length: 125 mm
Spindle head rotation angle: -5°, 15°
Spindle Taper: Morse Taper No. 6
Grinding Wheel Spindle Speed: 20,000 rpm
Workpiece Spindle Speed: 100–850 rpm
Through-hole Diameter: 50 mm
Machine Weight: 2,300 kg
Voltage: Three-phase 380 V
Product specifications are subject to the actual machine.
- Category：Okamoto
- Share：
- Inquiry
- Details
No.: 00360
Okamoto (Japan) Internal Grinding Machine
IGM-15NC
Table grinding inner diameter: 6–150 mm
Table grinding length: 125 mm
Spindle head rotation angle: -5°, 15°
Spindle Taper: Morse Taper No. 6
Grinding Wheel Spindle Speed: 20,000 rpm
Workpiece Spindle Speed: 100–850 rpm
Through-hole Diameter: 50 mm
Machine Weight: 2,300 kg
Voltage: Three-phase 380 V
Product specifications are subject to the actual machine.
