Japan Sun Machinery Vertical Grinding Machine
No.: 00556

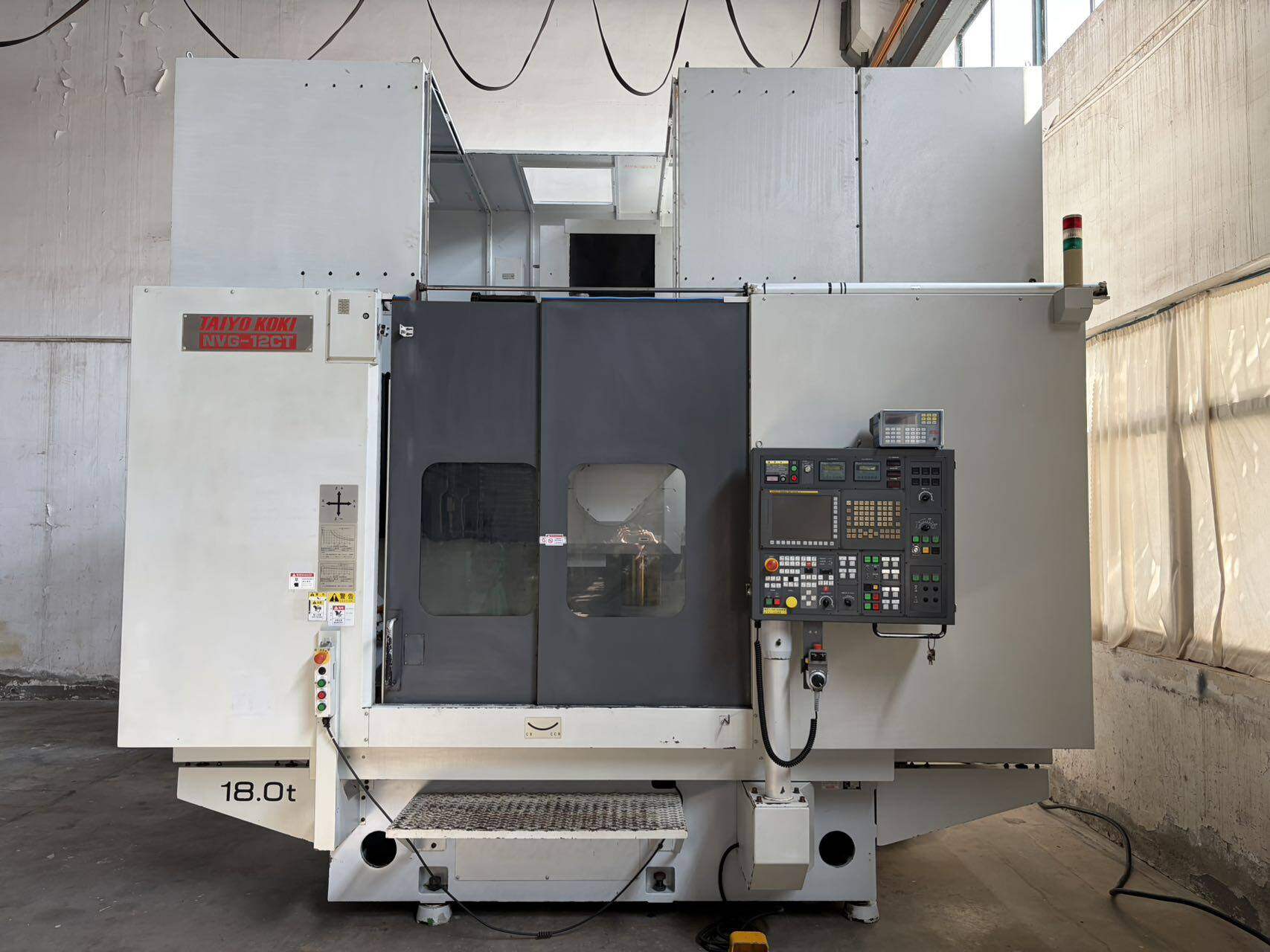

TAIYO KOKI Vertical Grinding Machine

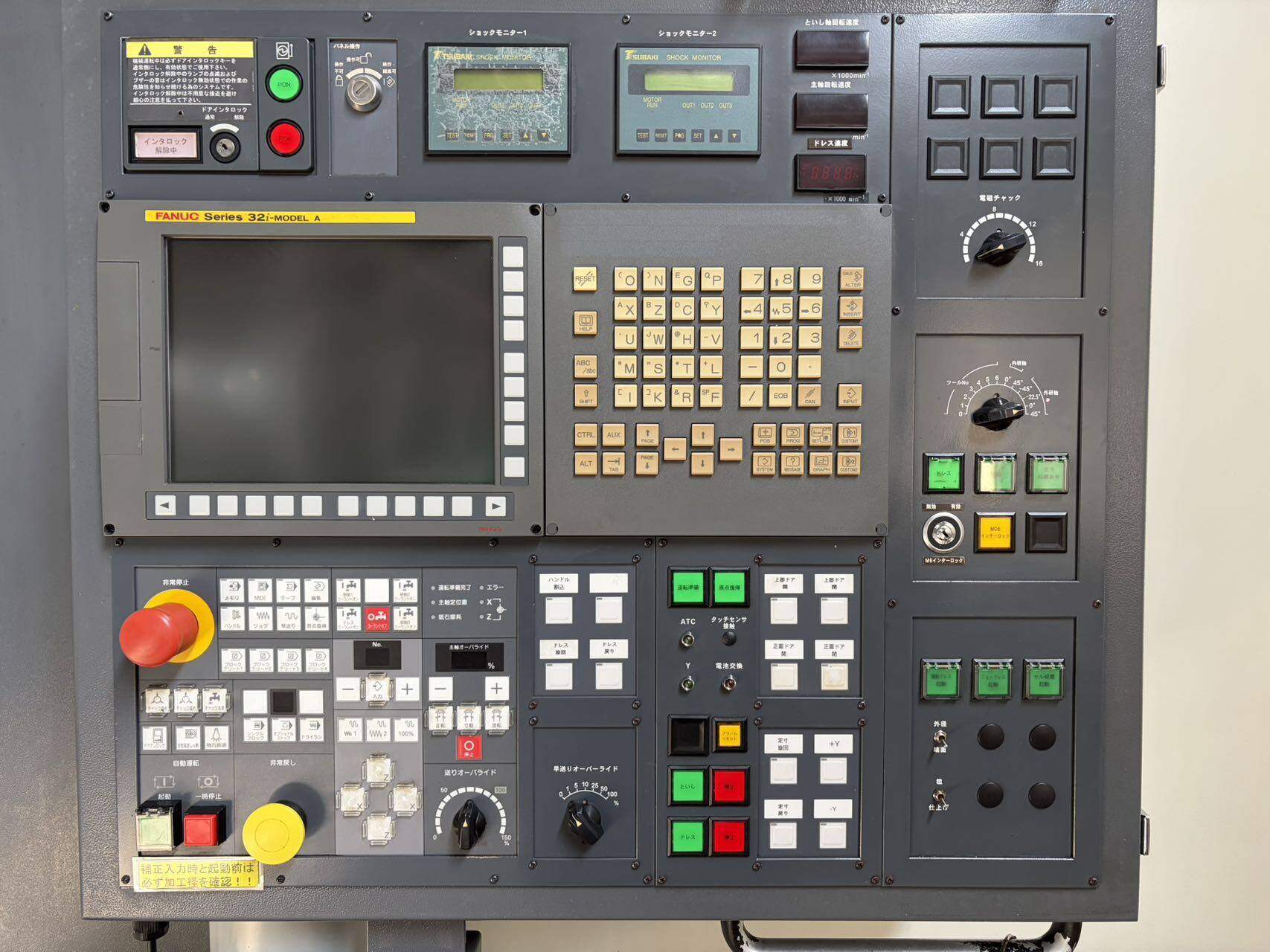

NVG-12CT (FAUNC 32i-MODEL-A)
B-axis continuous indexing with 0.0001° positioning accuracy, with in-process measurement
Grindable bore diameter: (45) to Φ1200 mm
Grindable outer diameter range: Max. Φ1200 mm
Maximum grindable length (OD): 500 mm
Spindle diameter: Φ1250 mm
Maximum workpiece height: 600 mm
Spindle table load capacity: 2500 kg
Distance from spindle table top to grinding wheel spindle end: 1050 mm
Internal grinding wheel spindle (with tool magazine: 6 tools)
Taper: BT50
Internal grinding spindle speed: 2500–10000 rpm
Grinding wheels used: Φ40–Φ250 mm
External grinding spindle
Grinding wheels used: 355 mm × 38 mm × 127 mm
External grinding spindle speed: 2400–3000 rpm
Feed rate: 0–24000 mm/min
Voltage: Three-phase 200 V
Total power: 45 kVA
Machine weight: 18,000 kg
Machine dimensions: 3,810 × 4,300 × 3,600 mm
Product specifications are subject to the actual machine.
