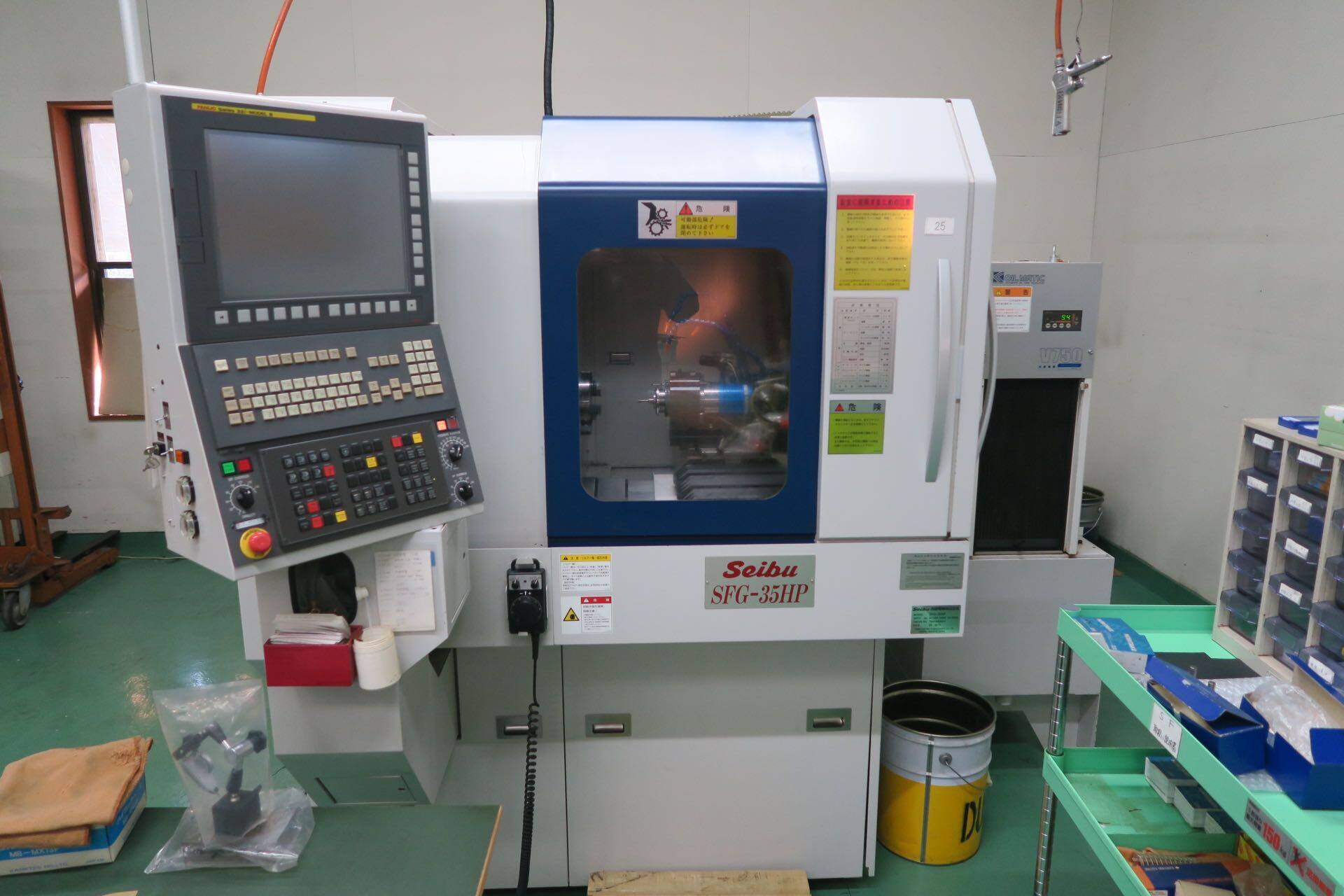

Western Japan Internal and External Cylindrical Grinder
No.: 00570
Western Internal and External Cylindrical Grinding Machine
SFG-35HP
Standard chuck: 6 inches
Maximum workpiece dimensions ※1: φ150 × L150 ※2
Maximum travel of X and Z axes: 350 × 220 mm
Rapid traverse speed (X and Z axes): 4000 mm/min
Minimum setting increment (X-axis diameter): 0.01 μm
Scale resolution (X, Z axes): 0.01 μm
Distance from slide top to centre height: 105 mm
Maximum spindle speed: 3000 rpm
Spindle bore diameter: φ32 mm
Spindle drive: Belt drive
Height from bed to spindle centre: 1100 mm
Overall dimensions: 1690 × 1980 × 1776 mm
Machine weight (including control unit): 2500 kg
Grinding wheel dressing unit: 2-axis (horizontal type, mounted on Z-axis) – optional
Motor type: Servo motor
Maximum speed: 5000 rpm
Grinding wheel size: φ10 mm
Maximum grinding wheel spindles: 2 (with eccentric ring core height adjustment mechanism)
Horizontal 2-axis (±15° manual rotation)
Type 1 (rpm): 25,000 (2.0 kW) / 60,000 (1.4 kW)
Type 2 (optional) (rpm): 30,000 (4.6 kW) / 80,000 (0.9 kW)
Maximum grinding wheel size: Low-speed rotation φ16 / High-speed rotation φ6

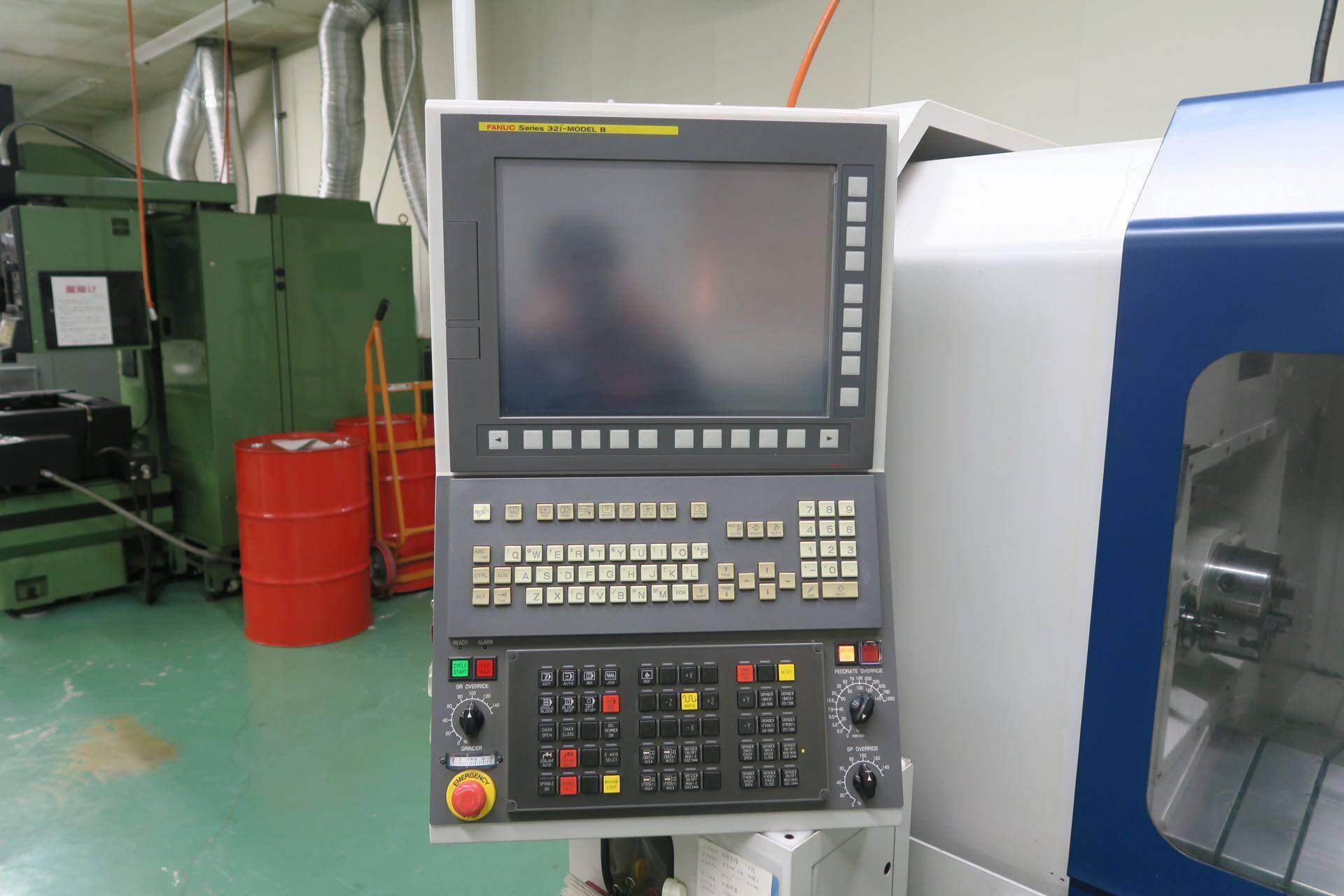

NC unit: FANUC 32i
Number of controlled axes: 2 axes simultaneously (X, Z axes) + 1 axis (C axis)
Product specifications are subject to the actual machine.
