Okamoto Internal and External Cylindrical Grinding Machines (Japan)
- Category：Okamoto
- Share：
- Inquiry
- Details
Model No.: 00246

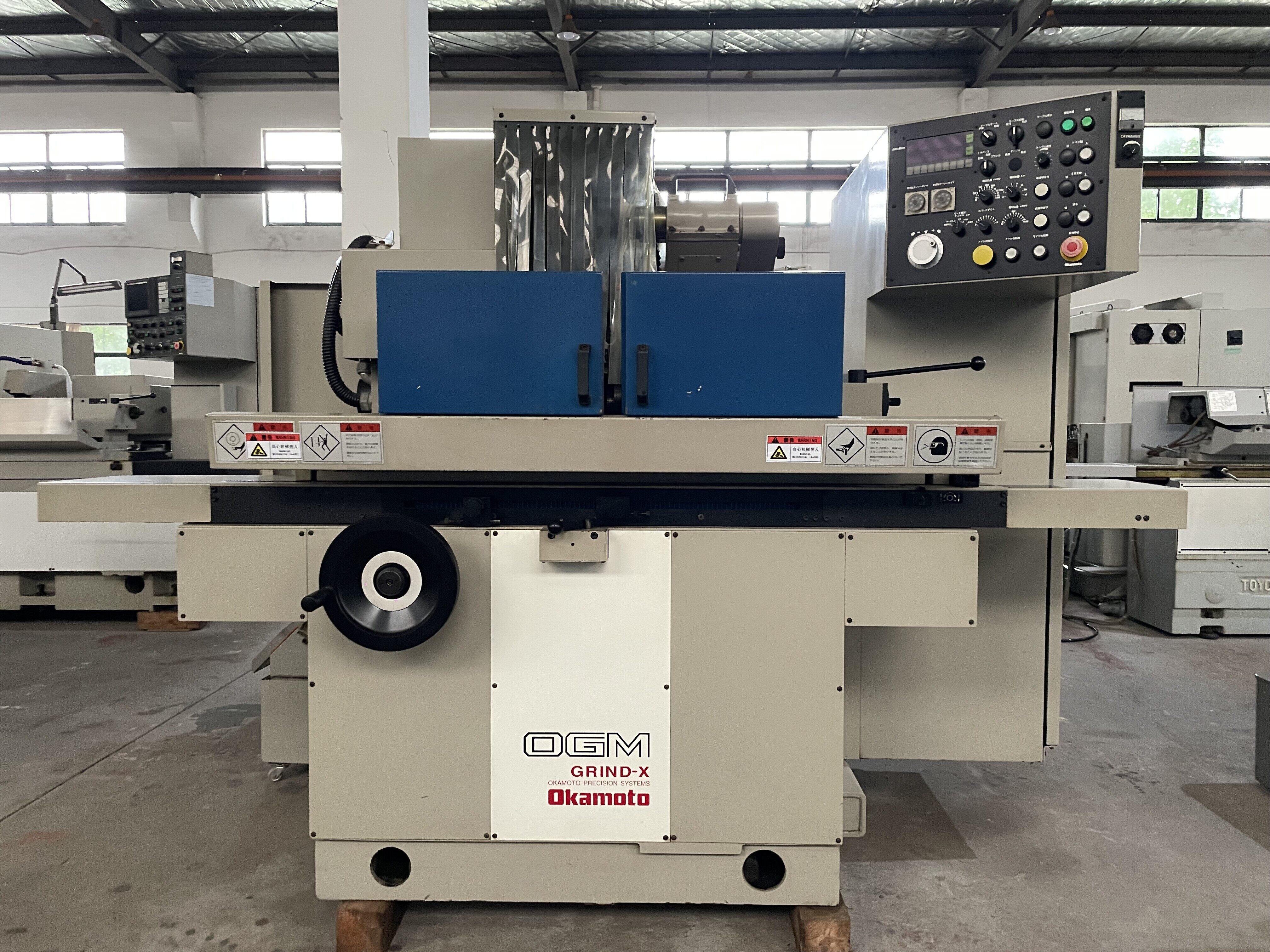

Okamoto Internal and External Cylindrical Grinding Machine
OGM-250UDXB
Table Rotation Diameter: 220 mm
Table Grinding Length: 500 mm
Table Rotation Angle: -4°, +9°
Grinding Wheel Spindle Rotation Angle: ±30°
Grinding Wheel Dimensions: 305 × 25 × 127 mm
Workpiece Headstock Angle Options: 30°, 90°
Spindle and Tailstock Taper: Morse Taper No. 3
Machine Weight: 1900 kg
Voltage: 3-phase 200 V
Total Power: 10 kVA
Product specifications are subject to the actual machine.
